Dual-Band 2.4 + 5 GHz Link
Both bands give operators extra flexibility where 2.4 GHz is crowded, such as near villages, towers or other drones.
SIYI UniRC 7 Pro Handheld Ground Station
The SIYI UniRC 7 Pro is a dual-band 2.4 GHz and 5.8 GHz handheld ground station for professional UAV, UGV, USV and robotics systems. It combines drone control, live video, Android-based ground-control apps, HDMI/LAN output and a 7-inch 1600-nit touchscreen in an IP54-rated platform. Sold in India by Bharat Skytech with a GST invoice and technical support. See all SIYI products.
SIYI UniRC 7 Pro Price in India
₹88,000Why Choose the SIYI UniRC 7 Pro
Control, live video, telemetry and integration interfaces in one handheld. Built for agri-drone OEMs, spray operators and industrial integrators.
The UniRC 7 Pro is a professional handheld ground station for drones, vehicles, boats and robotics.
It's not just a controller. It runs your ground-control app on Android 13, streams 4K video, and connects to your flight controller, camera and field monitor through one Pro air unit.
ANDROID 13 · 8-CORE · 4 GB / 64 GB · 4K30
Pro Air Unit Interfaces
Control, telemetry and a networked camera over one link, subject to compatibility testing for your build.
1600-nit Outdoor Display
A 7-inch 1920 × 1200 touchscreen you can read in bright Indian field conditions.
Quick-Release Battery
~8 h
13,400 mAh rated for about eight hours; 30 W PD recharge in about 4.5 hours. Plan a spare for long spraying shifts.
Frequency
2.4 + 5.8 GHz
2.400–2.476 / 5.725–5.829 GHz
Video
4K30 / 1080p60 ×2
Up to 65 Mbps · ~170 ms latency
Protection
IP54
Dust & splash resistant, not waterproof
Ground I/O
HDMI · LAN
USB-A · Type-C · SIM · TF · Wi-Fi 5 · BT 5.0
SIYI UniRC 7 Pro Use Cases Applications
Agriculture drone manufacturers
Standardise one ground station across your spray-drone line with S.Bus/PWM control, UART telemetry and LAN for payloads.
- Pro air unit accepts 12–76 V directly
- Android 13 runs your ground-control app
- Formal GST quotation for production volumes
Spray-drone operators
A 1600-nit screen for midday sun, a quick-release battery for long field days, and a realistic 3–6 km planning range at spraying altitude.
- IP54 dust and splash resistance
- Approx. 8 h rated runtime
- Dual-operator modes listed by SIYI
Industrial UAV & robotics integrators
Survey, inspection, UGV and USV builds that need HDMI output, networked payloads over LAN, and MAVLink-based ground control.
- 2 × UART, 2 × LAN on the air unit
- QGroundControl & MissionPlanner compatible
- HDMI out to field monitors or recorders
SIYI UniRC 7 Pro Real-World Range
The UniRC 7 Pro is often marketed at 40 km. For agriculture and industrial operations, plan around your real environment.
3–6 km
Approximate range at agricultural spraying altitude (3–6 m). Plan with this figure.
SIYI lists 10–15 km at 120 m in rural areas with few obstructions, and 30–40 km at 150 m above sea in clear, low-interference conditions.
Terrain, crop height, antennas and interference all change what you get.
010 km20 km30 km40 km
Source: SIYI UniRC 7 Pro specifications. Figures are approximate.
What changes your actual range
- Flight altitude and line of sight
- Terrain, crop height, trees and buildings
- Interference and crowded 2.4 GHz channels
- Antenna orientation and placement
- Installation quality, cabling and power
- Local regulations on distance and VLOS
Spraying drones fly low. Test the link in your own fields before committing a fleet.
SIYI UniRC 7 Pro Key Features
Seven reasons the UniRC 7 Pro works in real agri and industrial operations.
Every figure comes from SIYI's manufacturer documentation, reviewed 23 September 2026. Tap any image to open it at full resolution.
Check Compatibility

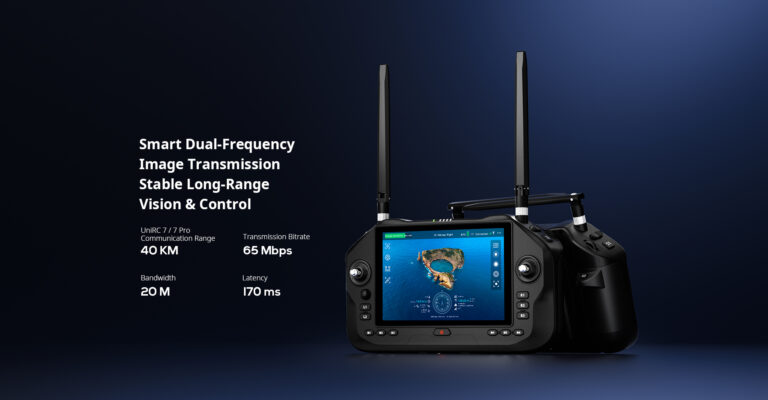

Dual-band 2.4 GHz and 5 GHz communication
The Pro uses both bands, giving operators extra flexibility where 2.4 GHz activity is crowded. Channel selection and real-world reliability still depend on the RF environment and installation quality.
2.400–2.476 GHz5.725–5.829 GHz65 MbpsAES

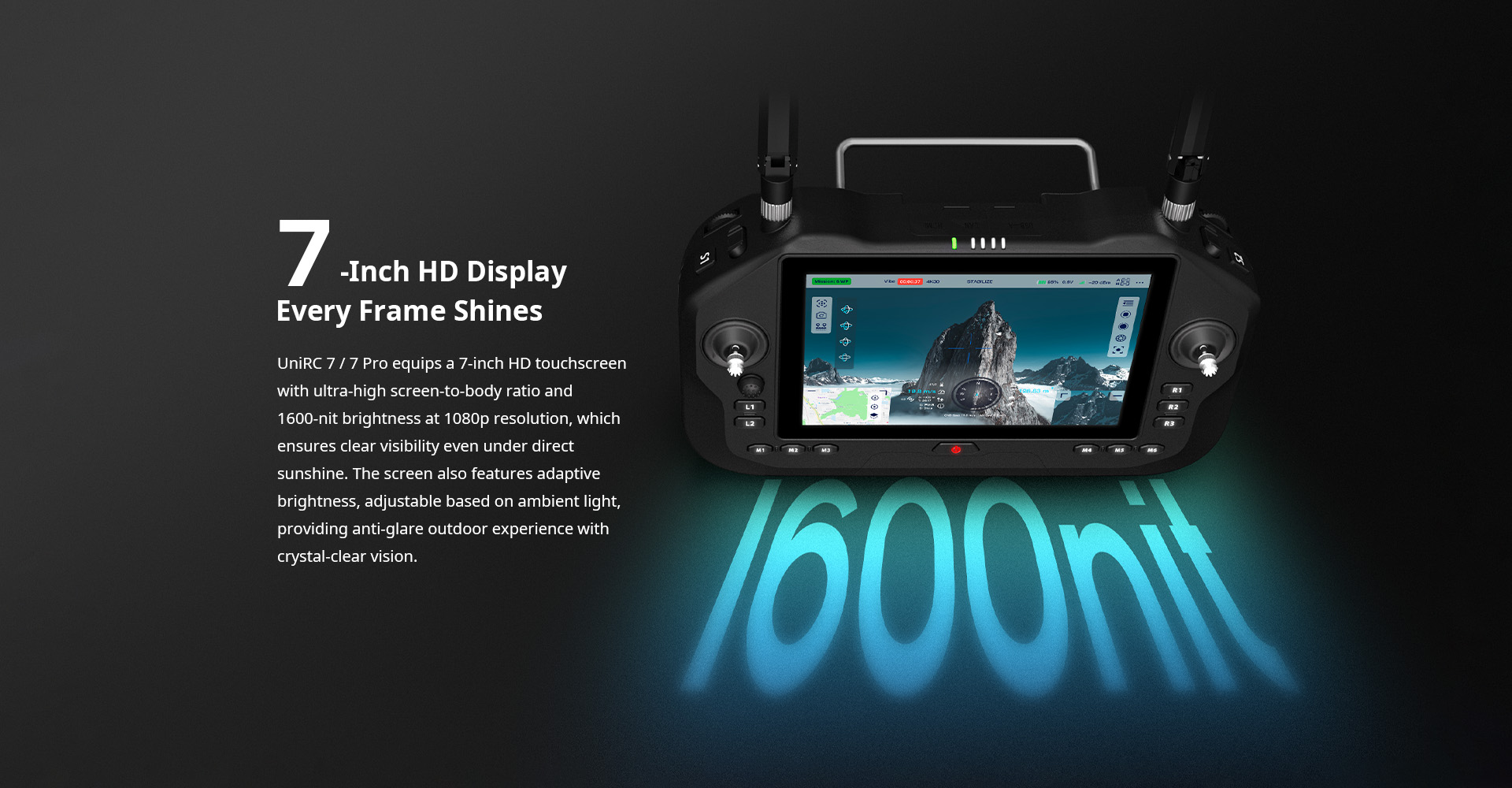

1600-nit outdoor-readable display
A 7-inch, 1920 × 1200 touchscreen at 1600 nits helps operators read telemetry, live video, maps and ground-control apps in bright sunlight.
7″ 1920 × 12001600 nits

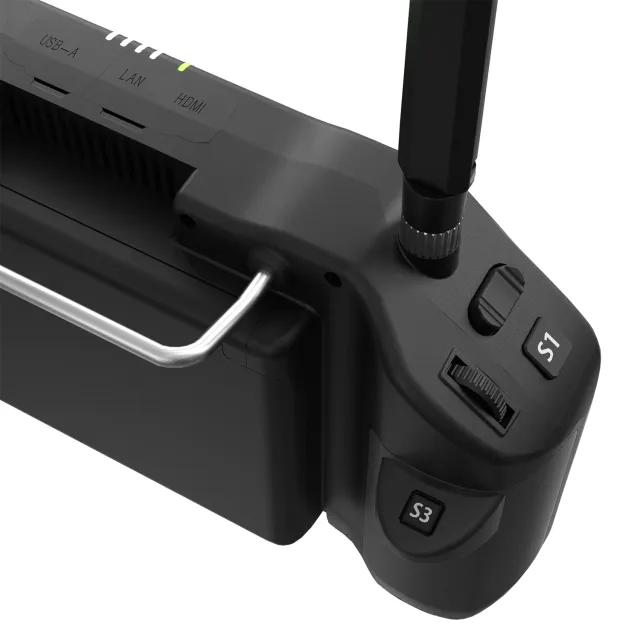

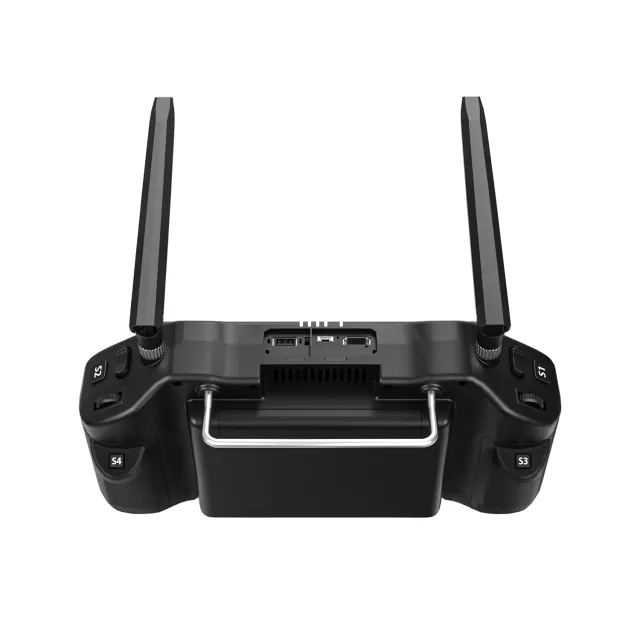

HDMI, LAN and hands-on controls
HDMI output and LAN networking support external monitors, laptops, recorders and field-control stations when the built-in display is not enough.

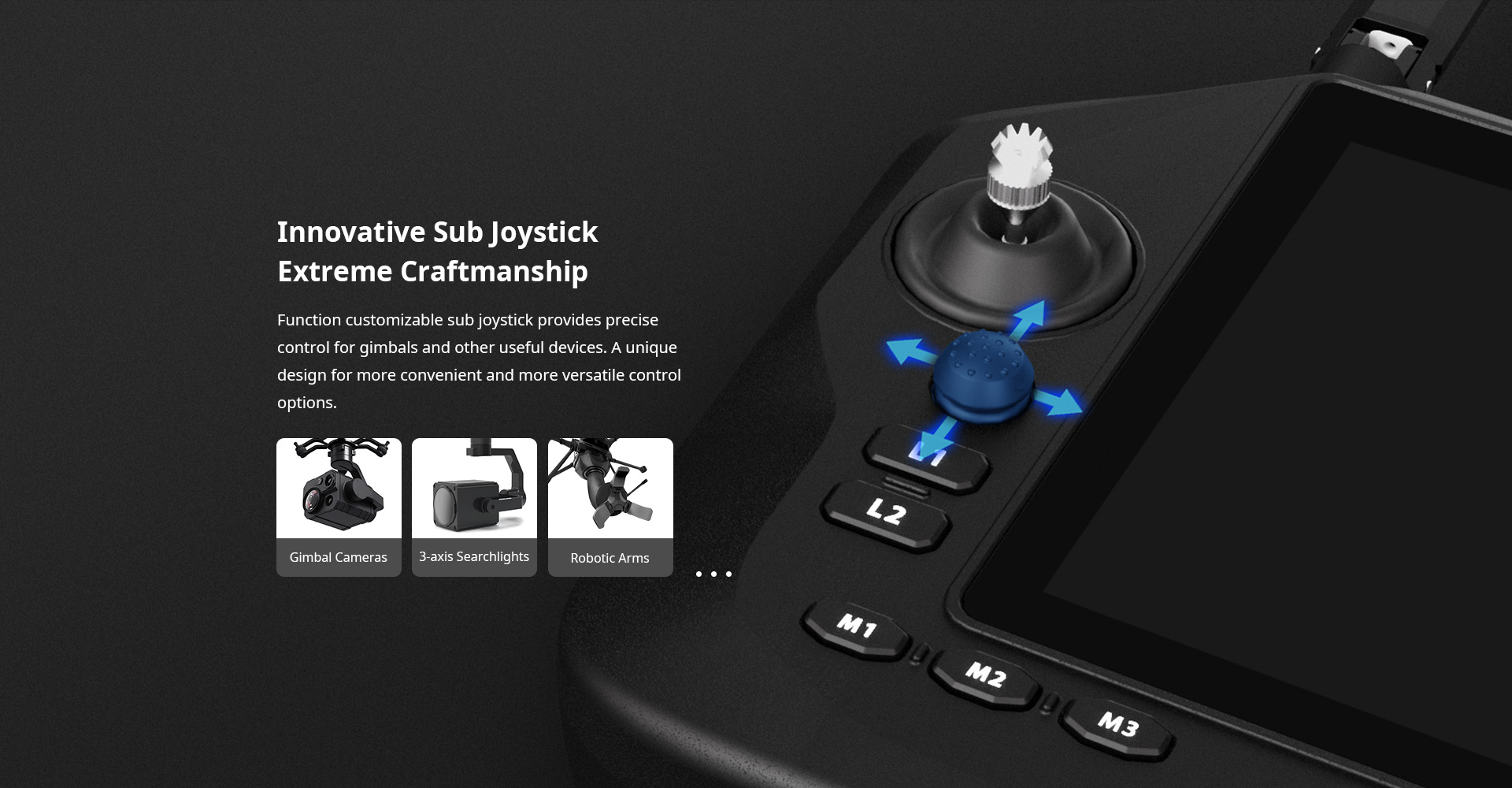

A customisable sub-joystick and six flight-mode buttons put gimbal and payload control under your thumbs.
HDMI outLAN · GH1.25 4-pinAndroid 13

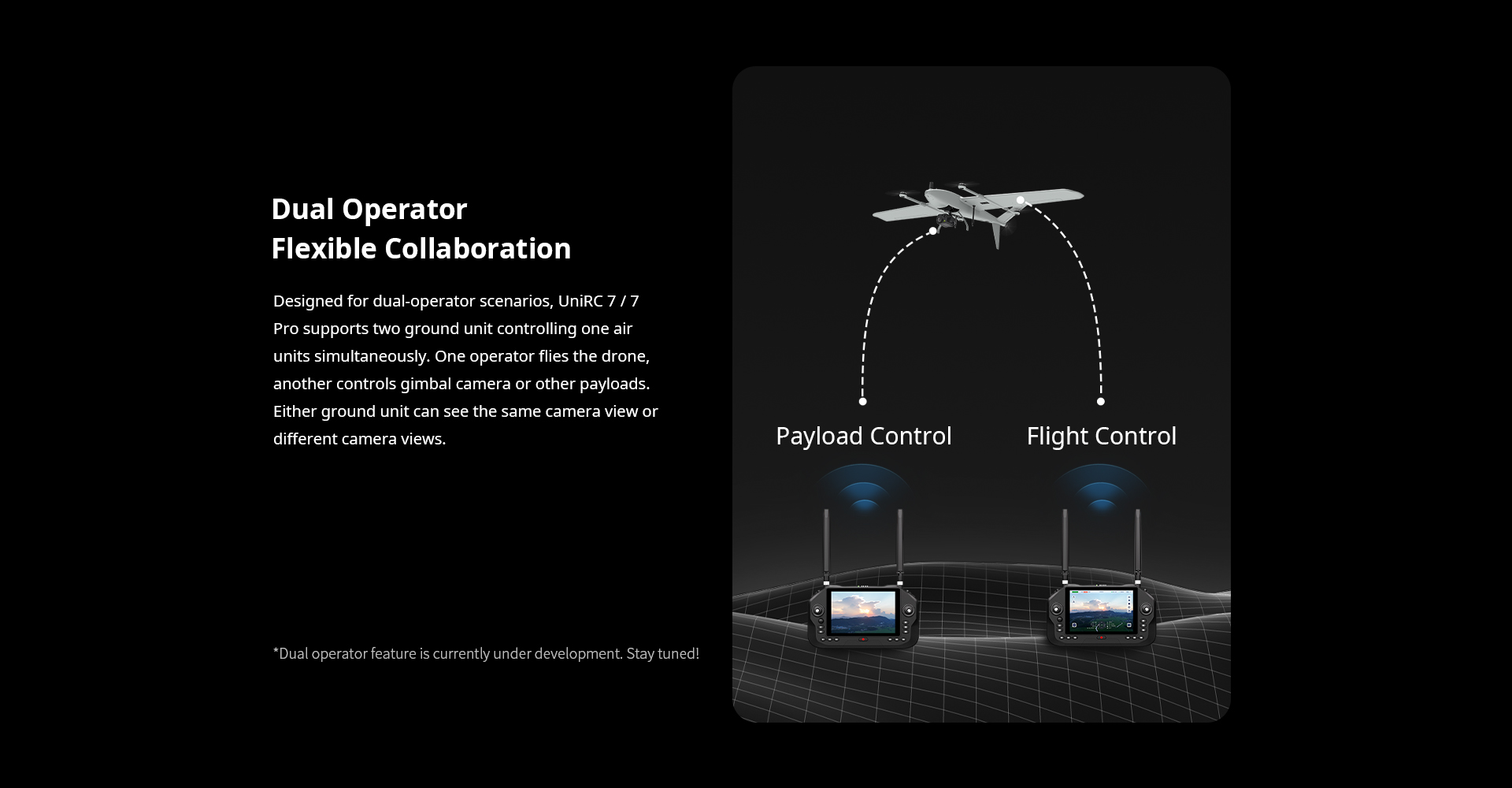

Air-unit interfaces and dual-operator workflows
16-channel S.Bus, five PWM channels, dual UART, dual LAN and 12–76 V XT30 power: control, telemetry and a networked camera over one link. SIYI lists dual-control, remote-relay and wireless-relay modes.
SIYI notes the dual-operator feature is still under development. Confirm the current status with us before buying for this workflow.
S.Bus 16 chPWM 5 ch2 × UART2 × LAN

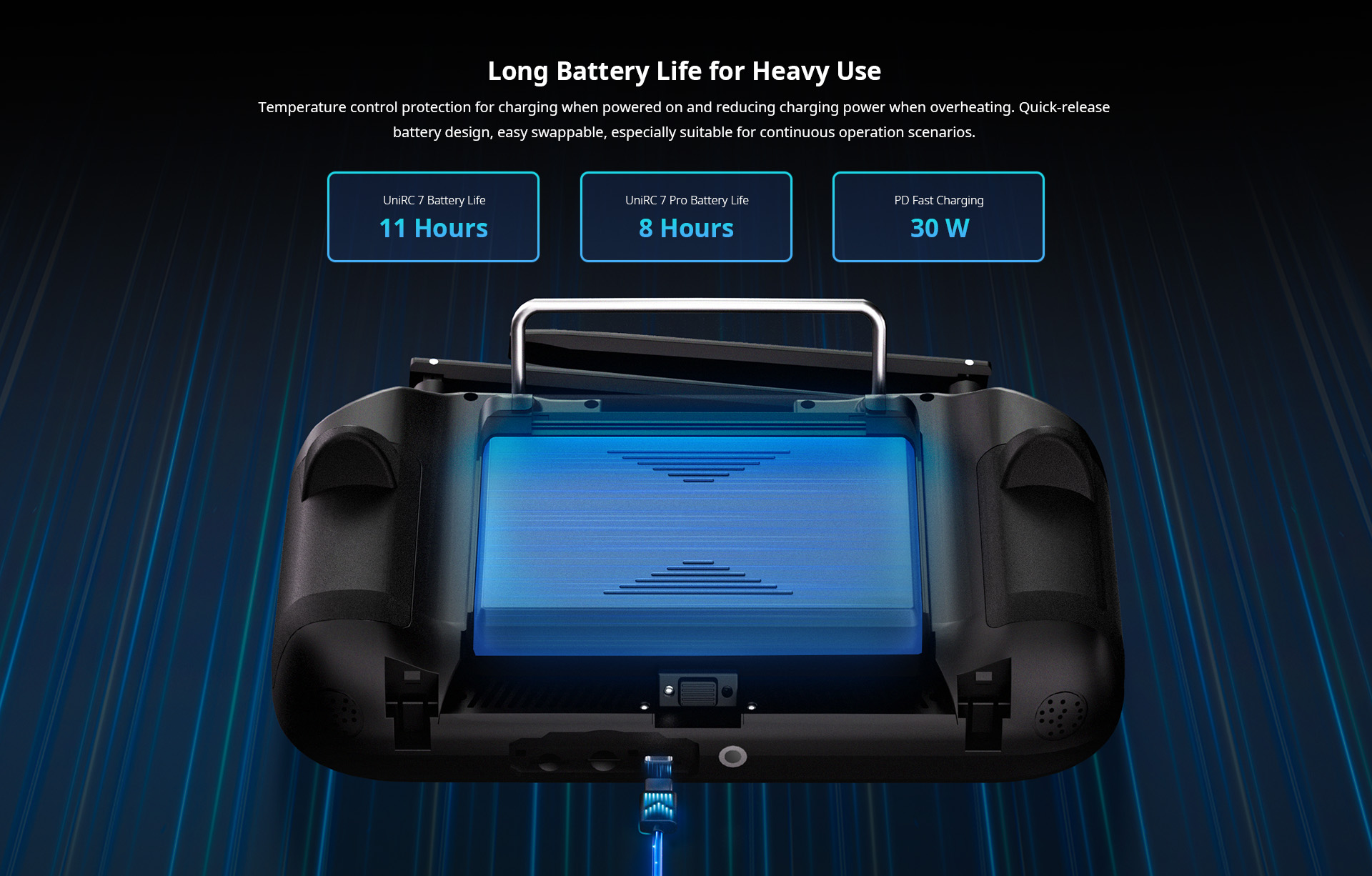

Quick-release battery for extended field operations
The 13,400 mAh battery is rated for approximately eight hours on the Pro and recharges over 30 W PD in about 4.5 hours.
13,400 mAh~8 h (Pro)30 W PD · ~4.5 h

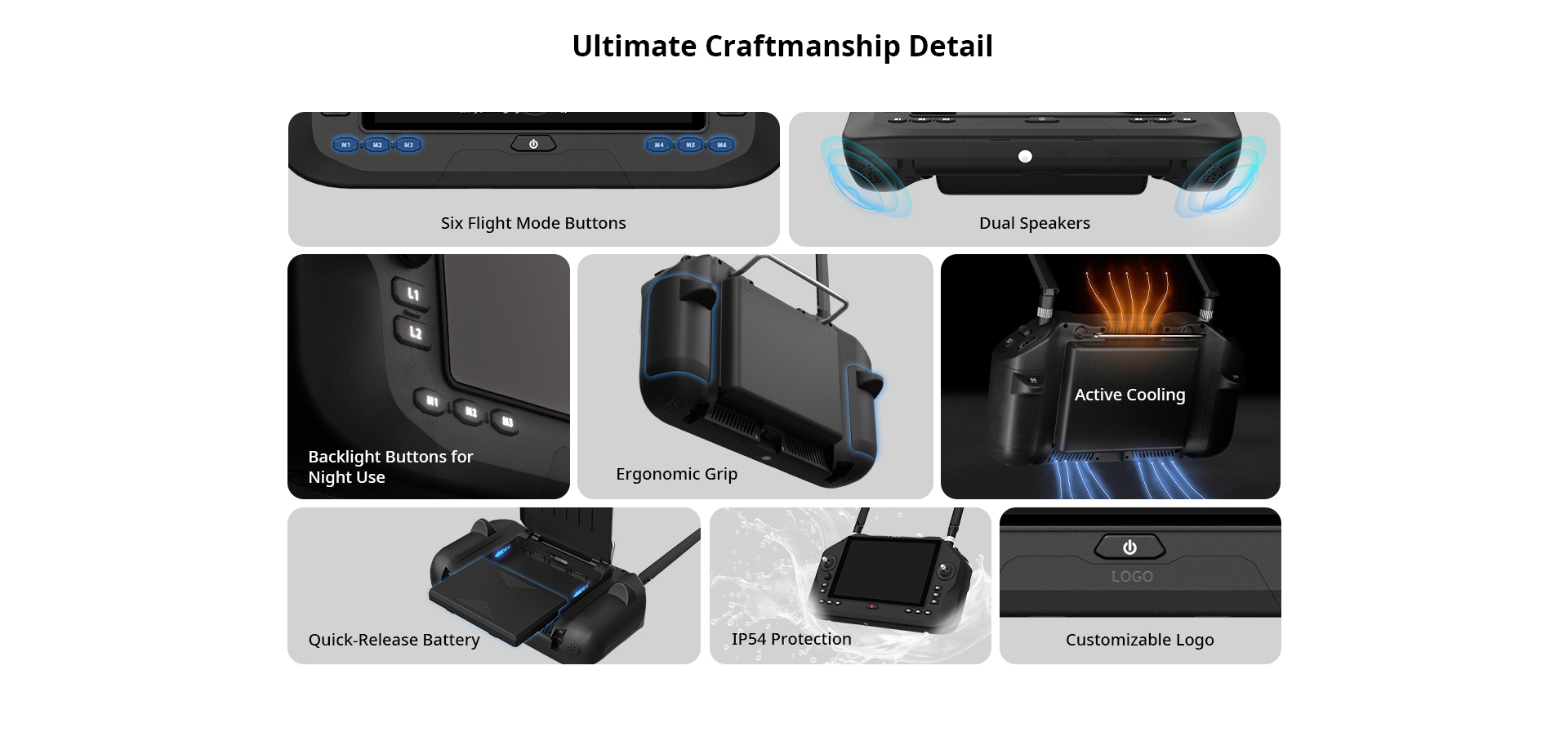

Built for long days in the field
Backlit keys for early-morning and night spraying, dual speakers that carry alerts over rotor noise, an ergonomic grip, and active cooling that keeps the processor steady in summer heat.
6 flight-mode buttonsBacklit keysDual speakersActive cooling
Belly bracket and four-antenna design
The quick-release belly bracket clips to a shoulder strap, freeing your hands for sticks and screen. The Pro ground station has two internal 5 GHz and two external 2.4 GHz antennas; mount the air-unit antennas clear of carbon frames, props and spray booms.
Belly bracket2 × 5 GHz MMCX2 × 2.4 GHz IPEX

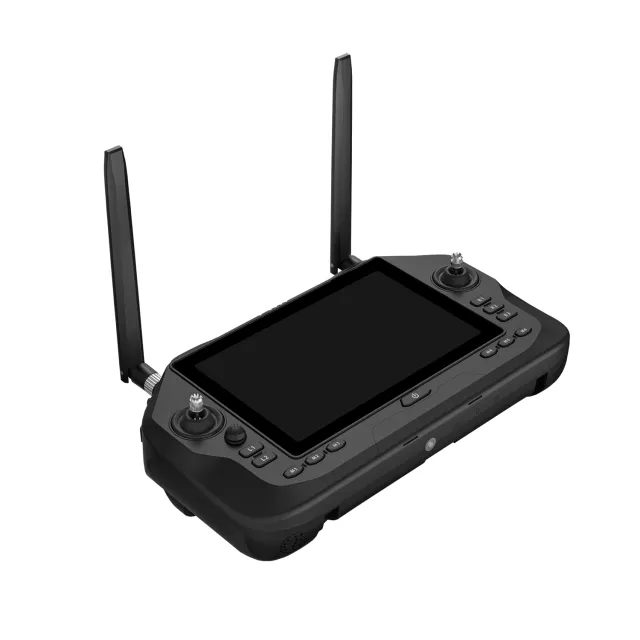

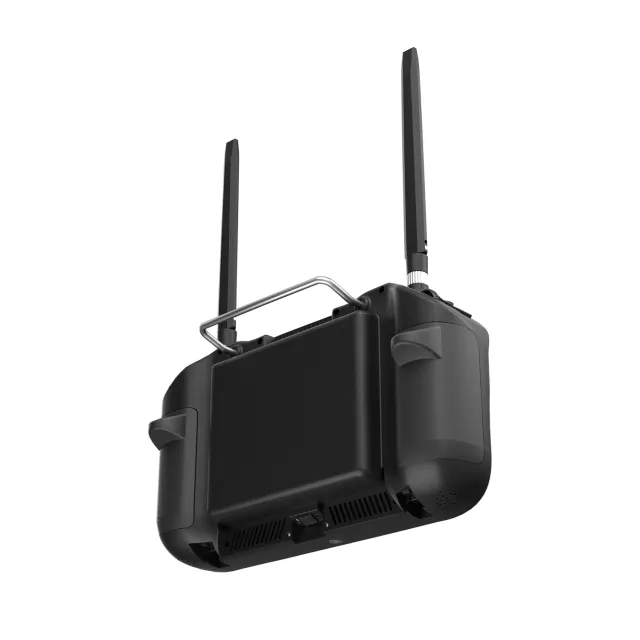

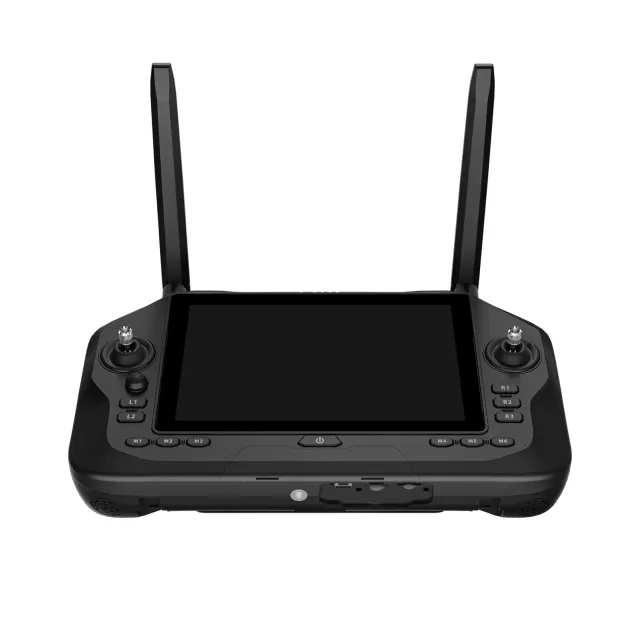

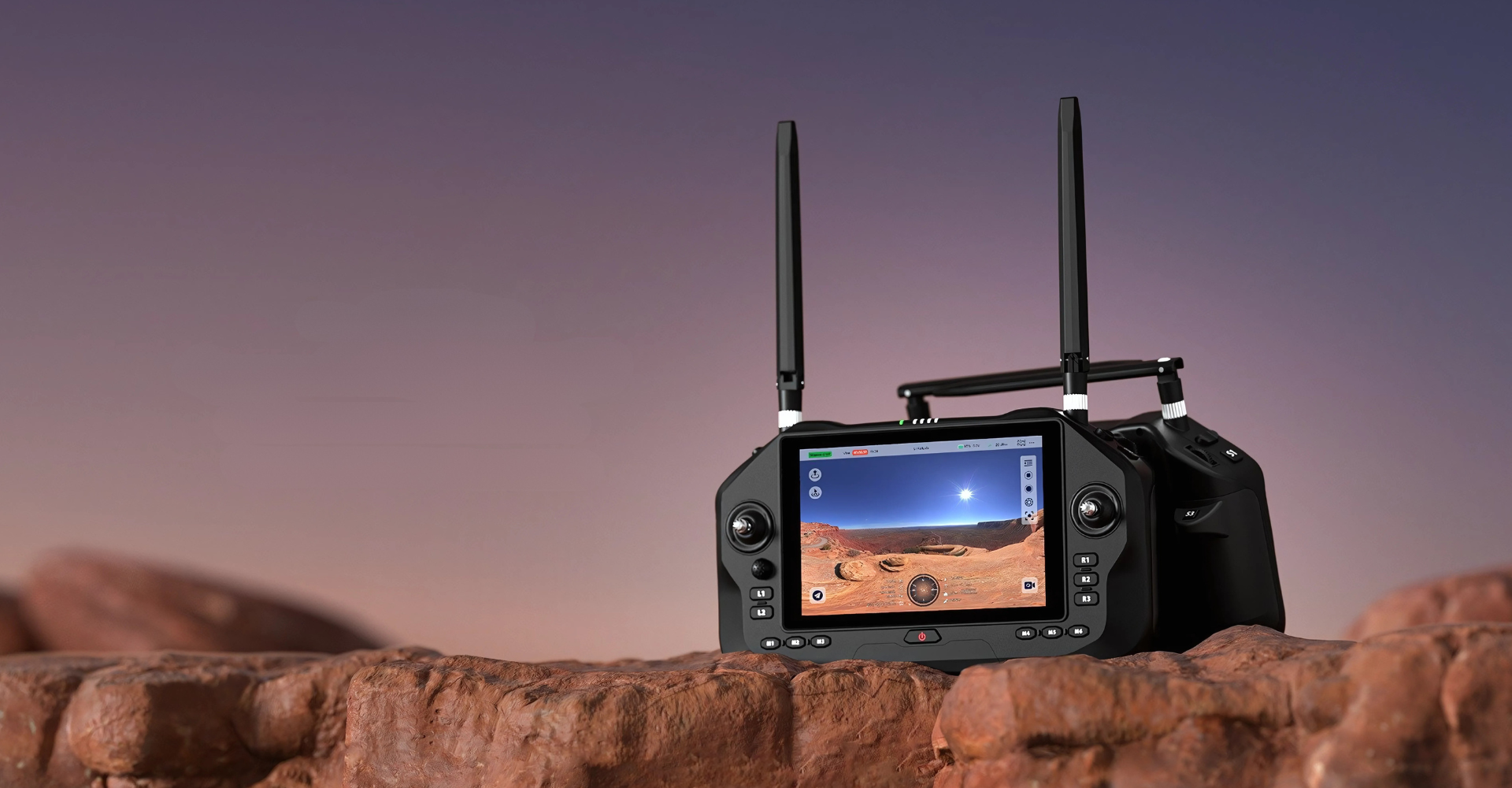

SIYI UniRC 7 Pro Photo Gallery
Official SIYI UniRC 7 Pro product photos: the ground station, Pro air unit, ports, antennas and IP54 build. Tap any photo to open it at full resolution.
UniRC 7 Pro Feature Close-Ups
SIYI UniRC 7 vs UniRC 7 Pro
Choosing between the SIYI UniRC 7 and the UniRC 7 Pro depends on your RF environment, integration needs and budget.
UniRC 7
- Frequency
- 2.400–2.476 GHz
- Display
- 7″, 1280 × 800
- Brightness
- 1600 nits
- Battery (approx.)
- 11 hours
- Ground antennas
- 2 external 2.4 GHz
- HDMI / LAN
- Not listed
- Air-unit antennas
- 2 detachable 2.4 GHz
- Air-unit weight
- 90 g
Choose it when 2.4 GHz operation and longer rated battery life are enough.
View SIYI UniRC 7UniRC 7 Pro
- Frequency
- 2.4 + 5.725–5.829 GHz
- Display
- 7″, 1920 × 1200
- Brightness
- 1600 nits
- Battery (approx.)
- 8 hours
- Ground antennas
- 2 internal 5 GHz + 2 external 2.4 GHz
- HDMI / LAN
- HDMI + LAN (GH1.25 4-pin)
- Air-unit antennas
- 2 × 5 GHz + 2 × 2.4 GHz
- Air-unit weight
- 115 g
Choose it when dual-band, a sharper display, HDMI/LAN and the four-antenna air unit matter to your workflow.
Choose UniRC 7 Pro
Official UniRC 7 vs 7 Pro Chart
The manufacturer's side-by-side chart of both models, including antennas, interfaces, battery and weight.
SIYI UniRC 7 Pro Specifications
Based on SIYI manufacturer documentation, reviewed 23 September 2026.
Ground station specifications
| Display | 7-inch touchscreen · 1920 × 1200 · 1600 nits |
|---|---|
| Operating system | Android 13 |
| Processor / memory | Qualcomm 8-core CPU · 4 GB RAM · 64 GB ROM |
| Battery | 13,400 mAh quick-release · approx. 8 hours |
| Charging | 30 W PD · approx. 4.5 hours |
| Interfaces | USB-A, HDMI output, LAN via GH1.25 4-pin, Type-C, SIM slot, TF card |
| Wireless | Wi-Fi 5 · Bluetooth 5.0 |
| GNSS | GPS, GLONASS, BeiDou, Galileo, QZSS |
| Protection | IP54 |
| Dimensions | 274 × 190 × 100 mm |
| Weight | 1.46 kg |
Air-unit specifications
| Control outputs | 16-channel S.Bus · 5-channel PWM |
|---|---|
| Interfaces | 2 × UART · 2 × LAN · S.Bus · PWM · XT30 power · Type-C (firmware upgrade) |
| Input voltage | 12–76 V via XT30 |
| Dimensions | 63 × 40 × 27 mm |
| Weight | 115 g (excluding antennas) |
| Average power | 8 W |
| Antennas | 2 × quick-release MMCX 5 GHz + 2 × detachable IPEX 2.4 GHz |
Transmission and video specifications
| Frequency bands | 2.400–2.476 GHz · 5.725–5.829 GHz |
|---|---|
| Video | 4K at 30 fps single stream · 1080p at 60 fps dual stream |
| Bitrate | Up to 65 Mbps |
| Latency | As low as 170 ms |
| Encryption | AES |
| Range scenarios | Approx. 3–6 km at spraying altitude (3–6 m) · 10–15 km at 120 m rural · 30–40 km at 150 m above sea, low interference |
| Data-link methods | S.Bus, PWM, UART, LAN, Bluetooth, UDP, Type-C |
UniRC 7 Pro Compatibility & Integration
SIYI states QGroundControl and MissionPlanner are compatible, and the Android ground station can install apps supporting Android 9.0 and above.
Air Unit Interfaces Explained
- S.Bus
- One wire carrying up to 16 control channels to the flight controller.
- PWM
- One wire per channel for servos, pumps, spray valves or older controllers.
- UART
- Serial port for telemetry; carries MAVLink to the ground station.
- LAN
- Ethernet for IP cameras, gimbals or a companion computer.
- MAVLink
- The telemetry protocol used by ArduPilot and PX4.
- Air unit / ground station
- The air unit rides on the drone; the ground station is the handheld with the screen.

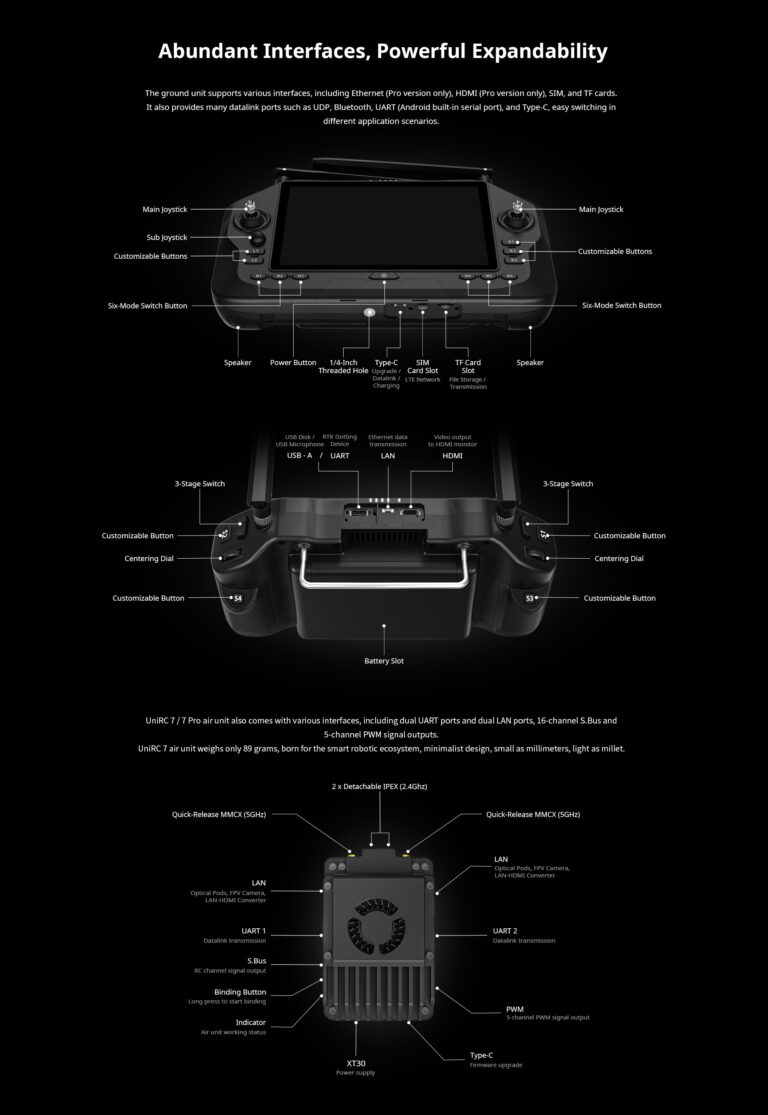

Official UniRC 7 Pro Interface Map
Every port on the ground station and air unit, labelled by SIYI. Open it at full 2560 px resolution to read the labels.
Integration limits. Final compatibility depends on flight controller, firmware version, wiring, baud rate, MAVLink configuration, payload protocol, power source and workflow. Before ordering, share your flight-controller model, payload, quantity and application with our technical sales team for a compatibility review.
UniRC 7 Pro Applications
Spray & spread drones
Low-altitude spraying, an outdoor-readable screen, PWM for pump and valve control, and quick battery swaps between fields.
Survey & inspection
Dual-stream video, HDMI out to a field monitor, and LAN for gimbal cameras on mapping and inspection builds.
Ground robots
Handheld control plus live video for unmanned ground vehicles in farms, security and industrial yards.
Surface vessels
Long line-of-sight over water, where the 150 m above-sea scenario is most relevant.
UniRC 7 Pro: What's in the Box
The complete SIYI UniRC 7 Pro package list. We confirm the exact kit with you before dispatch.
- 1Storage case
- 1Handheld ground station
- 1Pro air unit
- 1Pro battery
- 42.4 GHz omnidirectional antennas
- 25 GHz omnidirectional antennas
- 2Air-unit data cables
- 1S.Bus cable
- 1GH1.25 4-pin to RJ45 Ethernet cable
- 1PWM cable
- 1XT30 female power cable
- 1Type-C to USB-A adapter
- 1PD fast-charging cable
- 130 W PD power adapter
- 1Shoulder strap
- 2Quick-release kits
- 1Mode-indicator sticker
UniRC 7 Pro Setup & Support
Setup, downloads and technical support.
Charge
Fully charge the ground station with the supplied 30 W PD adapter and cable.
Mount & power
Mount the air unit securely, fit antennas and power it through XT30 within 12–76 V.
Connect
Wire the flight controller over UART, S.Bus, PWM or network, then verify configuration.
Bind & check
Bind units; check video, telemetry, controls, failsafe and antenna placement before flight.
PDFUniRC 7 Series User ManualOfficial SIYI documentation
FWFirmware & SIYI AssistantLatest releases from SIYI
SDKSDK & UniGCSDeveloper resources
SIYI UniRC 7 Series Official Video
SIYI's introduction to the ground station, air unit and features.
UniRC 7 Series In-Depth Review
A third-party review in Russian; turn on YouTube's auto-translated captions for English.
Buy SIYI UniRC 7 Pro in India
Concrete, verifiable reasons to buy locally.
GST invoice
Proper tax documentation, so business and institutional buyers can claim input credit.
Exact kit verification
Confirm required accessories and cables with us before shipment.
Shipping across India
Tracked dispatch to farms, OEM workshops and institutions anywhere in India, with the delivery timeline confirmed on your GST quote.
Warranty support
Warranty terms confirmed in writing with your quotation, with Bharat Skytech as your local point of contact for claims and fault diagnosis.
Pre-purchase technical review
Compatibility check for your flight controller and payload, wiring guidance and binding help.
Bulk, OEM & dealer procurement
Formal quotations with product scope, lead time, warranty terms and support details.
SIYI UniRC 7 Pro FAQs
Still unsure? Our technical sales team can answer build-specific questions.
WhatsApp usWhat is the SIYI UniRC 7 Pro?
A professional handheld ground station that combines drone control, live video, Android-based ground-control software and telemetry/integration interfaces in one system.
What is the SIYI UniRC 7 Pro price in India?
₹88,000 excluding GST at Bharat Skytech, with a GST invoice. For fleet, OEM or institutional orders, request a formal GST quotation stating product scope, delivery lead time and warranty terms.
What is the difference between UniRC 7 and UniRC 7 Pro?
Compared with the SIYI UniRC 7, the Pro adds 5 GHz operation, a 1920 × 1200 display, internal 5 GHz antennas, HDMI, LAN and a four-antenna Pro air unit. The standard UniRC 7 has a 2.4 GHz-only link and approximately 11-hour rated endurance versus approximately eight hours for the Pro.
What range can I expect for an agriculture spray drone?
SIYI lists approximately 3–6 km at a spraying altitude of 3–6 m. Actual range depends on terrain, obstacles, interference, antenna placement, flight altitude and installation quality.
Does the SIYI UniRC 7 Pro include an air unit?
The official package list includes a UniRC 7 Pro air unit. Confirm the exact Bharat Skytech supplied kit before ordering.
Does it have HDMI output and LAN?
Yes. SIYI lists HDMI output on the UniRC 7 Pro, and LAN network communication through a GH1.25 4-pin interface.
Can it work with ArduPilot or PX4?
SIYI states that QGroundControl and MissionPlanner are compatible. Working integration depends on flight-controller firmware, MAVLink configuration, wiring, ports and the specific drone build.
What outputs are available on the Pro air unit?
16-channel S.Bus, five-channel PWM, two UART ports and two LAN ports.
How long does the battery last, and how long does it take to charge?
SIYI lists approximately eight hours from the 13,400 mAh battery, and approximately 4.5 hours to charge over 30 W PD. Runtime varies with screen use, wireless activity, temperature and conditions.
Is the SIYI UniRC 7 Pro waterproof?
It is rated IP54, meaning it is dust protected and resists splashing water. It should not be described as waterproof or used in heavy rain without suitable protection.
Can two operators use the system?
SIYI lists dual-control, remote-relay and wireless-relay modes, and notes the dual-operator feature is under development. Confirm the hardware, firmware and configuration with technical support before purchasing.
Can third-party apps be installed?
SIYI states the Android system can install applications supporting Android 9.0 and above. Verify app licensing, performance and suitability before deployment.
Where can I buy the SIYI UniRC 7 Pro in India?
From Bharat Skytech, with a GST invoice and shipping across India. The item is currently out of stock. Request a GST quote on WhatsApp and our team will confirm availability, dispatch time and the exact kit. You can also call or WhatsApp +91 62613 13136.
Related Controllers & Payloads

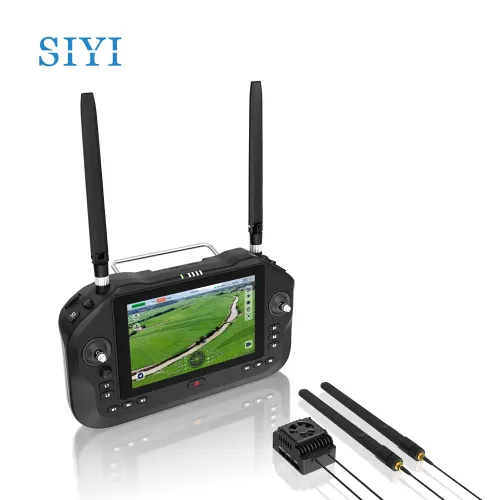

SIYI UniRC 7Standard 2.4 GHz model, ~11 h battery
Skydroid G12 Remote ControllerDual-band 2.4/5.8 GHz agri-drone RC
SIYI MK32 Enterprise7-inch, dual Full HD video
SIYI MK15 EnterpriseCompact 5.5-inch smart controller
SIYI A8 mini gimbal camera4K 8MP, 6× digital zoom payload
SIYI MK15E MiniHandheld Agriculture Smart Controller
Also see: All SIYI products · Agriculture drone flight controllers · All RC & transmitters · Drone electricals · Agriculture drone batteries
