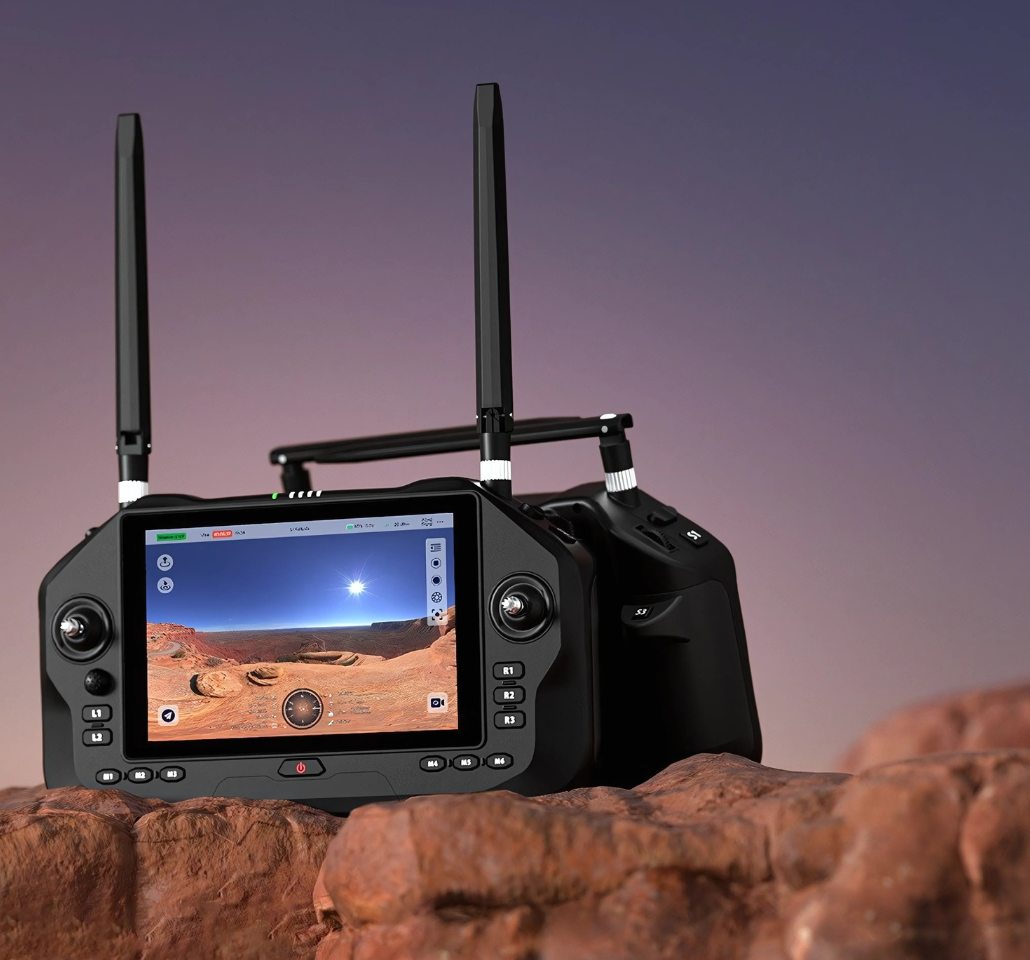

SIYI UniRC 7 Handheld Ground Station
SIYI UniRC 7 is a professional handheld ground station designed for long-range UAV and drone control. It combines a high-brightness touchscreen, long-range communication and digital video transmission for professional and agriculture drone applications.
For agriculture drone operators, survey and mapping teams, and industrial UAV pilots who need a reliable field controller with live video.
Bulk or team order? Call +91 62613 13136 or write to info@bharatskytech.com
- 2.4 GHzTransmission
- 7-inchTouchscreen
- 1600 nitsBrightness
- 4K 30fpsVideo decoding
- Android 134 GB + 64 GB
- 13,400 mAhUp to 11 h
Flight control and live video in one device.
A handheld ground station puts flight control and live video in one device, so operators don’t need to pair a separate controller with a phone or tablet. The UniRC 7 controls drones and other unmanned platforms while streaming the aircraft’s camera feed directly to its built-in screen. That matters in the field, where mounting and cabling a separate display is impractical.
The 7-inch touchscreen runs at 1600 nits, bright enough to read under open sky, and the physical joysticks, dials, and buttons give tactile control that touch-only setups can’t match. For agriculture and other professional work, this combination — sunlight-readable display, real controls, and integrated video — keeps the operator focused on the mission rather than the equipment.
Key highlights
- 2.4 GHz transmission
- Single-band operation on the 2.400–2.476 GHz range with automatic channel selection to reduce interference.
- Up to 40 km range*
- Achievable only over open water or clear line-of-sight; typical field ranges are lower (see Communication).
- 7-inch 1600-nit display
- High brightness keeps the screen readable in direct sunlight during field work.
- 4K 30fps video decoding
- Live single-stream 4K at 30fps, or dual 1080p streams at 60fps, at up to 65 Mbps.
- Android 13, Qualcomm 8-core
- Runs standard Android apps with 4 GB RAM and 64 GB storage, expandable via microSD.
- 13,400 mAh battery
- Rated for up to 11 hours of continuous use, with 30 W PD fast charging.
- Precise controls
- Two main joysticks, a sub joystick, six flight-mode buttons, dials, and switches for gimbal and payload control.
- AES encryption, IP54
- Encrypted link for secure operation, with dust and splash resistance for outdoor use.
*Range figures are manufacturer estimates under ideal conditions and vary with environment, altitude, and interference.

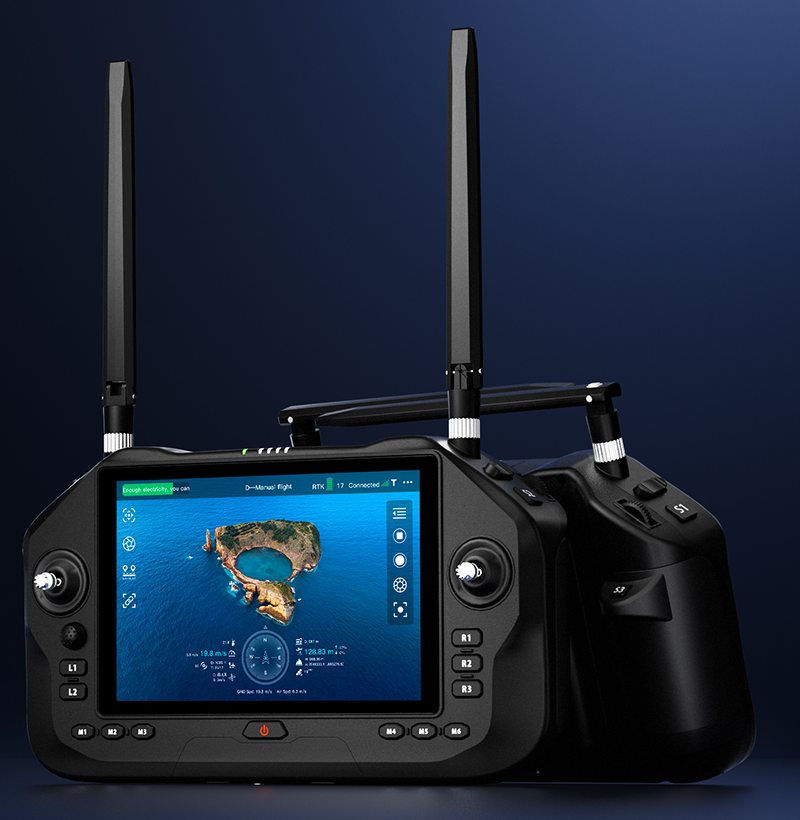

Why UniRC 7?
Built for outdoor visibility
The 1600-nit screen stays legible in bright sunlight, so operators can read telemetry and video without shading the display or moving to shade.
Ready for long field sessions
An 11-hour battery rating means most operators can run a full day of spraying or surveying without swapping power, and 30 W PD charging tops up quickly between sessions.
Stable link in noisy environments
Automatic channel selection adapts to local interference, which helps maintain a usable link in areas with competing signals.
Real controls for precise work
Dedicated joysticks, a sub joystick, dials, and six flight-mode buttons let pilots adjust flight modes and payloads by feel, without hunting through menus.
A familiar operating system
Android 13 with 4 GB RAM and 64 GB storage runs common ground-control apps and lets teams install the tools they already use.
Field-tough hardware
IP54 rating and a rated operating range of -20°C to 55°C suit work in dust, light rain, and varied climates.
Agriculture drone applications
The UniRC 7 fits the day-to-day work of agriculture drone teams:
- Spraying
- At the low altitudes typical of spraying missions (3–6 m), SIYI rates a communication range of 3–6 km, which comfortably covers most field boundaries.
- Crop monitoring
- Live 4K video lets operators check crop health and coverage in real time as the drone passes over rows.
- Field inspection
- The bright screen makes it practical to inspect stands, irrigation, and problem areas directly from the aircraft’s camera.
- Precision agriculture
- GNSS support (GPS, GLONASS, BeiDou, Galileo, QZSS) and dual video streams support accurate, repeatable flight patterns.
- Mapping and surveying
- Android compatibility with ground-control software lets teams plan and fly automated survey routes.
Communication & video transmission
The UniRC 7 (standard model) transmits on a single 2.4 GHz band (2.400–2.476 GHz), while the UniRC 7 Pro adds a 5 GHz band. SIYI’s transmission technology automatically selects the best channel based on local interference to keep the link stable.
On range: the 40 km figure is a best-case number and only applies over the sea or unobstructed line-of-sight at around 120 m altitude with low interference. Realistic field ranges from SIYI’s own documentation are:
| Scenario | Altitude | Rated range |
|---|---|---|
| Agricultural spraying | 3–6 m altitude | 3–6 km |
| Suburban, light obstruction, moderate interference | 120 m altitude | 10–15 km |
| Over sea, clear line-of-sight, low interference | 120 m altitude | 30–40 km |
- Single stream
- 4K 30fps
- Dual stream
- 2 × 1080p 60fps
- Bitrate
- 65 Mbps
- Latency
- 170 ms
- Encryption
- AES
For video, the system decodes a single 4K stream at 30fps or two 1080p streams at 60fps, with a bitrate up to 65 Mbps and latency as low as 170 ms. All data is AES-encrypted end to end. Actual range and video quality depend on terrain, obstructions, antenna placement, and RF interference.
Display & controls

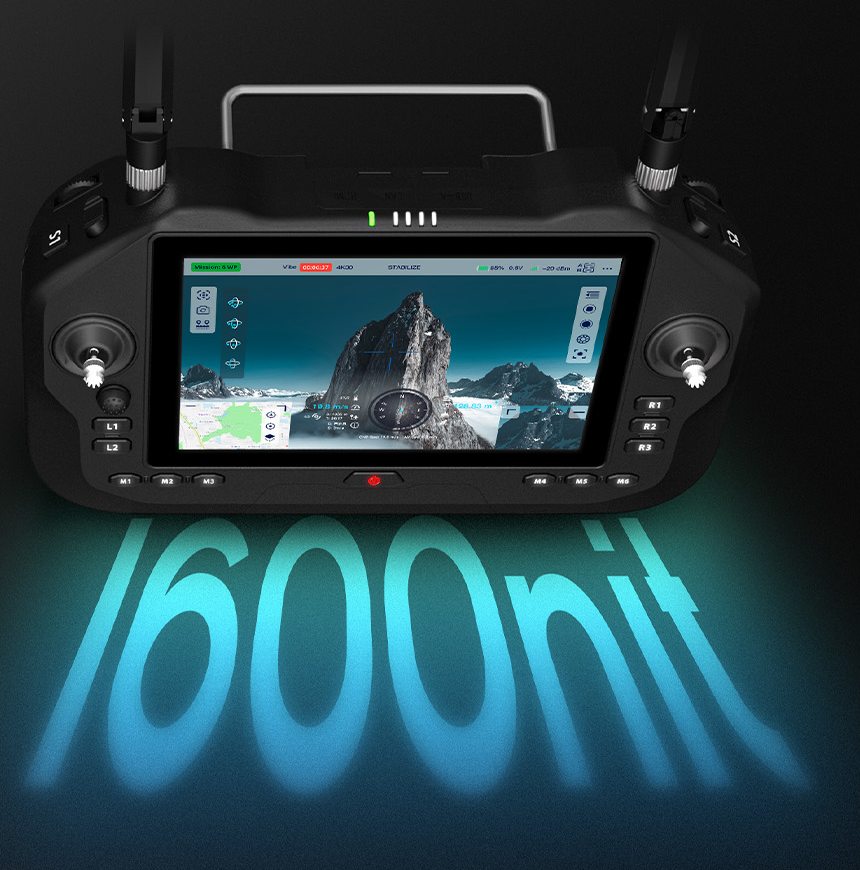

7-inch · 1600 nits
The 7-inch touchscreen LCD runs at 1600 nits, with a resolution of 1280×800 on the standard UniRC 7 (the Pro steps up to 1920×1200). That brightness is the key detail for field use — it keeps video and telemetry readable in open sunlight where dimmer screens wash out.

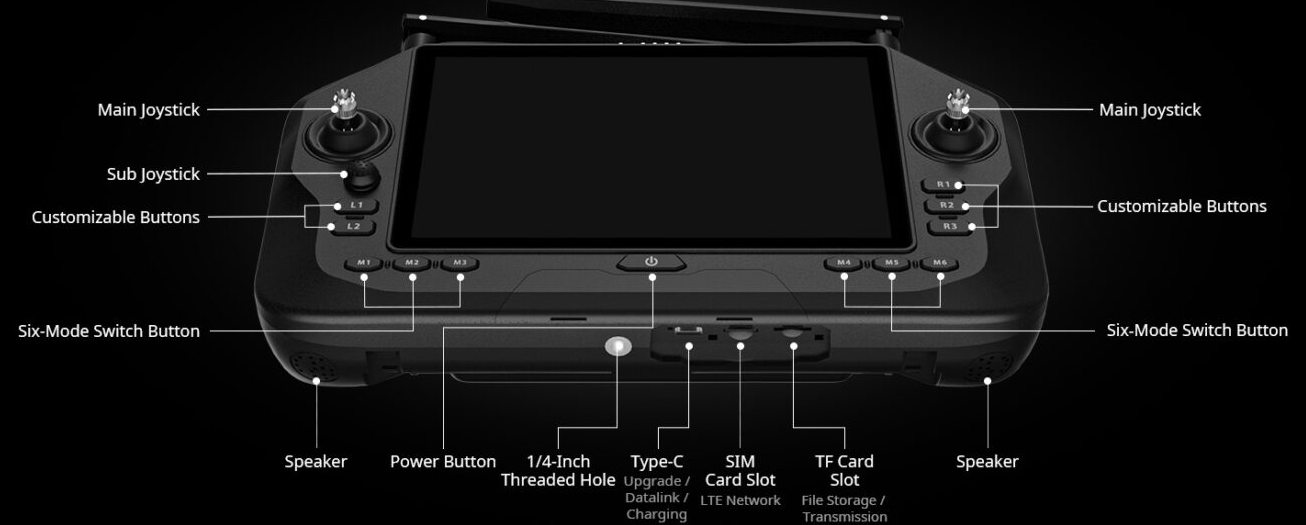

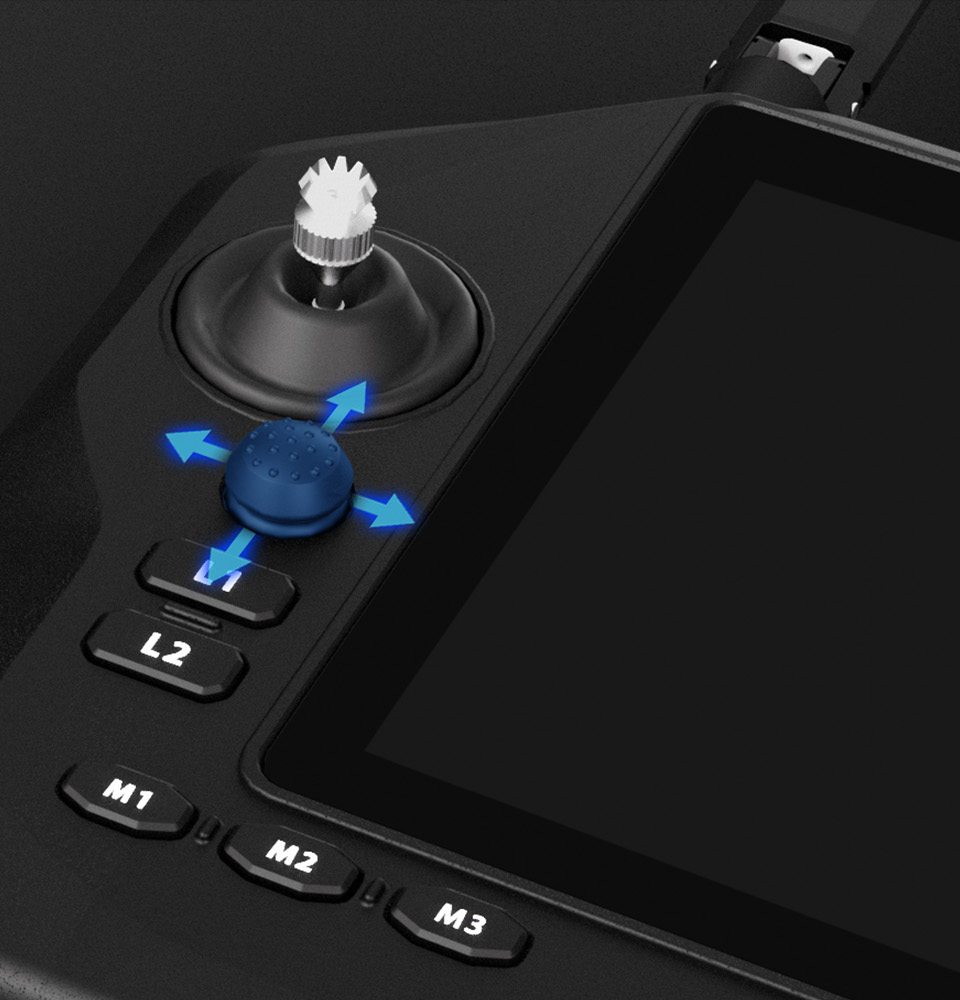

Physical controls
- 2 Main joysticks
- 1 Sub joystick
- 6 Flight-mode buttons
- 2 Dials
- 2 Three-stage switches
- 10 Custom buttons
The sub joystick handles gimbal or accessory control. The tactile layout lets operators change modes and adjust payloads without looking away from the screen, which is practical during active flight.
Android & connectivity
The UniRC 7 runs Android 13 on a Qualcomm octa-core CPU, with 4 GB RAM and 64 GB internal storage that expands via microSD.
For software, SIYI provides UniGCS, its own ground station app compatible with MAVLink open-source, SIYI, and third-party ecosystems, available for Android and Windows. Because the device is standard Android, other ground-control apps such as QGroundControl can also be installed and used.
- System
- Android 13
Qualcomm octa-core CPU - Memory
- 4 GB RAM
64 GB storage, microSD expandable - Wireless
- Wi-Fi 5
Bluetooth 5.0
SIM card slot for mobile network access - Positioning
- GNSS: GPS, GLONASS, BeiDou, Galileo, QZSS
- USB-C
- Charging, firmware updates and file transfer
- USB-A
- Serial port for an RTK dotting module

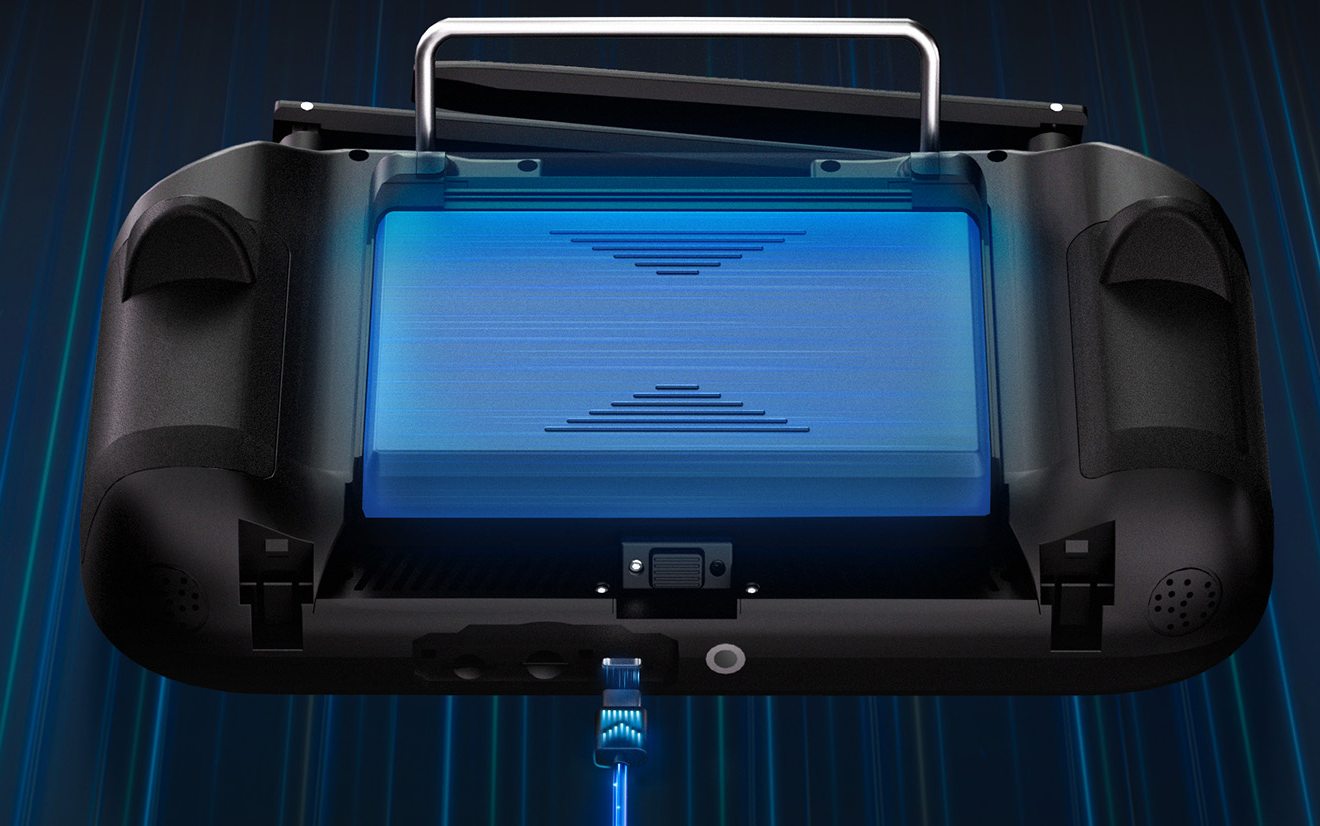

Battery & field use
Enough for a full working day for most operators.
- Battery
- 13,400 mAh
- Continuous operation
- Up to 11 h
- PD fast charging
- 30 Wapprox. 4.5 h to full
- 13,400 mAh battery rated for up to 11 hours of continuous operation — enough for a full working day for most operators.
- 30 W PD fast charging with a rated charge time of about 4.5 hours, so the unit can recover overnight or during a break.
- Intelligent temperature protection reduces charging power in high-temperature conditions to protect the battery.
- Operating temperature of -20°C to 55°C covers cold mornings and hot afternoons across most agricultural regions.
- In practice, the long battery life reduces the need for spare packs during a day of spraying or surveying, and PD charging means a standard USB-C power source can top it up.
Technical specifications
UniRC 7 (standard). Source: SIYI official specification sheet and FAQ.
| Link & video | |
|---|---|
| Frequency | 2.400–2.476 GHz (2.4 GHz) |
| Communication range | Up to 40 km (conditional; 3–6 km at spraying altitude) |
| Video decoding | 4K 30fps single stream / dual 1080p 60fps |
| Bitrate / latency | Up to 65 Mbps / as low as 170 ms |
| Encryption | AES |
| Display & system | |
| Display | 7-inch touchscreen, 1280×800, 1600 nits |
| Operating system | Android 13, Qualcomm octa-core CPU |
| Memory / storage | 4 GB RAM + 64 GB ROM, microSD expandable |
| Connectivity | Wi-Fi 5, Bluetooth 5.0, SIM slot |
| GNSS | GPS / GLONASS / BeiDou / Galileo / QZSS |
| Physical controls | 2 main joysticks, 1 sub joystick, 6 flight-mode buttons, 2 dials, 2 three-stage switches, 10 custom buttons |
| Power & build | |
| Battery | 13,400 mAh, up to 11 hours |
| Charging | PD 30 W, approx. 4.5 hours |
| Operating temperature | -20°C to 55°C |
| IP rating | IP54 |
| Ground unit dimensions | 274 × 190 × 100 mm |
| Ground unit weight | 1.44 kg |
| Air unit | |
| Air unit — RC output | 16-channel S.Bus, 5-channel PWM |
| Air unit — power input | 12–76 V |
| Air unit — antennas | 2 × detachable 2.4G IPEX |
| Air unit — weight (no antennas) | 90 g |

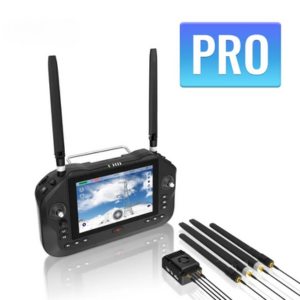

UniRC 7 vs UniRC 7 Pro
Source: SIYI official specification sheet and FAQ.
| Feature | UniRC 7 This page | UniRC 7 Pro |
|---|---|---|
| Frequency | 2.4 GHz only | 2.4 GHz + 5 GHz dual-band |
| Display resolution | 1280×800 | 1920×1200 (1080p) |
| Battery endurance | Approx. 11 hours | Approx. 8 hours |
| HDMI output | Not available | Standard HDMI |
| Ethernet (LAN) | Not available | LAN (GH1.25 4-Pin) |
| Ground-unit antennas | 2 × external (2.4G) | 2 × internal (5G) + 2 × external (2.4G) |
| Air-unit antennas | 2 × detachable IPEX | 2 × quick-release MMCX + 2 × detachable IPEX |
| Air-unit weight | 90 g | 115 g |
| Ground-unit weight | 1.44 kg | 1.46 kg |
Both models share the same 1600-nit brightness, 4K 30fps decoding, 65 Mbps bitrate, AES encryption, Android 13, 4 GB/64 GB memory, 13,400 mAh battery, and IP54 rating.
What’s in the box
Official UniRC 7 (standard) package contents.
- UniRC 7 Handheld Ground Station×1
- UniRC 7 Air Unit×1
- Battery×1
- 2.4G Omnidirectional Antenna×4
- Air Unit Data Cable×2
- Air Unit S.Bus Cable×1
- PWM Cable×1
- XT30 Female Power Cable×1
- Type-C to USB-A Adapter×1
- PD Fast-Charging Cable (USB-C to USB-C)×1

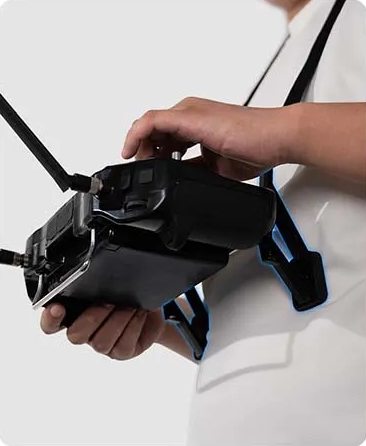

- Shoulder Strap×1
- 30 W PD Power Adapter×1
- Quick-Release Kit×2
- Controller Mode Indicator Sticker×1
- Storage Case×1
Who is it for?
- Agriculture drone operators running spraying and monitoring missions
- UAV professionals needing an integrated controller with live video
- Surveying and mapping teams flying automated routes
- Industrial inspection pilots
- Robotics and unmanned ground/surface vehicle developers
Why buy from Bharat Skytech?
- Genuine SIYI products sourced for the Indian market.
- India-based technical assistance for setup, configuration, and troubleshooting.
- Support for bulk and team orders for agriculture and commercial operators.
- Drone component expertise across ground stations, air units, and related UAV parts.
Talk to us: +91 62613 13136 · info@bharatskytech.com
FAQs
What is the SIYI UniRC 7?
It's a handheld ground station — a controller with a built-in 7-inch Android touchscreen and integrated image transmission — for operating drones, vehicles, boats, and robotics.
What is its communication range?
SIYI rates it up to 40 km, but that applies only to clear line-of-sight or over-sea conditions. At typical agricultural spraying altitudes (3–6 m), the rated range is 3–6 km, and in suburban conditions around 10–15 km.
Is it suitable for agriculture drones?
Yes. It supports spraying, crop monitoring, field inspection, and mapping, with GNSS positioning and live 4K video, and a battery rated for a full working day.
What frequency does the UniRC 7 use?
The standard UniRC 7 operates on 2.4 GHz (2.400–2.476 GHz). The UniRC 7 Pro adds a 5 GHz band for dual-frequency operation.
How bright is the display?
The 7-inch screen has 1600-nit brightness, which keeps it readable in direct sunlight.
How long does the battery last?
The 13,400 mAh battery is rated for up to 11 hours of continuous use, with 30 W PD fast charging in about 4.5 hours.
Does it run Android?
Yes — Android 13 on a Qualcomm octa-core CPU, with 4 GB RAM and 64 GB storage (microSD expandable). It runs SIYI's UniGCS app and other ground-control software such as QGroundControl.
UniRC 7 vs UniRC 7 Pro — what's different?
The Pro adds 5 GHz dual-band transmission, a higher 1920×1200 display, HDMI output, and Ethernet, with about 8 hours of battery. The standard UniRC 7 is 2.4 GHz only, uses a 1280×800 display, and runs about 11 hours.
