Follow on InstagramSIYI A8 Mini is a compact 4K 8MP gimbal camera for professional drones, aerial inspection, surveying, and agriculture applications. It features a Sony 1/1.7-inch CMOS sensor, 6X digital zoom, and precise 3-axis gimbal stabilization for stable aerial imaging. It supports 4K video and multiple interfaces, including Ethernet, HDMI, CVBS, S.Bus, UART, and MAVLink.
Original price was: ₹26,498.00.₹24,500.00Current price is: ₹24,500.00. (Exclusive of GST)
At the heart of the SIYI A8 Mini is a 1/1.7-inch Sony CMOS sensor with 8 megapixels of effective resolution. It records sharp 4K video and detailed stills, and 6X digital zoom brings distant subjects into frame without repositioning the drone.
Every photo can carry GPS coordinates and a timestamp, which makes mapping, inspection reports, and crop surveys easier to organise.

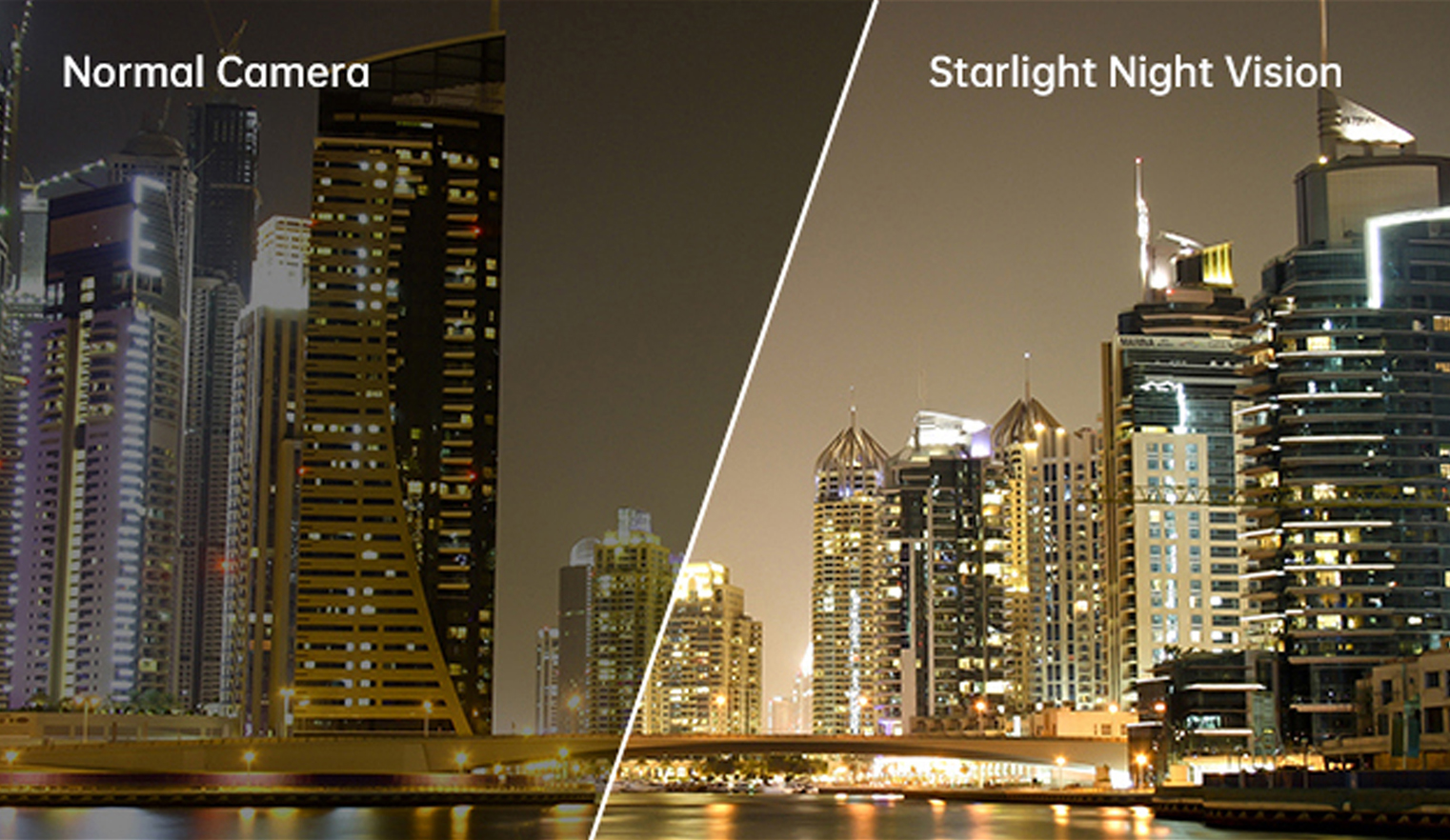

The starlight-grade sensor keeps footage bright and usable at dawn, at dusk, and under cloudy skies.

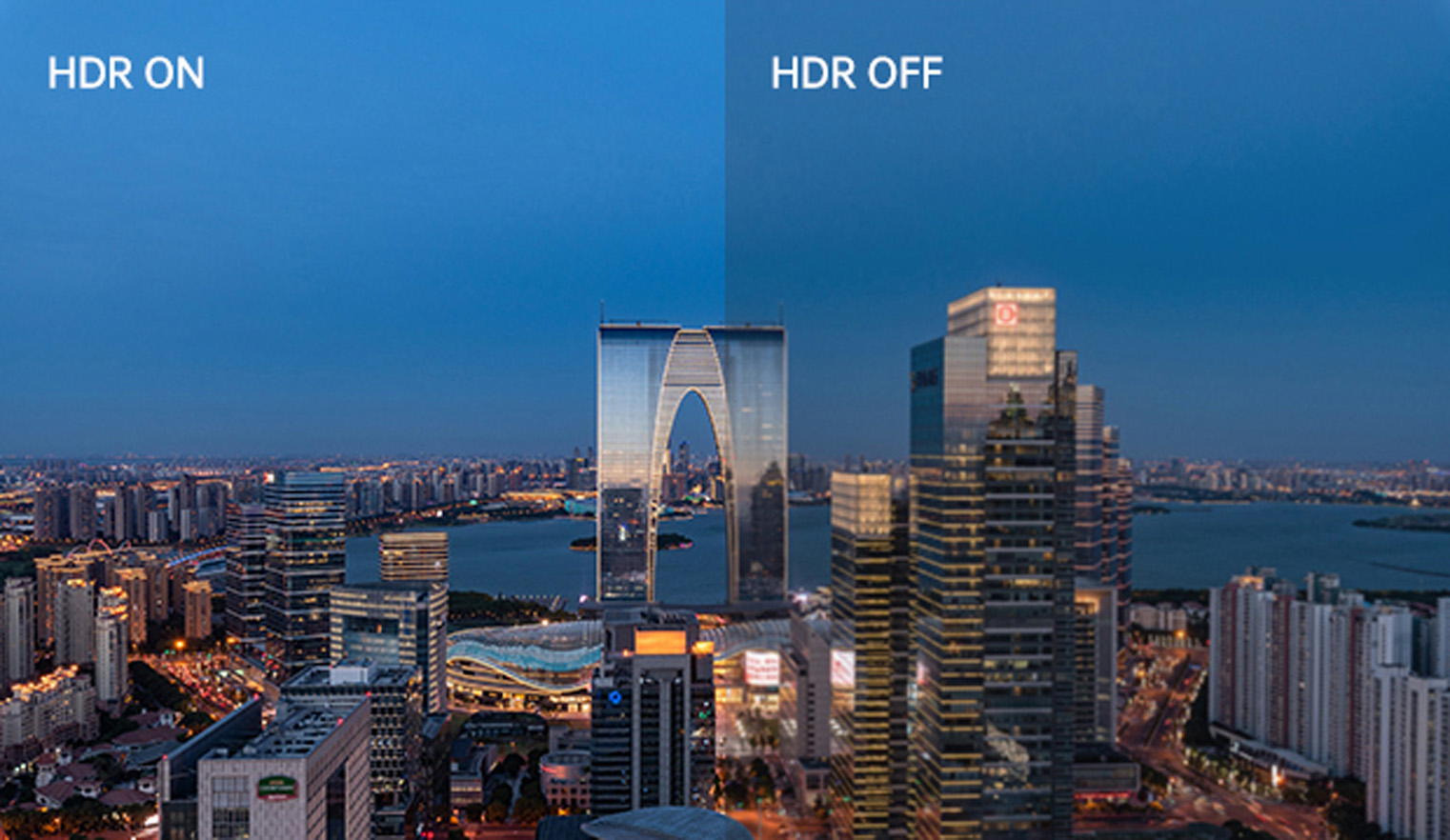

HDR keeps detail in both bright highlights and dark shadows, so colours stay natural even in high-contrast scenes.

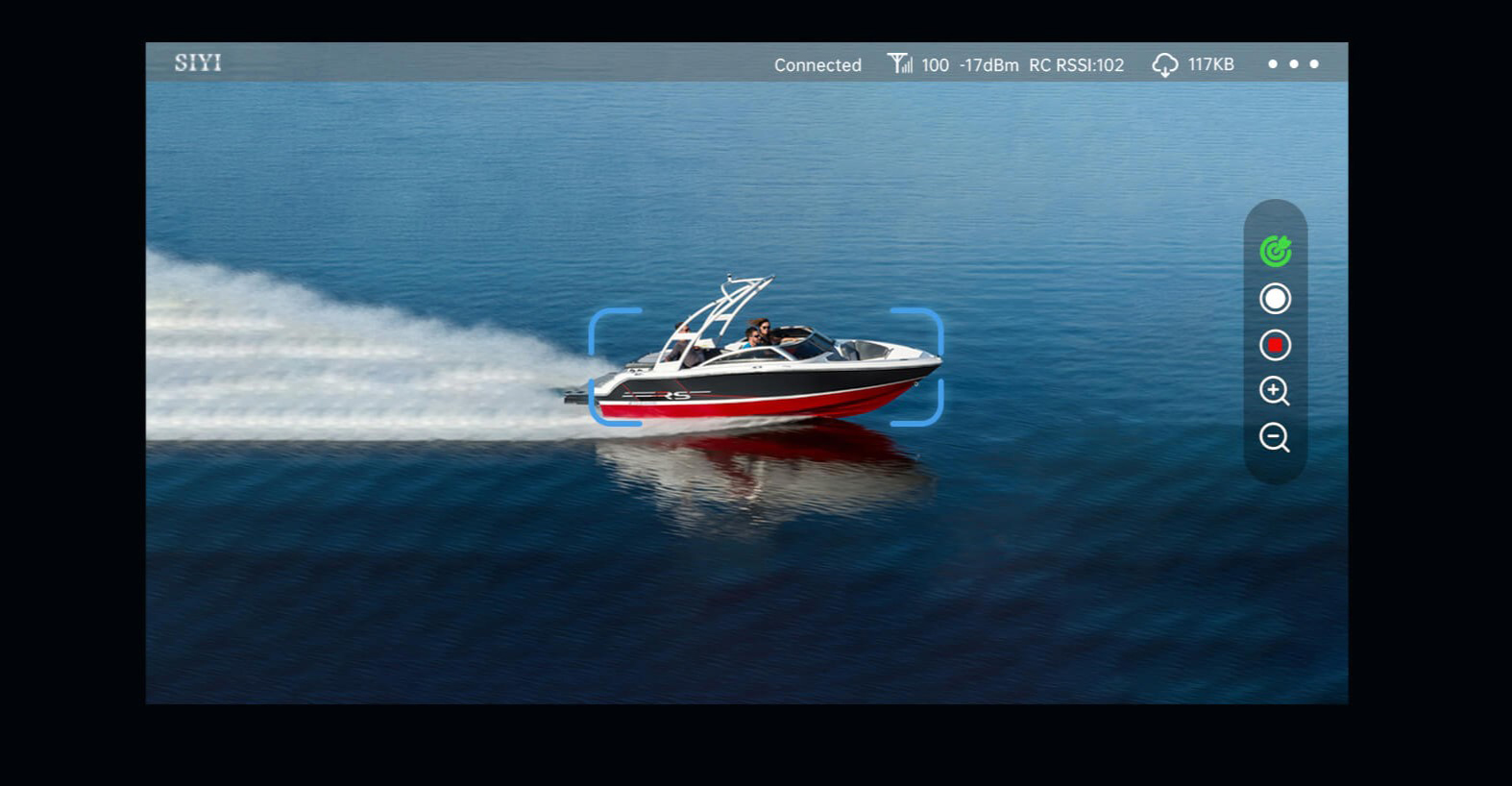

Pair the A8 Mini with the SIYI AI Tracking Module (sold separately) and the gimbal locks onto a selected target, keeping it centred while adjusting focus and zoom in real time.
If the target is briefly hidden or leaves the frame, the module recognises it when it reappears and resumes tracking.
Control it the way your build needs: S.Bus from an RC transmitter; Ethernet by touchscreen or with UDP/TCP commands through the SIYI Gimbal SDK; UART through the SDK; or ArduPilot and PX4 over MAVLink.
Mount it at 90° on the nose of a plane or VTOL and it switches to nose mode automatically, giving a clear forward view and a wider field of view.
Mount it inverted and it corrects the image automatically. This is ideal for UGVs, USVs, robot dogs, and other robotic platforms.
The camera turns with the aircraft as it yaws, for smooth, natural panning.
The camera also rolls with the aircraft for an immersive first-person view with stabilised footage.
The camera holds its heading even as the aircraft rotates, staying fixed on your point of interest.

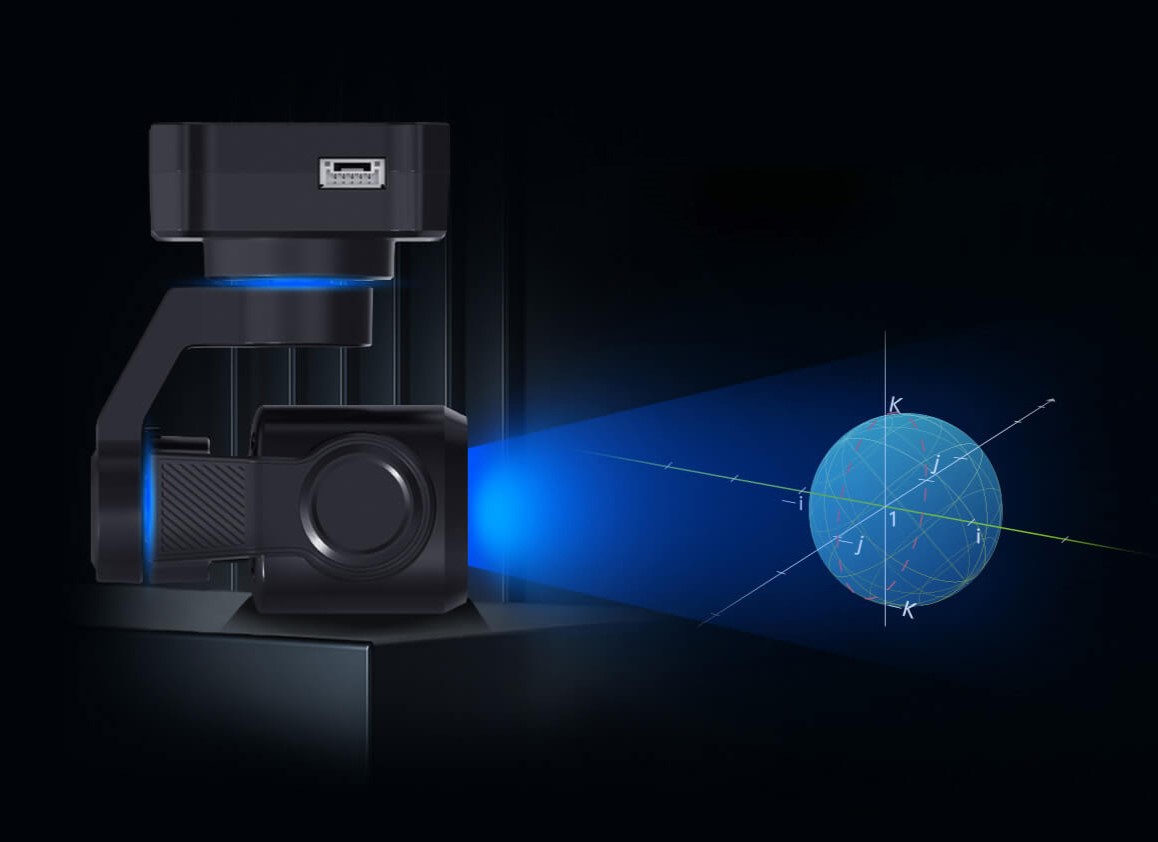

Precision stabilisation technology
The gimbal compensates for zero bias, scale factor, inter-axis error, temperature drift, and noise. This keeps it accurate through temperature swings, sharp turns, and heavy vibration.
Accelerometer and gyroscope data are combined and filtered to calculate pitch, roll, and yaw precisely, for a more stable, reliable system.
Three-axis gyroscopes and accelerometers, PID controllers, brushless motors, and magnetic encoders work together to keep HD video steady while the platform moves.
Field-Oriented Control manages motor torque and magnetic field separately, for smoother motion and noticeably less picture jitter.
The SIYI A8 Mini is a compact 3-axis gimbal camera built by SIYI for drones, UAVs, UGVs, USVs, and RC/FPV aircraft. It combines a 4K Sony starlight image sensor, 6X digital zoom, and precision gimbal stabilization in a lightweight body weighing approximately 95 grams. The SIYI A8 Mini is designed for stable aerial imaging in applications ranging from inspection and mapping to surveillance and general aerial videography, and it is available in India through Bharat Skytech.
The SIYI A8 Mini gimbal camera is a single-camera, 3-axis stabilized payload — meaning the gimbal actively corrects for pitch, roll, and yaw movement of the aircraft or vehicle it is mounted on, keeping the video feed smooth even during turns and vibration. It uses high-precision FOC (Field-Oriented Control) motor control algorithms along with IMU sensor fusion to hold the camera steady.
On the imaging side, the A8 Mini carries a 1/1.7-inch Sony starlight CMOS sensor with 8MP effective resolution, capable of 4K UHD video recording and still photography. It supports up to 6X digital zoom — zoom is not available in 4K mode, but is supported up to 3.5X in 2K, 5.5X in 1080p, and 6X in 720p recording modes. The sensor’s starlight low-light performance and HDR support help retain detail in dim or high-contrast lighting.
The gimbal outputs video over Ethernet, HDMI, and CVBS (AV), and accepts control signals via S.Bus, UART, or UDP — making it compatible with SIYI’s own ground control links as well as third-party systems, including ArduPilot and PX4 (MAVLink) flight controllers. This flexibility is what makes the SIYI A8 Mini suitable for enterprise drones, ground robots, unmanned surface vehicles, and RC/FPV aircraft alike.
| Specification | Detail |
|---|---|
| Model | SIYI A8 Mini |
| Image Sensor | 1/1.7-inch Sony starlight CMOS, 8MP effective resolution |
| Video Recording | 4K UHD |
| Zoom | Up to 6X digital zoom (varies by resolution mode; not available in 4K) |
| Lens | 21mm focal length, F2.8 aperture, 93° FOV |
| Gimbal Type | 3-axis mechanical stabilization (FOC control) |
| Gimbal Vibration Range | ±0.01° |
| Controllable Pitch | −135° to +45° |
| Controllable Yaw | −160° to +160° |
| Controllable Roll | −30° to +30° |
| Low-Light Performance | Starlight sensor with HDR support |
| Onboard Processing | Neural Processing Unit (NPU) for AI tracking features |
| Video Output | Ethernet, HDMI, CVBS (AV) |
| Control Signal Input | S.Bus / UART / UDP |
| Control Signal Output | S.Bus |
| Compatible Flight Controllers | ArduPilot, PX4 (MAVLink), SIYI links |
| Working Voltage | 11 V – 25.2 V |
| Power Consumption | Up to 12 W |
| Operating Temperature | −10°C to 50°C |
| Dimensions | 55 × 55 × 70 mm |
| Weight | Approx. 95 g |
Specifications sourced from SIYI’s official A8 Mini product documentation. Bharat Skytech recommends verifying the latest firmware-dependent features directly at the time of purchase, as SIYI periodically updates capabilities via firmware.
Because of its low weight (~95g) and compact footprint (55×55×70mm), the SIYI A8 Mini is well suited to small and mid-size UAV platforms where payload weight is a constraint. Typical, technically supported applications include:
The A8 Mini is a general-purpose imaging payload rather than a specialized survey/mapping sensor (it does not include a mapping-grade camera or LiDAR), so for dedicated orthomosaic mapping, a purpose-built mapping payload is recommended alongside or instead of the A8 Mini.
Â
These are practical, specification-backed reasons to consider the A8 Mini for lightweight aerial imaging — not general marketing claims.
The SIYI A8 Mini price in India depends on import costs, currency exchange rates, and available stock, so it is best to confirm directly rather than assume it from older listings. Bharat Skytech lists the current SIYI A8 Mini camera price at ₹24,500.00. (Exclusive of GST).
As an India-based supplier of agriculture drone components, Bharat Skytech is able to offer the SIYI A8 Mini with GST-compliant billing and delivery across India, which is often a practical consideration for enterprises, agricultural drone operators, and system integrators sourcing genuine SIYI hardware locally rather than through international imports.
Check the current price and availability of the SIYI A8 Mini from Bharat Skytech.
Bharat Skytech supplies the SIYI A8 Mini as a genuine SIYI product to customers across India. Key reasons customers buy the SIYI A8 Mini through Bharat Skytech:
Whether you’re integrating the A8 Mini onto an agricultural drone, an inspection UAV, or a custom UGV/USV platform, Bharat Skytech can support the purchase and basic integration queries.
Check the current price and availability of SIYI A8 Mini from Bharat Skytech.
See more SIYI Products.Â
The SIYI A8 Mini is a lightweight 3-axis stabilized gimbal camera with a 4K Sony CMOS sensor, 8MP resolution, and 6X digital zoom — built for agriculture drones, inspection UAVs, and robotic platforms.
Powered by a 1/1.7-inch Sony CMOS sensor with 8MP resolution — delivering excellent low-light performance, HDR, and superior color quality for aerial photography and precision farming.
Supports 4K @ 30fps, 2K @ 30fps, 1080p @ 60fps, and 720p @ 60fps with H.265 encoding for high-quality video in compact file sizes.
Yes — features 3-axis gimbal stabilization with ±0.01° angular vibration range for smooth, shake-free footage in windy and high-speed flight conditions.
Key specs include a 1/1.7-inch Sony 8MP starlight sensor, 4K video recording, up to 6X digital zoom, 3-axis gimbal stabilization, ±0.01° vibration range, 11–25.2V working voltage, −10°C to 50°C operating temperature, and a weight of approximately 95g. Full specifications are listed in the table above.
Yes — supports ArduPilot, PX4, MAVLink, S.Bus, UART, and Ethernet UDP for seamless integration with professional agriculture and inspection drone platforms.
Yes, but it is digital zoom, not optical zoom. The SIYI A8 Mini supports up to 6X digital zoom, though the exact zoom range depends on the recording resolution — zoom is disabled in 4K mode, and increases up to 3.5X in 2K, 5.5X in 1080p, and 6X in 720p mode.
Yes — works with the optional SIYI AI tracking module for real-time target tracking, auto-focus, and zoom — keeping subjects centered and clearly visible throughout the mission.
Perfect for agriculture crop monitoring, infrastructure inspection, aerial mapping, search and rescue, FPV drones, UGVs, and surveillance missions.
Available at ₹24,500 (exclusive of GST) from Bharat Skytech — India’s trusted authorized drone components supplier
