The Efficient Middle Ground in Hobbywing's Heavy-Lift Line
The X9 G2L sits between the X6 Plus G2 and the X9 Plus G2L in Hobbywing's integrated propulsion range - built as a seamless upgrade from both the original X9 and the X9 Plus. It delivers performance comparable to the X9 Plus while weighing 230g less per axis, making it a genuinely efficient choice for 16L agriculture drones and other Class IV UAVs.
Rated Thrust Per Axis
Sustained hover thrust within the motor's efficient operating band - not the single-shot peak number.
Purpose-Built For
16L agriculture drones and other Class IV UAVs, including logistics, firefighting, surveying and inspection platforms.
What's Improved
- 4% higher efficiency vs previous X9
- +1kg recommended takeoff weight
- 230g lighter than X9 Plus, comparable output
- Altitude-adaptive Highland Mode
used with the
in the same thrust range compared to the previous version X9
to the X9 Plus

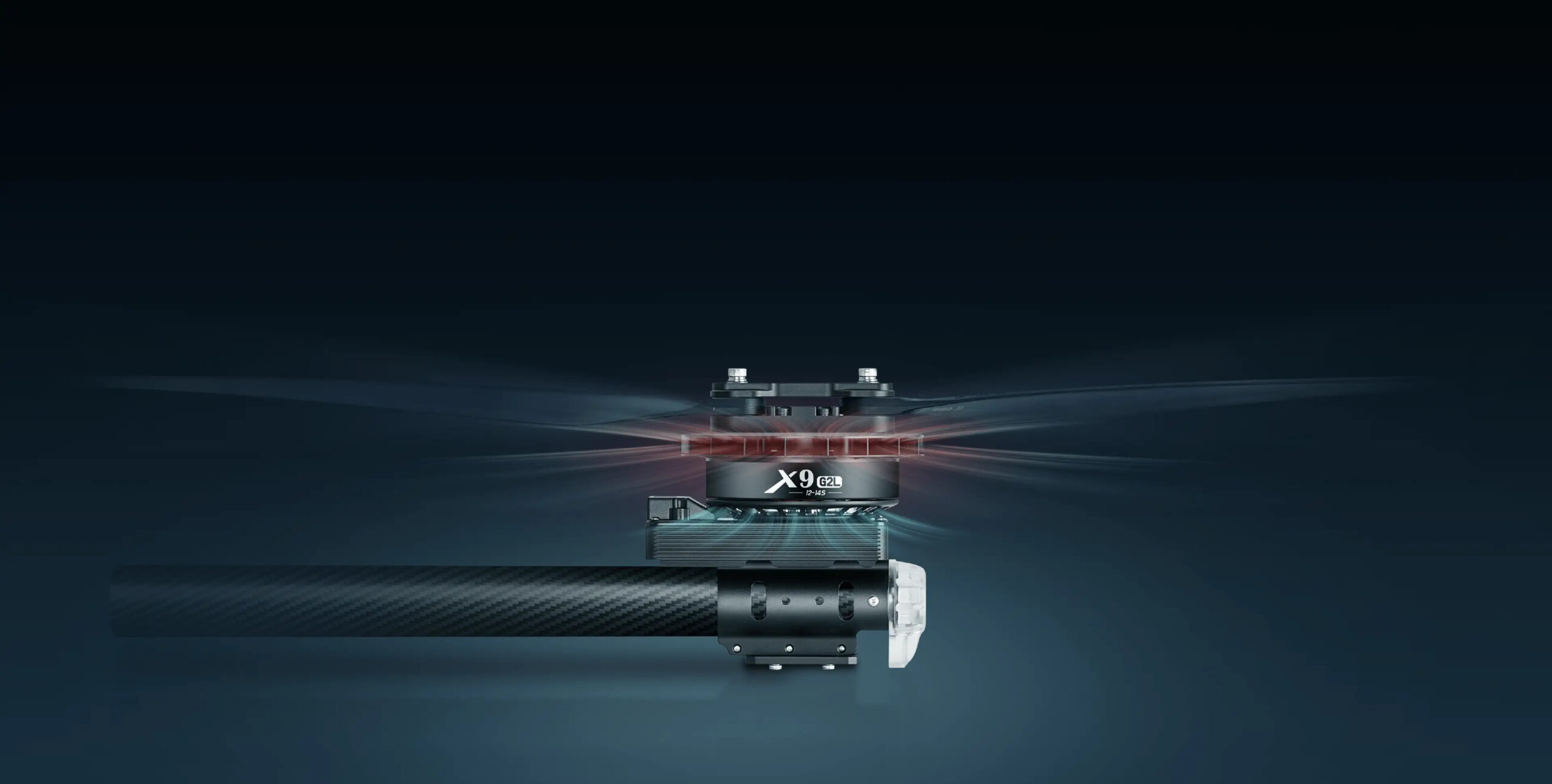

The rectangular vent design, with a larger diameter, greatly improves heat dissipation efficiency over the previous product, while still preventing impurities from entering the motor.
Users Can Choose the Mode Based on Operational Needs

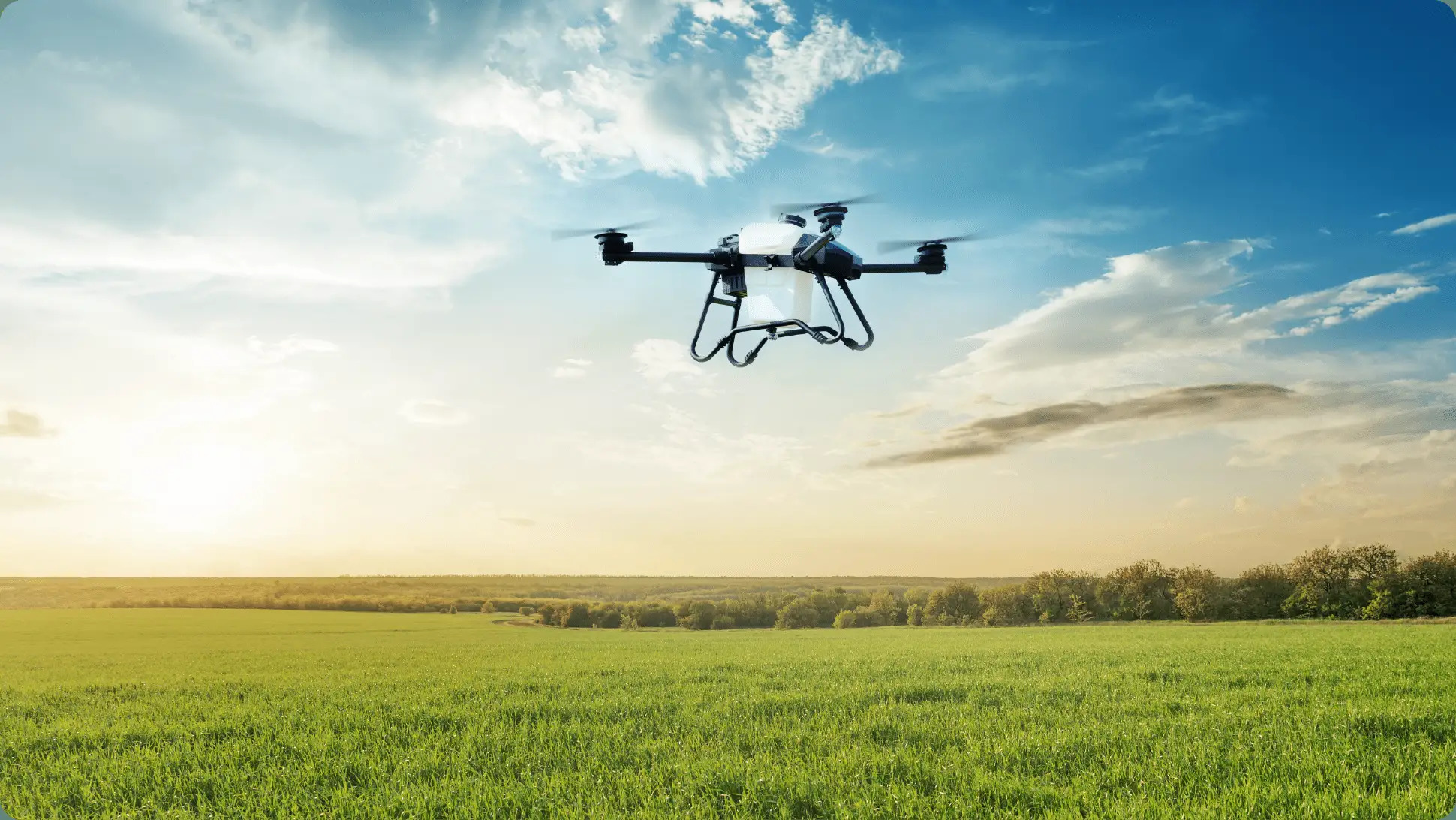

Ideal for flat areas, offering stable motor rotation speed output and precise speed control within the operating voltage range.
Suitable for high-altitude areas, automatically adjusting motor rotation speeds within a certain range as altitude increases to adapt to high-altitude operations. (Customizable on request)
Three Ways to Tune It - Field or Workshop

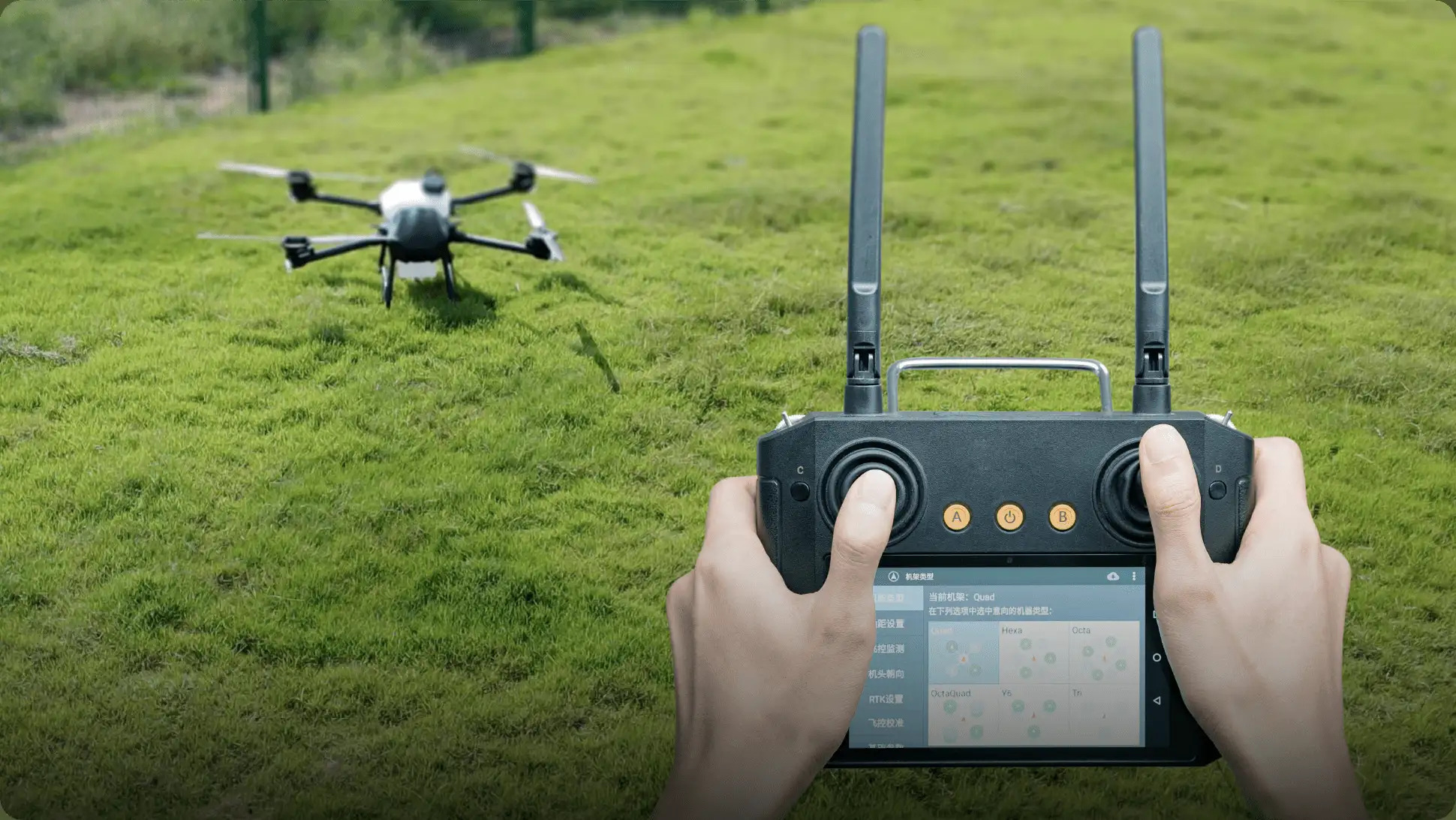

Via Remote Controller
No DataLinkBox on hand? Navigation light colours and motor rotation direction can be switched right from the transmitter - no separate hardware needed.

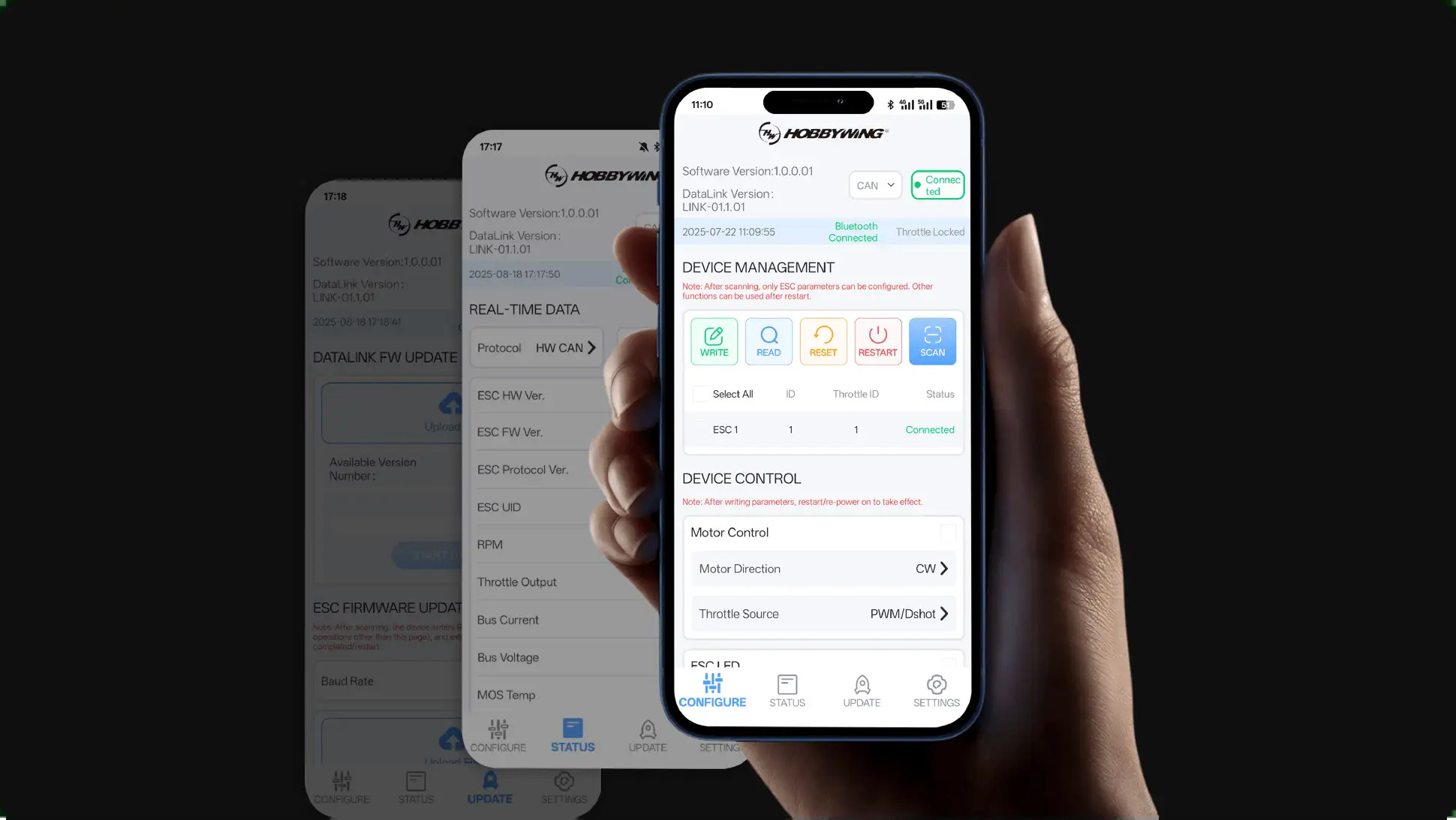

Via Bluetooth Mobile App
Pair DataLinkBox G3 with the DataLink V3 app (Android & iOS) to configure roughly 90% of ESC parameters over Bluetooth, outdoors, in minutes.

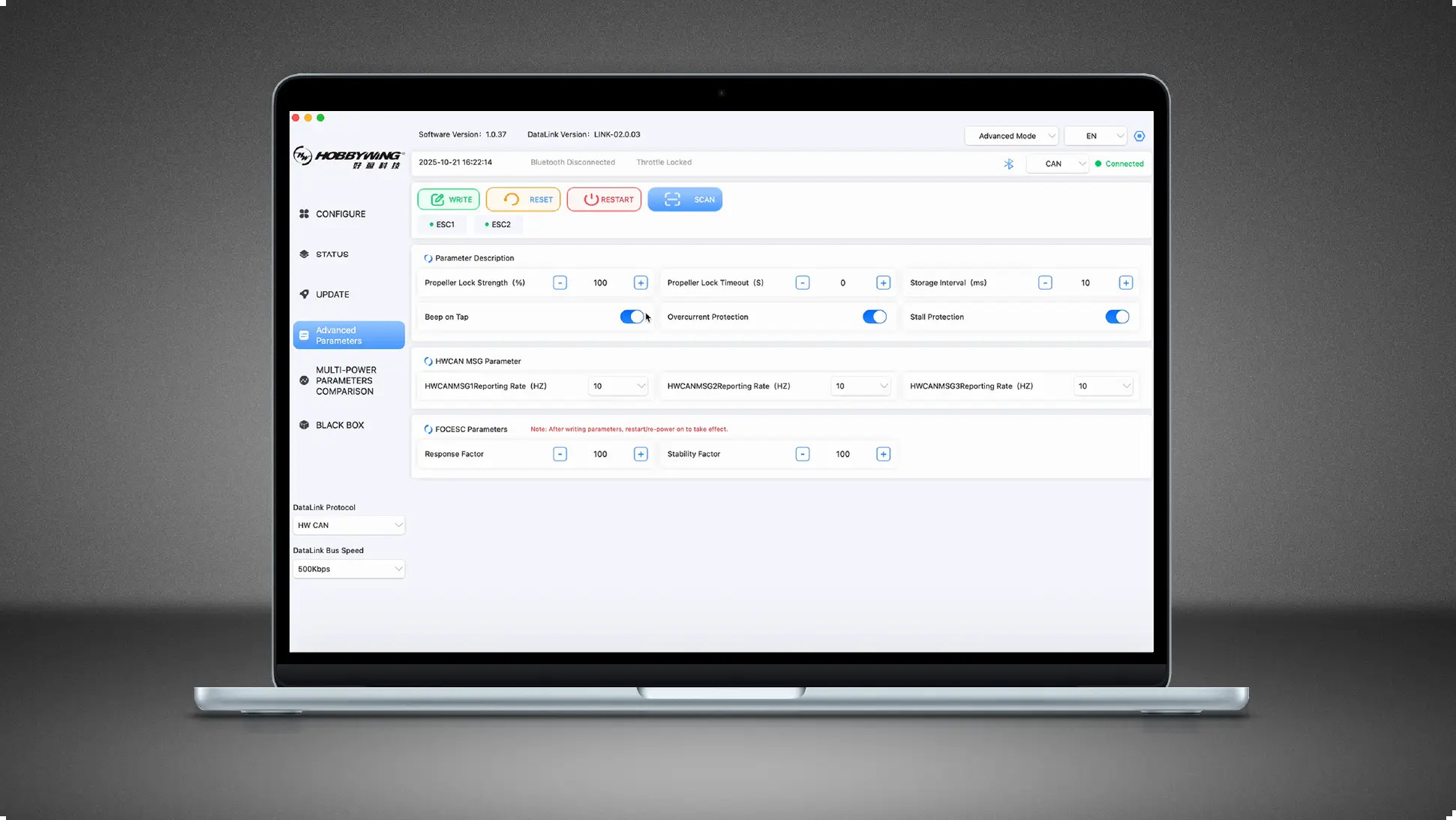

Via PC Software
The PC-side DataLink host software unlocks every open parameter, including advanced settings, for full-fleet configuration and firmware management.
Works With Your Existing Stack
Supports DroneCAN and HWCAN protocols (default: HWCAN) for direct integration with mainstream flight controller ecosystems.

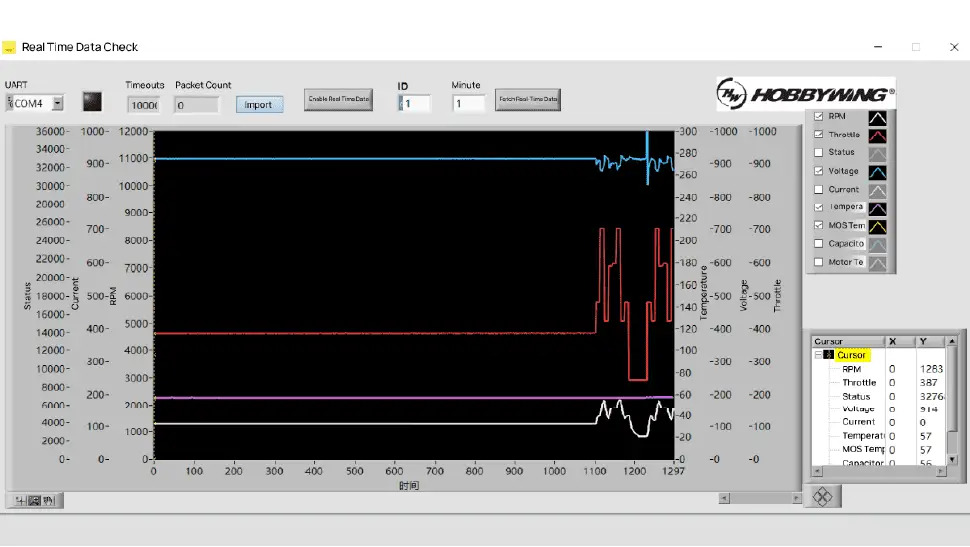

Optimized Black Box, Millisecond Fault Logging
Fault Storage precisely records fault data within milliseconds, making post-flight analysis and ESC maintenance far faster. The Log Black Box separately records ESC operating data in real time to trace the full flight process - 1 hour by default, extendable up to 24 hours.
Engineered for Harsh, Repetitive Field Use
200°C-Rated Windings, IPX6 Sealing

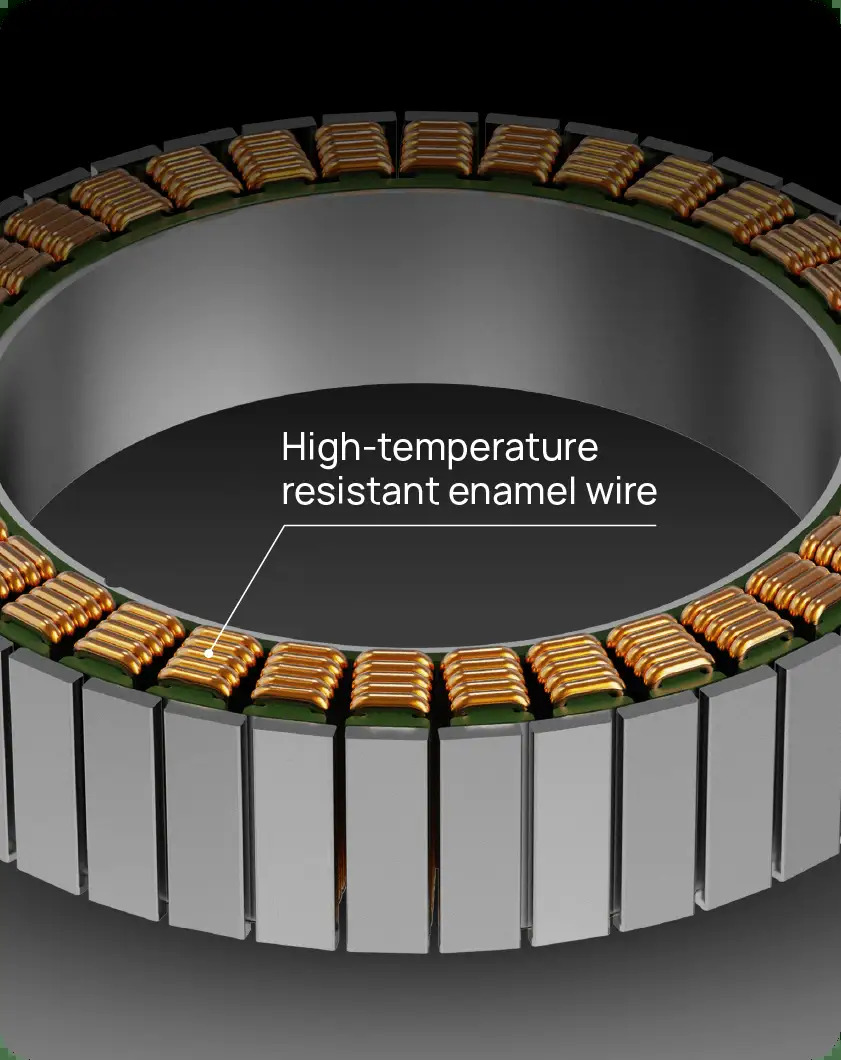

The X9 G2L motor is coated with high-temperature resistant enamel wire, capable of withstanding up to 200°C under sustained current draw. Combined with an IPX6 ingress protection rating, its water-rinsable exterior is well-suited to rain, pesticide mist, high temperatures and dust.
A Full Suite of Self-Check & Running Protections
Software and hardware protection mechanisms cover over-current, motor stall, throttle loss, temperature anomalies and over/under-voltage conditions. Every protection can be enabled or disabled to match your system's configuration.
Overvoltage warning
Undervoltage warning
Fail to reset throttle to zero
Short-circuit fault
Disconnection fault
Overcurrent fault
Motor stall fault
Throttle loss warning
MOS over-temperature warning
Capacitor over-temperature warning
Full Technical Specifications
Everything you'd expect on the Hobbywing X9 G2L manual - motor, ESC and propeller, laid out in full.
All-in-One Thrust System
| Max Thrust | 24 kg (sea level) |
| Recommended takeoff weight / axis | 7–12 kg (sea level) |
| Efficiency at recommended weight | 9.7–7.7 g/W |
| Compatible battery | 12S–14S LiPo |
| Rated voltage | 14S–54V / 12S–48V |
| Input voltage | 18–63 V |
| Tube outer diameter | D40 mm |

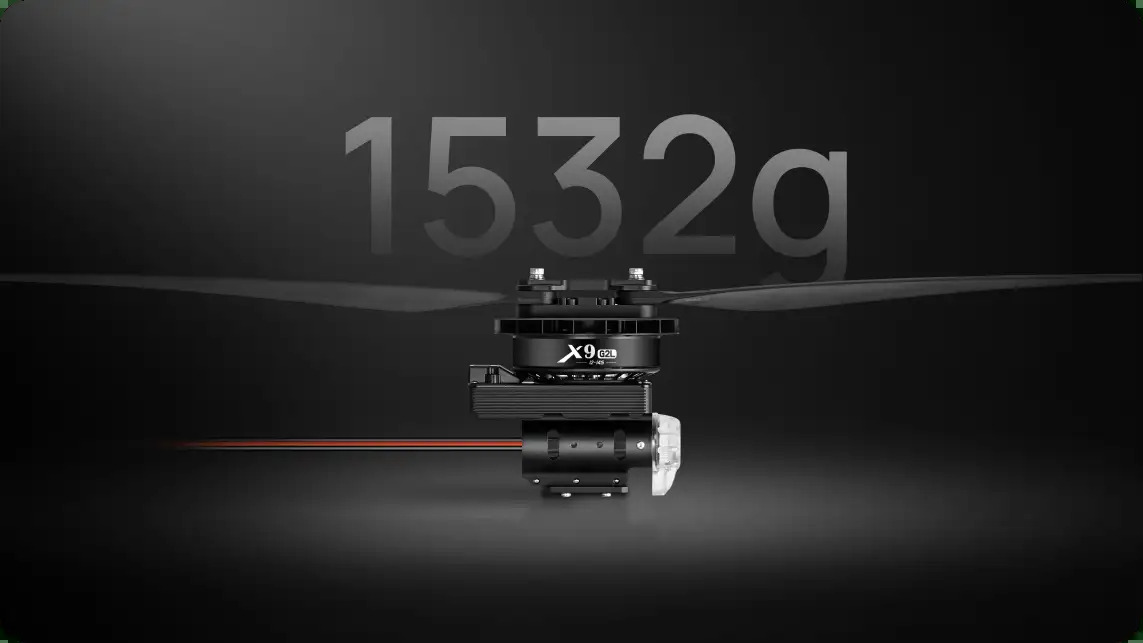

| Weight (with cable & propeller) | 1532 g* |
| Cable specification | Power: 12AWG, 1000mm* | Signal: 1090mm* |
| Operating temperature | -20°C to 50°C |
| Ingress protection | IPX6 |
| Rated output power (max continuous) | 1370 W |
| Pinout | Black-GND, White-PWM & Yellow-GND, Gray-CH, Green-CL |
| DataLink version | DataLinkBox G3 |
ESC Specification
| Rated voltage | 14S / 12S |
| Communication protocol | Cyphal (UAVCAN) |
| Peak current (3 seconds) | 120 A |
| Continuous current | 30 A |
| Throttle travel calibration | Not supported |
| Double throttle signal | PWM + CAN |
| Operating pulse width | 1050–1950 μs |
| Failure storage & log | Supported |
Motor Specification
| KV rating | 110 KV |
| Slot & pole | 36N40P |
| Stator diameter | 96 x 16 mm |
| Motor diameter | 104 mm (Fan 130 mm) |
3611 Propeller Specification

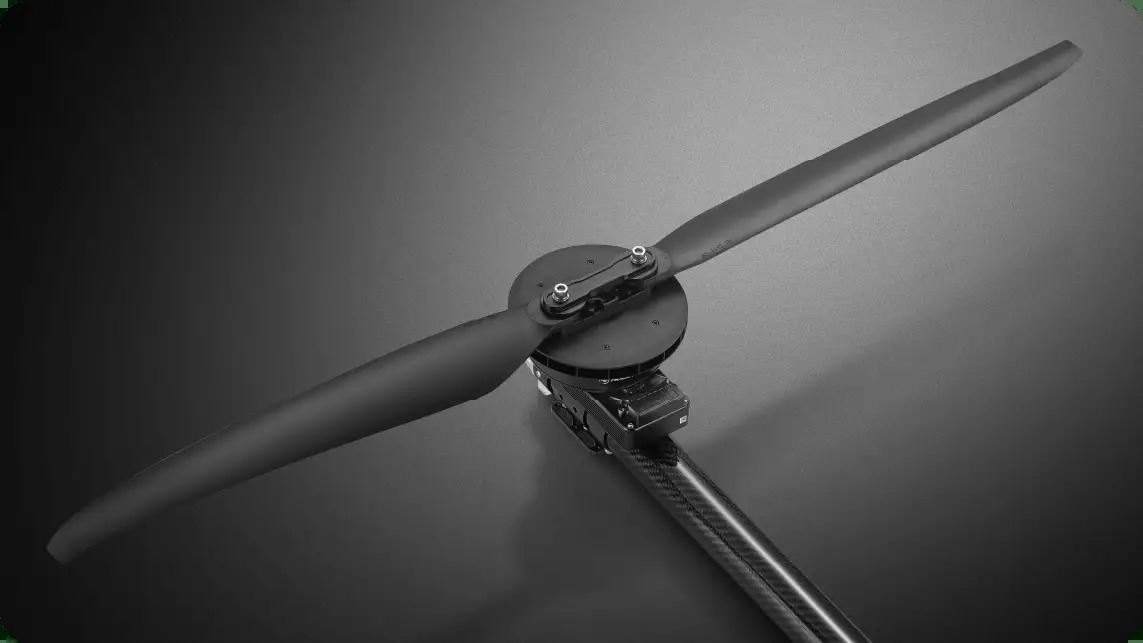

| Model | MFP 36x11 (folding propeller) |
| Total weight | 287 g* |
| Material | Carbon fibre-reinforced nylon composite |
| Single blade weight | 82 g* |
* Subject to the actual product batch.
Thrust, Current & Efficiency Under Load
Measured at 25°C, sea level, with the matched 3611 (MFP 36x11) folding propeller.
12S LiPo (48V)
| Throttle | Thrust (g) | Current (A) | Eff. (g/W) |
|---|---|---|---|
| 33% | 4353 | 7.8 | 11.6 |
| 48% | 8407 | 19.4 | 9.0 |
| 60% | 12009 | 32.7 | 7.6 |
| 75% | 16867 | 54.4 | 6.4 |
| 90% | 21717 | 82.0 | 5.5 |
| 100% | 23997 | 95.9 | 5.2 |
14S LiPo (54V)
| Throttle | Thrust (g) | Current (A) | Eff. (g/W) |
|---|---|---|---|
| 33% | 5311 | 9.1 | 10.8 |
| 48% | 10082 | 22.7 | 8.2 |
| 60% | 14235 | 38.0 | 6.9 |
| 75% | 19750 | 62.8 | 5.8 |
| 90% | 25084 | 94.4 | 4.9 |
| 100% | 25839 | 99.8 | 4.8 |
Data measured by Hobbywing laboratory at room temperature 25°C, at sea level, with varying throttle input adjustments. For reference only - field performance varies with propeller condition, altitude and ambient temperature.
Pinout & Battery Compatibility
The signal cable carries both PWM and CAN lines, so it wires directly into most modern flight controllers without an adapter. The X9 G2L battery requirement is 12S–14S LiPo packs (48V–54V rated), with an ESC input tolerance of 18V–63V.
- Black — GND Ground
- White — PWM & GND Analog Throttle
- Yellow — GND Ground Reference
- Gray — CH CAN High
- Green — CL CAN Low
Pairs Well With
DataLinkBox G3 NEW
Telemetry: UART, CAN, RS485, USB*, Bluetooth* | Voltage: 6–81V | Size: 67×52.8×15mm | Weight: 50g. Pairs with the X9 G2L for full-fleet parameter tuning and black-box diagnostics.
Where This Combo Gets Put to Work

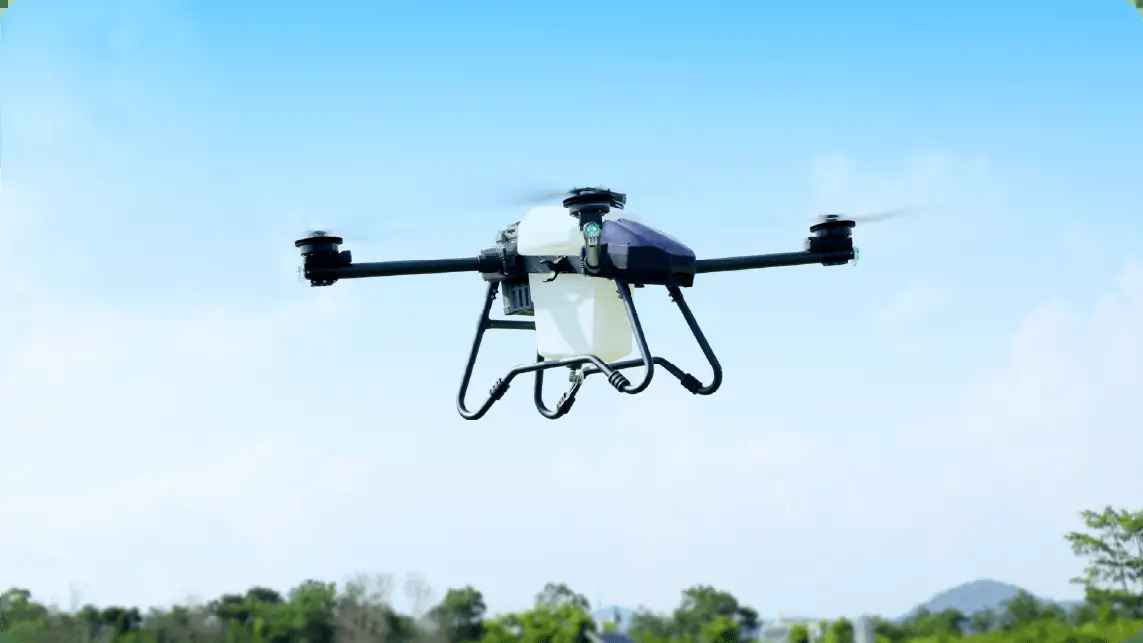

Agriculture Spraying & Seeding
16L Class IV agriculture drones running full-day spray and seeding schedules across large land holdings.
Logistics & Cargo UAVs
Strong thrust-to-weight ratio suits heavy-payload multirotors built for delivery and cargo movement.
Firefighting & Emergency Response
Reliable operation under sustained load supports aerial reconnaissance and relief payload drops.
Surveying & Inspection
Stable thrust and CAN telemetry support long-duration mapping and infrastructure inspection.
Introduction
The Hobbywing X9 G2L motor with 3611 propeller combo was built specifically for that middle ground. It’s a seamless upgrade from both the original X9 and the X9 Plus lines – delivering performance comparable to the X9 Plus while weighing 230g less per axis, with a 4% efficiency gain over the previous-generation X9 in the same thrust range. Bharat Skytech supplies this combo as genuine, authorized Hobbywing stock, so operators searching for the Hobbywing X9 G2L price in India get accurate specifications and real lab-tested performance data, not just a product listing.
Product Overview

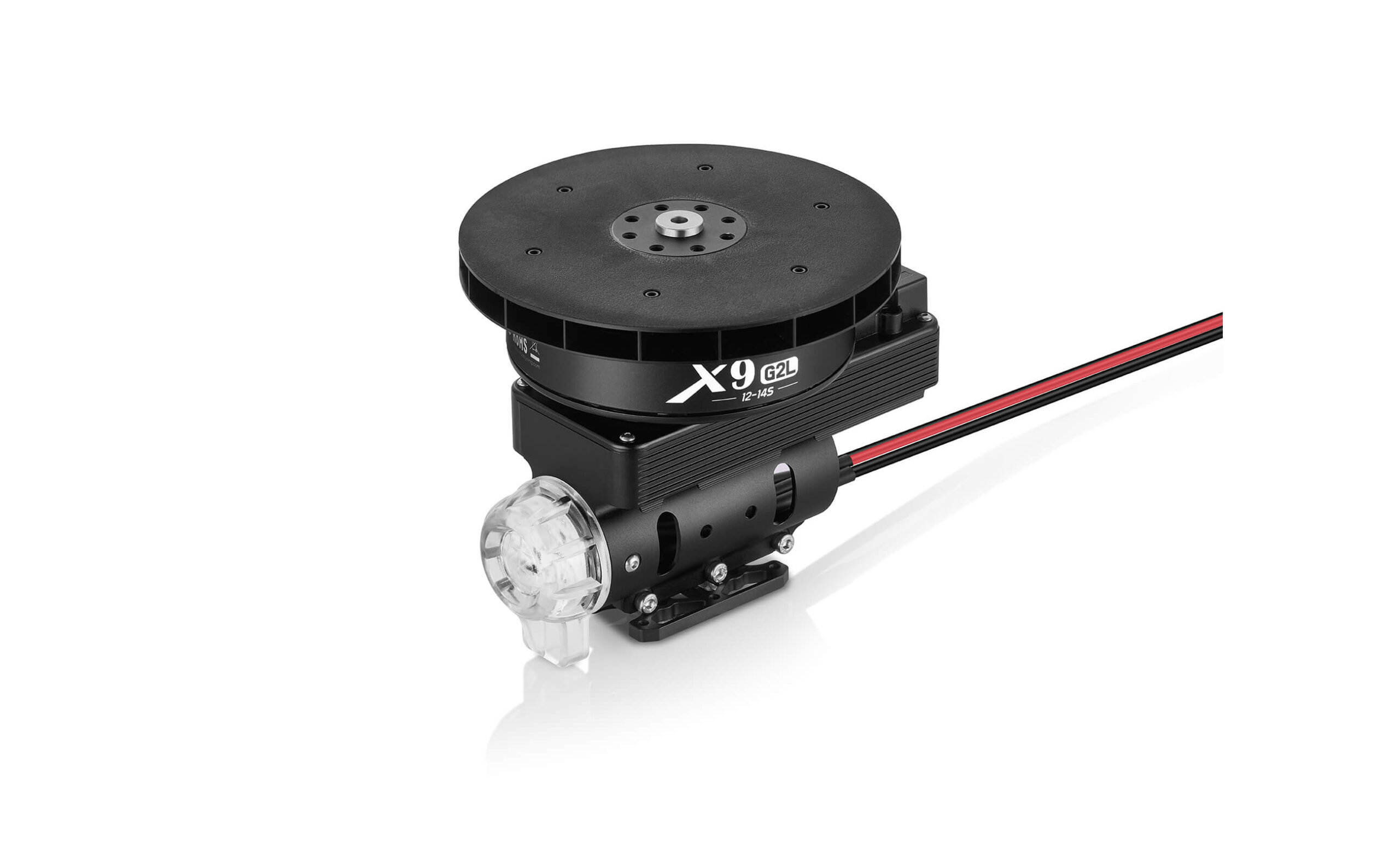

This is a complete Class IV propulsion combo: the Hobbywing X9 G2L motor, its integrated ESC, and the matched MFP 36×11 (3611) folding propeller, engineered together as a single system. Buying them matched matters – any efficiency figure quoted for this motor only holds when the propeller is the one it was tuned against.
Built around a D40mm tube mounting diameter and a 110KV motor, the X9 G2L is sized for the 16L agriculture drone class – a step below the X9 Plus G2L‘s 20L platforms, and a genuinely useful middle tier for Indian operators whose fleet doesn’t need the absolute largest Hobbywing motor but does need more than a 10L-class combo can deliver. At 1532g fully assembled with cable and propeller, it delivers 7–12kg of rated thrust per axis in normal operation, with a maximum thrust ceiling of 24kg per axis.
Key Features of the Hobbywing X9 G2L Motor
4% More Efficient, 230g Lighter Than the X9 Plus
Compared to the previous-generation X9, the G2L is 4% more efficient within the same thrust range. More notably, it delivers performance comparable to the heavier X9 Plus while weighing 230g less per axis – a genuine engineering trade-off in Hobbywing’s favor, not just a smaller number on a spec sheet. For a hexacopter or octocopter frame, that weight saving compounds directly into recoverable payload.
Rectangular Vent Cooling for Sustained Field Use
The X9 G2L carries forward Hobbywing’s larger rectangular vent design, which meaningfully improves heat dissipation over earlier round-vent motors while still keeping dirt, dust and spray residue out of the housing – necessary for a motor that’s expected to run a full agriculture shift, not just a demo flight.
Dual-Loop Control - Flatland & Highland Modes
Operators select between two control modes depending on the mission. Flatland Mode holds stable, precise motor speed for standard field operations at consistent altitude. Highland Mode automatically compensates motor rotation speed as altitude increases – genuinely useful for hill-region agriculture or elevated survey work across parts of India where a single fixed control curve doesn’t hold up as terrain changes.
IPX6 Sealing & 200°C-Rated Windings

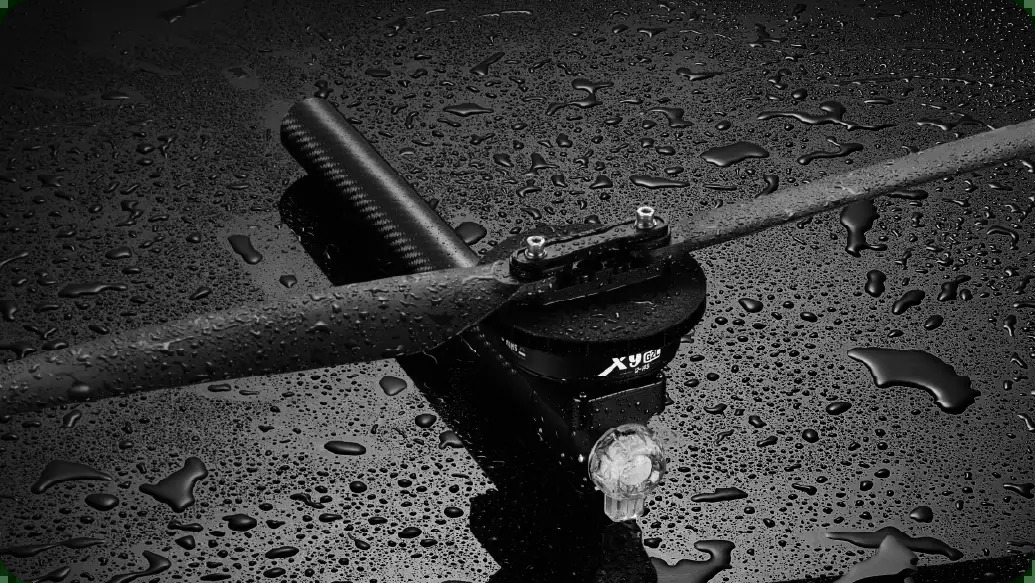

Rated IPX6 and built to be rinsed clean after every spray shift, the motor is coated with high-temperature resistant enamel wire rated to 200°C, supporting the sustained current draw this thrust class pulls under heavy load across a full day’s operation.
Dual Throttle Redundancy (PWM + CAN)
The ESC runs a dual throttle scheme combining an analog PWM signal with a CAN bus digital signal, improving both responsiveness and interference resistance. This maintains stable position-holding even under standalone GPS operation without RTK – a real safety margin for BVLOS or long-route agriculture missions.
Optimized Black Box - Millisecond Fault Logging
Every ESC runs two logging systems: Fault Storage, which records fault data within milliseconds for fast root-cause diagnosis, and a Log Black Box that records general ESC operating data in real time – 1 hour by default, extendable to 24 hours. For a fleet operator, that turns “the motor failed” into “the motor failed because of X.”
Technical Specifications Snapshot
The full X9 G2L specifications are detailed on the product page, covering motor KV rating, stator dimensions, ESC current ratings, and complete thrust-test tables at both 12S and 14S. Key highlights:
- Max thrust: 24kg per axis
- Rated thrust per axis: 7–12kg
- Combo weight: 1532g (with cable and propeller)
- Compatible battery: 12S–14S LiPo (48V–54V rated) – the X9 G2L battery requirement
- Ingress protection: IPX6
- Communication: CAN (Cyphal/UAVCAN) + PWM
- Propeller: MFP 36×11 folding propeller, carbon-fibre-reinforced nylon composite
Â
If you’re reading an X9 Plus G2L review while comparing options, note the distinction clearly: the X9 G2L is the lighter, more efficient sibling in the same family, purpose-sized for 16L platforms rather than the X9 Plus G2L’s 20L class – not a lesser version, but a different weight-class target.
Use Cases
16L Agriculture Spraying & Seeding Drones
This combo is purpose-sized for India’s mid-to-large commercial agriculture drone class – 16L drone used for pesticide spraying, fertilizer application, and seed broadcasting, where efficiency-per-acre directly affects the cost of an operating season.
Surveying & Mapping UAVs
For photogrammetry and infrastructure survey missions where flight duration and stable output both matter, the combination of solid thrust headroom and Highland Mode altitude compensation supports reliable operation across varied terrain, including hill and plateau regions.
Industrial & Enterprise UAV Applications
Logistics, firefighting-support, and inspection UAV programs specifying a mid-heavy propulsion system benefit from documented thrust-efficiency data and dual throttle redundancy – reducing integration risk for enterprise and government UAV procurement that requires full technical documentation before approval.
Why Choose Bharat Skytech
Bharat Skytech supplies genuine, authorized Hobbywing hardware to Indian drone manufacturers, agriculture drone operators, and UAV system integrators – not grey-market imports with uncertain firmware or unclear warranty status. Every X9 G2L combo ships with in-India technical support for flight-controller integration (ArduPilot, PX4, and other CAN-compatible systems), battery sizing, and DataLinkBox G3 configuration support. For enterprise and government buyers, we provide GST-compliant invoicing, bulk and dealer pricing, and direct access to the Hobbywing X9 G2L manual, installation drawings, and CAD files on request – the documentation procurement teams need before specifying a component into a certified airframe.
Call-To-Action
Specifying propulsion for a 16L agriculture drone, survey platform, or enterprise UAV program? Contact Bharat Skytech today for the current Hobbywing X9 G2L price in India, the full datasheet and manual, and bulk order quotes. Our technical team responds within 24 hours.
Frequently Asked Questions
What is the Hobbywing X9 G2L price in India?
The Hobbywing X9 G2L Motor with 3611 Propeller Combo price in India is ₹17,899/- (exclusive of GST) when purchased from Bharat Skytech. Also, pricing depends on order quantity, GST invoicing requirements, and current exchange rates. Contact Bharat Skytech directly for current combo pricing and bulk/dealer rates.
Does this combo include the ESC, or is it motor-only?
It’s a complete propulsion combo — the Hobbywing X9 G2L motor, integrated ESC, and the matched MFP 36×11 (3611) folding propeller, ready to wire into your flight controller.
What battery does the Hobbywing X9 G2L support?
The X9 G2L battery requirement is 12S to 14S LiPo packs (48V–54V rated voltage), with an ESC input tolerance of 18V–63V.
Where can I get the Hobbywing X9 G2L manual and datasheet?
The full technical manual, installation drawing, load performance parameters, and datasheet are available on request from Bharat Skytech’s technical team, along with CAD files for integration planning.
What size agriculture drone is the X9 G2L suitable for?
It’s purpose-sized for 16L Class IV agriculture drones, as well as other mid-heavy-payload multirotor platforms used in surveying and industrial inspection.
How is the X9 G2L different from the X9 Plus G2L?
If you’ve read an x9 plus g2l review, the key distinction is weight class: the X9 G2L is sized for 16L agriculture platforms with 7–12kg rated thrust per axis, while the X9 Plus G2L targets 20L platforms with 12–14kg rated thrust. The X9 G2L delivers performance comparable to the older X9 Plus while weighing 230g less — it’s a different tier, not a lesser version.
Is this genuine Hobbywing hardware or a third-party clone?
All units sold by Bharat Skytech are genuine, unmodified Hobbywing product sourced through authorized supply channels – not grey-market or counterfeit stock.
Original price was: ₹21,999.00.₹17,899.00Current price is: ₹17,899.00. (Exclusive of GST)
