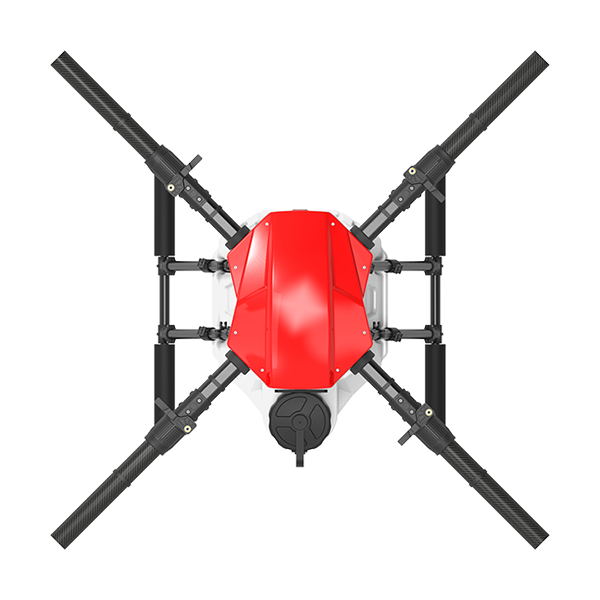

EFT E416P
16L 4 Axis
Agricultural Drone Frame
16KG agriculture drone frame engineered for professional precision spraying. Cross-folding structure, one-piece molded body, fully waterproof — built to dominate any terrain.
All-in-One Body
Single-piece molded fuselage
Bigger Inlet
Enlarged tank filling mouth
Classic Fold
Cross-folding arm structure
Waterproof Design
Dust-proof & washable body

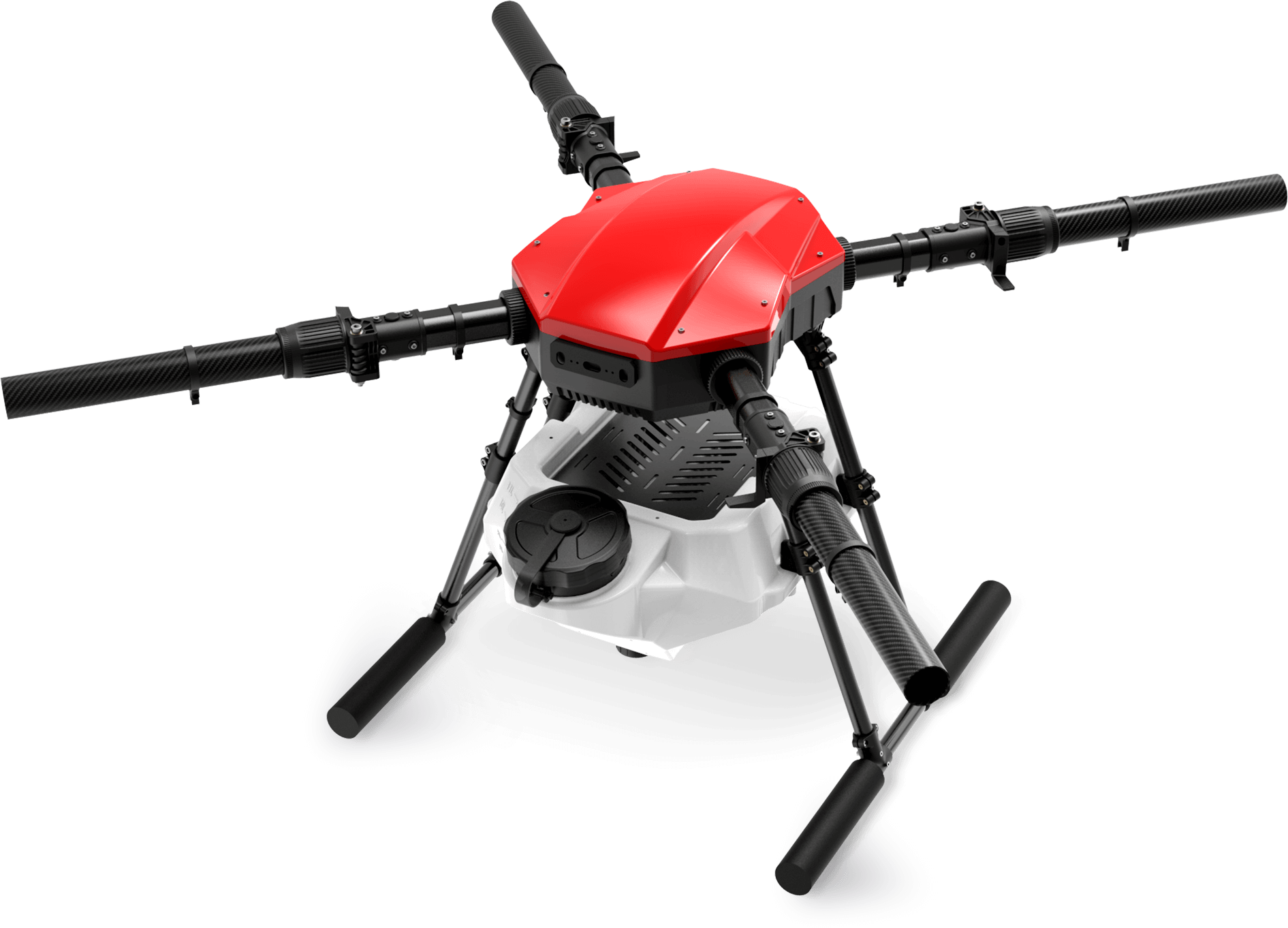

E Series — Engineered for the Field
The EP Quadcopter E Series is a 16KG agricultural drone frame independently designed for precision spraying operations. Built with one-piece molding technology and a full waterproof body, it's ready for the toughest agricultural environments.
One-Piece Molded Fuselage
Dozens of parts simplified into a single strong body — lightweight yet impact-resistant.
Cross-Folding Arm Structure
Staggered folding minimizes size for easy transport and quick field deployment.
Fully Waterproof & Corrosion-Resistant
UV-treated, scratch-resistant coating — wash it down directly after use.
Integrated Power Wiring
Centralized power supply with separate signal & power lines to minimize interference.
Cross-Folding Structure
The arm adopts a cross-folding and staggered folding method, which minimizes the folded size and facilitates transfer and transportation — from farm to field in seconds.
Built Different. Built Better.
Every component of the E Series is engineered to reduce downtime, increase reliability, and make field maintenance as simple as possible.

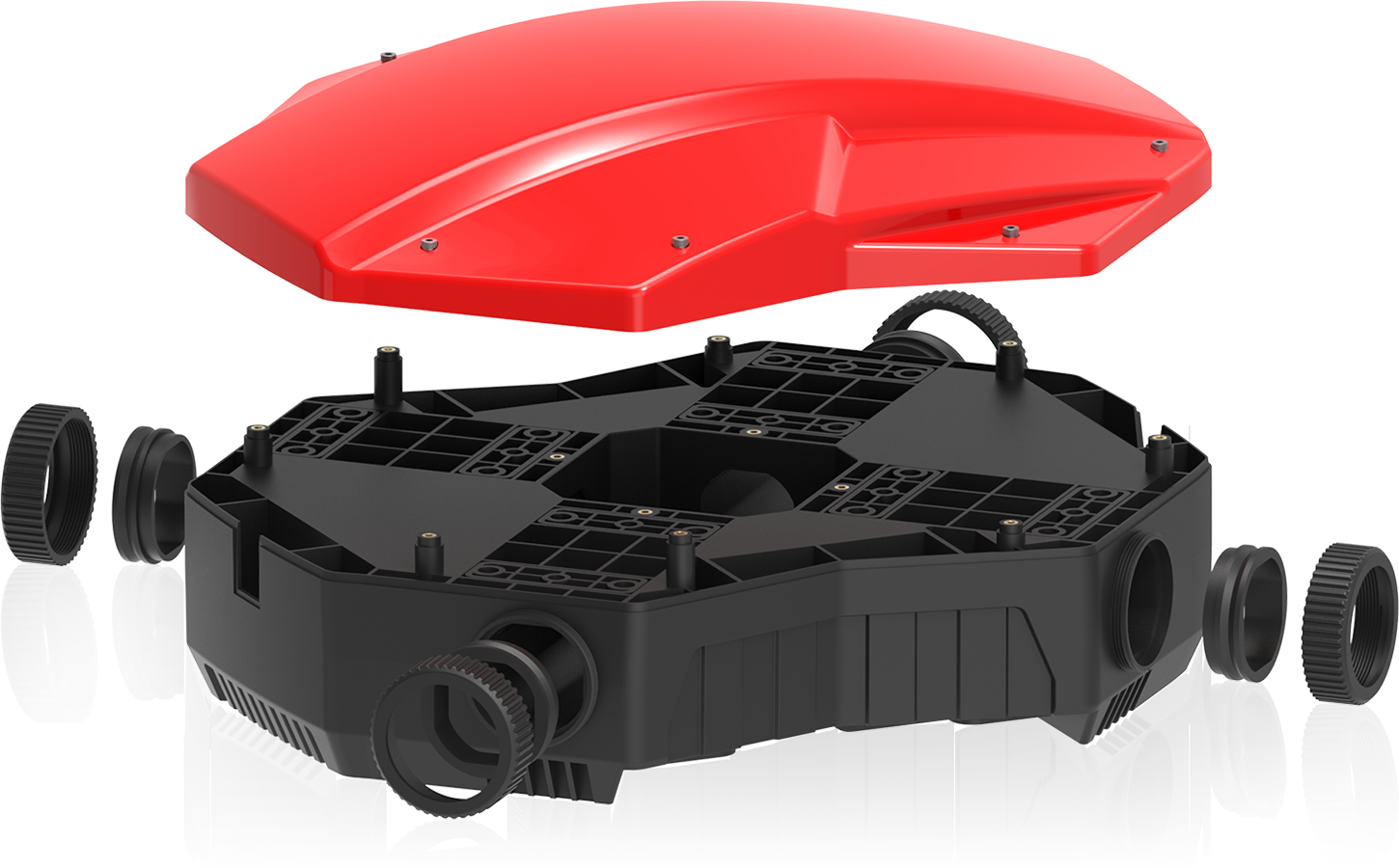

All-in-One Body
One-piece molding process simplifies dozens of original parts into a single high-strength, impact-resistant body — reducing assembly time and failure points.

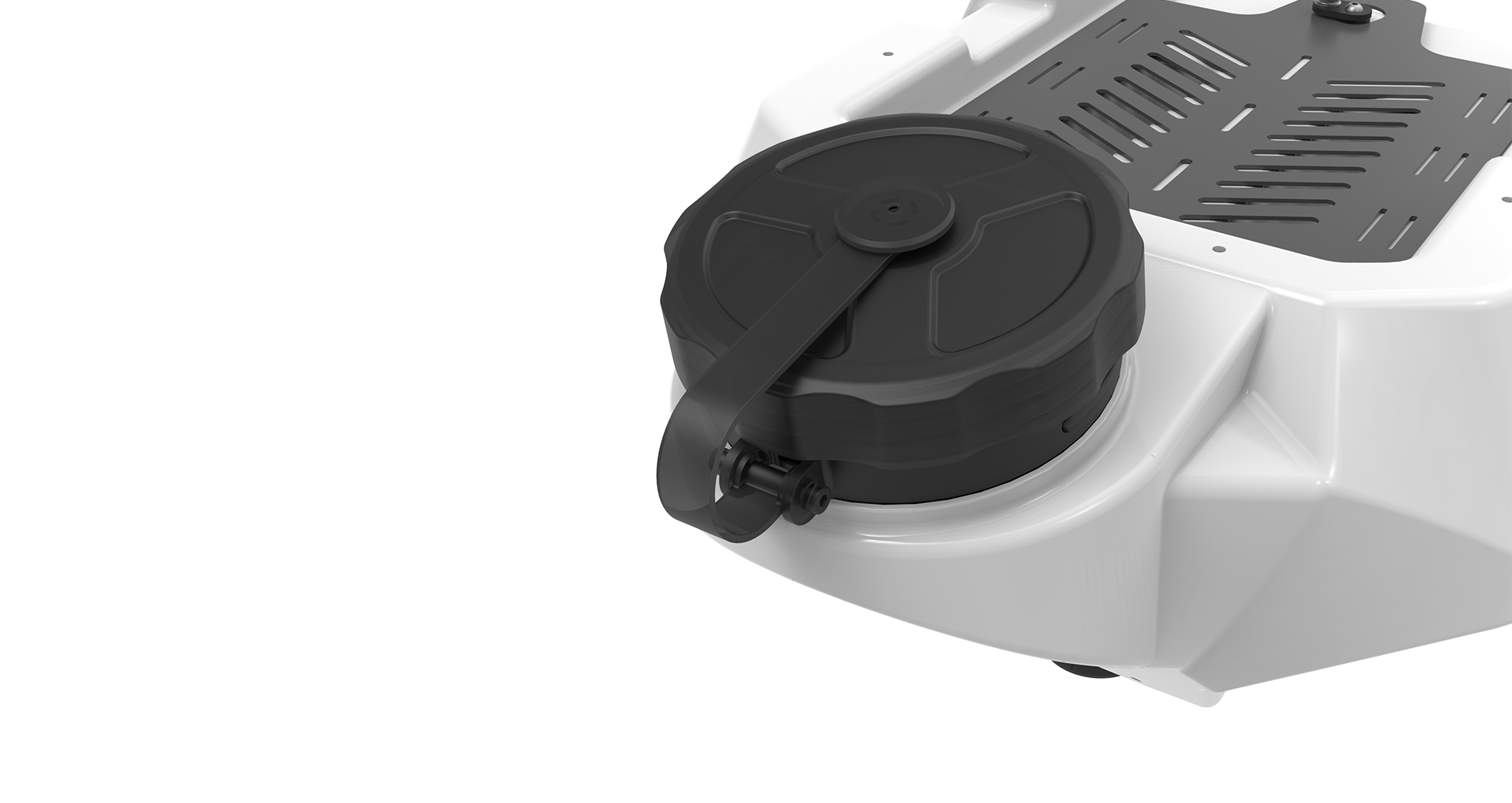

Enlarged Tank Inlet
The tank filling mouth is enlarged as a whole, reducing leakage risk and making the refill process faster and smoother during intensive spray operations.

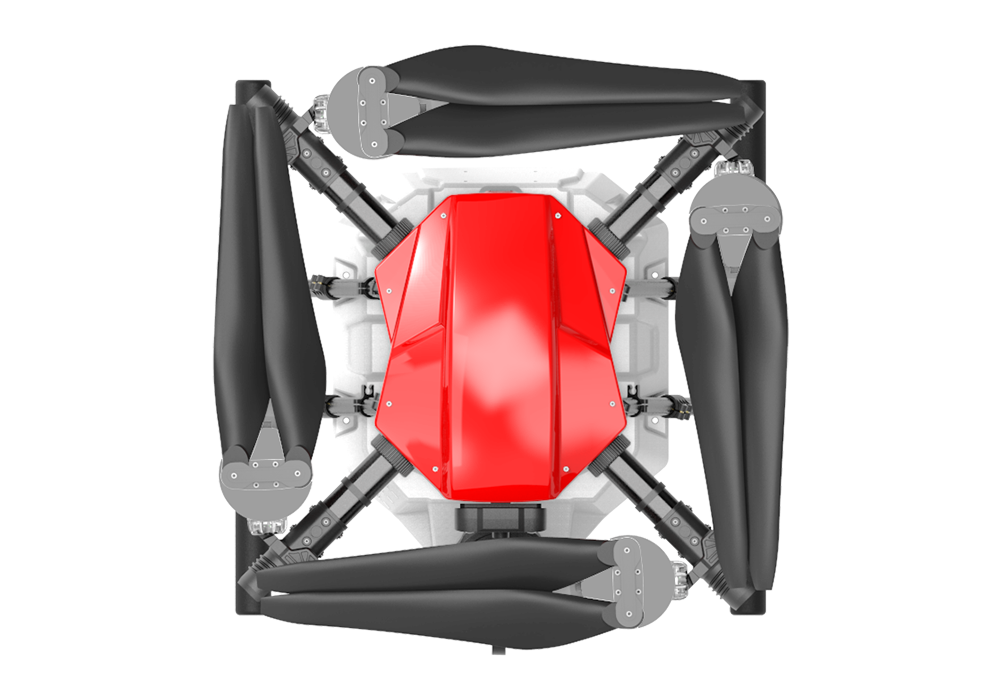

Cross-Folding Arms
Staggered cross-fold brings the drone to its minimum transport size instantly — no tools, no fuss. Ready to deploy or pack in under 60 seconds.

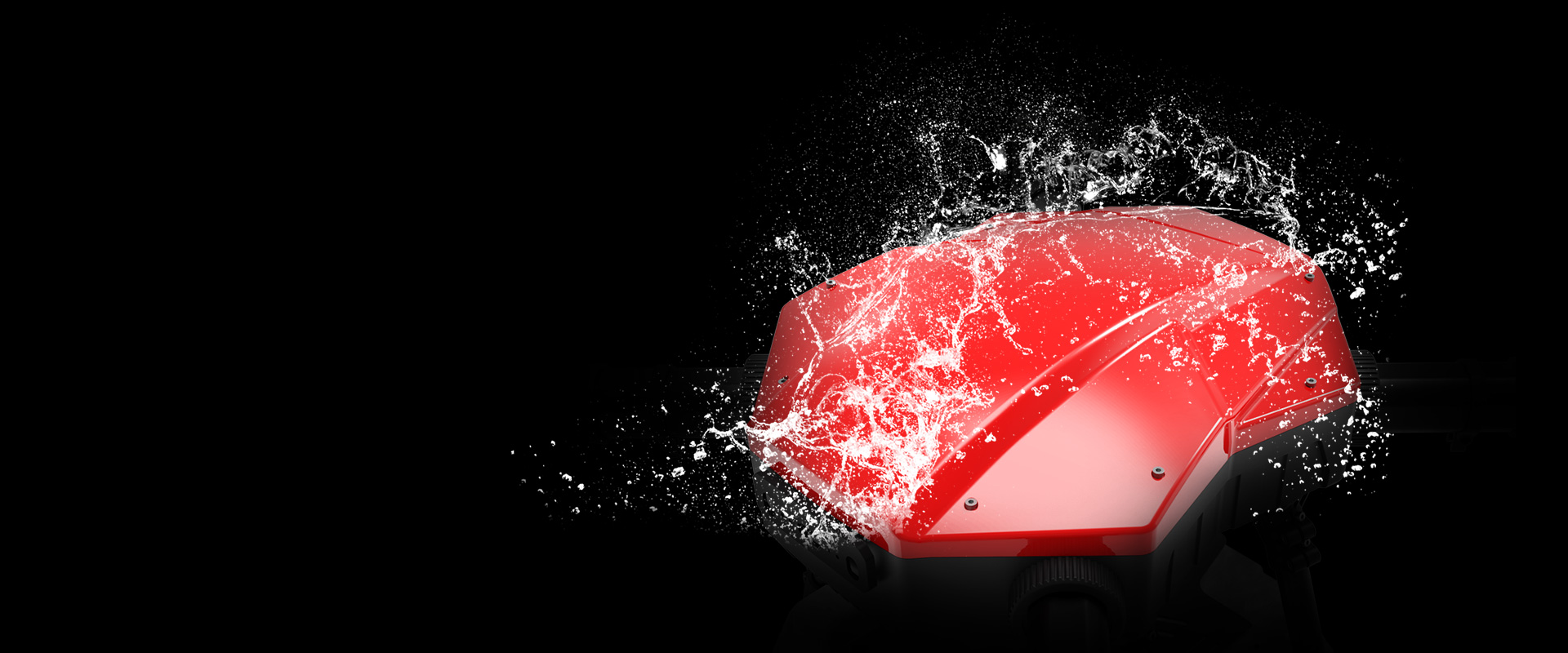

Full Waterproof Body
Streamlined design with UV-treated coating. Scratch-resistant, corrosion-resistant, and fully dust/waterproof — wash it down directly after every flight.

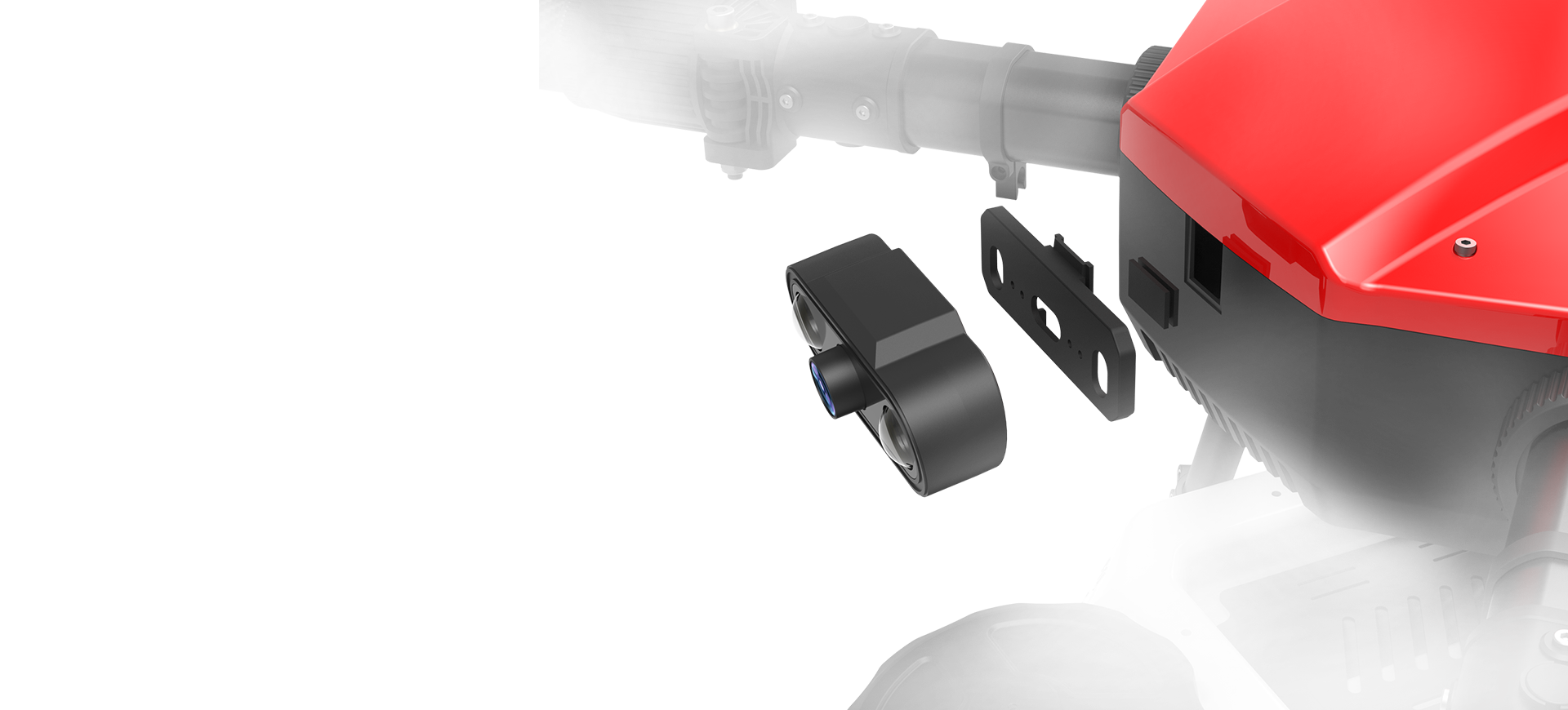

Reinforced Power Plug
Main power cord exits from the side. Battery interface is mounted on the tripod side — no plug obstruction when swapping batteries. Supports AS150 / AS150U connectors.
Detachable Camera Mount
A removable camera adapter is designed into the front frame. Install or close it as needed — enabling multi-mission versatility from spraying to field scouting.
Rain or Shine — Always Flying
The E Series body features a streamlined design with a bright red coating that is UV-treated, scratch-resistant, and corrosion-resistant. The overall dust-proof and waterproof construction lets operators wash the drone directly with water after a session in the field — keeping maintenance time minimal and the drone mission-ready.
Get a Quote

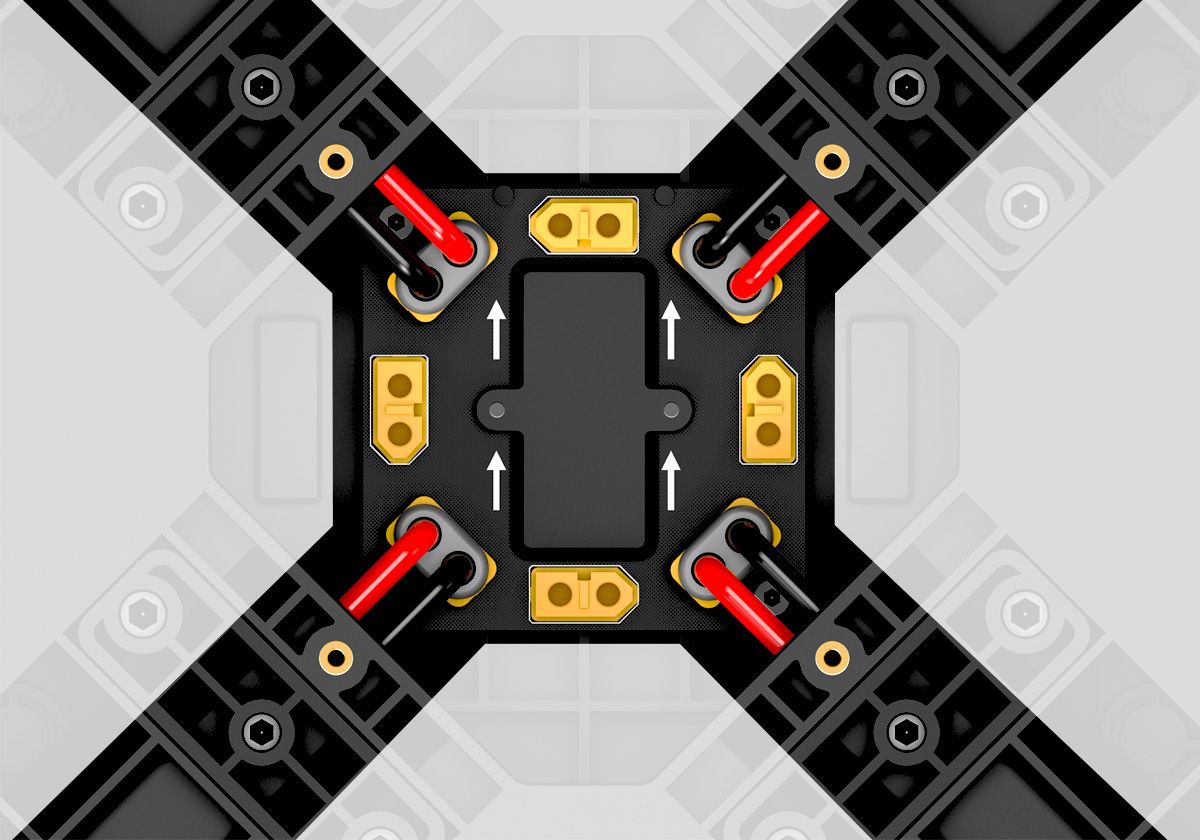

Centralized Power, Zero Interference
Integrated power supply wiring routes signal and power lines separately through the fuselage. This centralized approach dramatically reduces electromagnetic interference, improves flight stability, and makes field diagnostics significantly easier — each line is clearly routed and labeled.
View Specifications
Bigger Inlet, Smoother Operations
The enlarged tank inlet reduces spill-over during field refills, speeds up turnaround time between spray runs, and ensures a clean seal every time. The entire tank system is designed for high-frequency refill operations without fatigue or mess.
Contact Sales
Safer, Faster Battery Swaps
The reinforced power plug design positions the battery interface on the side of the tripod, completely eliminating plug obstruction during battery replacement. Compatible with AS150 and AS150U connectors, the system ensures secure, confident connections even with gloves on in the field.
View GalleryChoose Your Configuration
Three models to match your payload requirements — from 10L compact spraying to 20L heavy-duty coverage.
| Motor | X8 |
| Propeller | 30 inch |
| ESC | 80A FOC |
| Supply Voltage | 12S |
| Wheelbase | 1416 mm |
| Opening Size | 1801 × 1801 × 567 mm |
| Folding Size | 701 × 701 × 567 mm |
| Tank Capacity | 10 L |
| Frame Weight | 5 kg |

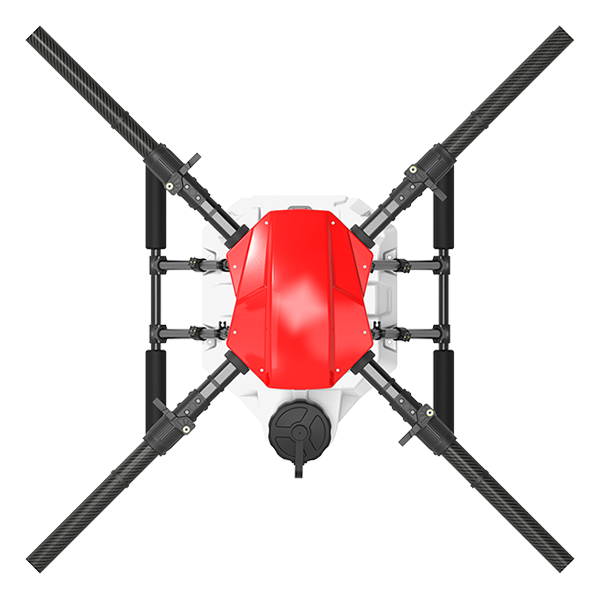

| Motor | X9 |
| Propeller | 34 inch |
| ESC | 80A FOC |
| Supply Voltage | 12S |
| Wheelbase | 1362 mm |
| Opening Size | 1848 × 1848 × 611 mm |
| Folding Size | 680 × 680 × 611 mm |
| Tank Capacity | 16 L |
| Frame Weight | 5.07 kg |

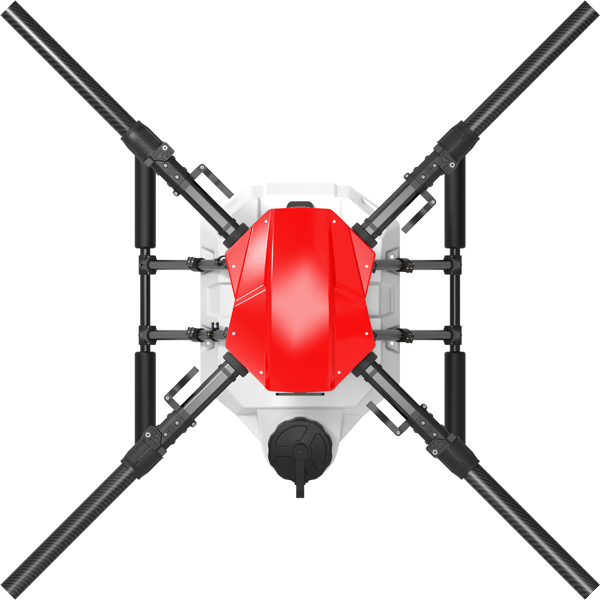

| Motor | X9 PLUS |
| Propeller | 36 inch |
| ESC | 80A FOC |
| Supply Voltage | 14S |
| Wheelbase | 1462 mm |
| Opening Size | 1954 × 1954 × 663 mm |
| Folding Size | 713 × 713 × 663 mm |
| Tank Capacity | 20 L |
| Frame Weight | 5.14 kg |
Expand Your Capabilities
A complete ecosystem of accessories to adapt your E Series drone to any agricultural mission.

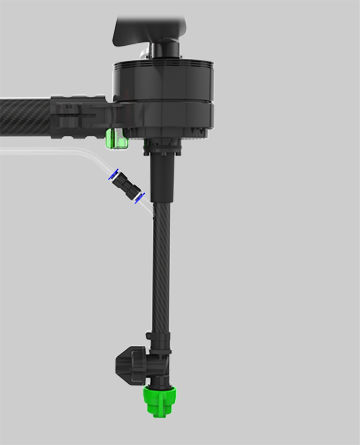

Extended Rod Nozzles

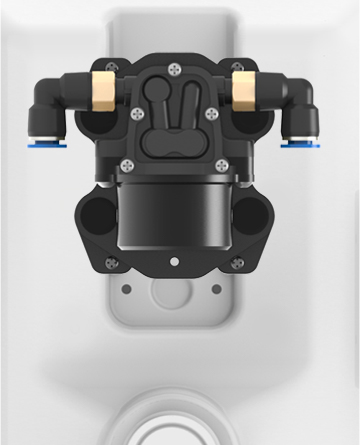

Brushless Water Pump

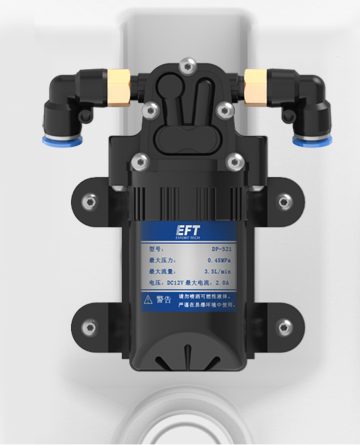

Brushed Water Pump

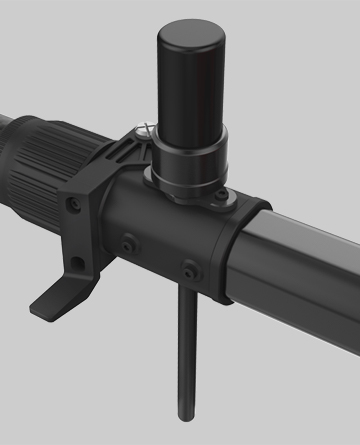

RTK / Antenna Adapter

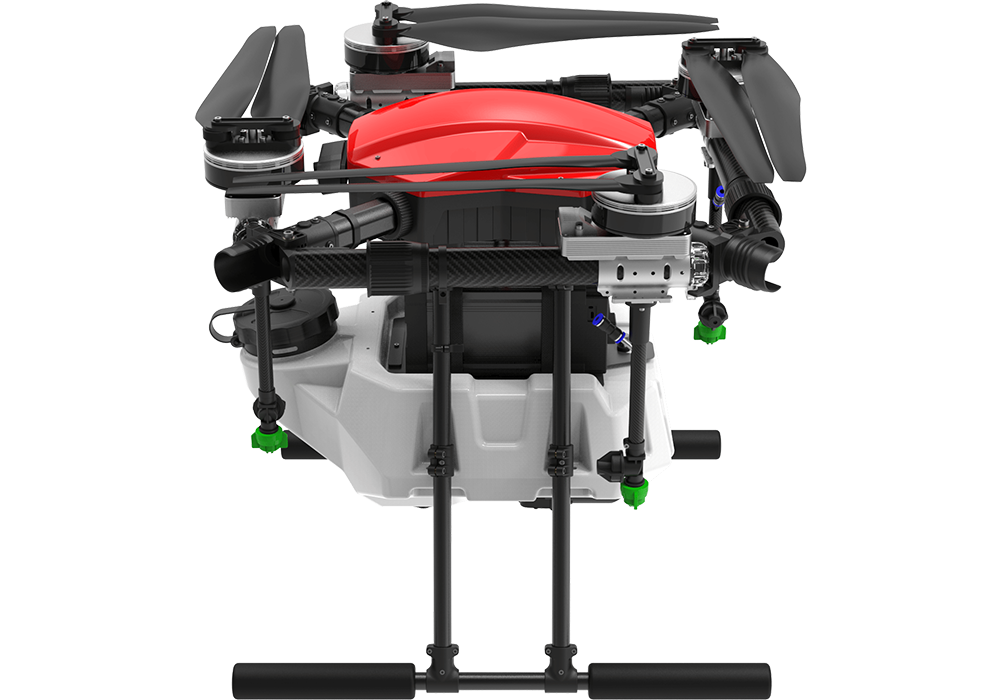

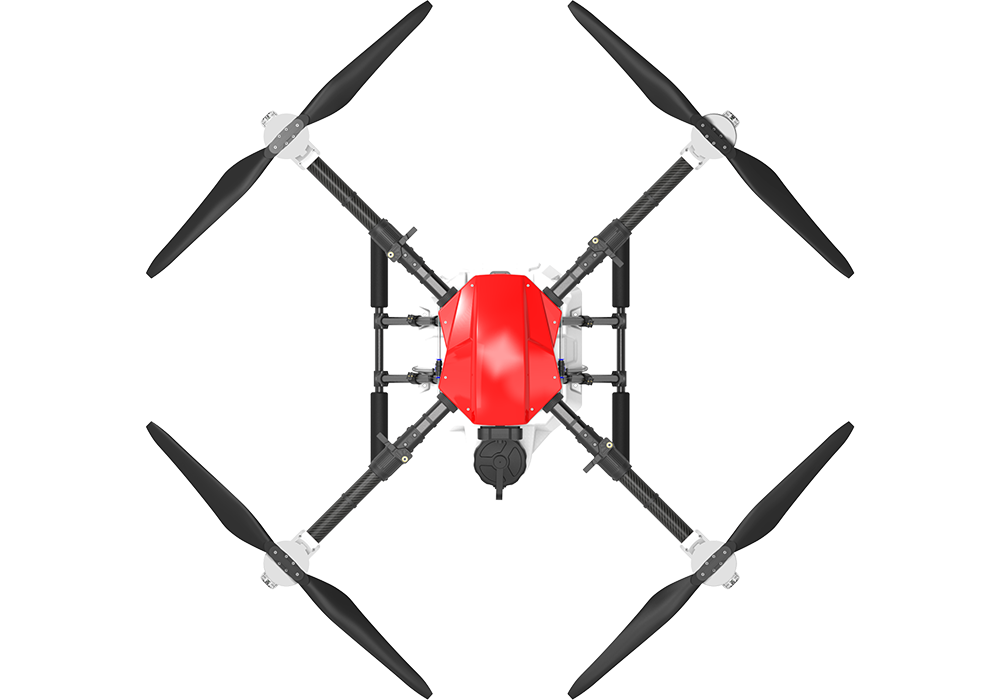

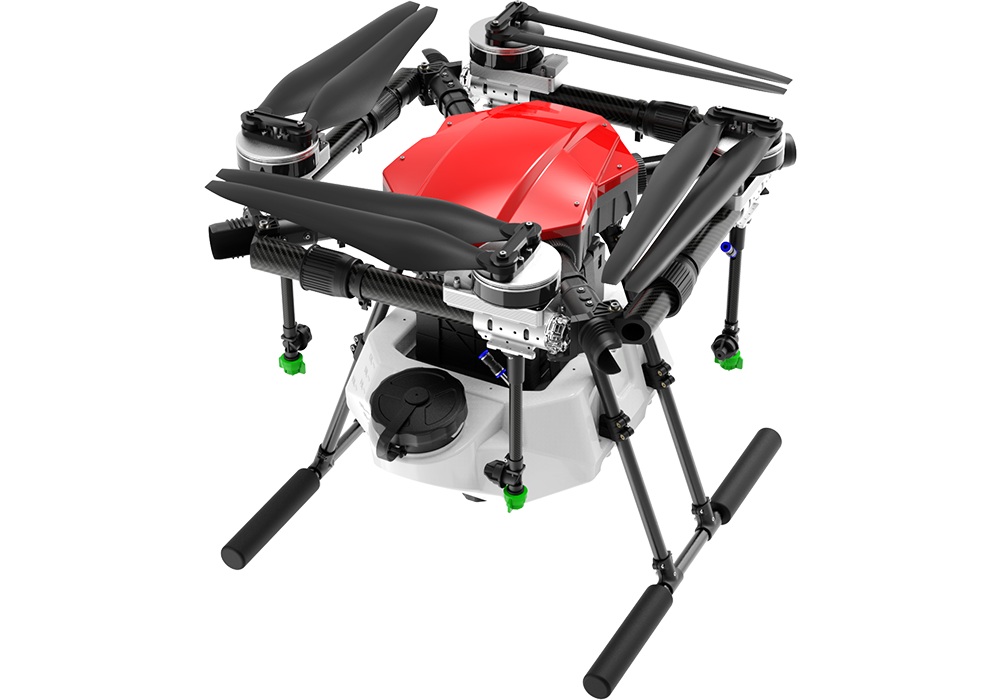

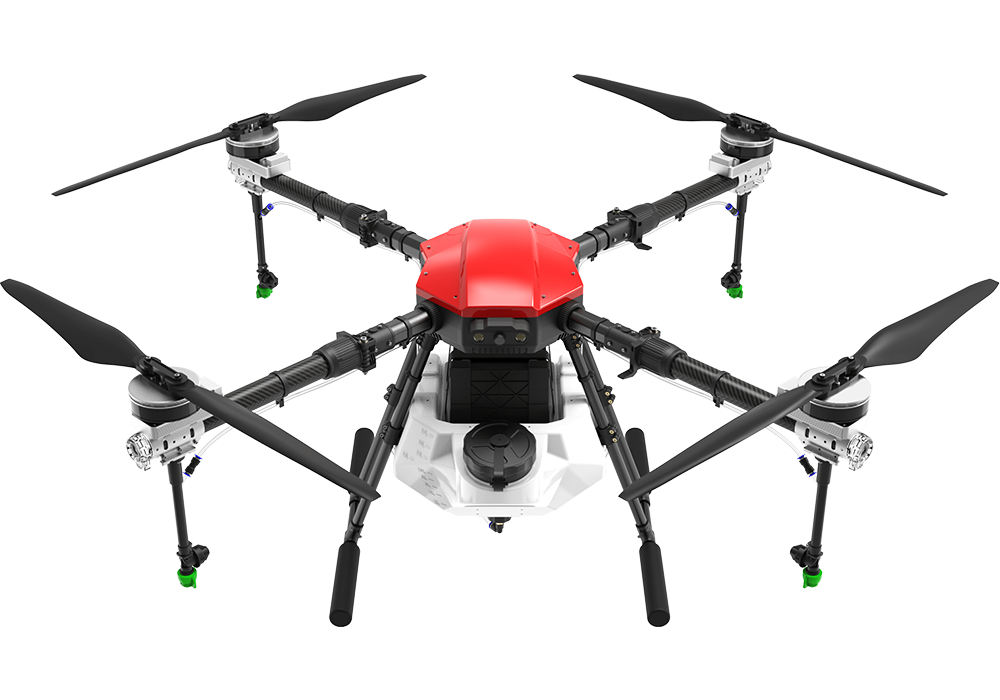

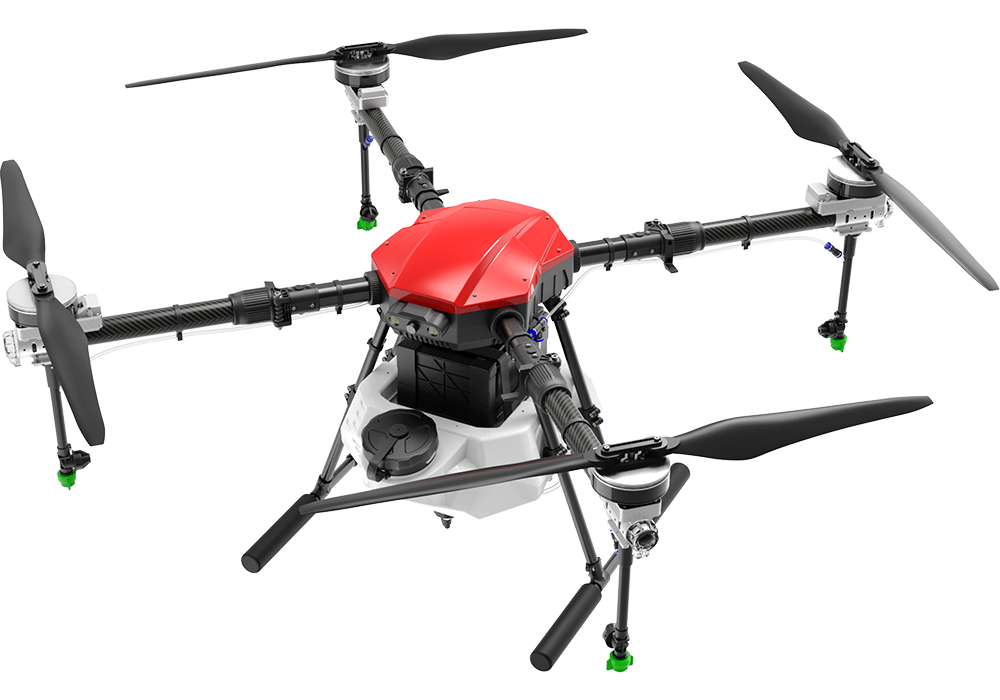

Ready for the Field
The E Series assembled and mission-ready. Built for real agricultural environments.
EFT E416P 16L Agricultural Drone Frame
Introduction
The EFT E416P 16L 4 Axis Agricultural Drone Frame is built for the evolving needs of modern Indian farming. With rising labour costs, unpredictable conditions, and the need for fast, efficient spraying, traditional methods are no longer enough. Agricultural spray drones offer faster coverage, reduced chemical exposure, and better efficiency across large fields.
At the core of every reliable spray drone is a strong drone frame — and the EFT E416P 16L Agricultural Drone Frame delivers exactly that.
Designed as a heavy-duty 16L quadcopter drone frame, it is ideal for crop spraying, fertiliser application, and precision agriculture in India. With a 16-litre tank, durable carbon-fibre arms, and an approximate 37 kg payload capacity, it provides the strength, stability, and performance needed for professional drone operations.
Whether you are a drone service provider, agri-tech startup, or farmer, the EFT E416P offers a reliable, field-proven platform for building a powerful spraying drone.
Key Features of the EFT E416P 16L Agricultural Drone Frame
- 16 Litre Spraying Tank Capacity – Cover larger fields per flight, reduce refilling time, and increase daily spraying area.
- 4-Axis Quadcopter Design – Simpler maintenance, fewer motors to manage, and excellent stability for low-altitude spraying.
- Heavy-Duty Carbon Fibre + Aluminium Construction – Lightweight yet strong, resistant to vibration, corrosion, and chemical exposure.
- Foldable Arms for Easy Transport – Compact storage and quick deployment from the field site or pickup vehicle.
- ~37 kg Maximum Take-off Payload – Handles full tank, battery, nozzles, pump, and spraying system without strain.
- Pre-Cut Mounting Slots – Compatible with popular flight controllers like JIYI K++, K3A Pro, and standard ESC/motor combinations.
- Integrated Spray System Mounts – Designed to fit water pumps, four-nozzle spraying kits, pressure nozzles, and centrifugal nozzles.
- Wide Landing Gear – Provides stable take-off and landing in muddy or uneven Indian farmland.
- DIY-Friendly Assembly – Detailed mounting layout for builders, system integrators, and OEMs.
- Compatible Indian Power Setup – Works seamlessly with 12S/14S LiPo batteries and high-KV agricultural motors.
This is one of the most reliable quadcopter agricultural drone frames available in India for professional crop spraying drone systems.
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | EFT E416P 16L 4 Axis Agricultural Drone Frame |
| Frame Type | 4 Axis (Quadcopter) Foldable |
| Tank Capacity | 16 Litres |
| Maximum Take-off Weight | Approx. 37 kg |
| Wheelbase | Approx. 1610 mm |
| Material | Carbon Fibre + Aluminium Alloy |
| Recommended Motors | Heavy-duty agricultural KV motors (X8/X9 class) |
| Recommended Propellers | 36–40 inch agricultural propellers |
| Battery Compatibility | 12S / 14S LiPo Batteries |
| Spray System | Compatible with 4–8 nozzles, diaphragm/centrifugal pump |
| Folding | Yes (Foldable Arms) |
| Application | Pesticide spraying, fertiliser spraying, seed broadcasting |
| Country of Origin | Imported, supported in India |
| Ideal For | Custom-build agriculture drone projects, OEMs, service providers |
Note: Final flight performance depends on the motors, ESCs, propellers, battery, and flight controller you choose during assembly.
Applications & Use Cases
- Pesticide & Insecticide Spraying on paddy, wheat, cotton, sugarcane, soybean, maize, and pulses.
- Liquid Fertiliser Application for nutrient management with uniform droplet distribution.
- Fungicide & Herbicide Spraying for disease control across large landholdings.
- Granular Spreading when fitted with an optional spreader attachment — seeds, urea, DAP, and pellets.
- Orchard Spraying in mango, citrus, apple, and pomegranate farms where tractors cannot enter.
- Plantation Crop Spraying in tea, coffee, rubber, and oil palm estates.
- Agriculture Drone Service Business – Build a custom spraying fleet for offering drone-as-a-service to farmers.
- Drone Training Academies & R&D Labs – Ideal platform for UAV agriculture training, demonstrations, and prototyping.
Benefits of Using Agricultural Drone Frames
Switching to drone-based spraying brings clear, measurable benefits:
- Save up to 90% Water compared to traditional tank sprayers — drones use ultra-low-volume (ULV) spraying.
- Spray 1 Acre in 5–7 Minutes, finishing tasks that take labourers an entire day.
- Lower Operating Cost per acre with reduced manpower and chemical wastage.
- Operator Safety – Pilots stay far from pesticide exposure, lowering health risks.
- Uniform Coverage – Downwash from propellers helps the spray reach the underside of leaves where pests hide.
- Access Difficult Terrains – Spray waterlogged paddy fields, hilly tea gardens, and tall sugarcane crops easily.
- Higher Crop Yield through timely, precise, and uniform input application — a key benefit of precision farming.
- Scalable Business Model – Drone service providers can charge per acre and recover investment quickly.
For farming automation technology and modern UAV agriculture operations, the right drone frame is the most important starting point.
Why Choose the EFT E416P Drone Frame?
EFT is one of the most respected names in the global agricultural UAV component industry, and the E416P 16L 4 axis agricultural drone frame is built on years of field testing and engineering experience. Here is what makes it stand out for Indian conditions:
- Proven Reliability – Used by thousands of drone builders and agri-tech companies worldwide.
- High Payload-to-Weight Ratio – The 4-axis design carries 16 L plus battery and electronics efficiently.
- Compatibility – Works with most popular agriculture flight controllers, ESCs, and motors available in India.
- Affordable Total Build Cost – A 4-axis frame is more cost-effective to build and maintain than 6-axis or 8-axis versions, without sacrificing spraying performance for small to mid-size farms.
- Easy Spare Part Replacement – Carbon fibre arms, landing gear, and tank assemblies can be replaced individually.
- Made for Real Farming – Sealed compartments and chemical-resistant finishing handle Indian dust, heat, and humidity.
- Trusted Supply in India – Buy with confidence from a verified Indian supplier offering technical assistance, accessories, and pan-India shipping.
If you are searching for the best agricultural drone frame for farming in India with strong build quality, this is one of the top recommendations.
You can also pair this frame with other essentials available on our store — agriculture drone batteries, agriculture motors and ESCs, flight controllers, spray pumps and nozzles — for a complete custom-build kit.
EFT E416P vs Traditional Farming: The Smart Advantage
| Parameter | Traditional Manual Spraying | EFT E416P 16L Drone Frame Based System |
|---|---|---|
| Time to Spray 1 Acre | 60–90 minutes | 5–8 minutes |
| Water Required per Acre | 150–200 Litres | 10–16 Litres |
| Labour Required | 2–3 workers | 1 trained pilot |
| Chemical Exposure | High risk | Almost zero |
| Spray Uniformity | Uneven | Highly uniform |
| Crop Damage (Trampling) | High | None |
| Suitable for Tall/Wet Crops | Difficult | Easy |
| Operating Cost (Long Term) | High | Significantly Lower |
| Business Scalability | Limited | Excellent |
The numbers speak for themselves. A spray drone built on the EFT E416P platform is a long-term productivity and profitability upgrade for any farming operation.
Order the EFT E416P 16L Agricultural Drone Frame Today
Upgrade your farming operations with the power of smart agriculture drone technology. The EFT E416P 16L 4 Axis Agricultural Drone Frame is your reliable partner for building a high-performance, profitable spraying drone in India.
Buy Now Online with secure checkout and fast shipping across India. Bulk & Dealer Inquiries Welcome – Special pricing for agri-tech startups, drone service providers, training institutes, and OEM partners. Expert Technical Support before and after purchase. Trusted Indian Supplier with verified product quality.
Call/WhatsApp our team today or click “Add to Cart” above to order your EFT E416P drone frame. For bulk orders, write to us with your requirement and target quantity — we will share the best wholesale rate.
Take the next step in precision farming. Build smarter. Spray faster. Earn more.
Order your EFT E416P 16L 4 Axis Agricultural Drone Frame from BharatSkyTech — India’s trusted partner for agriculture drone components and UAV spraying equipment.
Frequently Asked Questions
What is included in the EFT E416P 16L agricultural drone frame kit?
The kit includes the main frame body, four foldable carbon fibre arms, the 16-litre spray tank, landing gear, mounting hardware, and tank cover. Motors, ESCs, propellers, flight controller, battery, and spraying pump are sold separately so you can customise the build to your needs.
Is the EFT E416P suitable for first-time drone builders in India?
Yes. The frame is DIY-friendly with clearly marked mounting points. However, we recommend assembly by someone with basic experience in UAV electronics, or with guidance from a professional drone technician.
How much area can a drone built on this 16L frame spray in a day?
On average, a fully built spray drone using the E416P frame can cover 25–40 acres per day, depending on terrain, battery sets, and pilot skill — making it ideal for commercial agriculture spraying services.
Can I use this 16-litre drone frame for pesticide spraying on paddy and wheat?
Absolutely. The E416P is specifically designed for pesticide spraying, fertiliser application, and herbicide spraying on paddy, wheat, cotton, sugarcane, and most major Indian crops.
Do you provide technical support and spare parts in India?
Yes. We provide pan-India shipping, after-sales technical guidance, and spare parts such as arms, landing gear, and tank assemblies. Drone businesses and startups can also request bulk pricing and OEM support.
What is the EFT E616P 16L drone frame price in India?
The EFT E416P 16L Agricultural Drone Frame is priced at ₹41,999 + 5% GST at Bharat Skytech. Bulk and dealer pricing is available on request.
