Quadrotor Platform
EFT G18 20L
Agricultural Drone Frame

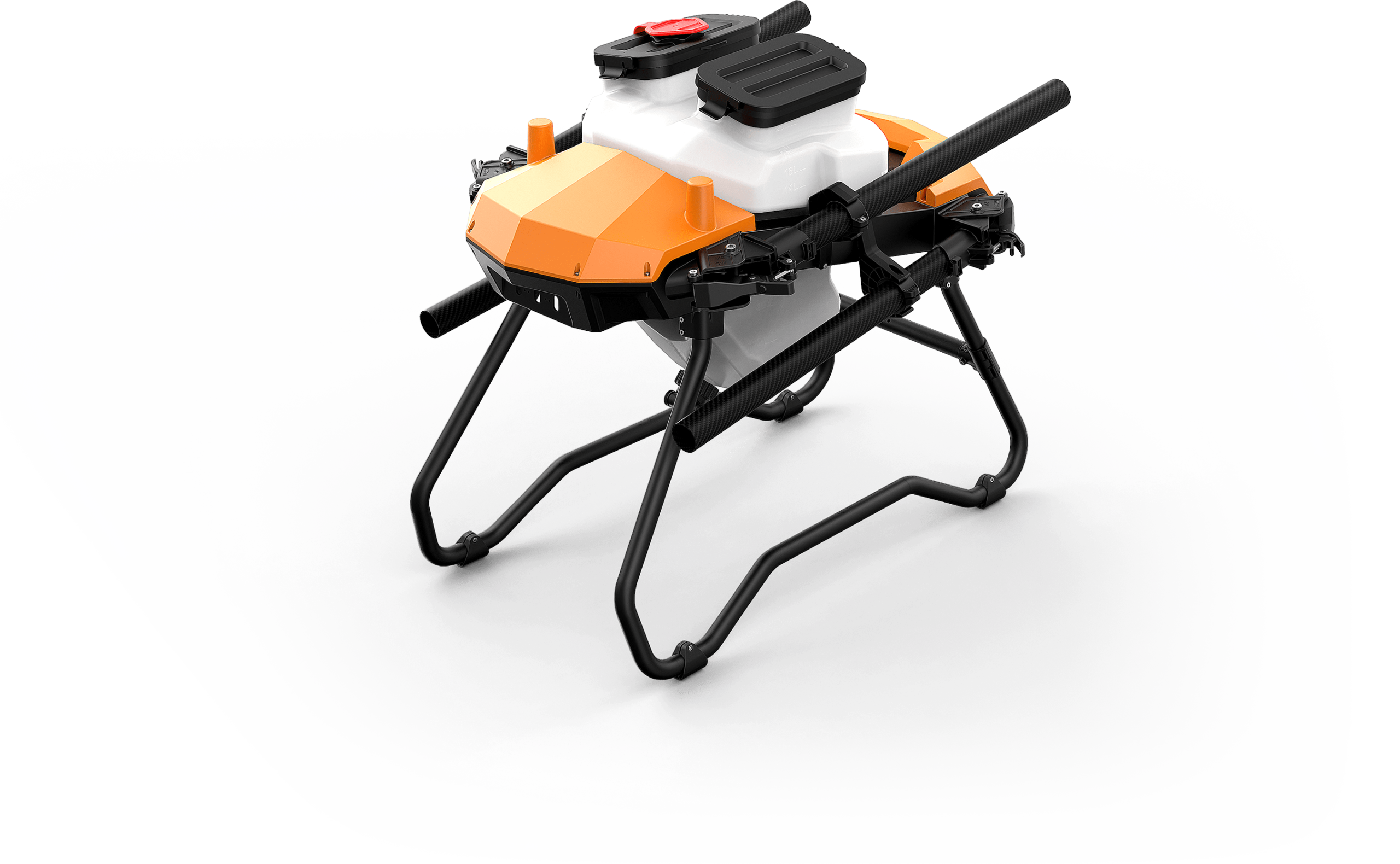

The EFT G18 20L Agricultural Drone Frame is a lightweight 20L drone frame built for precision agriculture, featuring a truss-reinforced structure, foldable design, and flexible setup for efficient field operations.
Engineered Without
Compromise
Every component of the G18 frame is purpose-designed for agricultural operations — from the truss-forged arms to the flexible mounting architecture.

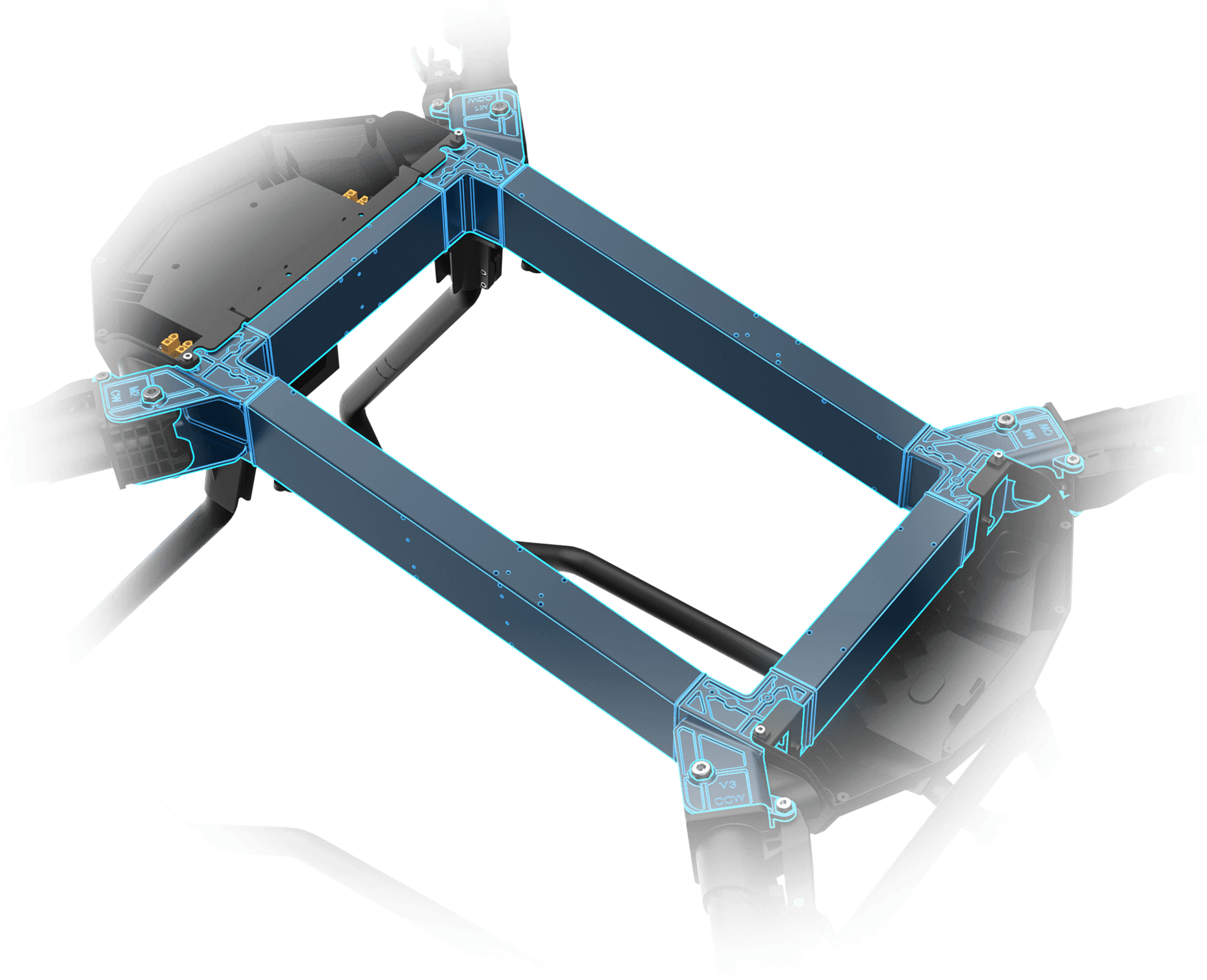

Truss Frame Built for
Full-Load Stability
The G18's truss construction uses integrally injection-forged joints at each arm connection — a manufacturing technique that creates a monolithic bond rather than assembled parts. The result is dramatically higher resistance to both torsional forces and impact stress.
- Monolithic injection-forged arm joint construction
- Reinforced resistance to flight torsion and field impacts
- Optional 40mm, 45mm, and 45mm motor-base arms

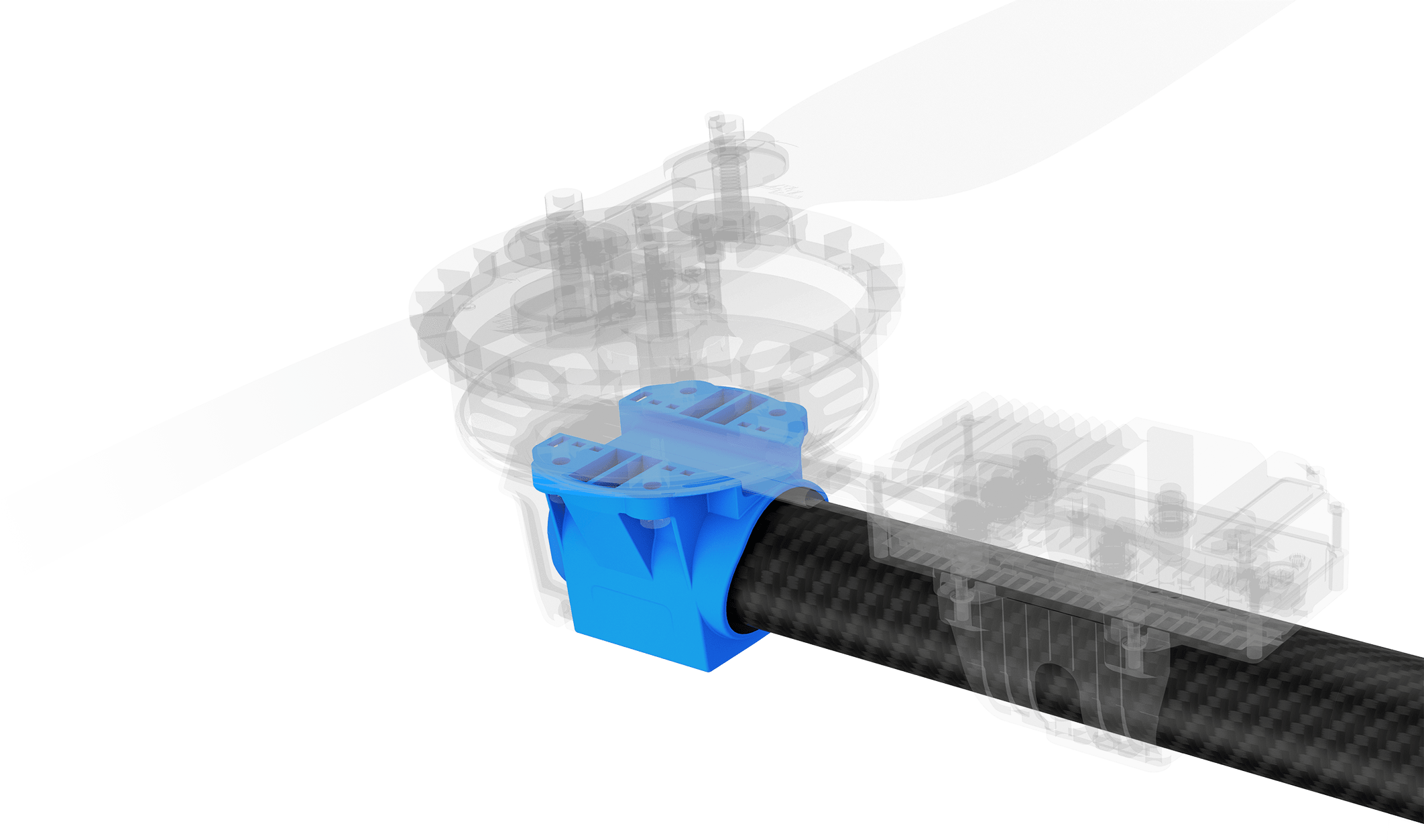

- Vibration-dampened motor mount prevents loosening

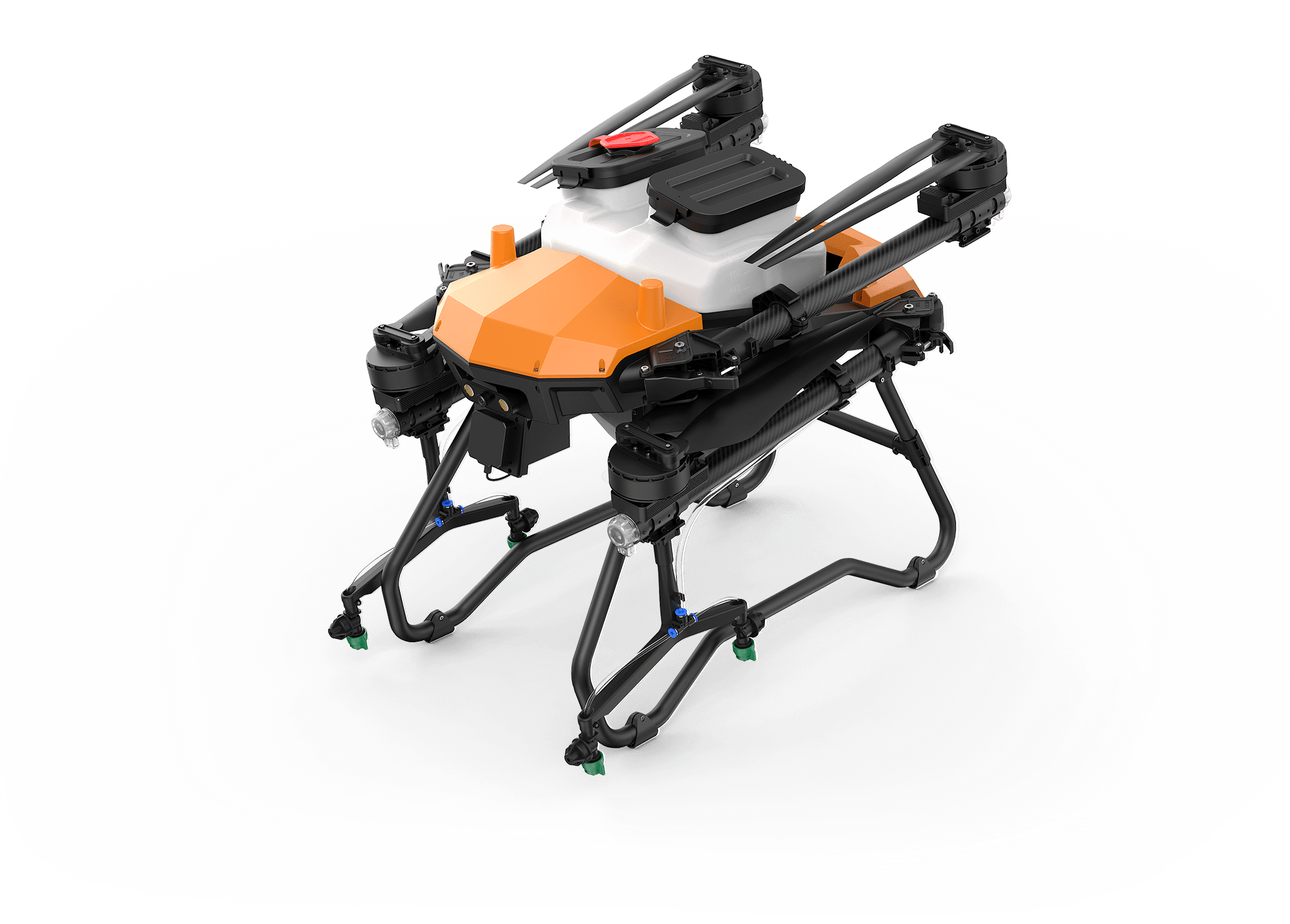

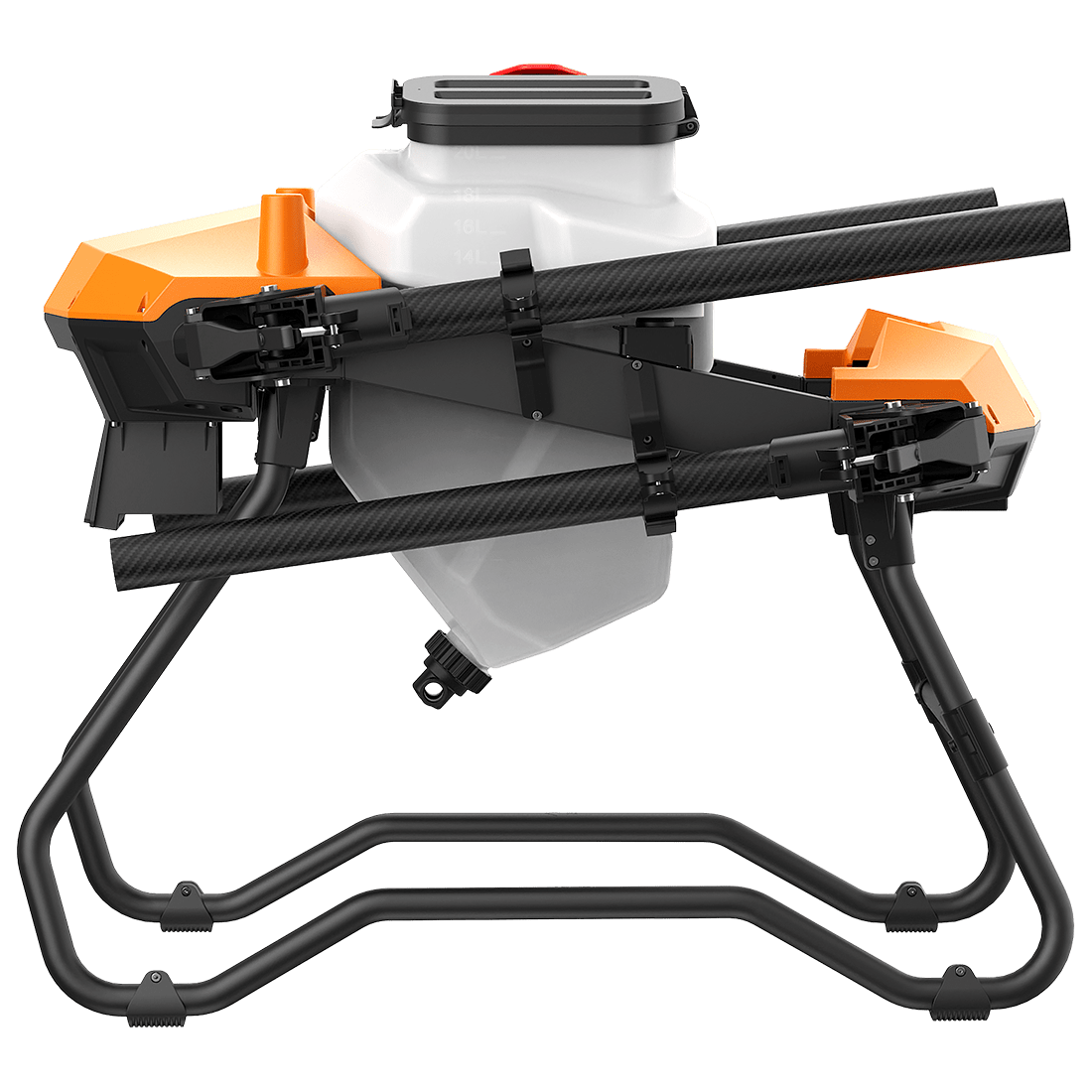

Folds Small,
Deploys Fast
The G18's compact folding system is built for operators who move between sites multiple times per day. Robust arm locking buckles secure the folded position with a satisfying, reliable click — and release just as quickly for rapid deployment.
- Folded dimensions: 793 × 505 × 707mm
- Mechanical arm locking buckles — no tools required
- Total frame weight: 8.75kg for single-person carry
- Arm fold-out to flight-ready in under 2 minutes
Dual Connector System,
Wider Battery Range
The G18 eliminates battery ecosystem lock-in by supporting both the 300A Smart Plug and AS150U connector standards. Each has a dedicated fixture design for a secure, vibration-proof connection — no improvised adapters, no loose connections.

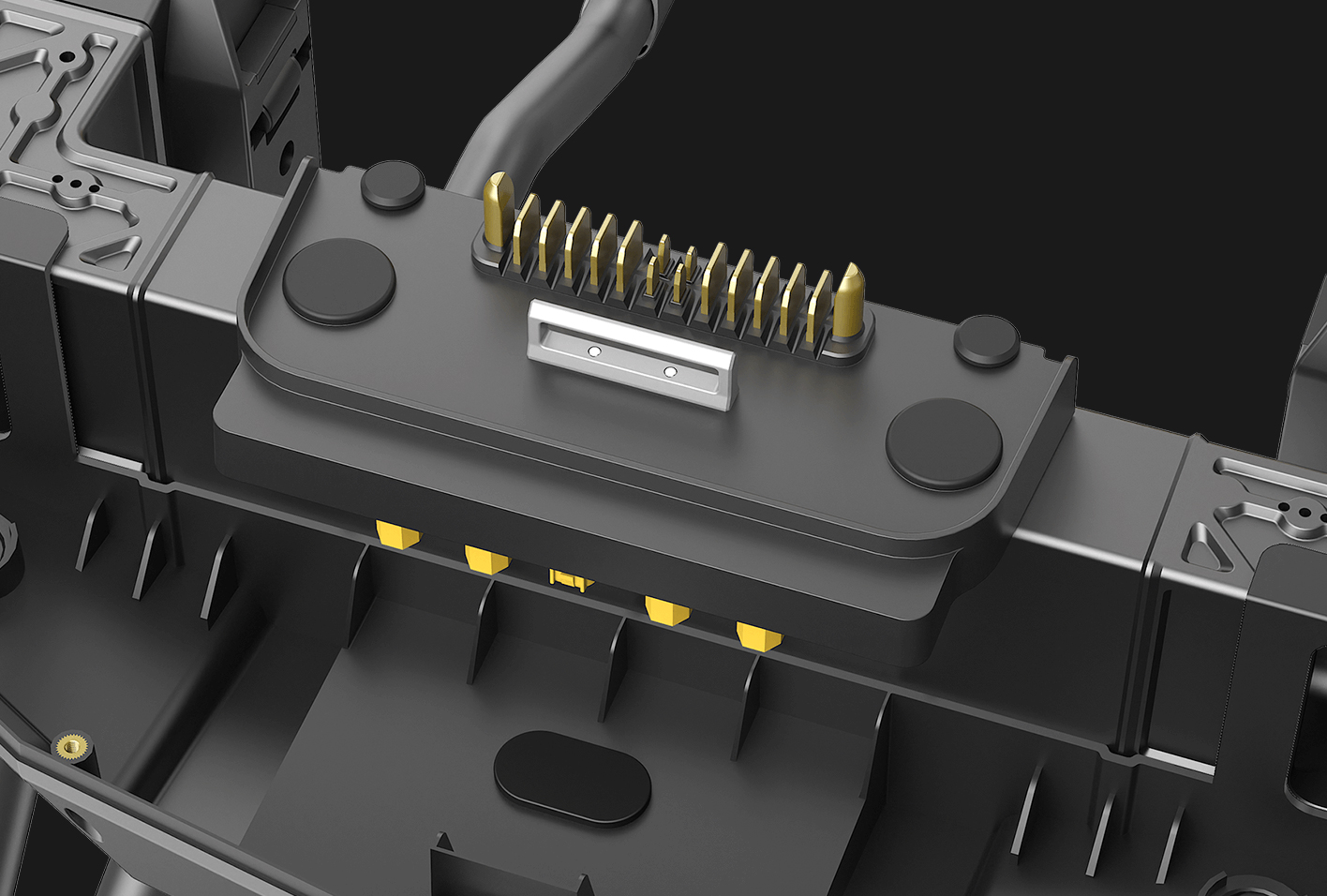

- 300A Smart Plug option with dedicated battery fixture

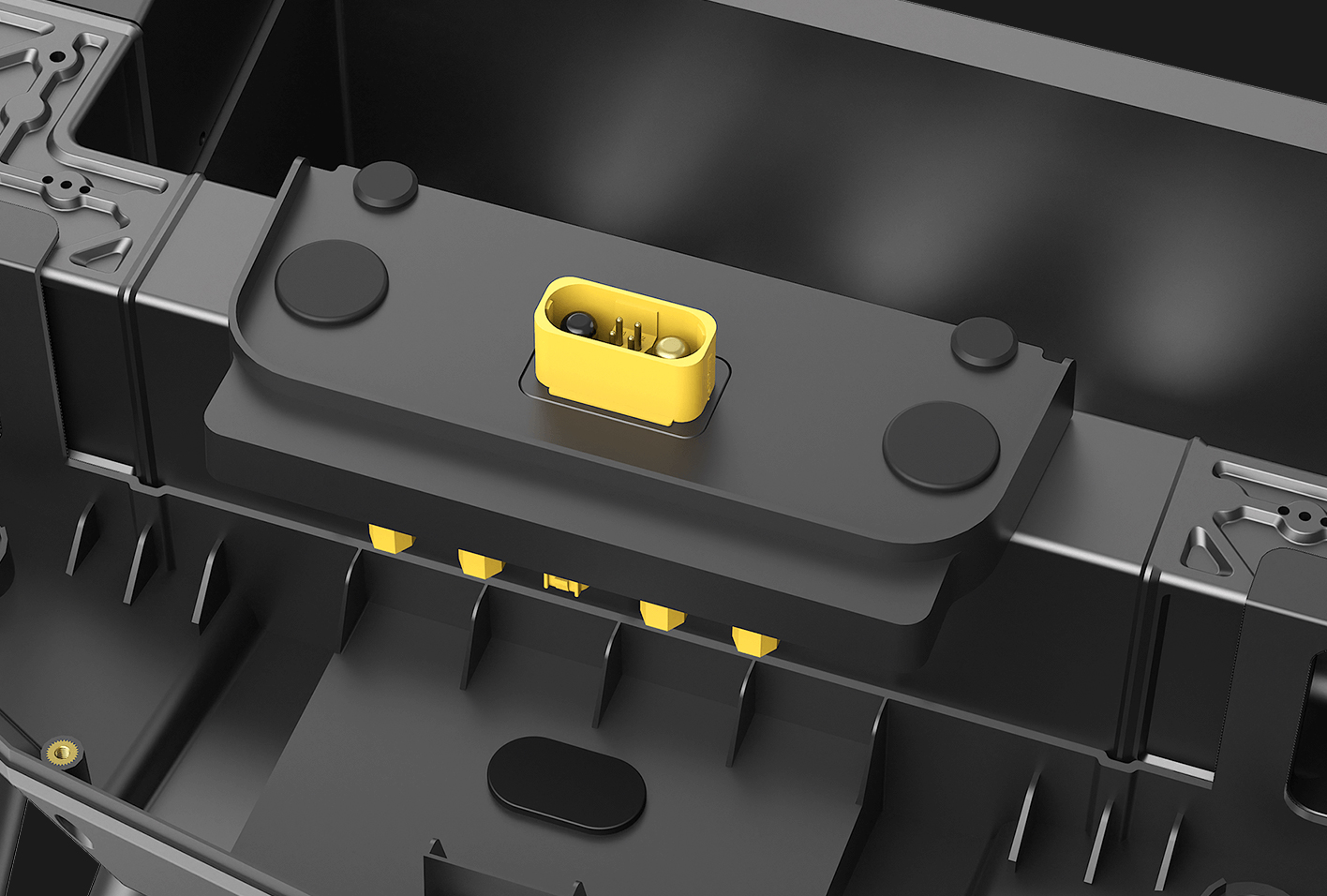

- AS150U connector option with matching secure fixture

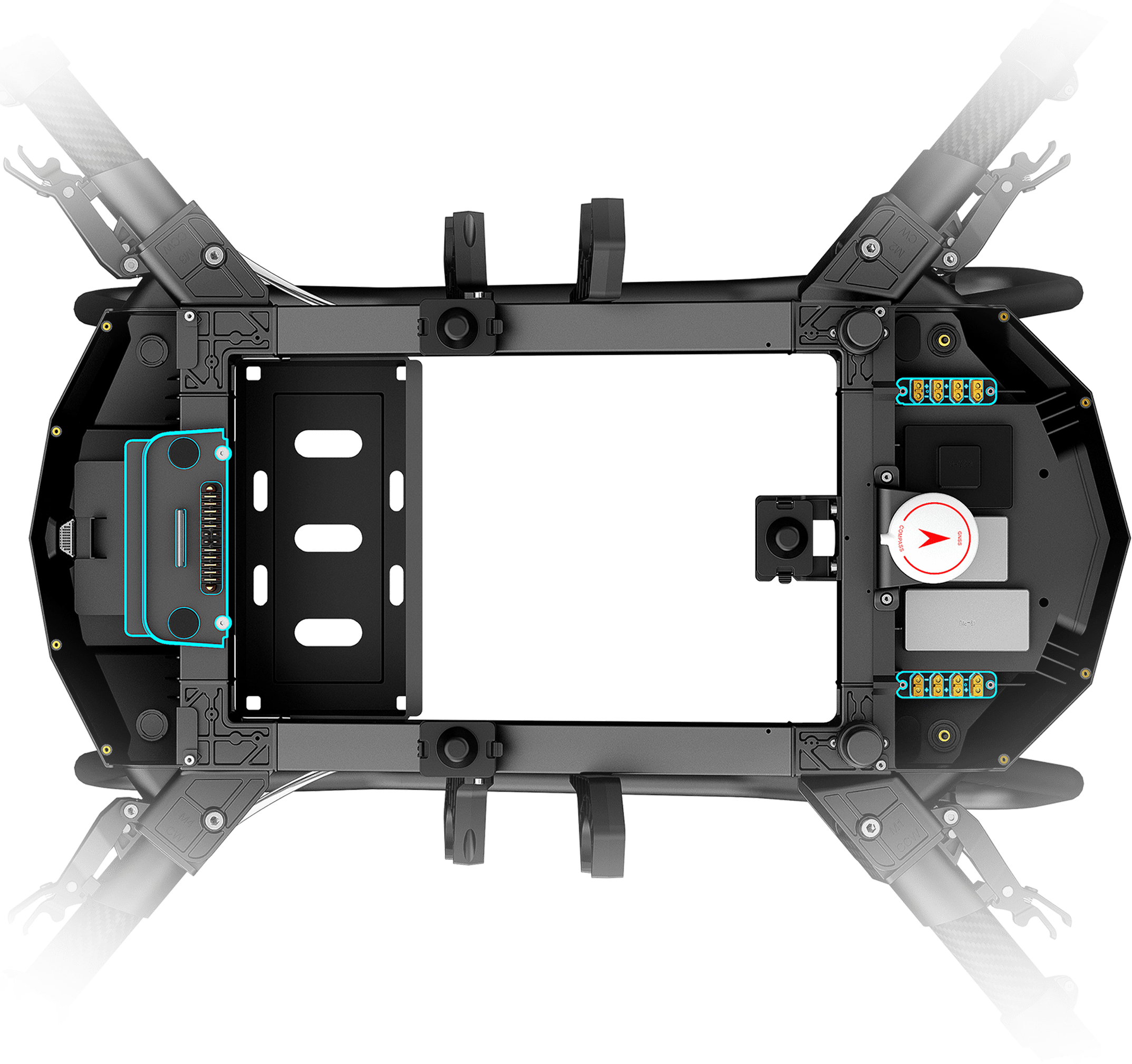

- Front + rear power distribution boards for stable supply
- Reserved expansion ports for additional devices

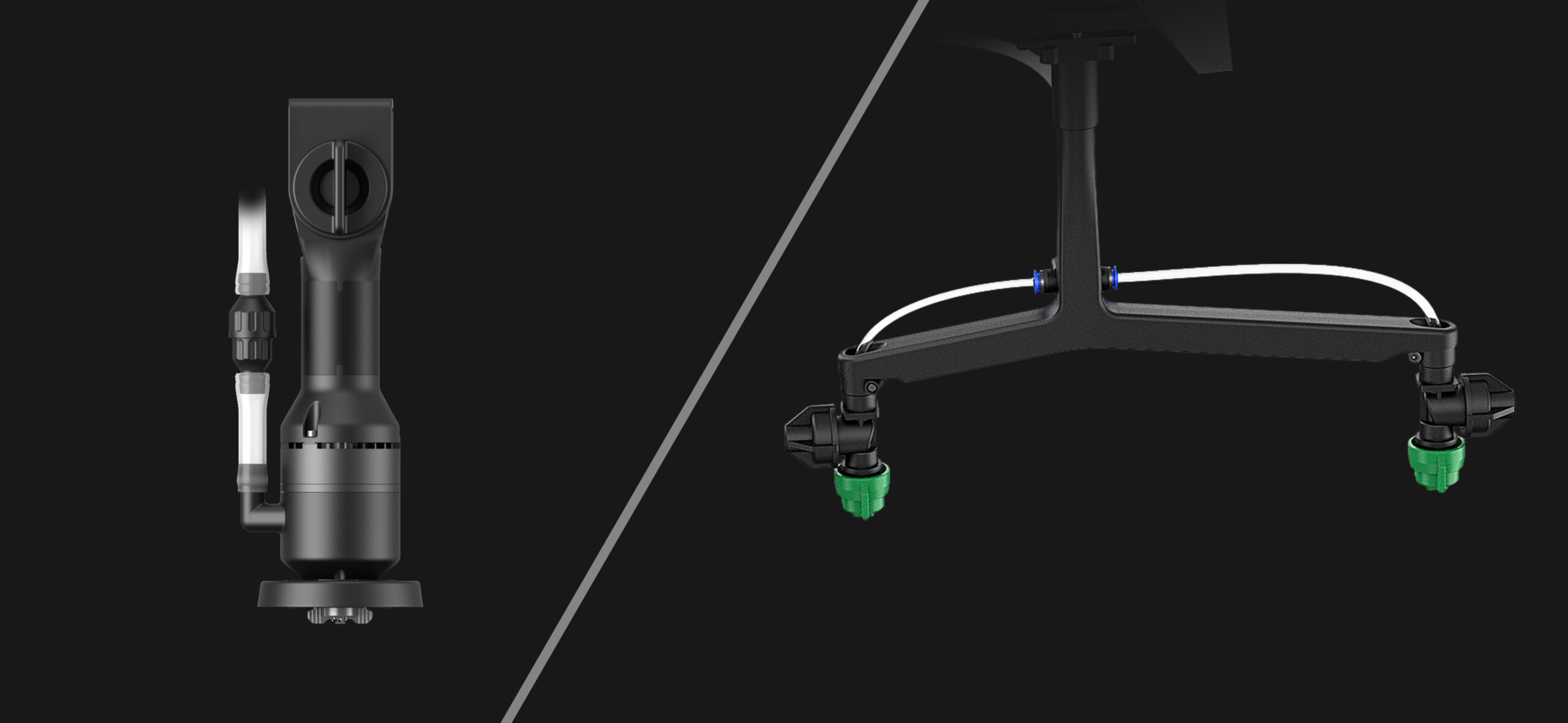

Any Pump.
Any Nozzle. Any Setup.

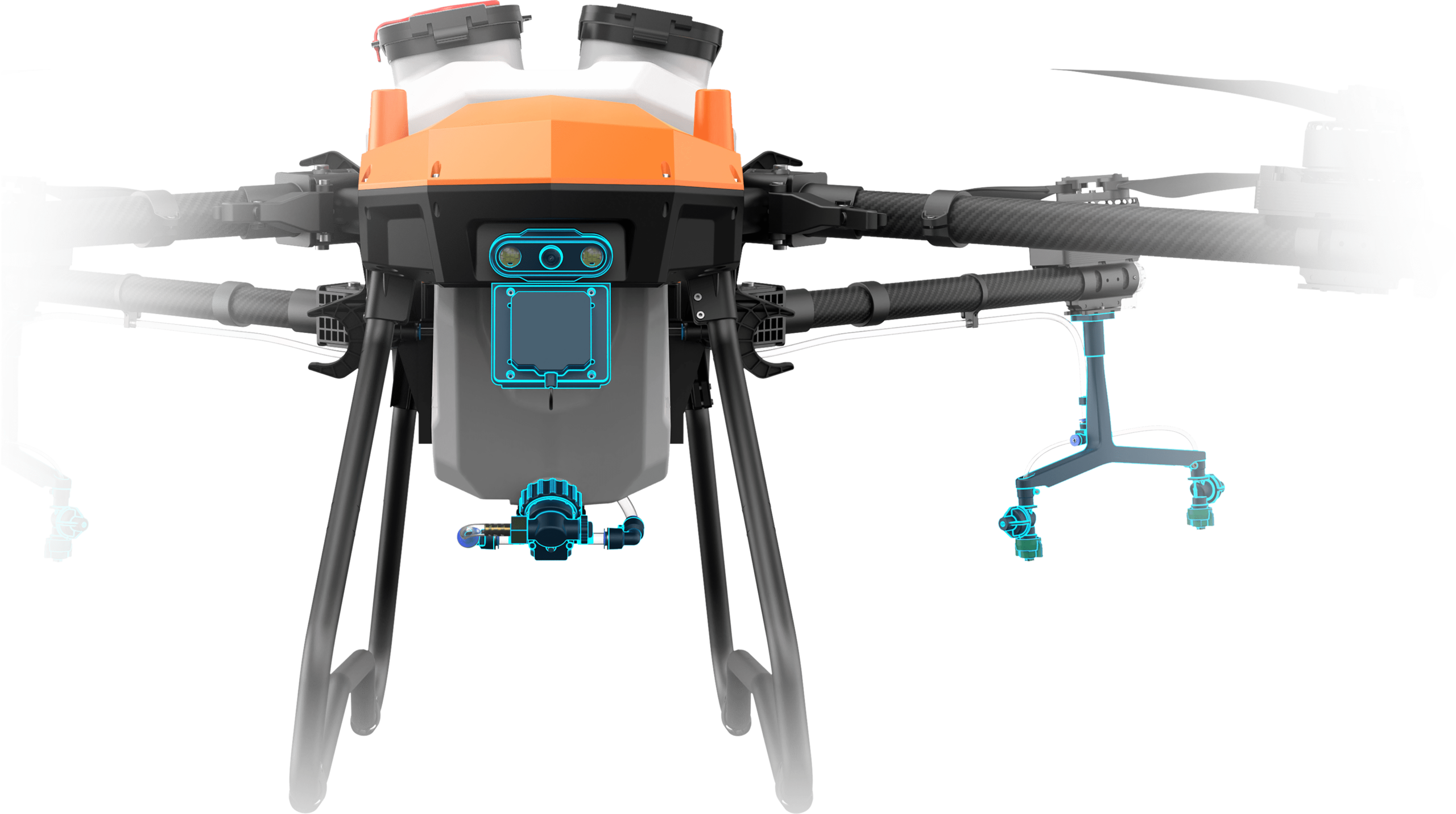

Pre-designed cable routing channels and a comprehensive set of standardized mounting interfaces mean the G18 adapts to virtually any agricultural configuration — from simple single-nozzle rigs to multi-sensor precision spraying systems.
- Reserved cable holes for protected, clean wire routing
- Multiple radar and sensor mounting positions

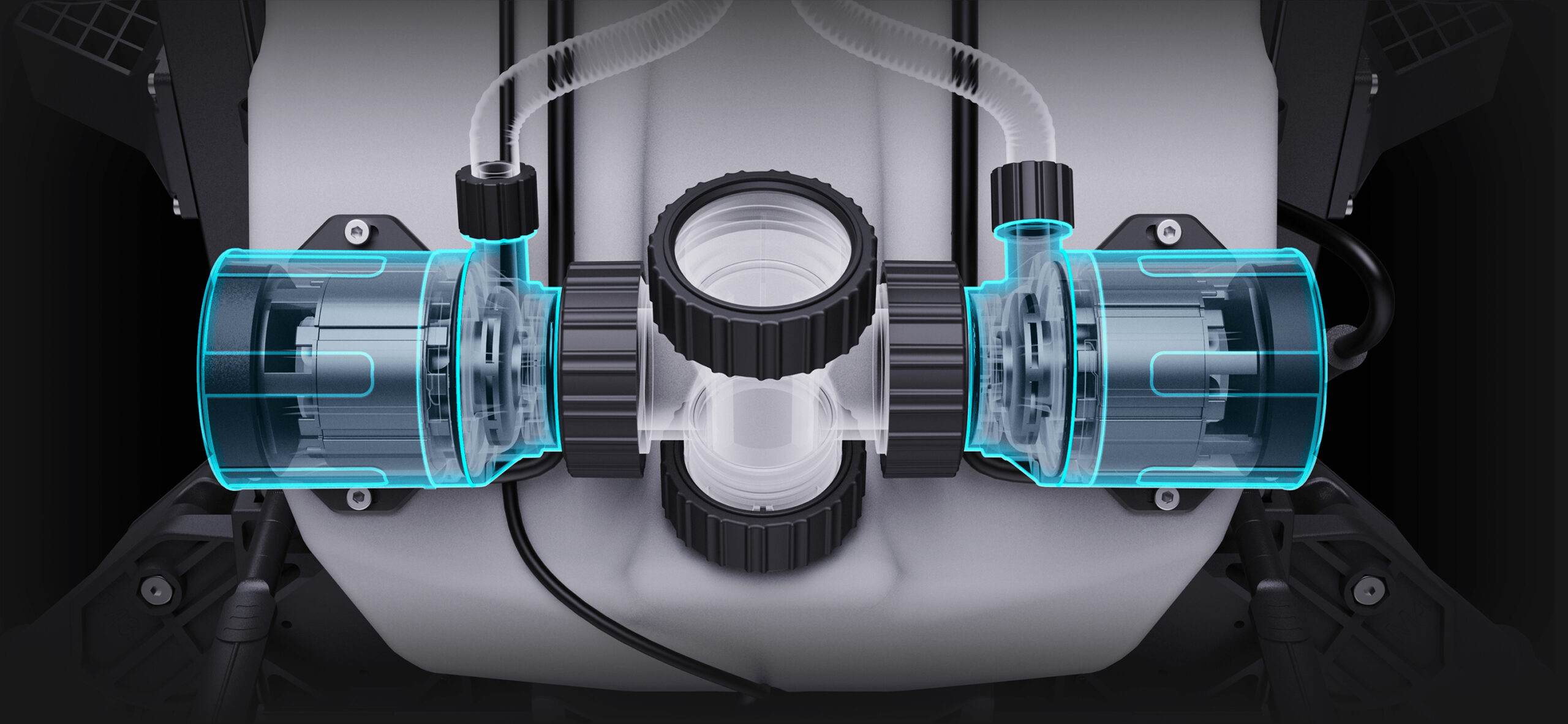

- Compatible with diverse pump types for any crop
- Various nozzle configurations fully supported
G18 Specifications
In Detail
All G18 frame dimensions, weight parameters, and system recommendations — verified for production units.
G18 Frame — Full Spec Sheet
20L Model| Wheelbase | 1710 mm |
| Tank Capacity | 20 L |
| Frame Weight | 8.75 kg |
| Tank Weight | 2.12 kg |

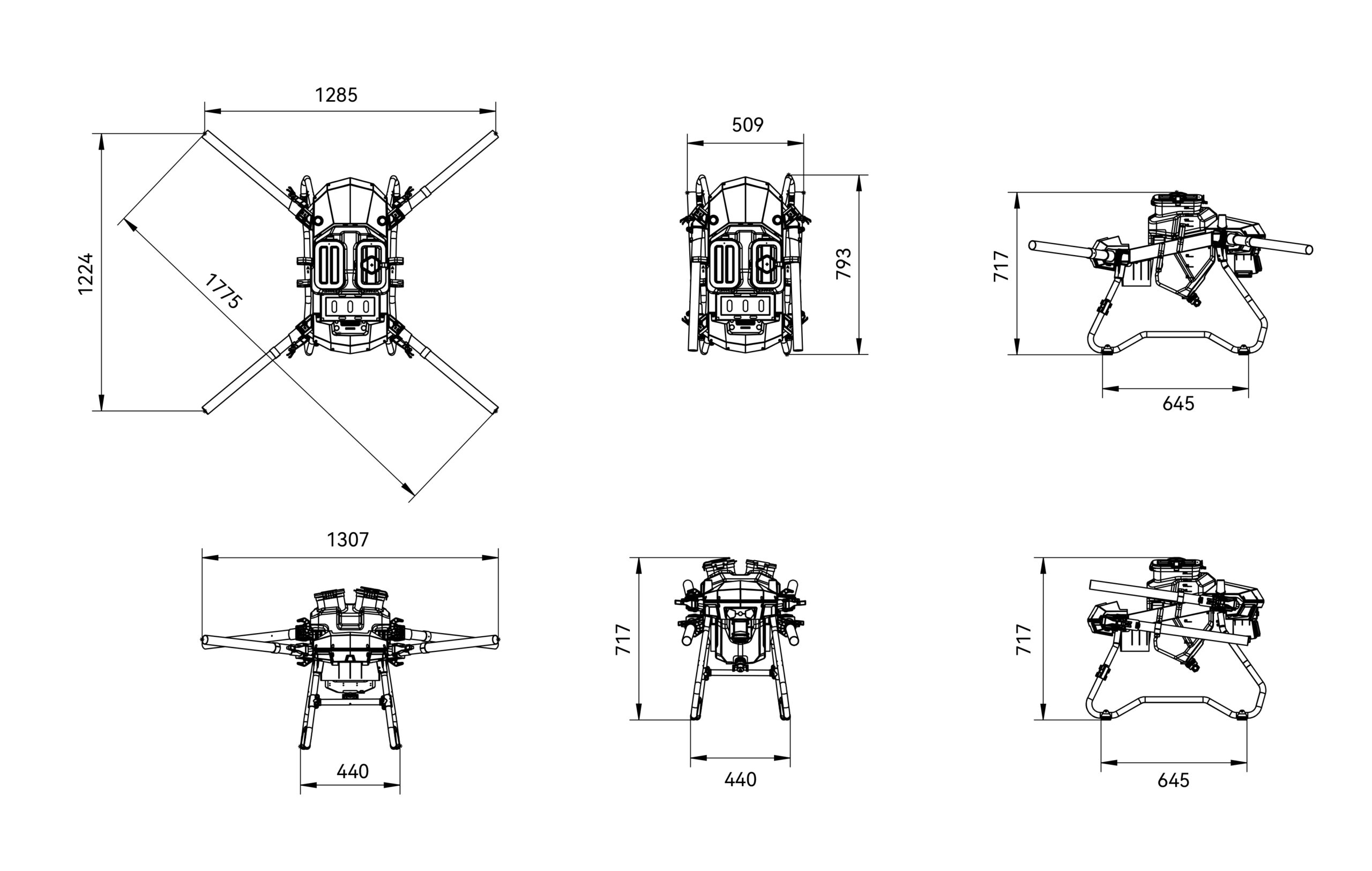

| Unfolded Size | 1306 × 1251 × 707 mm |
| Folded Size | 793 × 505 × 707 mm |
| Frame Color | Orange |
| Recommended Motor | 9620, 80KV |
| Recommended Battery | 22000 mAh 14S |
| Battery Compartment | 259 × 125 × 190 mm |
| Arm Diameter Options | 40mm / 45mm / 45mm Motor-base |
What Sets
G18 Apart
Industrial-grade engineering across every subsystem — from frame structure to field serviceability.
Where the G18
Performs Best
From targeted field spraying to large-scale commercial operations, the G18 frame adapts to any agricultural workflow.
Why Operators
Choose G18
Built for the demands of professional agriculture, the G18 earns its place in commercial fleets through reliability, serviceability, and performance.
EFT G18 20L Agricultural Drone Frame – High-Stability Quadcopter Platform for Precision Farming in India
Introduction
The EFT G18 20L Agricultural Drone Frame is built for the future of Indian farming, where efficiency, speed, and precision are critical. With rising labour shortages, increasing pesticide costs, and shrinking spraying windows, traditional methods are no longer enough. Farmers and agri-businesses are rapidly shifting to drone-based spraying for faster coverage, reduced chemical exposure, and uniform application across large landholdings.
At the core of every high-performance spraying drone is a strong and reliable drone frame — and the EFT G18 20L Agricultural Drone Frame is engineered to deliver exactly that.
Designed as a high-stability 20L quadcopter drone frame, the G18 is purpose-built for pesticide spraying, fertiliser application, and large-scale precision agriculture in India. It features a robust 1710mm wheelbase, advanced truss-structure design, and foldable arms, ensuring superior rigidity, high payload capacity, and consistent field performance.
Whether you are a drone service provider, an agri-tech startup, or a progressive farmer managing large farms, the EFT G18 20L drone frame provides the perfect foundation for building a powerful, reliable, and scalable spraying drone.
Key Features of the EFT G18 20L Agricultural Drone Frame
- 1710mm Wheelbase — Wide and stable footprint for superior flight stability, smoother spraying patterns, and confident handling in windy field conditions.
- Advanced Truss Structure Design — Engineered frame geometry distributes load evenly, reduces vibration, and prevents flex during full-tank operation.
- 20-Litre Spray Tank Capacity — Cover more acreage per flight, reduce refilling time, and complete spraying jobs faster.
- Foldable Arms — Compact transport, quick deployment from a pickup or service van, and easy field-to-field movement.
- Heavy-Duty Carbon Fibre + Aluminium Construction — Lightweight, chemical-resistant, vibration-tolerant, and built to survive years of farm use.
- High Payload Capacity — Comfortably carries a full 20L tank, heavy battery, spray pump, and complete electronics setup.
- Universal Mounting Compatibility — Works with popular flight controllers like JIYI K++, K3A Pro, and standard agricultural ESCs and motors.
- Integrated Spray System Mounts — Designed to fit diaphragm pumps, centrifugal pumps, and 4–8 nozzle pressure spray kits.
- Wide & Reinforced Landing Gear — Stable take-off and landing on uneven, muddy, or wet Indian farmland.
- DIY-Friendly Layout — Pre-cut mounting points and clean component placement for easy assembly by builders and OEMs.
This makes the EFT G18 one of the most stable and reliable 20L agricultural drone frames available for the Indian market today.
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | EFT G18 20L Agricultural Drone Frame |
| Frame Type | 4 Axis (Quadcopter) Foldable |
| Tank Capacity | 20 Litres |
| Wheelbase | 1710 mm |
| Structure | Truss-Reinforced Frame Geometry |
| Frame Material | Carbon Fibre + Aluminium Alloy |
| Recommended Motors | Heavy-duty agriculture KV motors (X9 / X11 class) |
| Recommended Propellers | 40–42 inch agricultural propellers |
| Battery Compatibility | 14S LiPo Battery (Recommended) |
| Spray System | 4–8 nozzles, diaphragm or centrifugal pump compatible |
| Folding | Yes — Foldable Arms for Easy Transport |
| Primary Application | Pesticide, fertiliser, herbicide spraying, granular spreading |
| Country of Origin | Imported – Supported & Shipped in India |
| Ideal For | Drone service providers, agri-startups, OEMs, large farms |
Note: Final flight performance depends on motors, ESCs, propellers, battery, and flight controller selected during assembly.
Real-World Applications
The EFT G18 20L agricultural drone frame is engineered for the practical demands of Indian agriculture. Common applications include:
- Large-Scale Pesticide & Insecticide Spraying on paddy, wheat, cotton, sugarcane, soybean, maize, and pulses.
- Liquid Fertiliser Application with uniform ultra-low-volume (ULV) droplet distribution.
- Fungicide & Herbicide Spraying for disease control and weed management across vast plantations.
- Granular Spreading of urea, DAP, seeds, and pellets with optional spreader attachments.
- Orchard Spraying in mango, citrus, apple, and pomegranate farms where tractors cannot enter.
- Plantation Crop Spraying in tea, coffee, rubber, and oil palm estates.
- Commercial Agriculture Drone Services — Pay-per-acre spraying for villages, FPOs, and cooperatives.
- Drone Training Academies & R&D Labs — A premium platform for UAV agriculture training and prototyping.
- Government Kisan Drone Schemes — Suitable base frame for subsidy-backed agricultural drone programs.
Benefits of Choosing the EFT G18 20L Drone Frame
Switching to a drone built on the G18 platform delivers tangible, measurable returns:
- Save up to 90% Water compared to conventional knapsack and tractor sprayers through ULV drone spraying.
- Spray 1 Acre in 4–6 Minutes, finishing what manual workers take an entire day to complete.
- Cover 40–60 Acres per Day with one trained pilot and sufficient battery sets.
- Lower Operating Cost per acre through reduced labour, chemical wastage, and water usage.
- Operator Safety — Pilots remain at a safe distance from pesticide exposure.
- Uniform Coverage — Propeller downwash drives spray to the underside of leaves where pests hide.
- Stable Flight in Wind — The 1710mm wheelbase and truss structure deliver class-leading flight stability.
- Access Difficult Terrains — Spray waterlogged paddy, tall sugarcane, and hilly tea estates with ease.
- Higher Crop Yields through timely, precise, uniform input application — the core of precision farming.
- Strong Business ROI — Drone service providers can charge per acre and recover investment within months.
For agriculture automation and smart farming technology in India, the EFT G18 provides a robust, scalable foundation.
Why Choose the EFT G18 20L Agricultural Drone Frame?
EFT is one of the most respected global names in agricultural UAV components, and the G18 is built on years of engineering refinement, field testing, and customer feedback. Here is why it stands out for the Indian market:
- Superior Stability — The 1710mm wheelbase combined with truss-reinforced geometry delivers a flight feel that smaller frames simply cannot match.
- Built for Heavy Payload — Engineered to carry a 20L tank and full electronics setup without flex or vibration issues.
- Proven Global Reliability — Trusted by thousands of drone builders, OEMs, and agri-tech businesses worldwide.
- Universal Component Compatibility — Works with all popular Indian-market flight controllers, ESCs, motors, and pumps.
- Cost-Effective 4-Axis Design — More affordable to build and maintain than 6-axis or 8-axis frames, without compromising on spraying performance.
- Modular Spare Part Support — Carbon fibre arms, landing gear, and tank assemblies can be replaced individually.
- Designed for Indian Conditions — Chemical-resistant finishing handles heat, humidity, monsoon dust, and rough field handling.
- Trusted Indian Supplier — Buy from BharatSkyTech with verified product quality, GST invoice, pan-India shipping, and expert after-sales support.
If you are searching for the best 20 litre agriculture drone frame in India with focus on stability and reliability, the EFT G18 is a top recommendation.
EFT G18 vs Other 20L Agricultural Drone Frames — The Stability Advantage
Many buyers compare 20L agriculture drone frames before purchasing. Here is how the EFT G18 compares against standard 20L drone platforms:
| Parameter | Standard 20L Drone Frames | EFT G18 20L Drone Frame |
|---|---|---|
| Wheelbase | ~1500–1610 mm | 1710 mm (wider, more stable) |
| Structural Design | Standard arm-to-centre layout | Truss-reinforced geometry |
| Flight Stability in Wind | Moderate | High — minimal drift |
| Vibration at Full Load | Noticeable flex possible | Highly rigid, low vibration |
| Spray Pattern Uniformity | Standard | Improved due to stable hover |
| Suitable for Pro Spraying Services | Yes | Yes — preferred choice |
| Best Use Case | Mid-scale farms | Mid-to-large commercial farms |
| Build Quality | Varies by brand | Premium EFT quality |
Bottom line: If you prioritise stability, durability, and professional-grade spraying performance, the G18’s wider wheelbase and truss structure give it a clear edge over standard 20L drone frames.
Use Cases — Who Should Buy the EFT G18 20L Drone Frame?
- Drone Service Providers offering pay-per-acre spraying to villages, FPOs, and large farms.
- Progressive Farmers managing 50+ acres who want to bring spraying in-house.
- Agriculture Startups & Agri-Tech Companies delivering smart farming solutions.
- Plantation Owners in tea, coffee, rubber, mango, citrus, and oil palm sectors.
- Agri-Input Companies demonstrating product application with branded drone fleets.
- Drone Manufacturers & OEMs building custom-branded commercial spraying UAVs.
- Training Institutes & Agriculture Universities running UAV pilot training programs.
- State Government & FPO Projects under PM Kisan Drone schemes and rural drone initiatives.
Complete Your Build – Recommended Accessories
To build a fully functional agriculture spraying drone on the G18 platform, pair the frame with:
- High-capacity 14S agriculture drone batteries
- Heavy-duty agricultural motors and ESCs (X9 / X11 class)
- 40-inch agriculture drone propellers
- JIYI K++ or K3A Pro agriculture flight controller
- Diaphragm or centrifugal spray pump
- 4-nozzle or 8-nozzle pressure spray kit
- High-amperage charger for agriculture drone batteries
All accessories are available on BharatSkyTech with GST invoice, secure packaging, and pan-India shipping.
You may also want to explore our other agriculture drone frames such as the EFT E416P 16L frame for smaller operations, or the EFT E420P 20L frame for an alternative 20-litre setup.
Order the EFT G18 20L Agricultural Drone Frame Today
Power your agri-business with the stability, precision, and reliability of the EFT G18 20L Agricultural Drone Frame — the smart choice for serious drone builders and commercial spraying service providers in India.
Buy Now Online — Secure checkout with fast delivery across India. GST Invoice Included — Claim input tax credit for your agri-business or startup. Bulk & Dealer Inquiries Welcome — Special pricing for drone service providers, FPOs, agri-startups, training institutes, and OEMs. Expert Technical Support — Our drone specialists guide you through component selection, assembly, and configuration. Trusted Indian Supplier — Verified product quality with genuine EFT components and reliable after-sales service.
Call or WhatsApp our team today to confirm stock and current pricing. Click “Add to Cart” above to order your EFT G18 drone frame now. For bulk orders, write to us with your quantity and requirement — we will share the best wholesale rate and shipping timeline.
Build stable. Spray smarter. Scale your farming business.
Order your EFT G18 20L Agricultural Drone Frame today from BharatSkyTech — India’s trusted partner for agriculture drone frames, UAV spraying equipment, and precision farming solutions.
Frequently Asked Questions
What is included in the EFT G18 20L agricultural drone frame kit?
The kit includes the main truss-structure frame body, four foldable carbon fibre arms, the 20-litre spray tank, landing gear, mounting hardware, and tank cover. Motors, ESCs, propellers, flight controller, battery, and spray pump are sold separately so you can build the drone exactly to your specifications.
Why is the 1710mm wheelbase important on the EFT G18?
A wider 1710mm wheelbase provides a larger and more stable flight footprint, reducing in-flight tilt and drift. This results in smoother hover, more uniform spray patterns, and confident handling even in windy field conditions — a major advantage during commercial spraying.
Is the EFT G18 suitable for large-scale pesticide spraying in India?
Yes. The 20-litre tank, truss structure, and high payload capacity make the G18 ideal for large-scale pesticide spraying, fertiliser application, and herbicide treatment across paddy, wheat, cotton, sugarcane, and plantation crops. A trained pilot can cover 40–60 acres per day with proper battery sets.
Can I assemble the EFT G18 drone frame myself?
Yes — the frame is DIY-friendly with clearly marked mounting points and is widely used by drone builders and OEMs. We do recommend assembly by someone with basic UAV electronics experience, or with help from a professional drone technician for safe, reliable operation.
Do you provide GST invoice and pan-India shipping?
Yes. We provide a proper GST tax invoice with every order, fast pan-India shipping, secure packaging, and after-sales technical support for farmers, drone businesses, FPOs, and OEM customers.
What is the EFT E616P 16L drone frame price in India?
The EFT G18 20L Agricultural Drone Frame is priced at ₹64,999 + 5% GST at Bharat Skytech. Bulk and dealer pricing is available on request.
