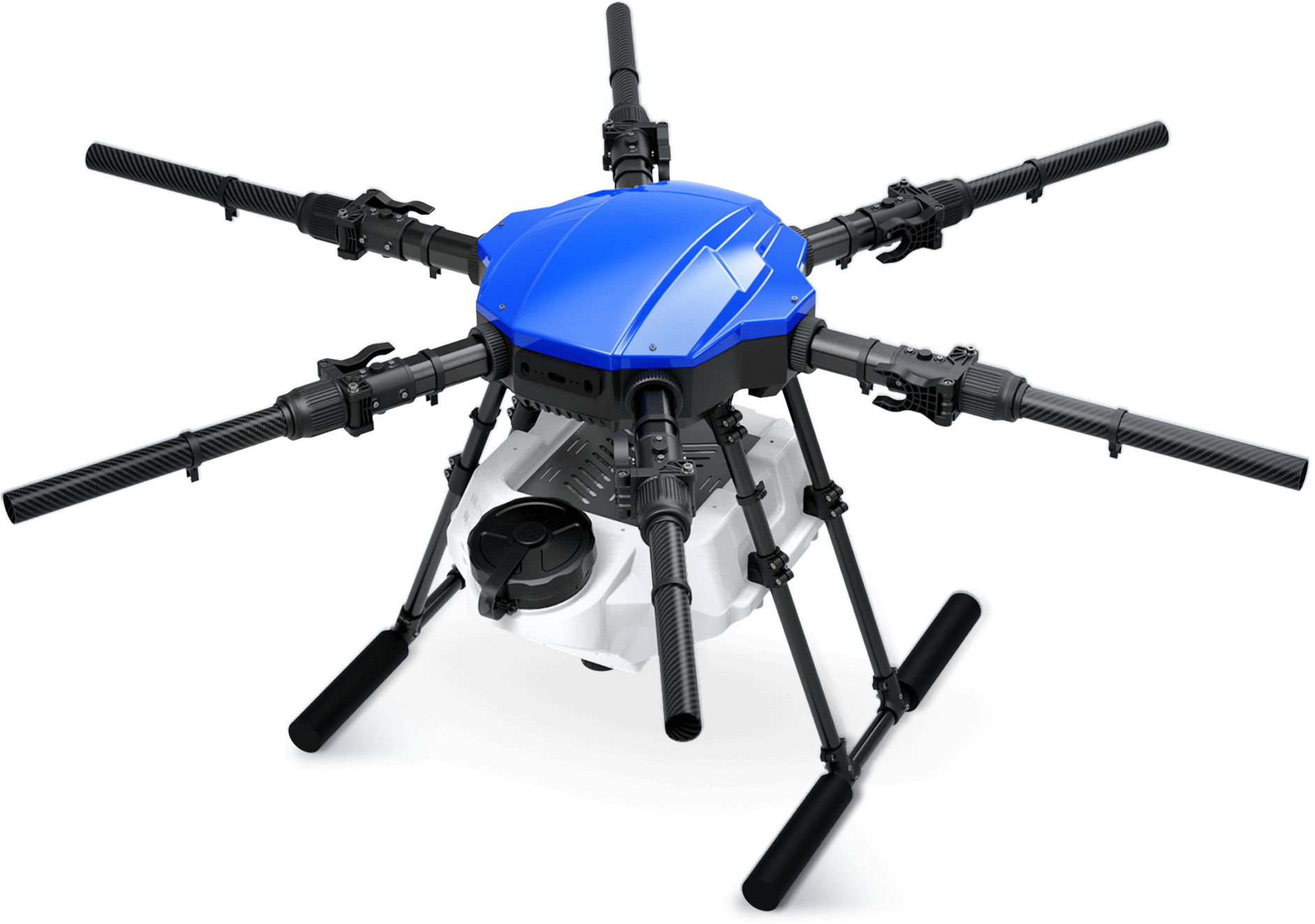

EFT E610P 10L
Agriculture
Drone Frame
10L six-axis spraying drone with foldable structure, fully waterproof body, and integrated power system — engineered for modern precision farming.
E610P — Built for India's Agriculture Fields
The E610P is a professional 10L six-axis agriculture spraying drone that combines a classic foldable design with modern unibody manufacturing. Designed for efficient crop protection and precision spraying, it's ideal for farmers, agri-service operators, and precision agriculture enterprises.
Its fully waterproof integrated body, reinforced folding arms, centralized power wiring, and stable 10L tank make it the most reliable and widely adopted spraying platform in its class.
Engineering Excellence in Every Detail
From its foldable frame to its waterproof chassis, every component of the E610P is built for reliability in demanding field conditions.
The E610P continues the classic foldable frame design, allowing quick folding for transportation and unfolding for field deployment — no tools required.

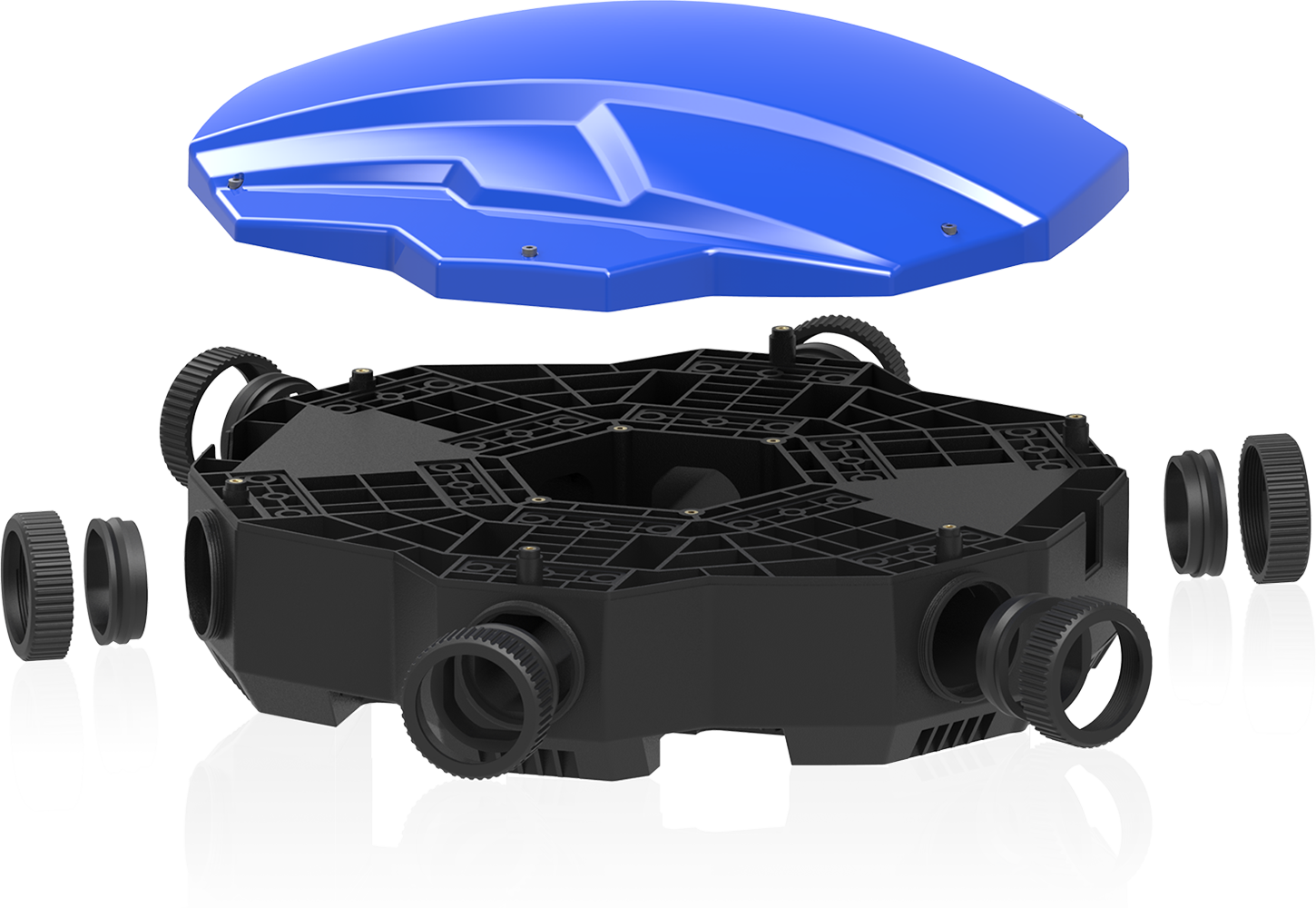

New injection molding technology consolidates dozens of parts into a single-piece high-strength impact-resistant body. Structurally superior and crash-resistant.

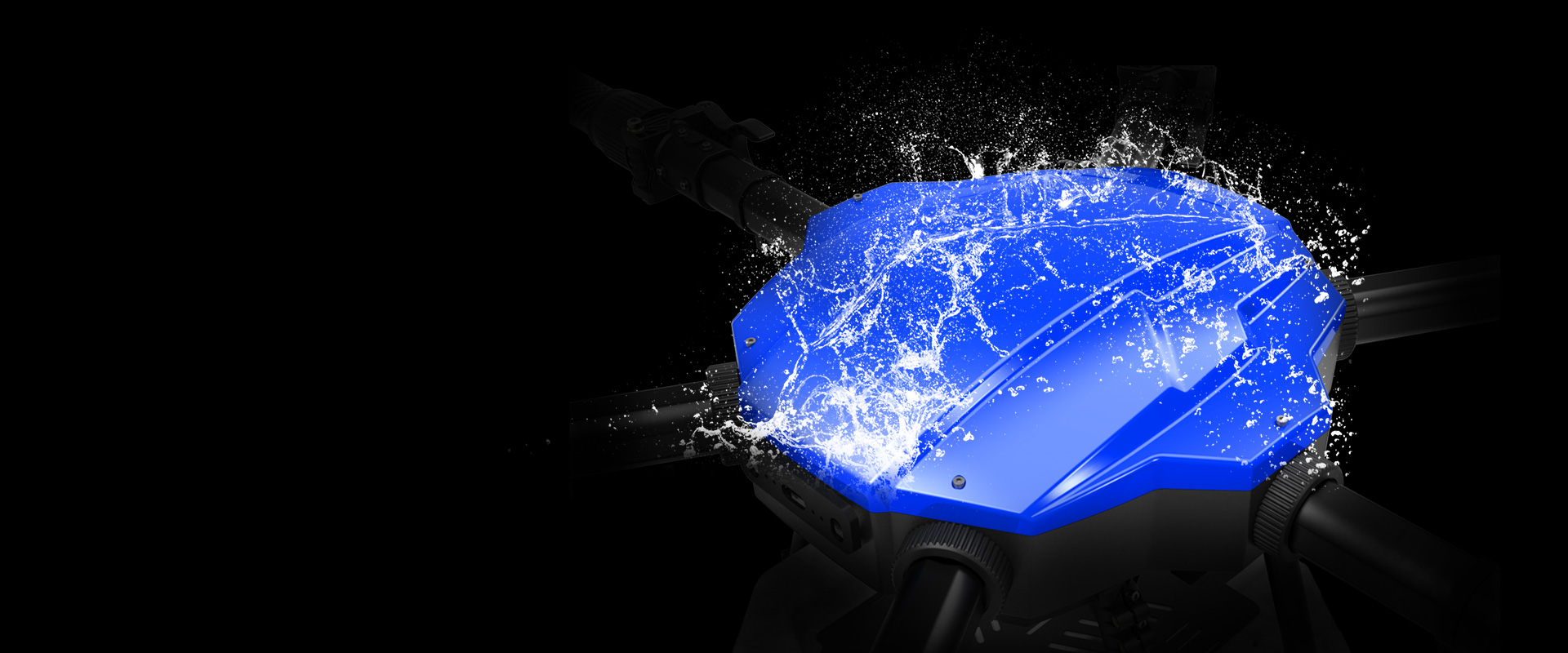

Integrated waterproof design allows the entire drone body to be washed with water after field use. Premium Starry Blue coating provides both aesthetics and protection.

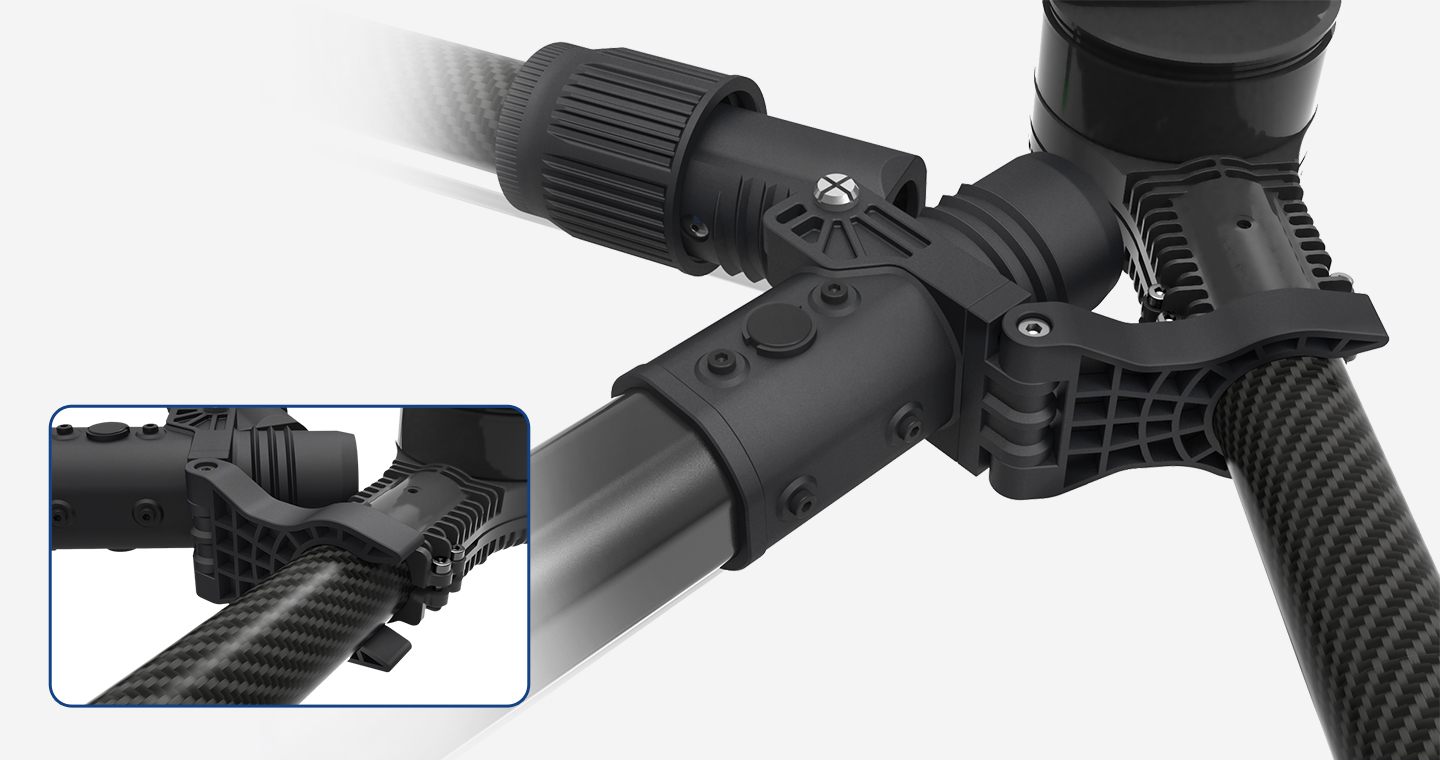

One-piece injection molded folding parts with a unique C-type arm clamp. Eliminates arm drooping and swinging during transit — far more secure than conventional designs.

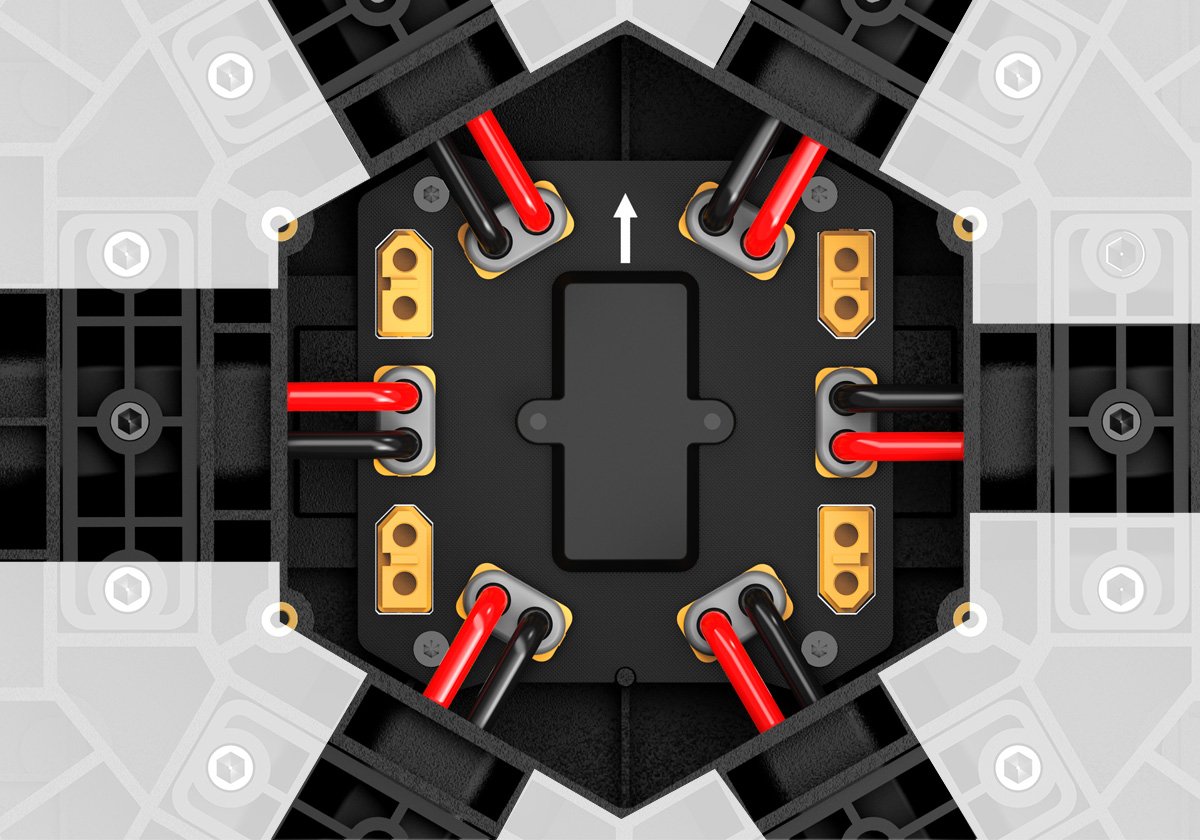

Centralized power supply architecture separates signal lines from power cables, drastically reducing electromagnetic interference for cleaner flight control signals.
The E610P uses the proven 10L agriculture tank — the most widely used and stable payload solution in the drone spraying industry. Large fill port for quick refilling.
Reinforced Power Plug
Main power cable exits from the side with the battery interface fixed to the landing gear frame — eliminates obstruction during battery swaps. Supports AS150 / AS150U / XT90 connectors.

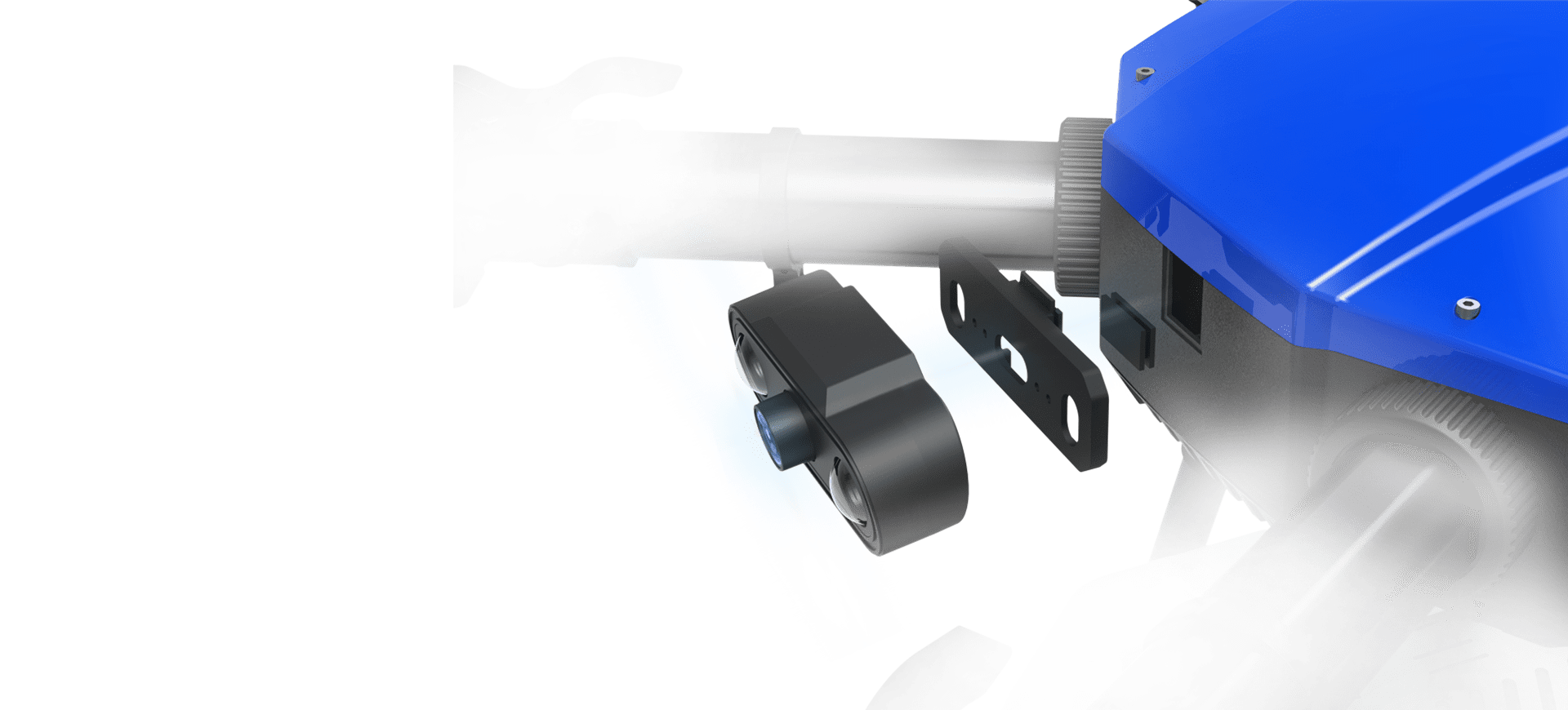

Detachable Camera Mount
A removable camera adapter is built into the front of the frame. Install your FPV or mapping camera as needed — or use the sealed cover when not required. Flexible and field-ready.
See the E610P Up Close

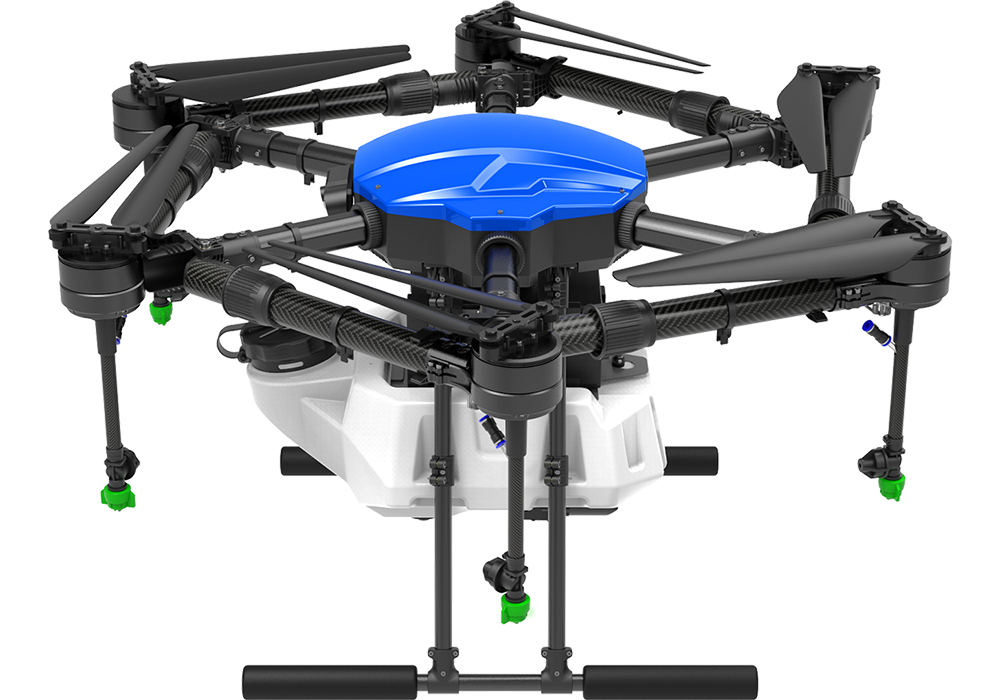

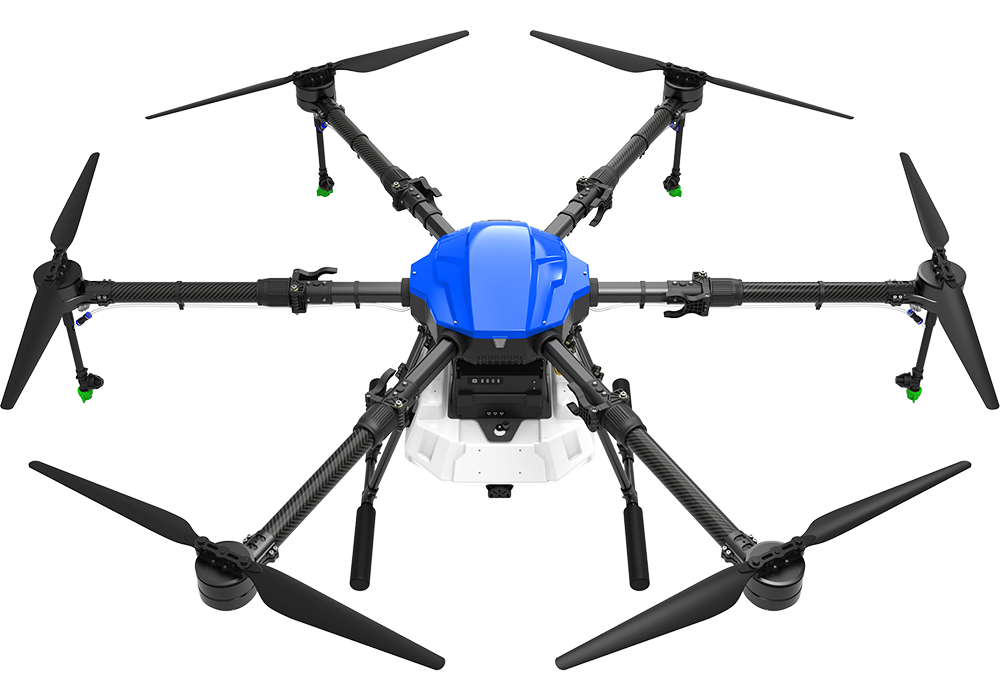

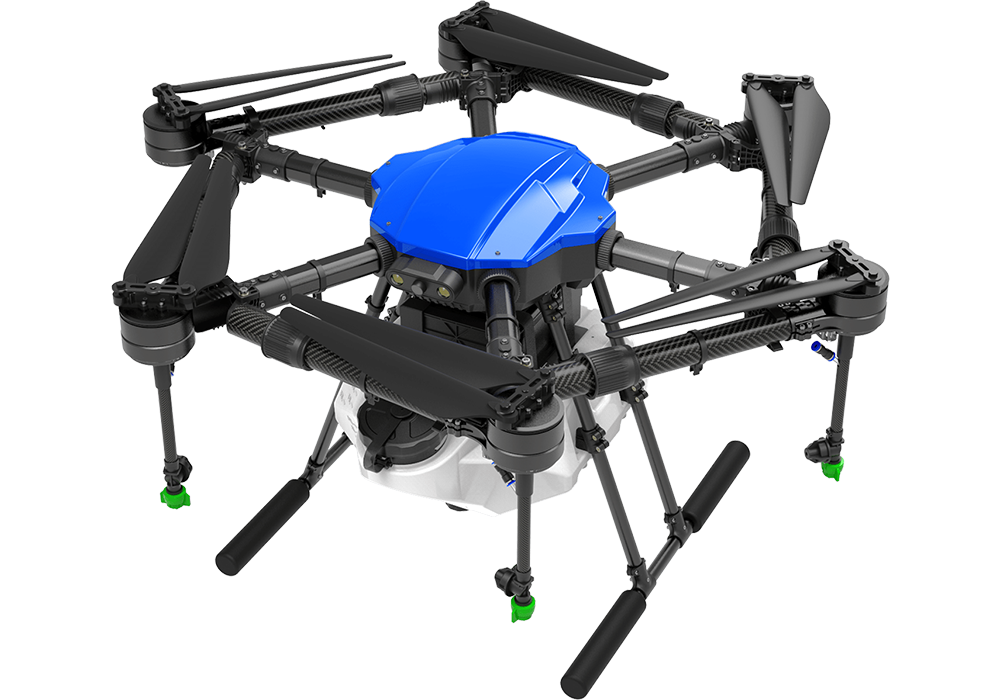

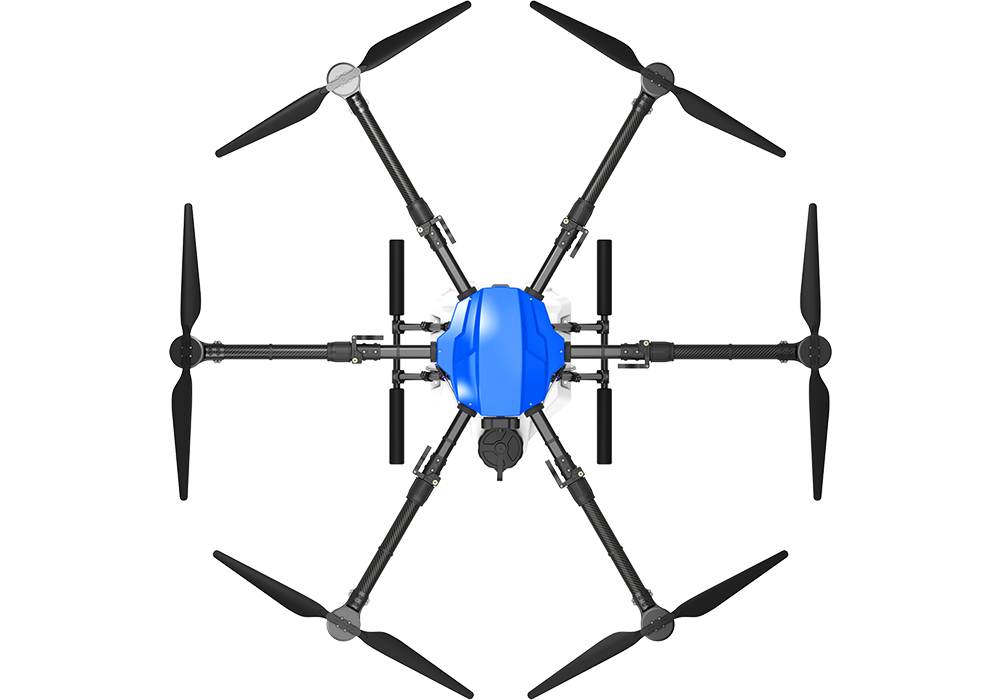

Complete drone in its operating configuration — built for the field, ready for any terrain.
E610P Precision Specs
Every number engineered for maximum performance in Indian agriculture conditions.
| Motor | X6Plus High Torque |
| Propeller | 24-inch Folding Propeller |
| ESC | 80A FOC Field-Oriented Control |
| Supply Voltage | 12S (44.4V nominal) |
| Motor Wheelbase | 1407 mm |
| Unfolded Size | 2007 × 2007 × 542 mm |
| Folded Size | 945 × 848 × 542 mm |
| Tank Capacity | 10 Litres Agriculture Grade |
| Frame Weight | 5.92 kg |
| Power Connectors | AS150 / AS150U / XT90 (optional) |
✅ Frame only. The E610P is a drone frame kit. Flight controller, battery, GPS, spraying system, and pumps are sold separately. Contact Bharat Skytech for complete solution packages.
Built to Perform in the Field
Why thousands of agriculture operators trust the E610P platform.
Widely adopted by agri-service providers across Asia — a battle-tested design with proven reliability in diverse field conditions.
Unibody construction and accessible component layout means faster field servicing. Washable body keeps downtime minimal after heavy spraying sessions.
Folds down to 945×848×542mm — fits in a standard vehicle boot. The C-clamp arms stay secure even on rough rural roads.

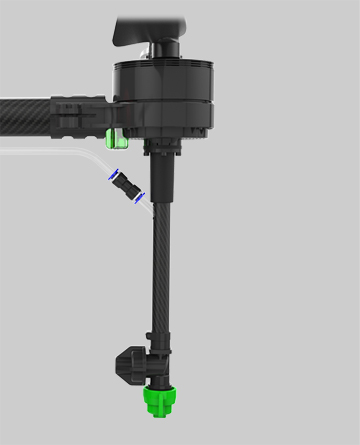

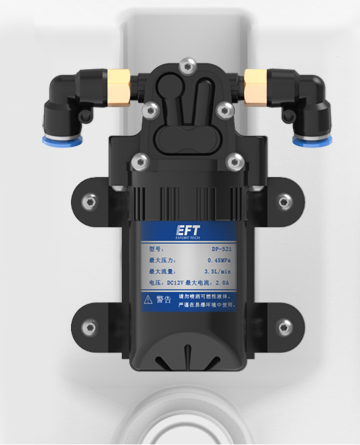

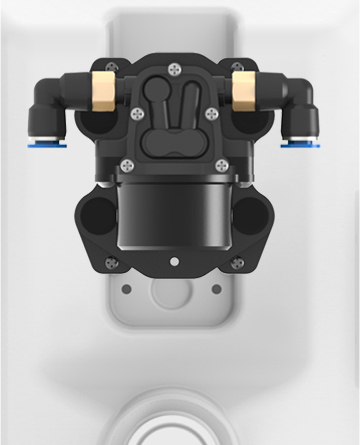

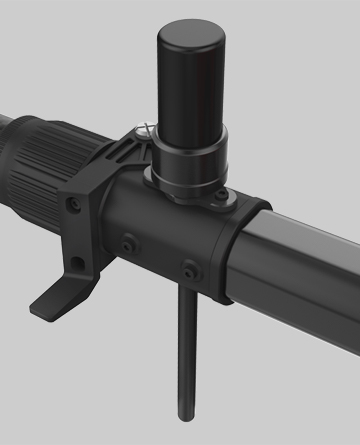

Compatible with extended spray booms, brushless/brushed pumps, RTK modules, and antenna adapters — scale your capability as needed.
Expand Your Capabilities
Customize the E610P with optional add-ons to match your specific farming requirements.
Frequently Asked Questions
Everything you need to know about the E610P before making your decision.
EFT E610P 10L Agricultural Drone Frame – 6-Axis Hexacopter for Farming in India
Introduction
The EFT E610P 10L Agricultural Drone Frame is a powerful entry point into modern precision farming in India. As drone-based crop spraying continues to grow, farmers and agri-businesses are adopting solutions that offer faster spraying, lower water usage, uniform coverage, and reduced chemical exposure.
For small to mid-scale operations, the 10L drone frame category delivers the perfect balance of affordability, portability, and performance. It is easy to build, simple to operate, and capable of covering significant acreage — making it ideal for farmers, drone service providers, and agri-tech startups entering the spraying drone market.
Built as a premium 6-axis hexacopter drone frame, the EFT E610P 10L Agricultural Drone Frame is designed for crop spraying, fertiliser application, and precision agriculture. It features an integrated body design, waterproof structure, foldable arms, built-in power distribution system, and optional camera mount for added functionality.
If you are looking for the best 10L drone frame for agriculture in India, the EFT E610P offers a reliable, field-proven, and professional-grade platform.
Product Overview – EFT E610P 10L Agricultural Drone Frame
The EFT E610P is a 6-axis hexacopter agricultural drone frame manufactured by EFT, one of the most respected names in the global agricultural UAV components industry. The hexacopter (6-motor) configuration provides a major advantage over standard 4-axis quadcopters — motor redundancy and superior in-flight stability.
If one motor experiences a fault during a spraying mission, the remaining five motors keep the drone in the air, allowing safe landing and protecting your equipment from catastrophic failure. This makes the E610P especially attractive for builders who prioritise safety, reliability, and consistent spray quality.
The frame is built around an integrated body structure that houses the electronics, power distribution, and spray system in a compact, vibration-resistant chassis. Combined with chemical-resistant waterproof construction and foldable arms for easy transport, the EFT E610P is a complete, field-ready platform built for the realities of Indian agriculture.
Key Features of the EFT E610P 10L Agricultural Drone Frame
1. Integrated Body Structure
The E610P features a fully integrated central body design that consolidates the flight controller mount, power distribution board, and core electronics into a single, vibration-dampened housing. This reduces wiring complexity, simplifies assembly, and delivers cleaner power management for all six motors.
2. Waterproof & Chemical-Resistant Design
Designed for real-world pesticide spraying, the frame uses sealed compartments and chemical-resistant materials to protect internal electronics from spray drift, monsoon humidity, and accidental liquid exposure. This is essential for long-term reliability in Indian field conditions.
3. Foldable Arms for Easy Transport
All six carbon fibre arms fold inward for compact storage and quick deployment. Whether you’re moving the drone between fields in a pickup truck or storing it after the spraying season, the foldable design dramatically reduces space requirements.
4. Integrated Power Distribution System
Built-in power distribution simplifies wiring between the battery, ESCs, motors, and flight controller. This reduces build time, lowers points of failure, and delivers more consistent power delivery during demanding spraying missions.
5. Camera Mount Compatibility
The E610P includes provision for a camera mount, allowing builders to integrate FPV cameras, mapping cameras, or inspection sensors. This makes the platform versatile beyond pure spraying — suitable for monitoring, scouting, and agri-mapping applications.
6. 10-Litre Spray Tank Capacity
A 10-litre tank is the ideal capacity for small-to-mid scale spraying. It strikes the right balance between flight time, refill frequency, and total drone weight — perfect for farmers and service providers operating on 20–50 acre fields.
7. 6-Axis Hexacopter Configuration
Six motors deliver superior stability compared to quadcopters, with built-in redundancy in case of motor failure. This results in smoother hover, more uniform spray patterns, and safer operation overall.
8. Heavy-Duty Carbon Fibre Construction
Lightweight yet incredibly rigid, the carbon fibre arms and structural components resist vibration, flex, and chemical corrosion — built to survive years of demanding field use.
9. DIY-Friendly Assembly
Clear mounting layouts, pre-cut holes, and modular design make the E610P accessible to builders, OEMs, and system integrators who want a professional platform without unnecessary complexity.
10. Wide Landing Gear
A wide, reinforced landing gear provides stable take-off and landing on uneven, muddy, or sloped Indian farmland — critical for paddy fields and monsoon operations.
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | EFT E610P 10L Agricultural Drone Frame |
| Frame Type | 6 Axis (Hexacopter) Foldable |
| Tank Capacity | 10 Litres |
| Frame Material | Carbon Fibre + Aluminium Alloy |
| Body Design | Integrated Central Body Structure |
| Waterproof Rating | Chemical-resistant, waterproof construction |
| Folding Design | Yes — Foldable Arms |
| Power Distribution | Integrated PDB |
| Camera Mount | Yes — Integrated Mounting Point |
| Battery Compatibility | 12S LiPo (Recommended) |
| Recommended Motors | Heavy-duty agriculture KV motors (X6 / X8 class) |
| Recommended Propellers | 30–36 inch agricultural propellers |
| Spray System | Compatible with diaphragm pump + 4-nozzle pressure kit |
| Primary Application | Pesticide, fertiliser, herbicide spraying |
| Country of Origin | Imported – Supported & Shipped in India |
| Ideal For | Farmers, drone service providers, training institutes, OEMs |
Note: Final flight performance depends on motors, ESCs, propellers, battery, and flight controller selected during assembly.
Applications of the EFT E610P 10L Drone Frame
The EFT E610P is purpose-built for Indian agriculture and supports a wide range of high-value applications:
- Pesticide Spraying on paddy, wheat, cotton, soybean, maize, and pulses for fast, uniform pest control.
- Liquid Fertiliser Application using ultra-low-volume (ULV) technology for precise nutrient delivery.
- Fungicide & Herbicide Spraying for disease control and weed management across diverse crops.
- Precision Farming with uniform coverage that improves crop health and final yield.
- Orchard Spraying in mango, citrus, pomegranate, and apple orchards where tractors cannot operate.
- Vegetable Farm Spraying for tomatoes, chillies, brinjal, okra, and leafy greens.
- Drone-as-a-Service Operations for small spraying service providers serving local villages.
- Training & Demonstration — Ideal frame for drone pilot academies and agricultural universities.
- R&D and Prototyping — A reliable test platform for agri-tech startups developing custom solutions.
Who Should Buy the EFT E610P 10L Drone Frame?
The EFT E610P is the right choice for a wide range of buyers:
- Progressive Farmers managing 20–50 acres who want to bring spraying in-house and eliminate labour dependency.
- Small-Scale Drone Service Providers offering pay-per-acre spraying to local villages and farmer groups.
- Agriculture Startups & FPOs delivering precision farming services to rural communities.
- First-Time Drone Builders entering the agriculture drone industry with a manageable, reliable platform.
- Training Institutes & Drone Academies running practical UAV pilot training programs.
- Agriculture Universities & R&D Labs prototyping smart farming solutions.
- Drone Manufacturers & OEMs building entry-level commercial spraying drones for resale.
- Government Kisan Drone Beneficiaries under PM-KISAN and state subsidy schemes.
- Agri-Input Companies running on-ground product demonstrations with branded drone fleets.
Order the EFT E610P 10L Agricultural Drone Frame Today
Start your precision farming journey with the proven reliability and stability of the EFT E610P 10L Agricultural Drone Frame — the smart choice for farmers, drone service providers, and agri-startups building their first commercial spraying drone in India.
Buy Now Online — Secure checkout with fast delivery across India. GST Invoice Included — Claim input tax credit for your agri-business, drone service, or startup operations. Bulk & Dealer Inquiries Welcome — Special pricing for drone manufacturers, FPOs, training institutes, agri-startups, and OEM partners. Expert Technical Support — Our drone specialists guide you through component selection, assembly, and configuration. Trusted Indian Supplier — 100% genuine EFT components with verified product quality and reliable after-sales service.
Call or WhatsApp our team today to confirm stock availability and current pricing. Click “Add to Cart” above to order your EFT E610P drone frame now. For bulk orders, write to us with your quantity and requirements — we’ll share the best wholesale rate, shipping timeline, and dedicated GST billing support.
Build stable. Spray smarter. Grow faster.
Order your EFT E610P 10L Agricultural Drone Frame today from Bharat Skytech — India’s trusted partner for agriculture drone frames, UAV spraying equipment, and precision farming solutions.
Original price was: ₹36,999.00.₹33,999.00Current price is: ₹33,999.00. (Exclusive of GST)
