EFT E410P 10L 4 Axis Agricultural Drone Frame
Built for Modern Agriculture
The E-Series quadcopter frame is designed specifically for 10–20KG payload capacity.
Bold & Technical Forged as One. Built to Endure
One shell. Zero compromise.
The next-generation E-series takes flight with a revolutionary single-piece construction — collapsing what was once a complex assembly of components into one seamless, precision-formed shell. Engineered from aerospace-grade, impact-resistant material, it’s built to withstand the harshest landings and keep flying.
REINFORCED POWER PLUG
No loose ends. No lost power.
The E-series routes its main power cord through the side, with the battery connector anchored firmly to the tripod frame — keeping the plug zone clear and accessible every time you hot-swap a battery. A locking plug-in connector ensures a grip that doesn’t quit. (Compatible with AS150/AS150U plugs.)
FULLY WATERPROOF BODY
Rain-proof. Rust-proof. Ready for anything.
The E-series wears its strength on the outside — a sleek, streamlined frame finished in striking red, built to turn heads on the ground and take punishment in the sky. UV-treated surfaces shrug off scratches and corrosion, while full dustproof and waterproof protection means a rinse-down after a muddy mission is all it takes to fly again.

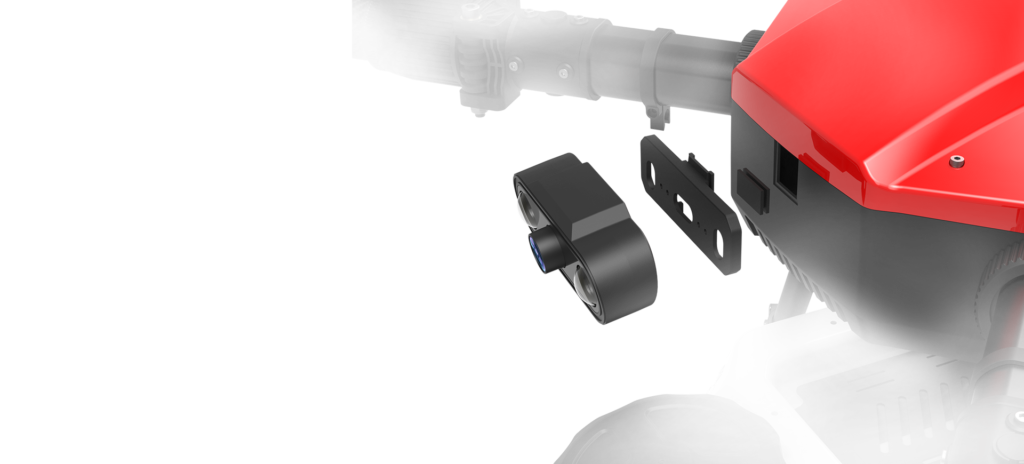

Detachable Camera Mount
Clip in. Pull out. Always ready.
The nose of the E-series features a quick-release camera adapter, giving pilots the freedom to mount or remove the camera in seconds — no tools, no hassle, just seamless configuration for every flight.
Optional accessories

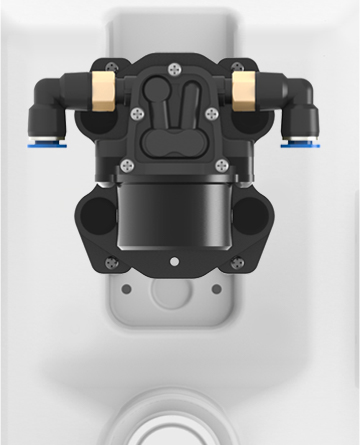

Brushless Water Pump

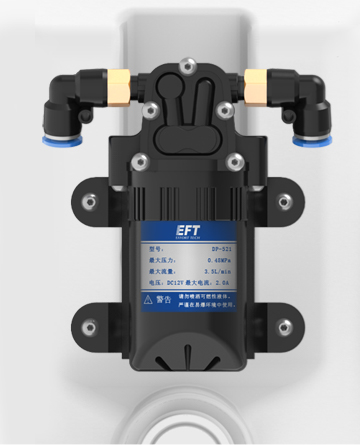

Brushed Water Pump

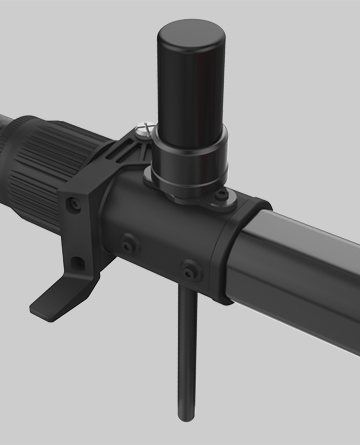

RTK/Antenna Adapter
Introduction
Meet the E410P — A New Standard in Agricultural Drone Frames
When precision agriculture demands more, the E410P rises to the challenge. Designed as a 10kg agricultural drone frame built for the rigours of crop spraying, pest control, and precision field operations, the E-series quadcopter represents a full rethink of what a farming drone frame 10 litre capacity platform should be.
Whether you’re managing paddy fields, orchards, or expansive open farmland, the E410P’s robust architecture gives operators a dependable, field-hardened machine. With a 10L agri drone frame medicine tank, X8 octa-motor layout, 30-inch folding propellers, and a unibody-moulded chassis, this quadcopter agriculture drone frame is optimised for operational efficiency, durability, and ease of maintenance in the harshest outdoor environments.
The E410P isn’t just an upgrade — it’s a complete rethinking of the agriculture drone frame 10kg category. From its reinforced power plug system to its detachable camera mount and integrated power routing, every detail of this agri drone frame 10kg capacity machine has been designed with the working farmer and professional drone operator in mind.
Feature Highlights
Six Engineering Breakthroughs in One Frame

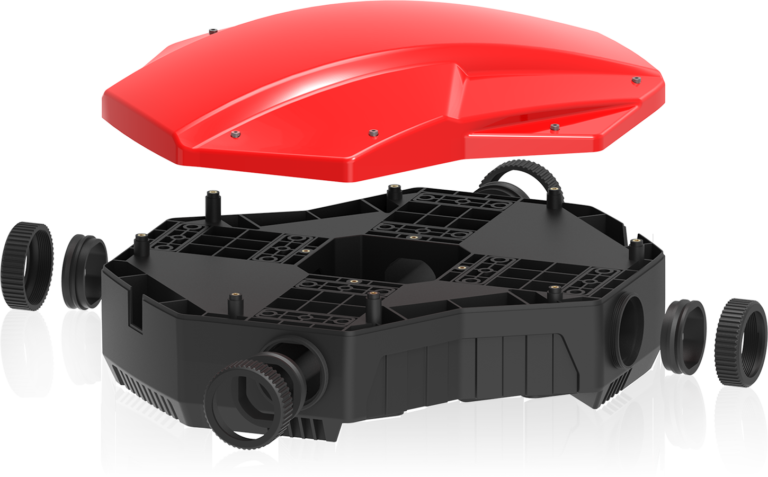

The E410P’s unibody moulding process consolidates dozens of individual components into a single, seamlessly formed chassis. Made from high-strength, impact-resistant material, this agri drone frame 10kg body is engineered to be drop-resistant, vibration-proof, and built to last thousands of flight cycles. Structural integrity is no longer an afterthought — it’s baked into every millimetre of the frame.
The E410P features a streamlined aerodynamic profile with a bold red UV-treated finish that resists scratches, corrosion, and UV degradation over time. Fully sealed for dustproof and waterproof performance, this 10L crop spraying drone frame can be washed down directly after a muddy field operation — no disassembly, no fuss. Rain, irrigation spray, or heavy morning dew — it handles it all.
Fieldwork moves fast. The E410P’s medicine tank dosing port has been significantly enlarged compared to previous generations, dramatically reducing spillage and accelerating the refilling process. For operators running back-to-back crop spraying sessions, faster chemical loading translates directly to more ground covered per hour — a critical advantage when working against time-sensitive pest or disease windows.
4. Integrated Power Routing — Clean, Reliable, Interference-Free
The E410P’s integrated power supply wiring system centralises power distribution through a single, organised routing architecture. By maintaining strict separation of signal and power lines, it dramatically reduces electromagnetic interference — a common cause of flight instability in heavy agricultural UAVs. The result is a cleaner electrical system, more reliable ESC performance, and smoother overall flight behaviour across the full operational payload range.
Power connections on a 10kg agricultural drone frame need to be bulletproof. The E410P exits its main power cord from the side of the frame, with the battery connector anchored firmly to the tripod structure — keeping the plug zone completely unobstructed during battery swaps. The reinforced plug-in connector design, compatible with AS150 and AS150U plugs, delivers a secure, vibration-resistant connection that holds firm mission after mission.
Versatility defines the modern farming drone frame 10 litre operation. The E410P features a front-mounted detachable camera adapter, allowing operators to instantly switch between equipped imaging mode and a leaner, lighter spraying configuration. Mount a camera for mapping, scouting, or crop health monitoring — detach it for pure-performance spraying runs. One click. Infinite adaptability.
Why Choose the E410P
1. Built for Scale
The E410P’s X8 octa-motor layout paired with 30-inch folding propellers gives operators a serious lift platform capable of carrying a full 10-litre agricultural drone frame payload with stable, efficient flight performance. The 12S power supply voltage and 80A FOC ESC system ensures smooth motor control across the entire throttle range — critical when flying with a loaded medicine tank in variable wind conditions.
With a motor wheelbase of 1416mm, the E410P strikes the ideal balance between stability and manoeuvrability — wide enough to carry heavy payloads without wobble, compact enough to navigate field boundaries and orchard rows with precision.
2. Built for the Field
Agricultural drone operations don’t happen in controlled environments. Dust, moisture, chemical residue, rough landings, and rapid battery cycles are the daily reality for any serious 10kg payload drone frame in the field. The E410P has been engineered around this reality — from its unibody impact resistance and full waterproofing to its simplified, interference-free electrical architecture.
Maintenance is fast, refilling is smooth, and the classic folding body means every transport and deployment is effortless. This is a crop spraying drone frame built not just to perform on day one — but to keep performing through an entire growing season and beyond.
E410P Agricultural Drone – Technical Specifications
| Parameter | Details |
|---|---|
| Model | E410P |
| Motor Configuration | X8 Octa-Motor |
| Propeller | 30-inch Folding Propellers |
| ESC | 80A FOC |
| Power Voltage | 12S |
| Motor Wheelbase | 1416 mm |
| Unfolded Size | 1801 × 1801 × 567 mm |
| Folded Size | 701 × 701 × 567 mm |
| Tank Capacity | 10 Litres |
| Frame Weight | 5 kg |
| Payload Class | 10 – 20 kg |
| Plug Compatibility | AS150 / AS150U |
Conclusion
From the moment it takes off, the E410P communicates one thing clearly: it was built for work. Not for demos. Not for spec sheets. For real fields, real crops, and real operators who depend on their equipment to deliver every single day.
As a 10 litre agricultural drone frame with unibody construction, full waterproofing, integrated power routing, reinforced connections, and a modular camera system, the E410P covers every operational requirement a professional agricultural UAV platform demands. It is the definitive E-series quadcopter — a machine that brings together the strength, simplicity, and versatility that modern precision agriculture requires.
Upgrade to the E410P. Fly more. Spray smarter. Harvest better.
