EFT BHARAT - MADE FOR INDIAN AGRICULTURE
E-Series Agriculture
Hexacopter Drone Frame
10–20 KG payload · 6-axis stability · Waterproof · Foldable · Made for Indian farms
5-10
acre /hr spray rate
83%
field efficiency vs boom
40%
less pesticide waste
EFT BHARAT - MADE FOR INDIAN AGRICULTURE
E-Series Hexacopter
Agricultural Drone Frame
EFT BHARAT - MADE FOR INDIAN AGRICULTURE

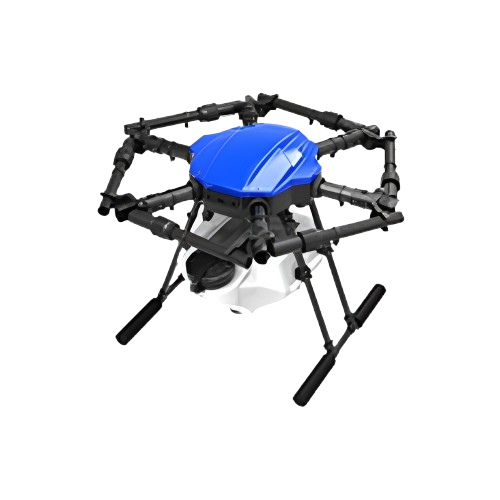

E610P Agriculture
Hexacopter Drone Frame

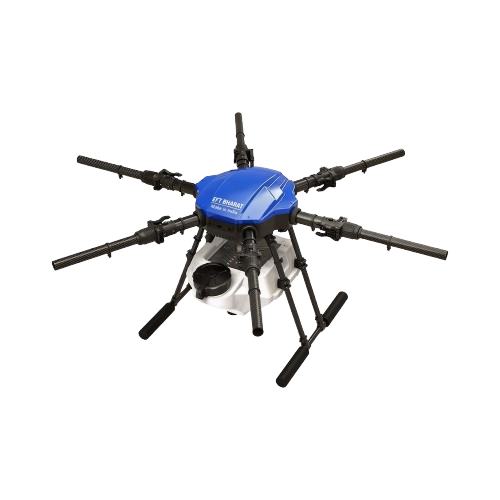

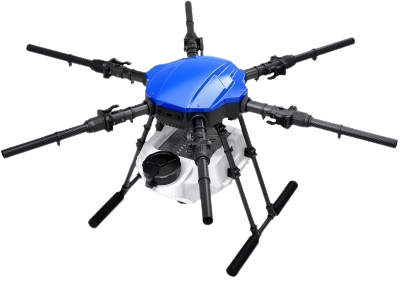

India’s most trusted 10L hexacopter drone frame — the E610P is engineered for paddy, vegetables, orchards, and small to mid-scale farm operations. Built on EFT Bharat’s proven 6-axis hexacopter platform with a waterproof, one-piece moulded body designed to handle the dust, heat, and monsoon conditions of Indian agriculture.
Optimised Inlet
Precise airflow for efficient motor cooling
Classic Fold
Folds compact for easy transport anywhere
Waterproof Design
Full-body IP67 seal, supports pressure washing
EFT Bharat
Distributed exclusively by Bharat Skytech
DESIGN

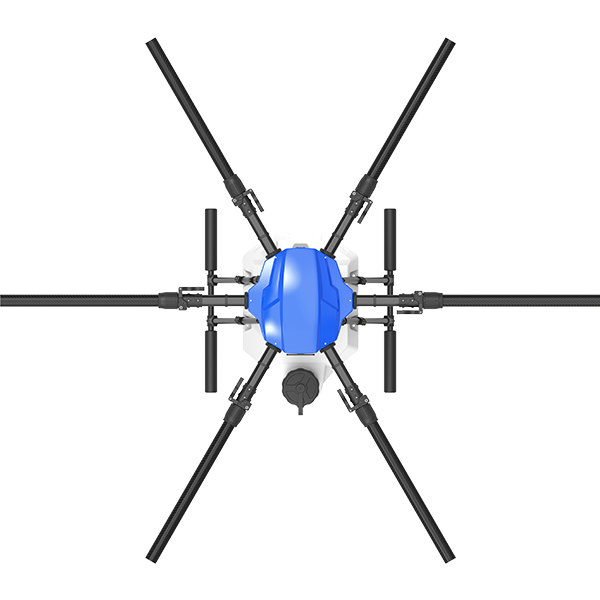

Classic Folding Body
The E-Series continues the iconic foldable body design that pilots trust across India. All six arms fold inward using precision C-clamp joints — halving the footprint in seconds. Fits in the boot of a Bolero or SUV without disassembly. No tools required.
PORTABILITY

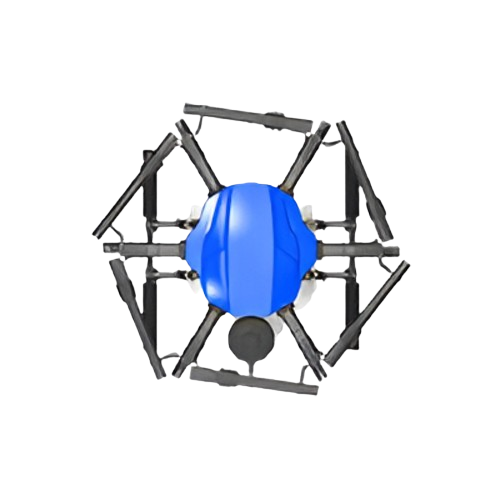

Folded in Seconds
The unique C-shaped arm fixing clip locks each arm rigidly when deployed and releases with a firm squeeze. Zero arm sag, zero wobble — even on bumpy Indian roads during transit between fields.
CONSTRUCTION
One Body, Strong & Durable
The E610P uses a one-piece injection moulding process — consolidating dozens of original parts into a single unified shell. Made from high-strength, impact-resistant composite material with reinforced arm sockets. Stronger, lighter, and far more reliable under daily field use.
PROTECTION

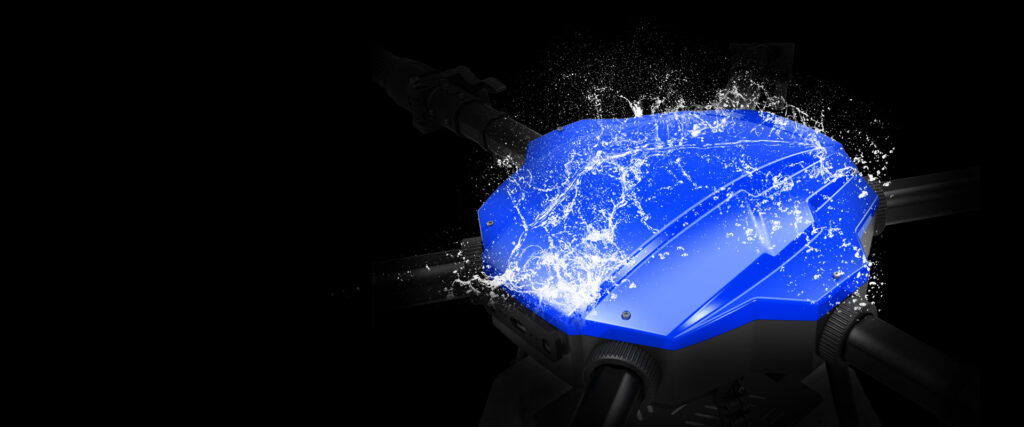

Fully Waterproof Body
Integrated IP67 waterproof design supports high-pressure washing after every pesticide or fertiliser mission. The body is UV-resistant and chemical-splash proof — built to survive India’s monsoon season without corrosion or seal failure. Wash it down and fly again.
MECHANISM

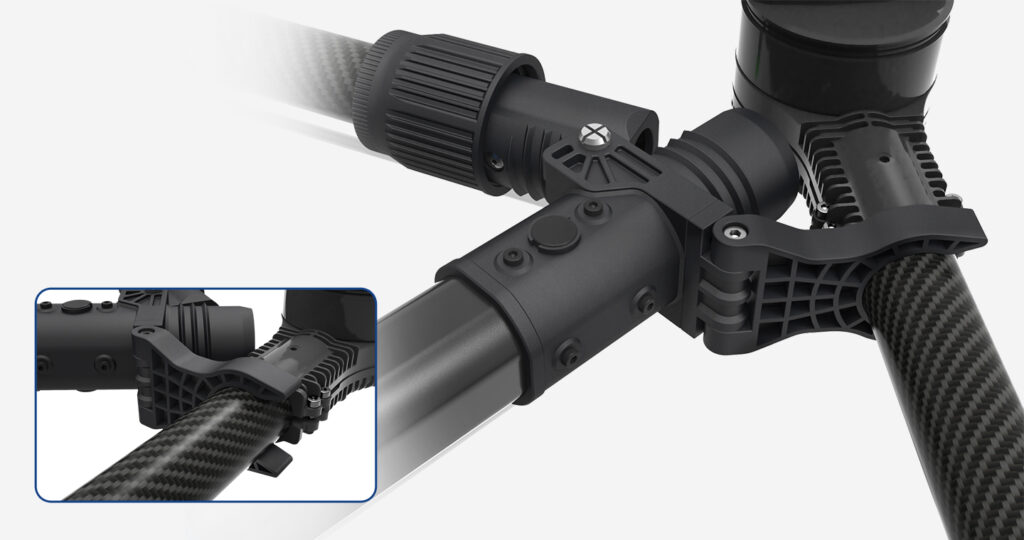

New Folding Parts
One-piece injection moulded folding joints — more stable and durable than previous generation multi-part assemblies. The C-shaped arm clip design eliminates arm swinging and sagging during transport, handling, and rough-road transit between farm plots.
ELECTRONICS

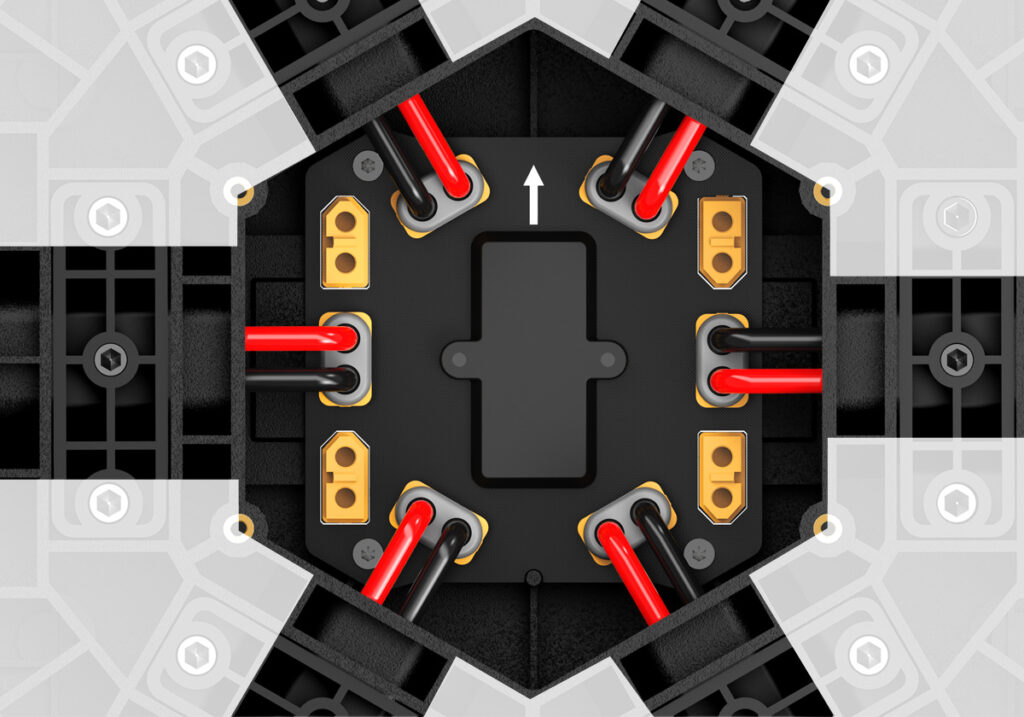

Integrated Power Supply Wiring
Centralised power distribution with separate signal and power routing channels built into the body. Reduces electromagnetic interference for clean, stable flight controller signals. Faster to wire, easier to service and troubleshoot in remote field conditions.
PAYLOAD

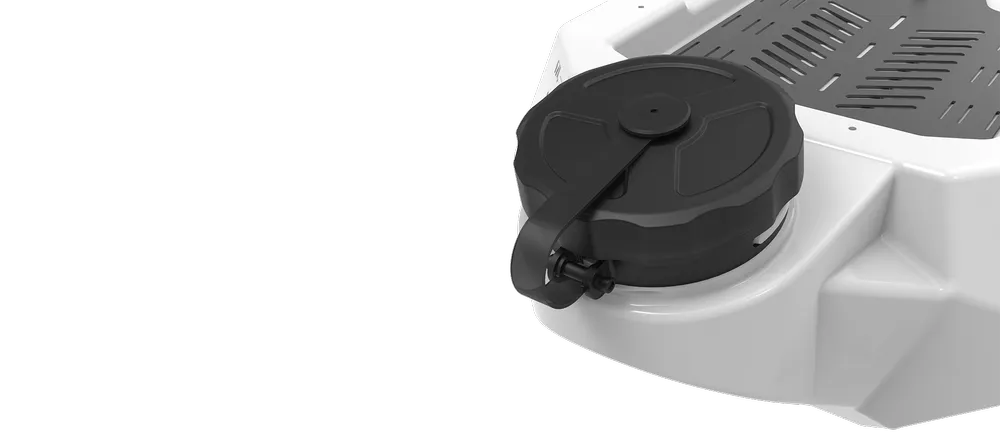

Classic 10–20L Tank
The E610P uses a 10-litre chemical-resistant HDPE tank — the ideal capacity for smallholder to mid-scale farm operations. Lightweight when empty, stable when full. Compatible with both flat-fan and aerosol nozzle systems. Balanced CG design for consistent spray pattern throughout the tank cycle.
CONNECTORS

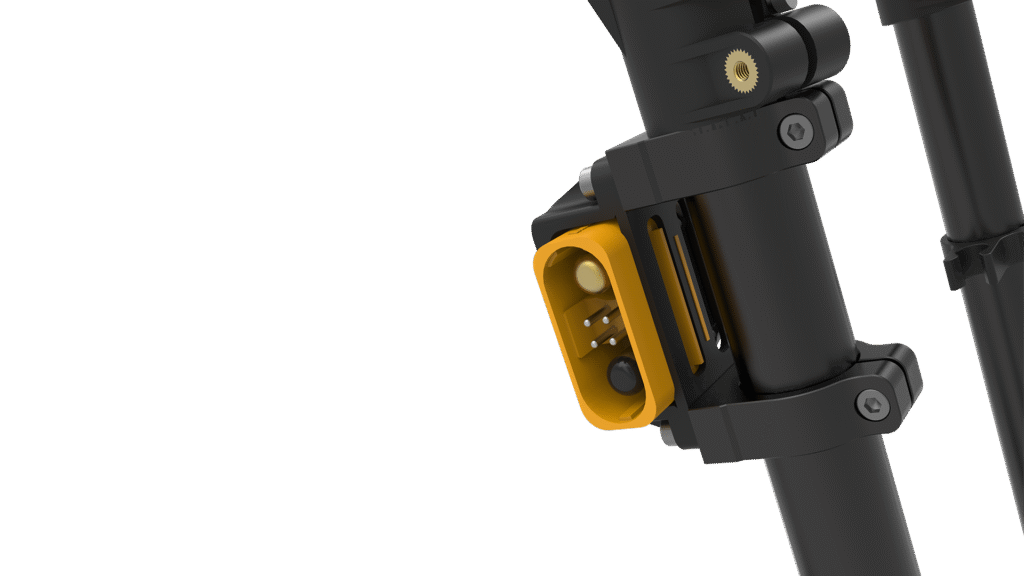

Reinforced Power Plug
The main power cord exits from the body side, with the battery interface fixed to the tripod rail — no connector obstruction when swapping batteries mid-session. Supports both AS150 and the quick-release AS150U plug standard for fast, reliable hot-swaps in the field.
PRECISION
Detachable Camera Mount
A factory-integrated camera adapter is positioned at the front of the E610P frame — install or remove as needed. Compatible with RGB, NDVI, and FPV cameras. RTK and antenna adapter mount included for centimetre-level GPS precision on mapped missions.
TECHNICAL SPECIFICATIONS
Choose Your Configuration
Three variants — same EFT Bharat quality, different capacities for every scale of farming operation.
10L payload · Ideal for smallholder to mid-scale farms · Paddy, vegetables & orchards
| Motor compatibility | Hobbywing X9 (80KV) |
| Propeller size | 34 inch (864mm) |
| ESC | 80A FOC |
| Supply voltage | 14S LiPo |
| Recommended battery | Tattu Pro 22,000mAh 14S |
| Wheelbase | 1854 mm |
| Unfolded size (L×W×H) | 2717 × 2717 × 660 mm |
| Folded size (L×W×H) | 1224 × 1203 × 660 mm |
| Tank capacity | 20 L (+ optional 8L spreader) |
| Frame weight | 6.79 kg |
| Max takeoff weight | 46.5 kg |
| Pump capacity | 8L/min brushless |
| Ideal crop types | All crops — large farm operations |
16L payload · Most popular choice · Wheat, paddy, cotton & sugarcane
| Motor compatibility | Hobbywing X8 (100KV) |
| Propeller size | 30 inch (762mm) |
| ESC | 80A FOC |
| Supply voltage | 12S LiPo |
| Recommended battery | 2× 22,000mAh 12S |
| Wheelbase | 1644 mm |
| Unfolded size (L×W×H) | 2429 × 2429 × 599 mm |
| Folded size (L×W×H) | 1091 × 970 × 599 mm |
| Tank capacity | 16 L |
| Frame weight | 6.41 kg |
| Max takeoff weight | 35 kg |
| Pump capacity | 5L/min brushless |
| Ideal crop types | Wheat, paddy, cotton, sugarcane |
20L payload · Commercial operations · Large farms & drone service providers
| Motor compatibility | Hobbywing X9 (80KV) |
| Propeller size | 34 inch (864mm) |
| ESC | 80A FOC |
| Supply voltage | 14S LiPo |
| Recommended battery | Tattu Pro 22,000mAh 14S |
| Wheelbase | 1854 mm |
| Unfolded size (L×W×H) | 2717 × 2717 × 660 mm |
| Folded size (L×W×H) | 1224 × 1203 × 660 mm |
| Tank capacity | 20 L (+ optional 8L spreader) |
| Frame weight | 6.79 kg |
| Max takeoff weight | 46.5 kg |
| Pump capacity | 8L/min brushless |
| Ideal crop types | All crops — large farm operations |
