Hobbywing 9L Centrifugal Nozzle Spray for UAV Drones
Original price was: ₹10,200.00.₹7,999.00Current price is: ₹7,999.00. (Exclusive of GST)
Efficient Atomizing and Precise Spraying
HOBBYWING centrifugal nozzle utilizes state-of-the-art atomizing technology to
maximize the effectiveness of every drop of the spray.
Max. Flow Rate
9L/min
Max. Flow Rate
9L/min
Max. Flow Rate
9L/min
Outstanding Atomizing Effect
The centrifugal nozzle features a high-speed
rotating spray disc to produce uniform and fine droplets.
This ensures deep penetration of sprays into
the bottom leaves of crops, covering every plant while spraying.

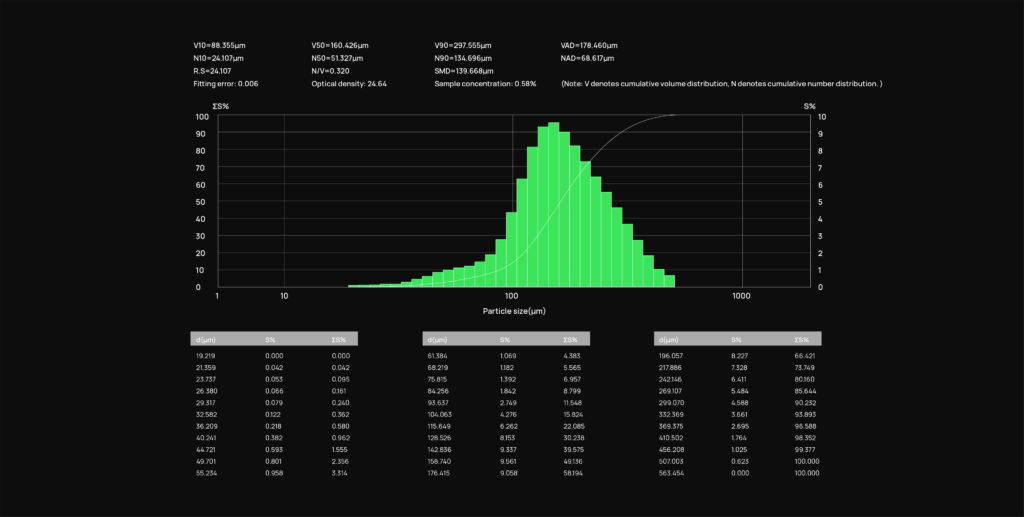

A Minimum Diameter of
35μm
(Measured under laboratory conditions. The final atomizing effect is related to the flow rate and rotation speed. The speed of the rotation will determine the size of the spray droplets. Faster rotation will yield a finer droplet.)
Excellent Spray Type Compatibility
Regardless of aqueous solutions, emulsifiable concentrates,
or suspension concentrates, the centrifugal nozzle can adapt
to them without the need to change.
Aqueous Solutions
- Pentazole prochloraz
- Pyraclostrobin
- Thiamethoxam
- Tebuconazole
- Profenofos
- Prochloraz
- Amino acid-containing
- water-soluble fertilizer
- Brassinolide
Suspension Concentrates
- Emamectin benzoate
- Pyraclostrobin
- Mancozeb
- Thiamethoxam
- Tebuconazole
- Prochloraz
Emulsifiable Concentrates
- Pyraclostrobin
- Profenofos
- Auxiliary

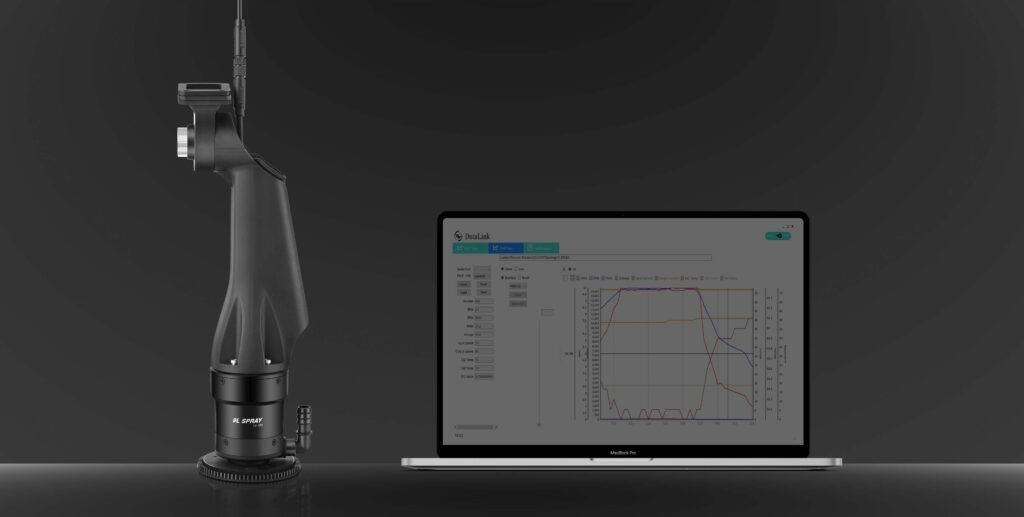

Efficient and Precise Flow Control
With a maximum flow rate of 9 L/min and visualized CAN data transmission,
the centrifugal nozzle can adjust to the optimal flow rate
and atomizing effect based on different crops and types of sprays.
This ensures precise spraying and minimizes chemical and water waste,
thereby cutting costs and increasing farmers’ income.
Enhanced Durability
Easy to clean and prevents
clogging and motor burning Thus ensuring less maintenance and
longer service life
Made of corrosion-resistant
materials with an IPX6
protection rating
Compatible Structure and Easy to Use
The modular folding design facilitates installation and handling.
In addition, it is compatible with the installation sizes of
HOBBYWING X9 / X11 / X13 / X15 propulsion systems,
making it ready to use upon installation without the need to evacuate air inside the nozzle
Hobbywing 9L Centrifugal Nozzle Spray for UAV Drones
The Hobbywing 9L Centrifugal Nozzle Spray is designed to deliver high-efficiency, fine-particle atomization for agriculture drones. With a maximum flow rate of 9L/min and wide chemical compatibility, it ensures precise, uniform coverage across crops—improving spray effectiveness and overall yield.
Key Features:
Maximum Flow Rate: 9L/min
Spraying Width: Up to 12 meters
Spraying Efficiency: 0.99 hectare per minute (measured at 13.8 m/s flight speed)
Droplet Size Range: 35–500μm
Control Mode: PWM and CAN
Foldable Modular Design: Easy to install, clean, and maintain
Corrosion-Resistant Build: IPX6 protection rating
Supports Aqueous, Emulsifiable, and Suspension Concentrates
Key Features
Advanced Atomization Technology
The high-speed centrifugal spray disc ensures even and fine droplets, allowing sprays to reach even the lower layers of crop leaves.
Precision Flow Control with CAN Communication
Real-time CAN data allows automatic adjustment of flow rate and droplet size depending on the crop type and spray liquid, helping reduce waste and chemical overuse.
Wide Chemical Compatibility
Compatible with a broad range of agricultural chemicals including:
Aqueous Solutions:
Thiamethoxam
Tebuconazole
Amino acid-based water-soluble fertilizers
Brassinolide
Suspension Concentrates:
Emamectin benzoate
Mancozeb
Pyraclostrobin
Emulsifiable Concentrates:
Profenofos
Pyraclostrobin
Ready-to-Use with Hobbywing Propulsion Systems
Fully compatible with the Hobbywing X9, X11, X13, and X15 propulsion systems. No air evacuation required before operation.
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Hobbywing 9L Centrifugal Nozzle Spray |
| Compatible Battery | 12S to 18S |
| Spraying Width | 4 to 12 meters |
| Droplet Granularity | 35–500μm |
| Maximum Flow Rate | 9L/min |
| Rated Flow Rate | 5L/min |
| Maximum Power | 500W (54V) |
| Rated Power | 350W (54V) |
| Control Mode | PWM / CAN |
| Communication Mode | CAN |
| Throttle Stroke | 1050–1950μs |
| Throttle Calibration | Not Available |
| Dimensions (Unfolded) | 97.8 × 75 × 278.3 mm |
| Dimensions (Folded) | 97.8 × 271 × 76.5 mm |
| Weight | 495 g |
| IP Protection Rating | IPX6 |
Wiring Order
Red — +
Black — GND
Yellow — GND
Purple — Signal
Blue — CAN High
Green — CAN Low
What's Included
Hobbywing 9L Centrifugal Nozzle Spray Unit
Wiring Harness
User Manual
Bulk Purchase Options
Looking to purchase in larger quantities?
We offer attractive pricing and priority support for bulk orders.
Bulk Discounts: Available for orders of 5 units or more
Dealer & Reseller Support: Access to B2B pricing and dedicated account management
Faster Dispatch: Priority handling for bulk shipments
Customization Support: Need bundled kits with propulsion systems or sprayer kits? Contact us.
To get a quote or place a bulk order:
Call: +91 9713131329
Email: info@bharatskytech.com
Or fill out the bulk inquiry form on our website.
Frequently Asked Questions
What is the Hobbywing 9L Centrifugal Nozzle Spray used for?
The Hobbywing 9L Centrifugal Nozzle is designed for agriculture UAV drones to deliver high-efficiency, fine-particle atomized spraying of pesticides, fertilizers, and other agrochemicals across crops with precision.
What is the maximum flow rate of the Hobbywing 9L nozzle?
The maximum flow rate is 9 litres per minute (9L/min), with a rated flow rate of 5L/min — making it ideal for large-scale drone crop spraying operations.
What is the spraying width and efficiency of this nozzle?
It covers a spraying width of up to 12 metres and achieves a spraying efficiency of 0.99 hectare per minute (at 13.8 m/s flight speed), significantly boosting agricultural productivity.
What droplet size does the Hobbywing centrifugal nozzle produce?
The nozzle produces droplet sizes between 35μm and 500μm, with a minimum of 35 microns under lab conditions — ensuring deep crop canopy penetration even into lower leaves.
Which Hobbywing propulsion systems is this nozzle compatible with?
It is fully compatible with Hobbywing X9, X11, X13, and X15 propulsion systems, featuring a modular folding design — plug-and-play with no air evacuation needed before use.
What chemicals can be used with this centrifugal spray nozzle?
The nozzle supports a wide range of agricultural chemicals including aqueous solutions (Thiamethoxam, Tebuconazole, Brassinolide), suspension concentrates (Mancozeb, Emamectin benzoate), and emulsifiable concentrates (Profenofos, Pyraclostrobin) — no nozzle change required.
What is the IP rating and battery compatibility of this nozzle?
It carries an IPX6 waterproof protection rating and is compatible with 12S to 18S batteries, built with corrosion-resistant materials for long-lasting field use.
How does the Hobbywing 9L nozzle control flow rate?
It uses PWM and CAN control modes with real-time CAN data transmission to auto-adjust flow rate and atomization based on crop type and spray liquid — minimizing chemical waste and cutting operational costs.
How can I place a bulk order for Hobbywing 9L Centrifugal Nozzle in India?
You can fill out the Bulk Order Submission Form on the Bharat Skytech website or contact the team directly at +91 8448892385 or info@bharatskytech.com.
Is the Hobbywing 9L nozzle easy to maintain and clean?
Yes. Its anti-clog, easy-clean design prevents motor burnout and reduces maintenance. The foldable modular structure makes installation, cleaning, and handling quick and hassle-free in field conditions.
