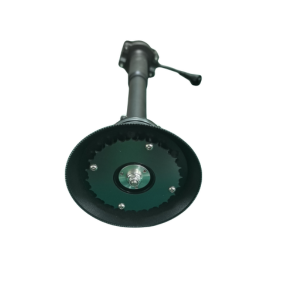

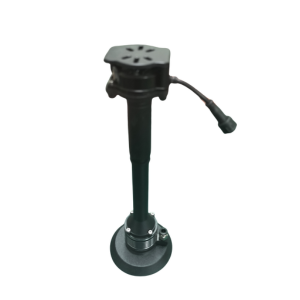

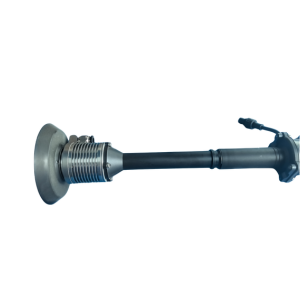

About Aerosol Nozzle – Model 4810
The Bharat Skytech Aerosol Nozzle – Model 4810 is designed for professional agricultural drone operations requiring higher flow rates and precision control. With a maximum flow of 3L and a wide rated power range of 50–150W, this nozzle can handle both small and large-scale spraying tasks with ease. The lightweight yet durable design ensures better flight efficiency, while the optional 6–8mm inlet/outlet compatibility offers flexible integration into various drone systems.
Key Features:
-
High Flow Capacity – Delivers up to 3L for faster coverage.
-
Variable Power Output – 50–150W for flow and speed adjustment.
-
Flexible Pipe Diameter – Supports 6–8mm inlet and outlet (optional).
-
PWM Control Mode – Precise spray control for consistent results.
-
Weather-Ready – Operates in -10°C to 50°C temperature range.
-
Lightweight & Drone-Friendly – Weighs just 290g.
-
Optimized Power Cord – 1.25m length for easy setup.
Specifications:
-
Model: 4810
-
Voltage Range: 12s–14s
-
Current Range: ≤ 4A
-
Maximum Flow: 3L
-
Rated Power: 50–150W (Flow and speed adjustable)
-
Control Mode: PWM
-
Weight: 290g
-
Working Temperature: -10°C to 50°C
-
Inlet & Outlet Pipe Diameter: 6–8mm (Optional)
-
Power Cord Length: 1.25m
-
Size: Long – 292mm, Short – 182mm
Package Includes:
- 1 × Bharat Skytech Aerosol Nozzle – Model 4810
Warranty Details
-
Warranty Period: 1 Month from the date of delivery
-
Type: Against manufacturing defects only
Warranty Coverage Includes:
-
Defective spraying function
-
Internal electrical failure (under normal usage)
Warranty Voids If:
-
Product is tampered, altered, or soldered
-
Exposed to water, fire, or chemicals
-
Damaged due to misuse or overvoltage
