X950
Industrial Drone Platform
DIY YOUR DRONE
950
23"
IP54
10kg
3.9kg
4
New Lightweight Industrial Platform
Streamlined structure.
Ingenious design.
Spacious flight control bay supporting multiple FC systems. Multiple payload mounts and flexible expansion — helping you DIY your drone for any industrial application.
01 — Minimalist Design
Streamlined.
Aerodynamic.
Minimalist design reduces air resistance for smoother, faster flights. Sculpted arm geometry and a clean fuselage work together for maximum efficiency.
——– 950mm wheelbase · 23-inch propellers
02 — Fold & Carry
Parallel Fold.
Pack in seconds.
Arms fold in parallel — landing gear snaps off with one pull. The whole platform fits in a carry case. Deploy anywhere, instantly.
——– Folded: 407 × 421 × 459 mm
Streamlined Design.
Quick-Detach Arms.
Foldable & Portable.
03 — Flexible Autopilot
Spacious FC Bay.
Any controller.
Oversized flight control bay fits multiple controllers and onboard computers. Removable front cover for easy LiDAR, camera, and antenna add-ons.
——– Pixhawk · JIYI · ArduPilot · DJI A3

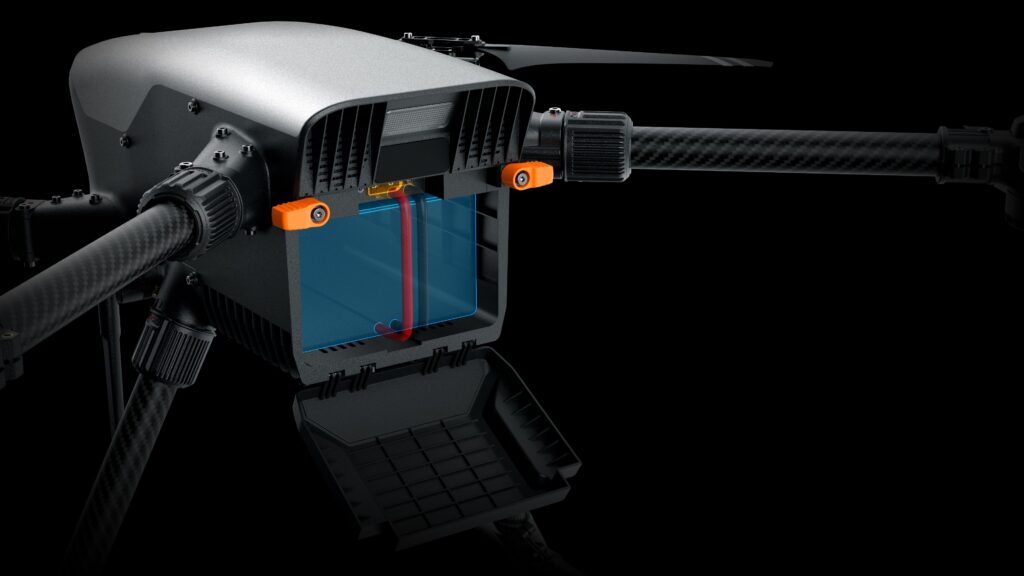

04 — Battery Compartment
Large-Capacity.
Dual-lock. Cool.
Supports 17,000mAh and 22,000mAh 12S batteries. Dual quick-lock knobs secure the cover. Multi-duct cooling channels keep temps low for long-duration missions.
——– 12S · 17Ah / 22Ah compatible
Large Compartment
Heat Dissipation
Dual-Knob Lock

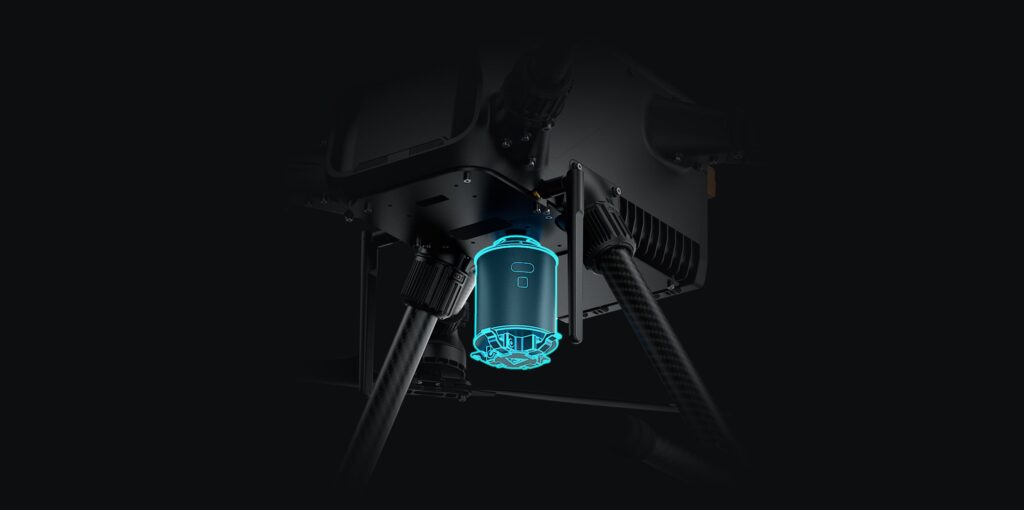

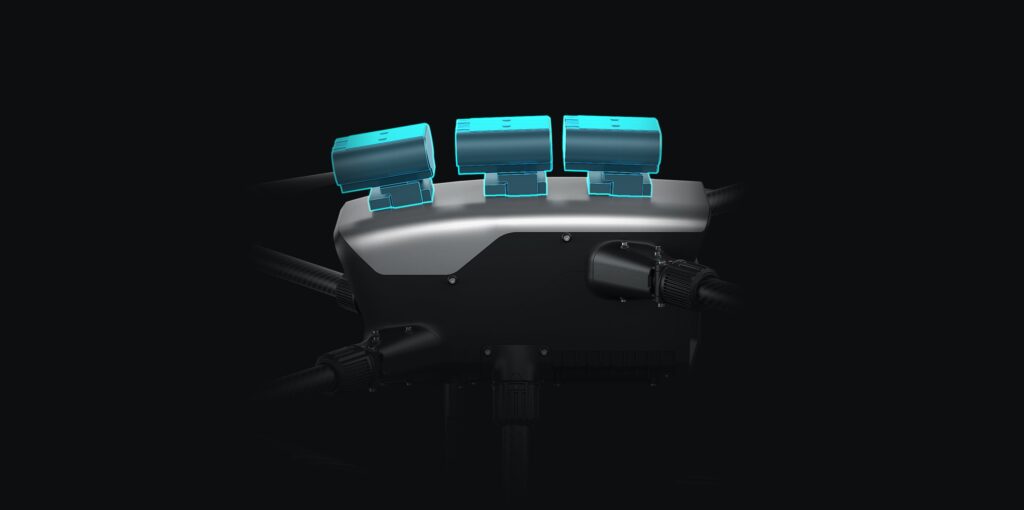

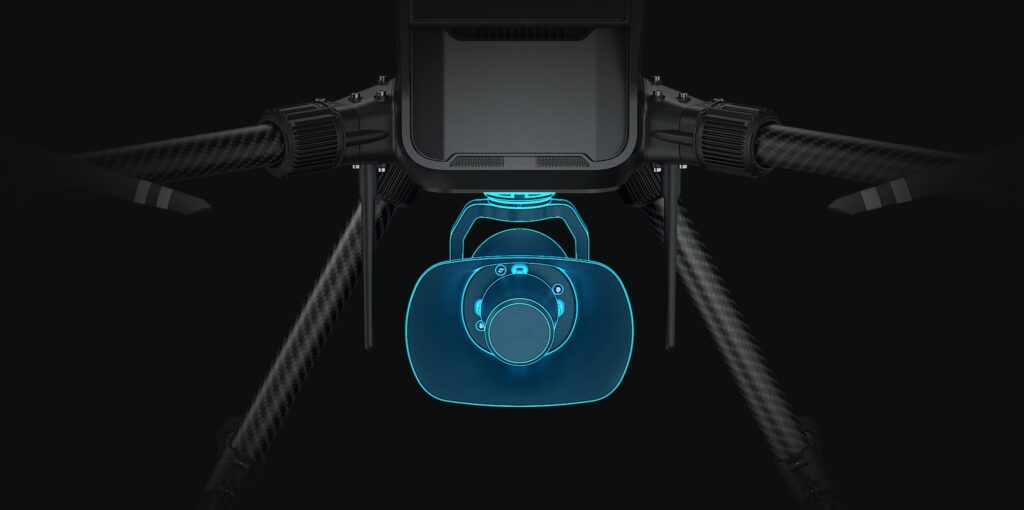

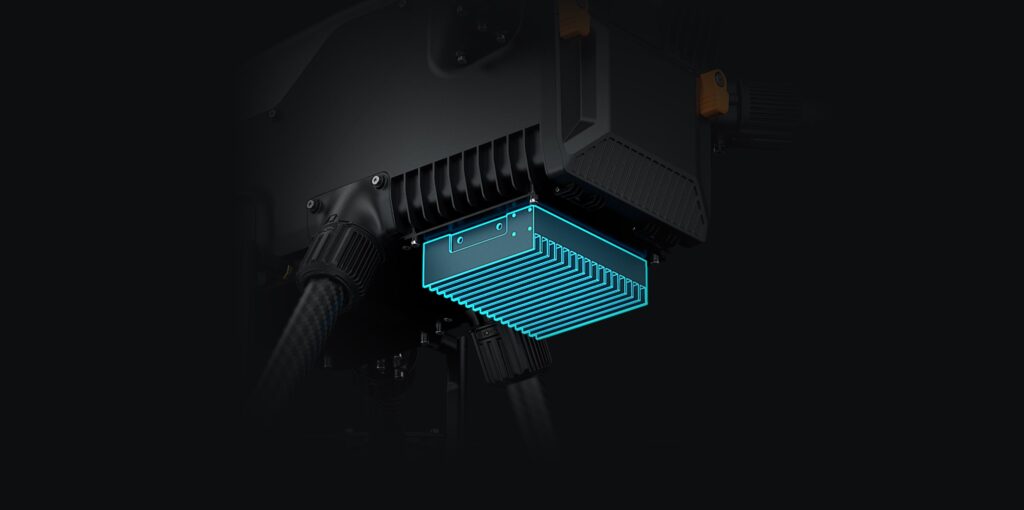

05 — Payload Zones
Front. Mid.
Rear. Top.
Four independent mounting zones for gimbals, spotlights, speakers, LiDAR, and more. Ready for power inspections, water monitoring, emergency response, and industrial surveillance.
——– 4 simultaneous payload mounts
Product Parameters
X950 Specifications
| Wheelbase | 950 mm |
| Propeller size | 23 inch |
| Waterproof rating | IP54 |
| Platform weight | 3.9 kg |
| Max takeoff weight | 10 kg |
| Unfolded size | 1253 × 1258 × 459 mm |
| Folded size | 407 × 421 × 459 mm |
| Battery voltage | 12S LiPo |
| Battery capacity | 17,000 / 22,000 mAh |
| Battery size | 210 × 130 × 80 mm |
| Payload zones | 4 (Front / Mid / Rear / Top) |
| FC compatibility | Pixhawk / JIYI / ArduPilot / DJI A3 |
