Flight control, telemetry and live video on one 12-channel handset. Built for spraying drones that work long days in open fields.
Original price was: ₹21,298.00.₹16,500.00Current price is: ₹16,500.00. (Exclusive of GST)
Only need the handset? Skydroid T12 transmitter without camera
*Skydroid rating with no obstruction and no interference. What that means in the field
One radio in your hands. Three links to the drone.
The Skydroid T12 is a 12-channel, 2.4 GHz ground unit that carries stick commands, flight-controller telemetry and camera video over a single integrated link. On the aircraft, the matching R12 receiver handles all three, instead of a separate RC receiver, telemetry radio and video transmitter.

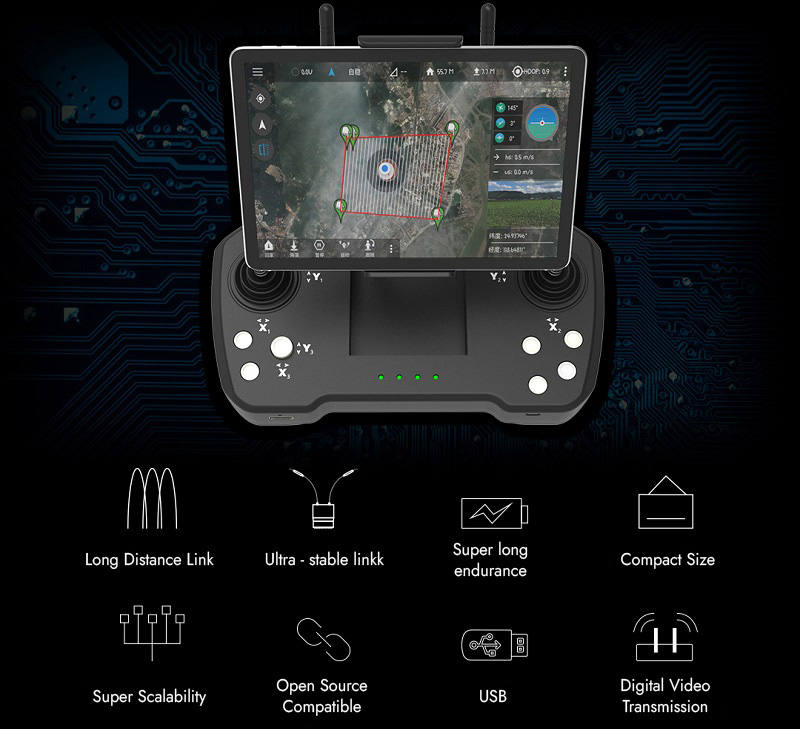

Clip an Android phone or tablet into the folding bracket and it becomes your ground station: live video from the supplied camera, telemetry and waypoint missions in Skydroid Tower, and every radio setting a few taps away in the Device Helper app.

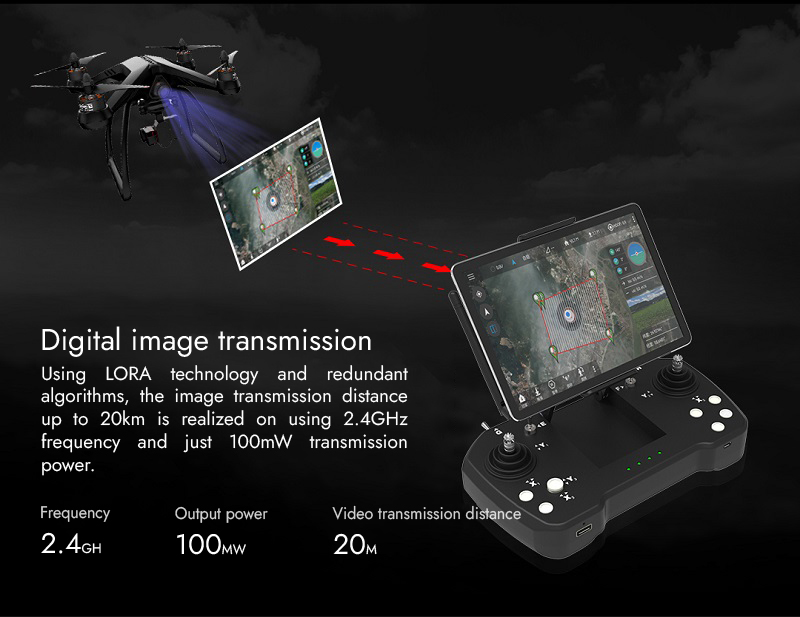

An integrated digital radio carries your stick inputs, flight data returned from the flight controller and the camera feed together. Fewer radios on the airframe means less wiring, less weight and fewer things to troubleshoot at the edge of a field.

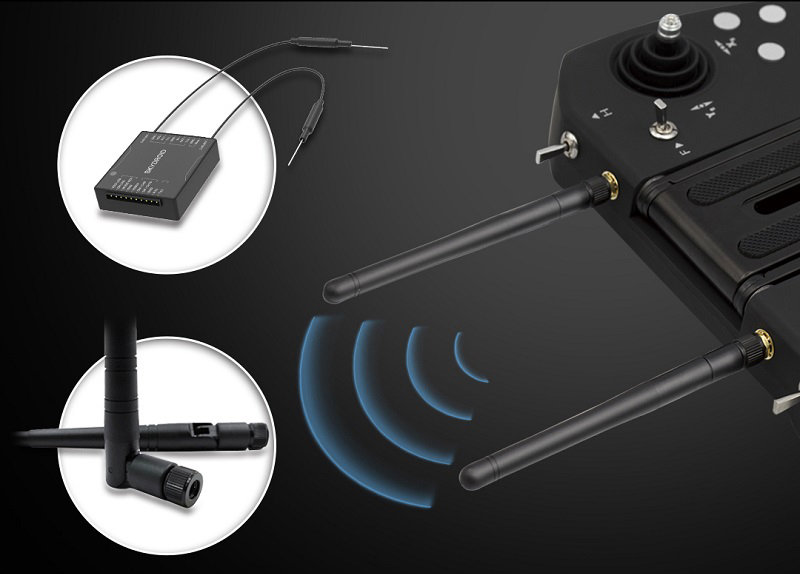

Two radio modules and two 2.4 GHz antennas work together, with frequency hopping across 2.400–2.4833 GHz. The redundancy is there to keep the signal steady as the drone turns, climbs and works its way down the field. The R12 receiver carries its own pair of antennas on the aircraft side.

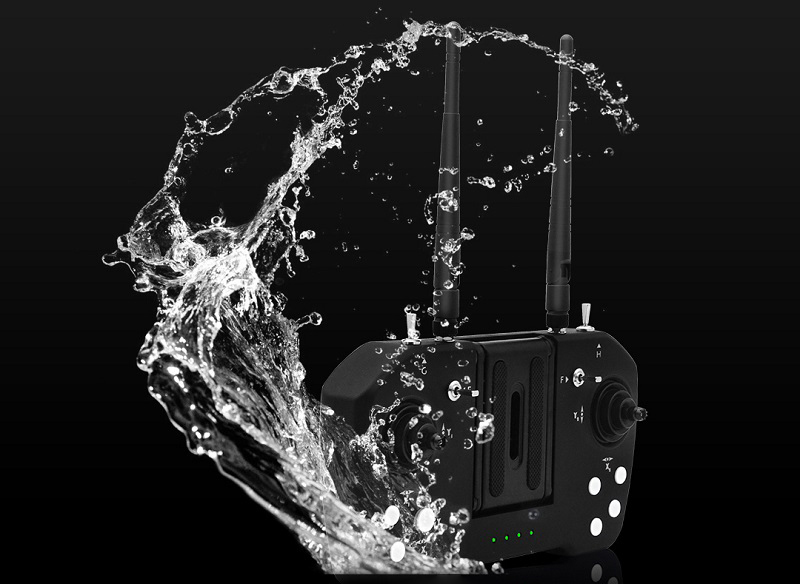

Both main sticks are sealed against water and dust, silicone caps cover the ports, and the industrial case has been drop-tested by the manufacturer. That matters when you’re refilling tanks, standing in spray drift or setting the radio down on dry soil.
It’s built to shrug off splashes and dust, not to fly in rain. Skydroid’s manual rules out flying in rain or strong wind.

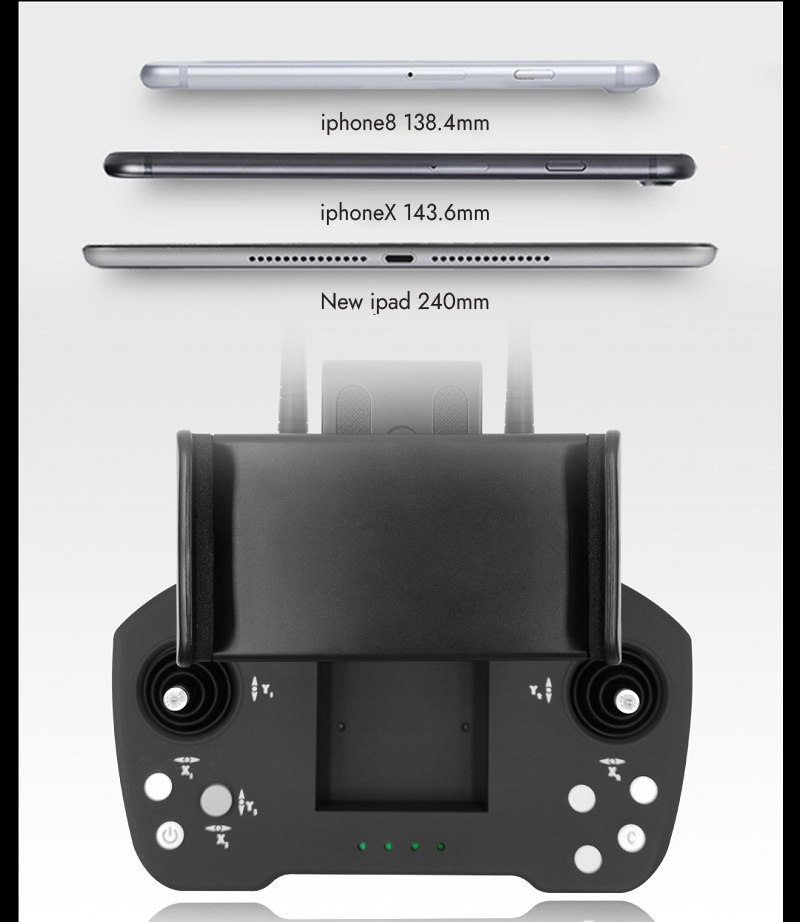

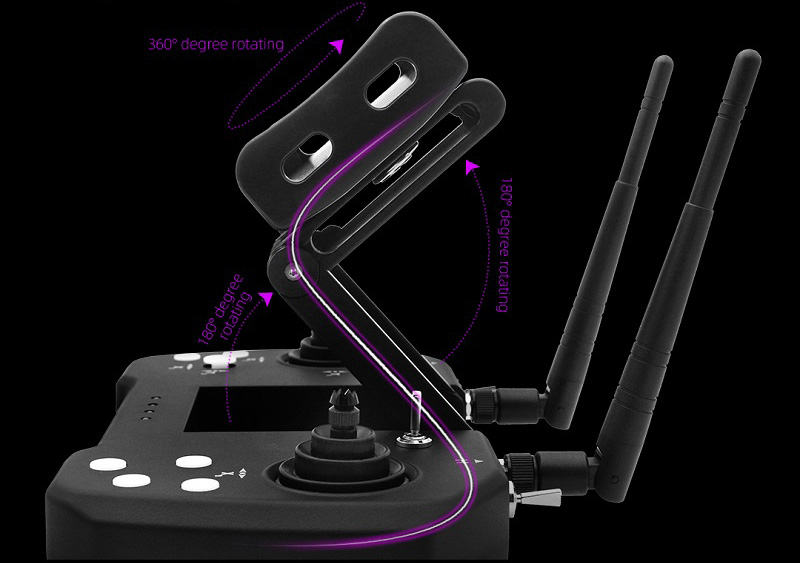

The aluminium-alloy Z bracket folds into the body, rotates a full 360°, and both holder arms adjust through 180°, so the screen sits exactly where you want it. The T12 can also top up your phone from its own battery through the 5 V output.
A 4000 mAh built-in lithium-ion battery and a low-power 100 mW radio give a rated endurance of about 25 hours. Charging is over micro-USB from any standard 5 V / 1.5 A adapter.
Device Helper connects over Bluetooth or USB OTG to set channel mapping, reversing, endpoints, failsafe values, SBUS/PPM output and telemetry baud rate. Save a configuration once, then load it onto the next controller: useful when you build drones in batches.
These are Skydroid’s ratings, measured with no obstruction and no interference. The earlier T12 manual (V2.0, 2019) lists 10 km, so treat the higher figures as a best case for current hardware.
Real range depends on line of sight, terrain, trees, other 2.4 GHz traffic and, above all, how the antennas are mounted. Always fly within the limits of local drone regulations.

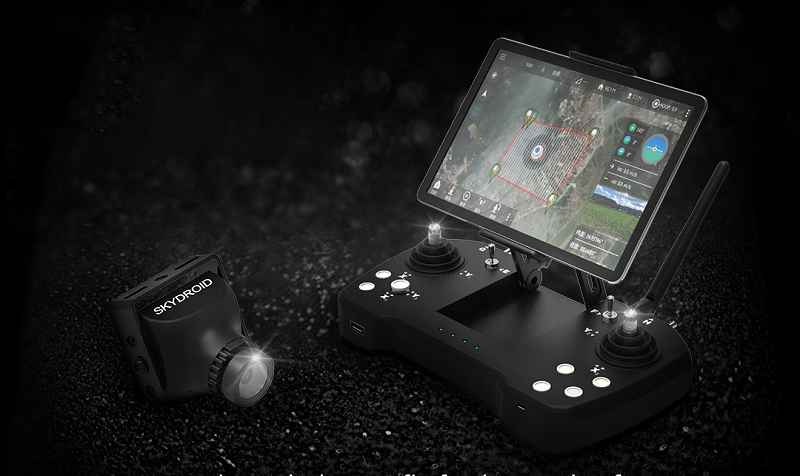

Transmitter, R12 receiver and camera, as supplied in this combo.
| Channels | 12 |
|---|---|
| Frequency | 2.400–2.4833 GHz |
| Modulation | FHSS (frequency hopping) |
| Transmit power | 100 mW |
| Rated range | 20 km video · 30 km dataNo obstruction, no interference. Manual V2.0: 10 km |
| Antennas | 2 × 2.4 GHz, 3 dB |
| Battery | 4000 mAh built-in Li-ion (1S, 3.7 V) |
| Endurance | About 25 hours |
| Working current | 130 mAManual V2.0: 170 mA |
| Charging | Micro-USB, 5 V / 1.5 A adapter |
| Phone connection | Bluetooth, USB OTG |
| Dimensions | 225 × 123 × 35 mm |
| Weight | 560 gManual V2.0: 490 g |
| Operating temperature | −10 °C to +55 °C |
| Storage temperature | −25 °C to +70 °C |
| Relative humidity | Up to 85% |
| Channels | 12 |
|---|---|
| Signal outputs | SBUS, PPM, PWM, I²C, serial |
| Working voltage | 4.5–5.5 V |
| Working current | 140 mA @ 5 V |
| Dimensions | 51 × 41 × 13 mm |
| Weight | 14 gOther Skydroid material: 20 g; manual V2.0: 26 g |
| Ports | Camera, data (TX/RX), SBUS/PPM, expansion, USB upgrade |
| Resolution | 720p at 30 fps |
|---|---|
| Power supply | 5 V, 180 mA |
| Dimensions | 30.2 × 29.8 × 26.8 mm |
| Weight | 15.6 g |
| Working temperature | −10 °C to +50 °CManual V2.0: up to +40 °C |

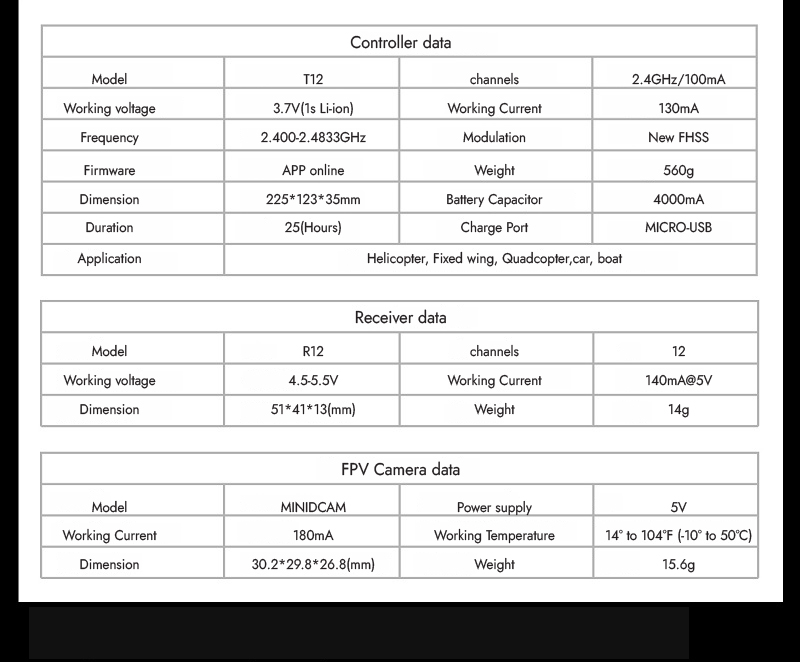

Figures come from Skydroid’s specification sheet and the T12 user manual (V2.0, June 2019). Where the two differ, both are shown.
Skydroid designed the T12 for plant-protection drones: radio control, data and video in one system. Here’s where that pays off.
Fly spraying and seeding jobs with sticks, telemetry and a live camera view on one handset, with a battery that outlasts the working day.
A 12-channel link with SBUS, PPM, PWM, I²C and serial outputs, a compact R12 receiver, and saved configurations you can load onto every controller you ship.
Standardise on one controller across the fleet: the same app, the same setup, the same workflow for every pilot you put in the field.
Plan waypoint routes, run missions automatically and bring the drone home with one-key return, all through the Skydroid Tower ground-station app.
Beyond multirotors, Skydroid lists the T12 for helicopters, fixed-wing aircraft, cars and boats.
Same 2.4 GHz radio, Bluetooth/USB-OTG connection and camera options across all three. The T12 is the compact middle option, with its own battery.

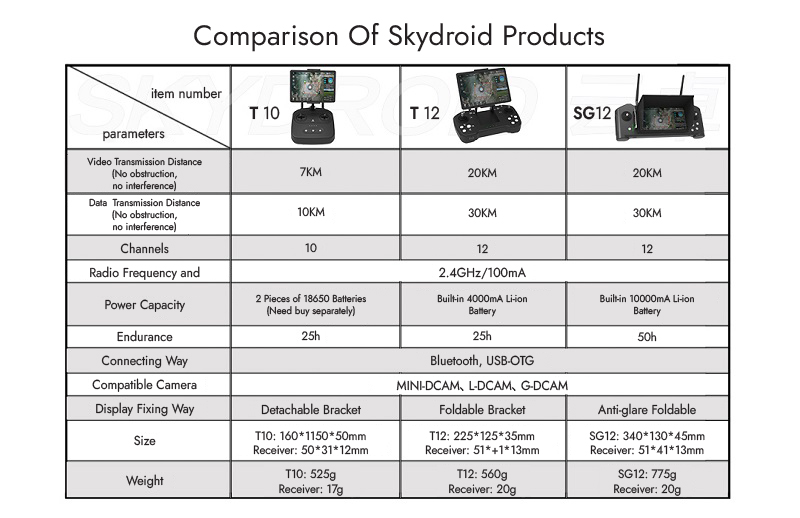

| Specification | T10 | T12 | SG12 |
|---|---|---|---|
| Video range* | 7 km | 20 km | 20 km |
| Data range* | 10 km | 30 km | 30 km |
| Channels | 10 | 12 | 12 |
| Power | 2 × 18650 (sold separately) | Built-in 4000 mAh | Built-in 10000 mAh |
| Endurance | 25 h | 25 h | 50 h |
| Screen mount | Detachable bracket | Foldable bracket | Anti-glare foldable |
| Controller weight | 525 g | 560 g | 775 g |
*No obstruction, no interference. Source: Skydroid product comparison. Not sure about your setup? Confirm T12 compatibility with our team.
We supply agriculture drone components to operators and manufacturers across India from Gurugram. Empowering drone manufacturers is the whole idea.
Bharat Skytech is an authorised Skydroid distributor, so the T12 combo you receive is 100% genuine.
Covers manufacturing faults, buttons not working out of the box, and a faulty camera or receiver.
Orders are processed within 1–2 business days of receipt.
Shipping & returns policyBuilding drones in volume? Send your quantities for a bulk quote.
Request a bulk quoteCan’t find your answer? Ask our support team.
The Skydroid T12 is a 12-channel, 2.4 GHz remote controller for drones that combines radio control, telemetry and video transmission in one link. This combo includes the T12 transmitter, the R12 receiver for the drone and a 3-in-1 digital camera.
Mainly for flying plant-protection (agriculture spraying) drones: controlling the aircraft, seeing flight data and watching live video from one handset. Skydroid also lists helicopters, fixed-wing aircraft, quadcopters, RC cars and boats as applications.
Yes, that’s what it was designed for. The user manual even shows how to mount the R12 antennas on a spraying drone: vertical, away from the centre plate, clear of carbon fibre and metal, and never crossed or placed in the middle of the tank.
Skydroid rates the T12 at up to 20 km for video and 30 km for data with no obstruction and no interference. The older V2.0 manual (2019) lists 10 km. Real-world range depends on line of sight, terrain, interference and antenna placement.
The T12 works with MAVLink flight controllers such as APM, PX4 and Pixhawk. The R12 receiver outputs SBUS, PPM, PWM, I²C and serial, so you can match your flight controller’s input. Tell us your flight controller and we’ll confirm the wiring.
No. Skydroid’s apps (Device Helper, Skydroid FPV and Skydroid Tower) are Android-only, so you’ll need an Android phone or tablet.
One T12 transmitter, one R12 receiver with antennas, one 3-in-1 digital camera, a connecting cable set and a carrying case. A phone or tablet and the flight controller are not included.
The built-in 4000 mAh lithium-ion battery is rated for about 25 hours. Charge it over micro-USB with a standard 5 V / 1.5 A adapter, and avoid charging above 60 °C.
The main joysticks are sealed against water and dust, and silicone caps protect the ports, so splashes and dust in the field aren’t a problem. No IP rating is published, though, and Skydroid’s manual says not to fly in rain or strong wind.
Yes. If you already have a camera or only need a replacement handset, see the Skydroid T12 transmitter without camera.
A three-month factory warranty covering manufacturing faults, buttons not working out of the box, and camera or receiver faults.
Order the complete T12 combo, or talk to us first about your flight controller and airframe.
