The B12 remote controller is priced at ₹49,999/- + GST. Contact Bharat Skytech for Bulk and dealer pricing, which is available on request.
🦁 MAKE IN INDIA

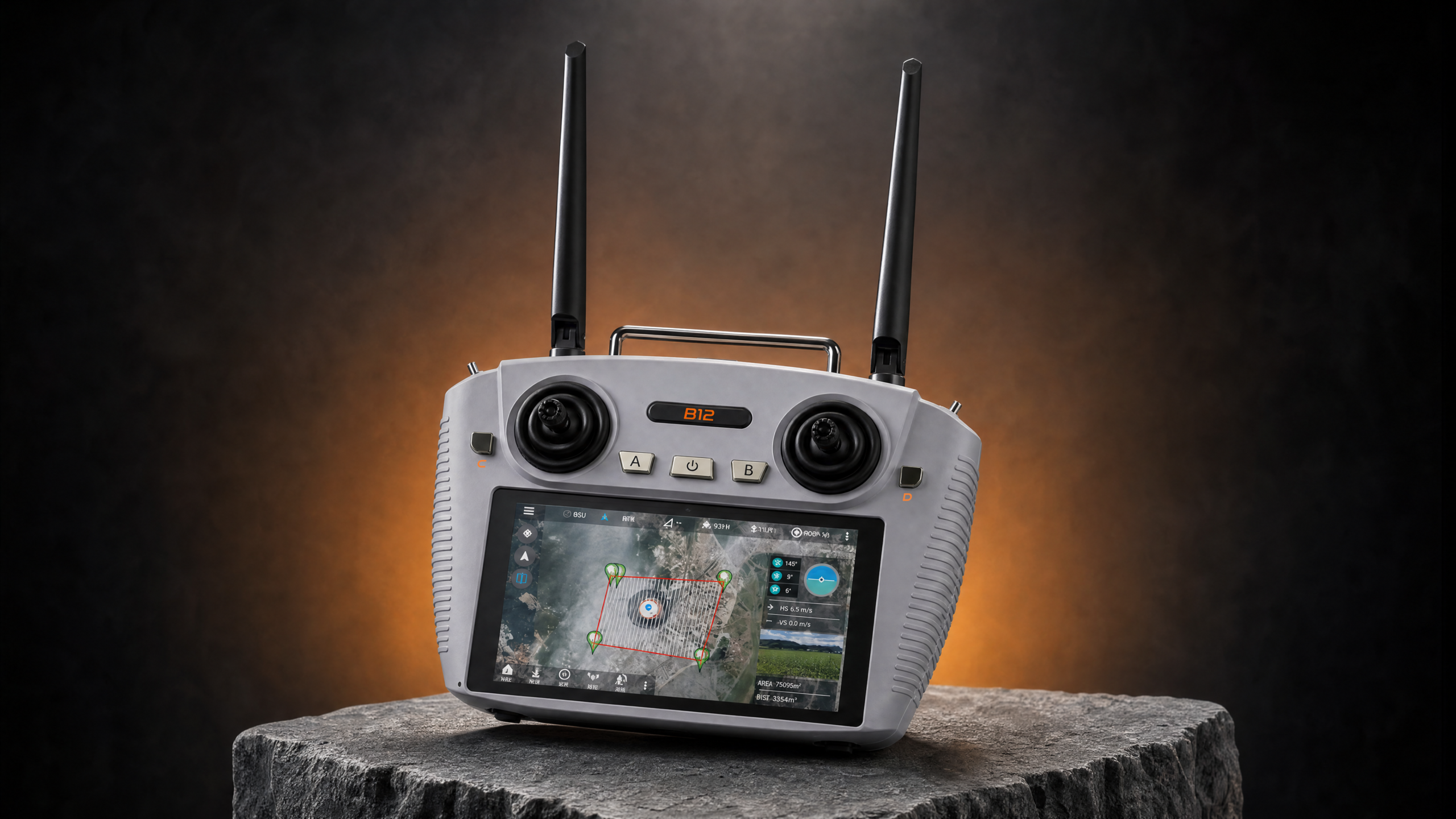

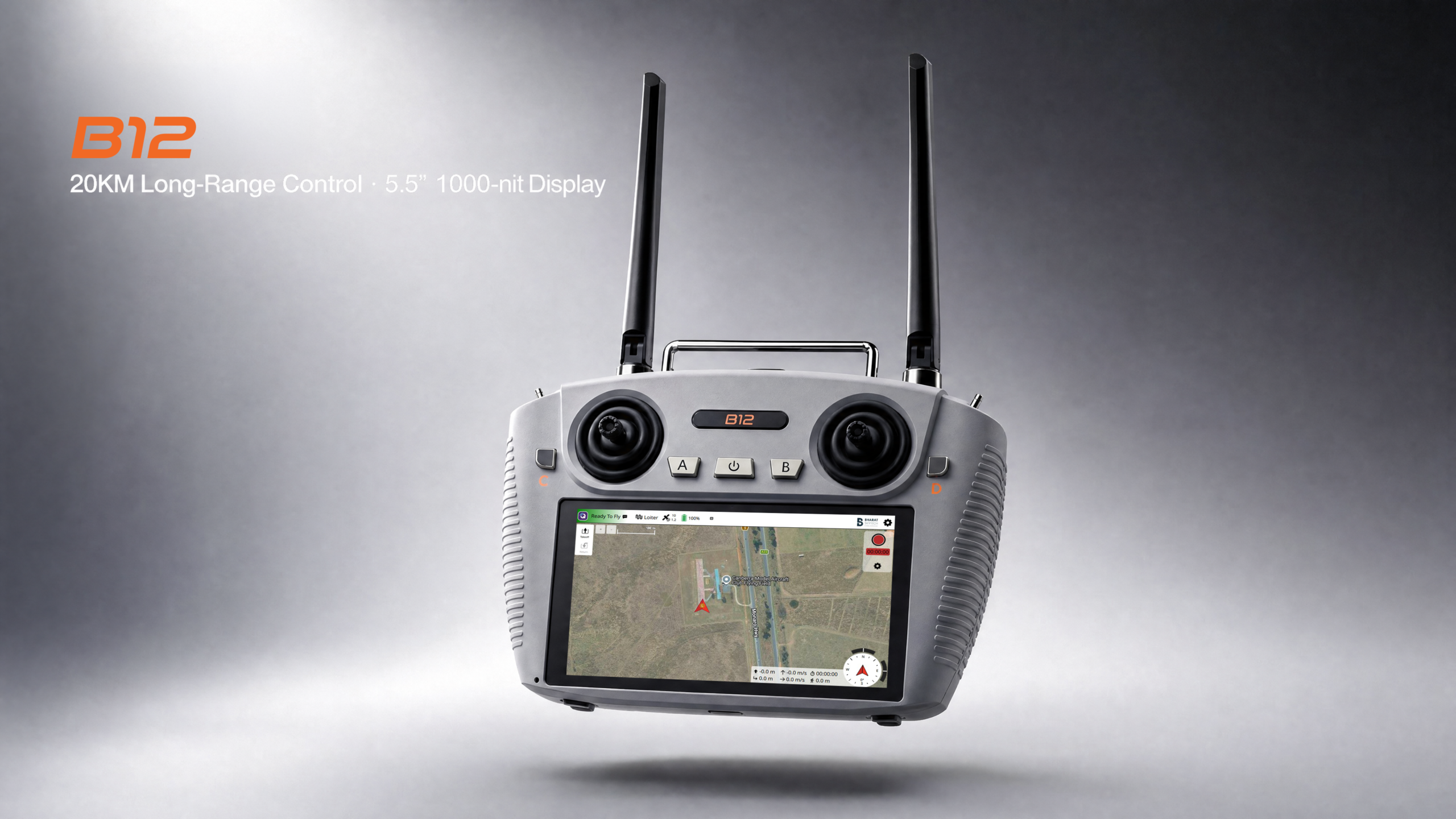

B12 Remote Controller
WPC-approved, ultra-long-range wireless HD image transmission with up to 20KM range.
20 km
Range
5.5″ HD
Display
12
Channels
4–8 h
Endurance

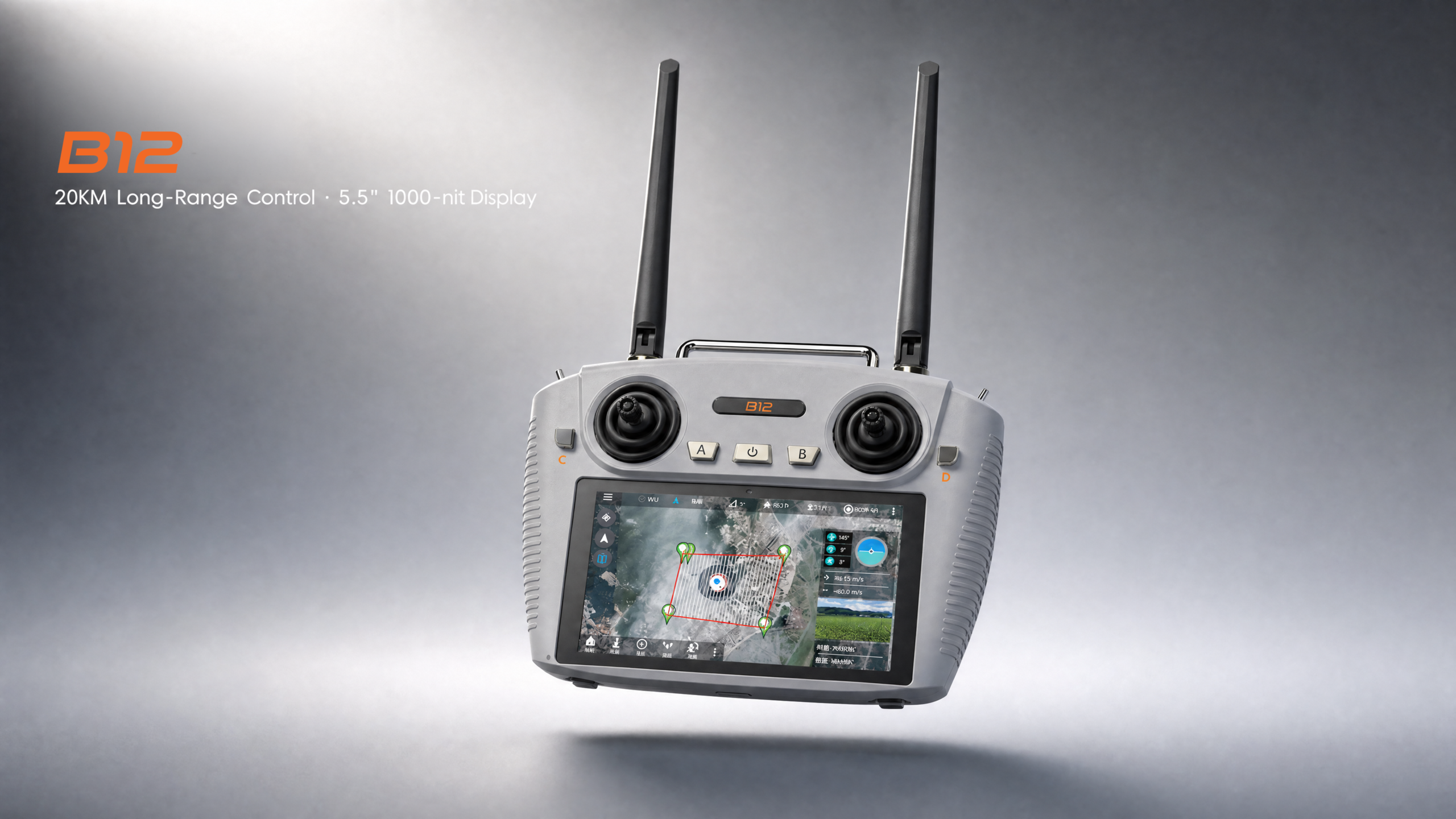

Command to 20 kilometres
Paired with the BR20 receiver, the B12 pushes control, telemetry and high-definition video far beyond line of sight — so the aircraft stays under positive control across the whole site.
2.4–5.8 GHz23 dBm RFAir rate to 160 Mbps
A screen you can read in full sun
A 5.5-inch high-brightness 1920×1080 display keeps your flight HUD, map and live feed sharp in harsh daylight — clear situational awareness through the entire mission.
5.5″ high-brightness1920×1080

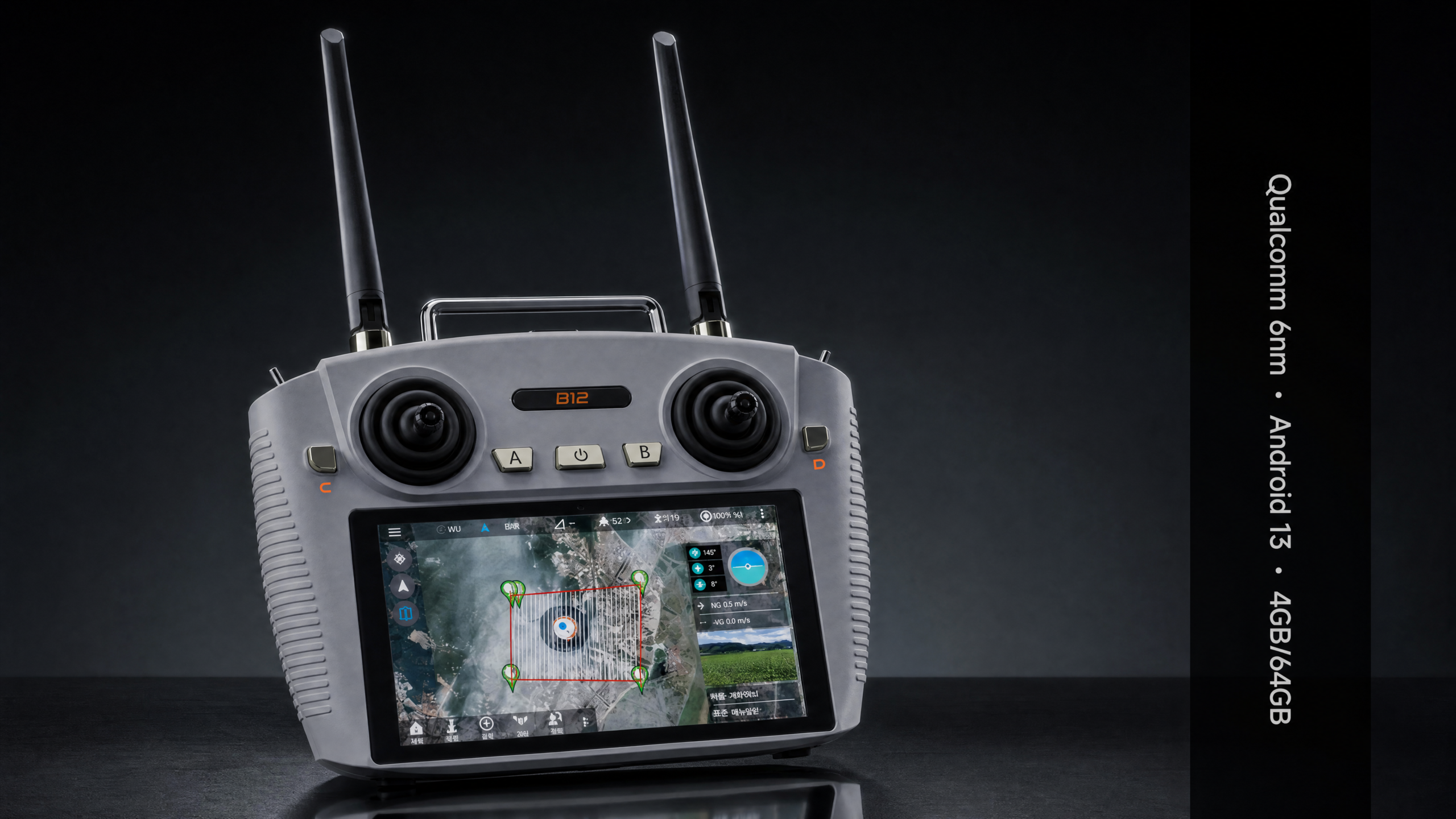

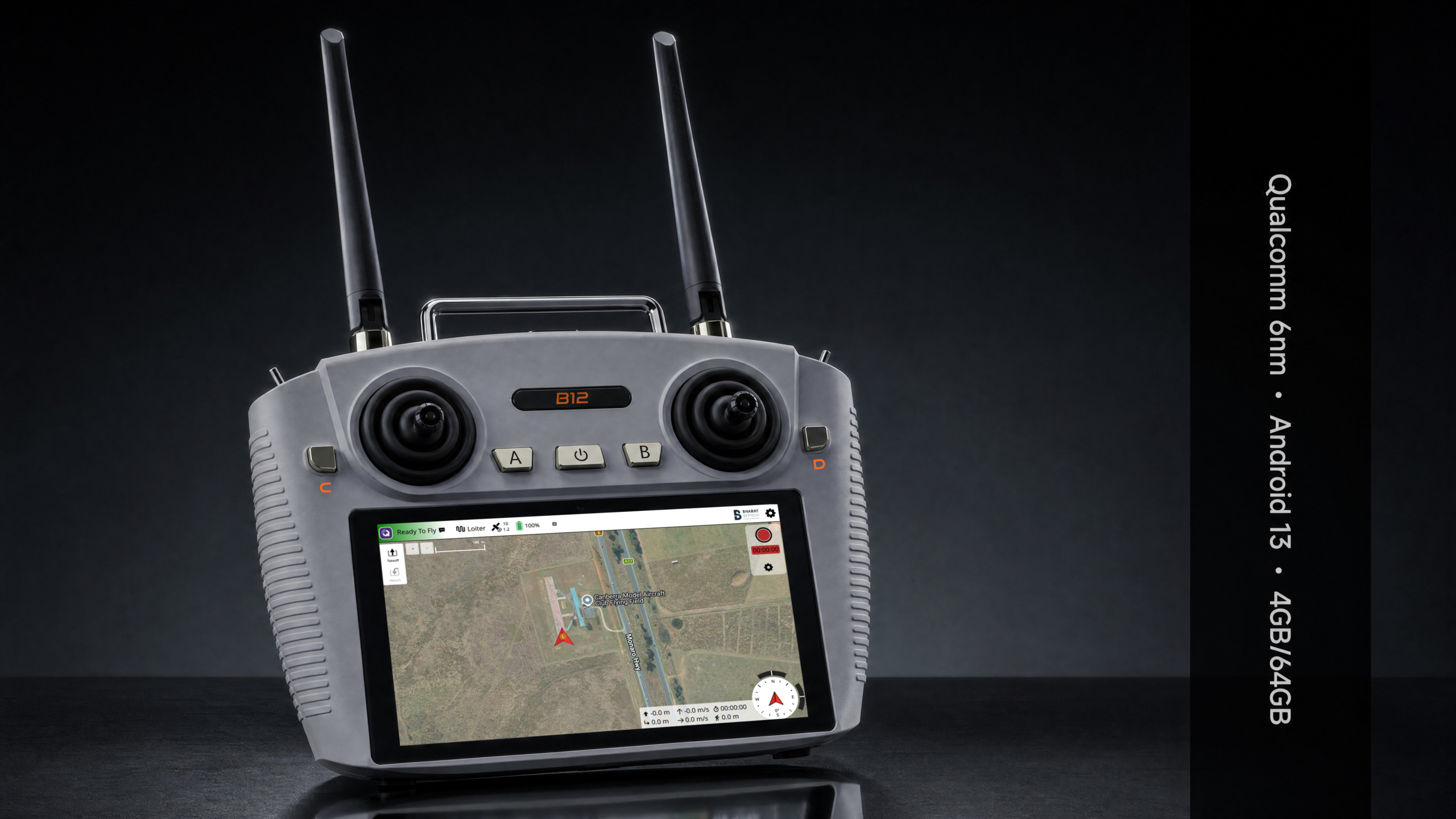

Qualcomm 6nm power on Android 13
A modern 6nm processor with 4GB RAM and 64GB of storage runs your ground-control and mapping apps smoothly, records mission data on-device, and stays open for the tools you already use.
4 GB RAM64 GB storageSIM slot

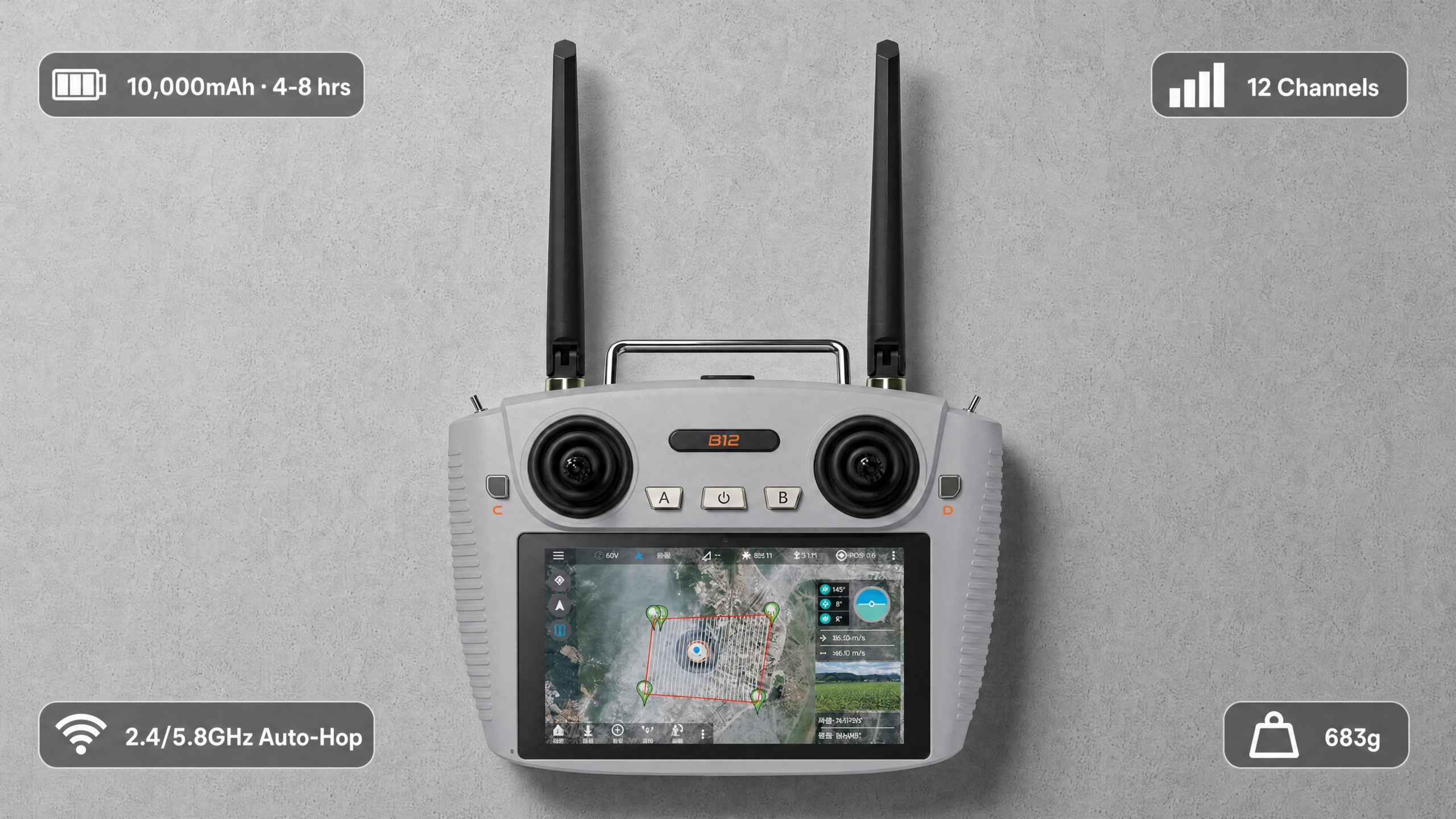

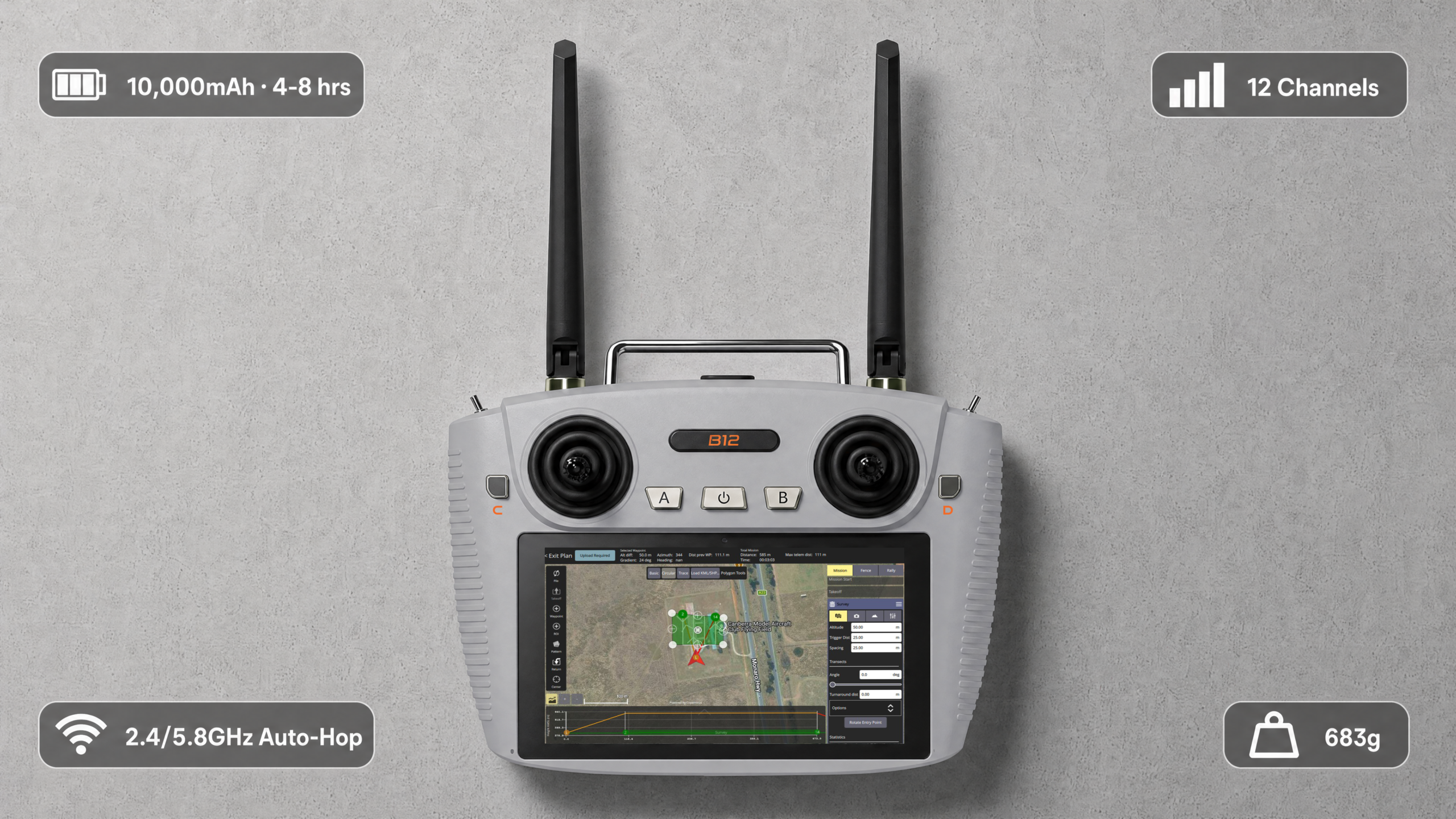

10 Ah battery, 4–6 hours per charge
A built-in 10,000 mAh cell covers long survey runs and full spraying shifts without a swap. Universal USB Type-C charging tops up from the cables and power banks you already carry.
10,000 mAhUSB Type-C
12 channels, automatic frequency hopping
Twelve channels give headroom for flight, gimbal, payload and auxiliary control. Dynamic FM continuously seeks the cleanest spectrum, holding a stable link in congested RF environments.
12 channelsAuto hoppingSBUS · PWM · serial
One compact receiver, every output
The included 37 g BR20 carries a 7.2–72V wide-voltage input, a network port, SBUS output, three PWM channels and a data port — with selectable bandwidth from 1.25 MHz up to 40 MHz to tune for range or throughput.
37 g7.2–72 V (XT30)3× PWM · SBUS · network

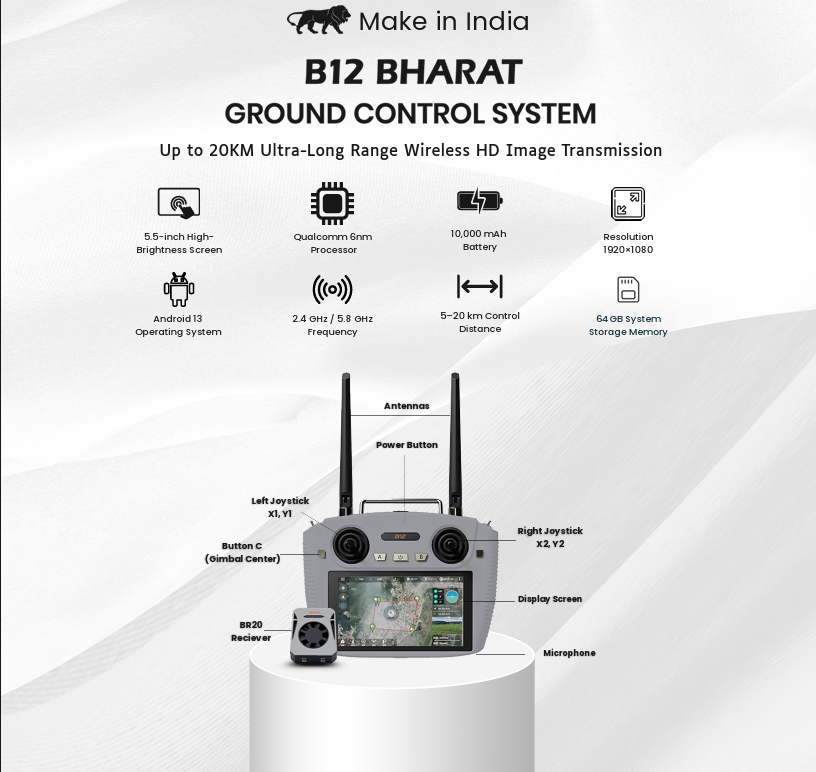

Anatomy
Every control where your hands expect it

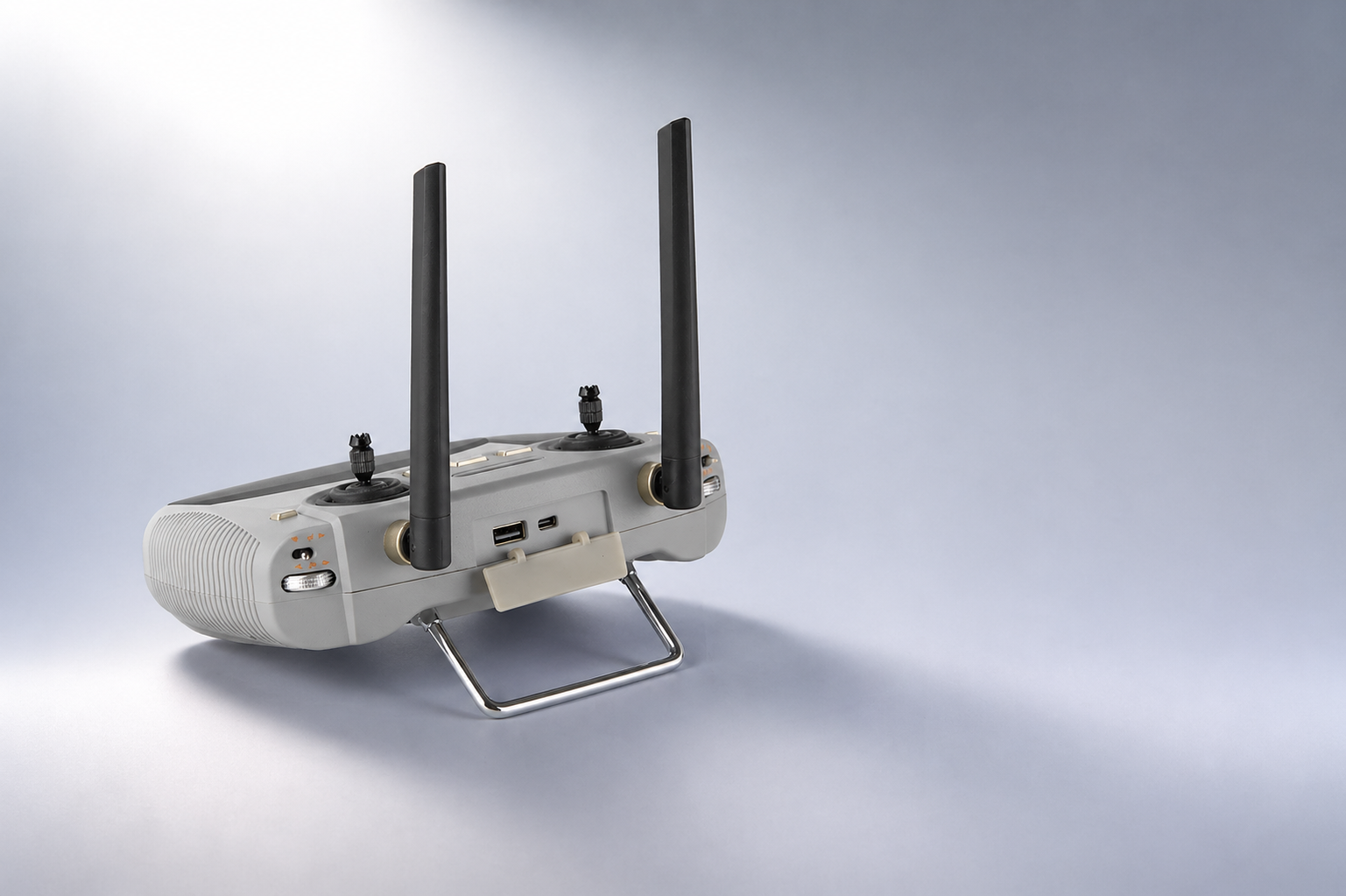

01Dual Antennas
02Power Button
03Left Joystick (X1, Y1)
04Right Joystick (X2, Y2)
05Button C — Gimbal Center
065.5″ Display Screen
07BR20 Receiver
08Microphone
Applications
Built for demanding UAV work
From farm boundaries to industrial corridors — the range, clarity and link reliability that professional missions demand.

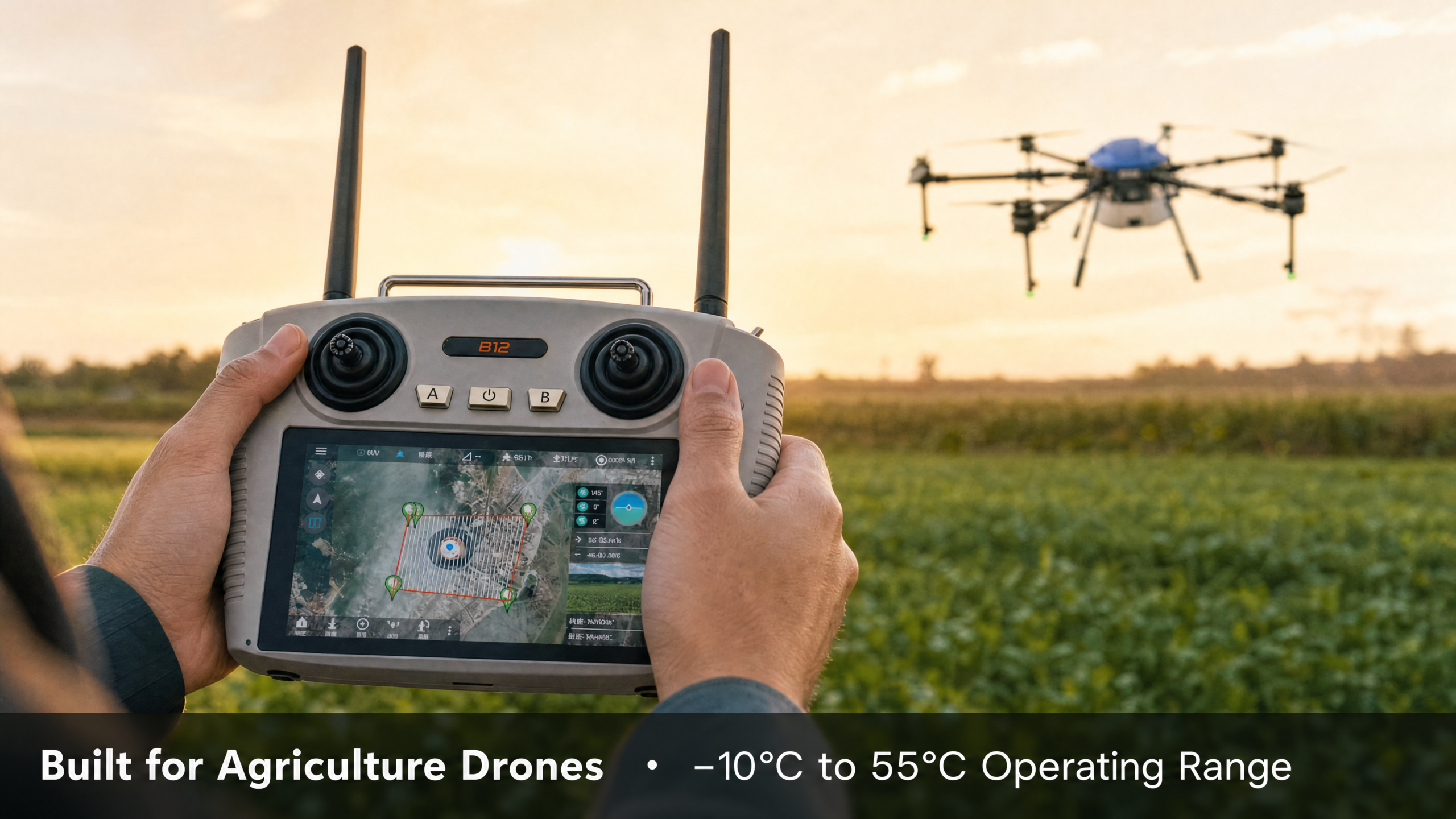

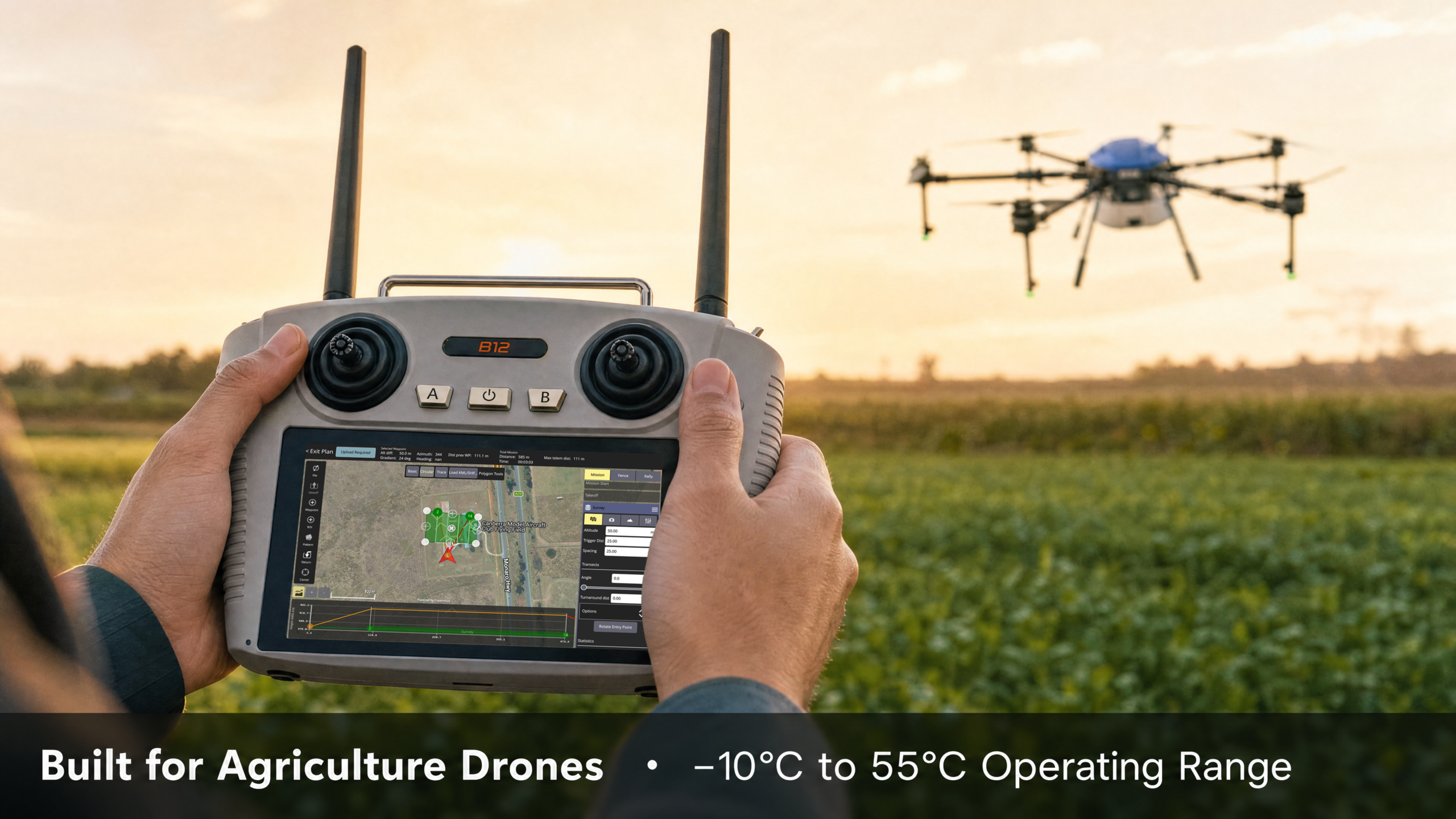

Agriculture
Agriculture drones
Cover large fields in a single shift. Long endurance and a sunlight-readable display make spraying and crop monitoring easy to manage end to end.
Industrial
Industrial inspection
Inspect towers, pipelines and solar farms from a safe standoff with a stable 20 km link and recordable HD video.
Mapping
Surveying & mapping
Run programmed missions with confidence. On-device storage and open Android keep data and planning tools in one place.
Security
Security & surveillance
Maintain positive control beyond line of sight; automatic frequency hopping holds the link steady in congested RF.
Logistics
Logistics & delivery
Twelve channels and multiple outputs (SBUS, PWM, network) support payload-release and auxiliary systems.
Enterprise
Enterprise fleets
A consistent, locally supported controller standard across your fleet — simpler training, easier servicing.
Technical Specifications
Full parameters
B12 Remote Controller & BR20 Receiver
B12 Remote Controller
| Display | 5.5″ high-brightness | Resolution | 1920×1080 |
| Processor | Qualcomm 6nm | Android version | 13 |

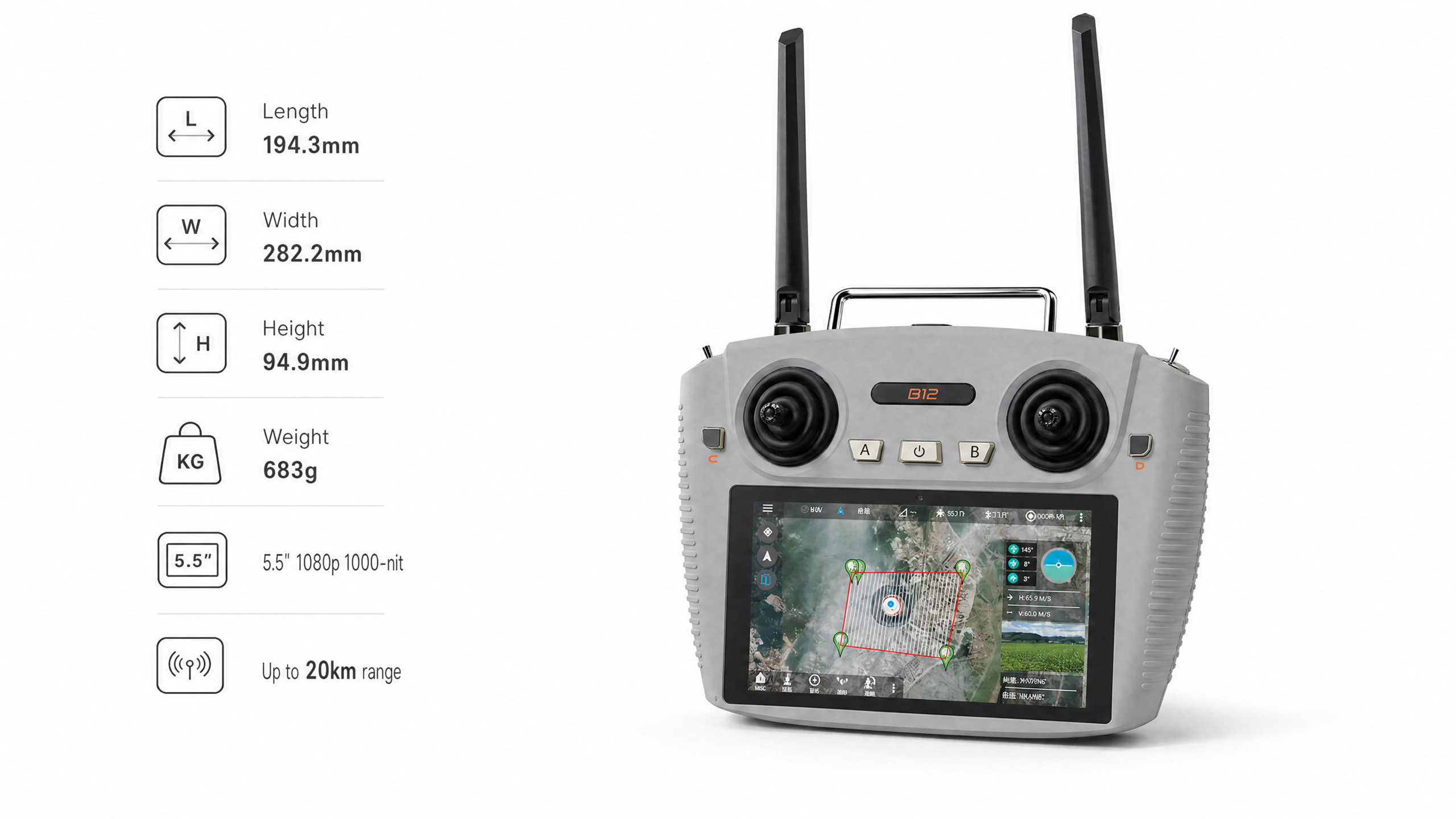

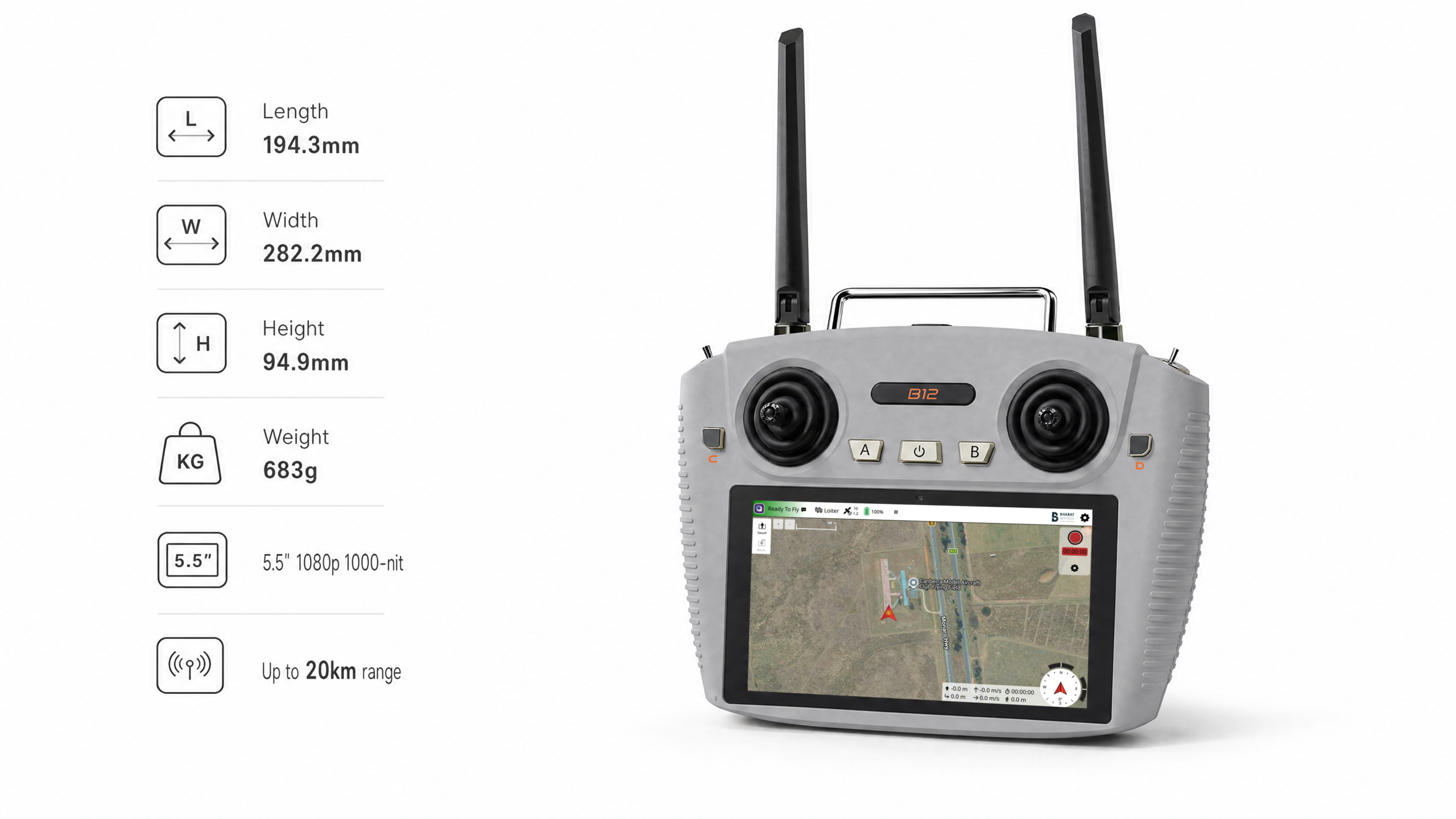

| Size (L×W×H) | 194 × 282.2 × 94.9 mm | Weight | 683 g |
| Battery | 10 Ah | Endurance | 4–8 hours |
| RAM | 4 GB | Internal storage | 64 GB |
| Operating frequency | 2.4–5.8 GHz | Channels | 12 |
| Dynamic FM | Auto frequency hopping | RF power | 23 dBm @ CE/FCC |
| Control distance | 5–20 km | Operating temp. | −10 °C to 55 °C |
| Charging interface | USB Type-C | External interfaces | Serial · USB · SIM · Type-C |
BR20 Receiver
| Frequency band | 2.4–5.8 GHz | Serial baud rate | 57600 / 115200 / 921600 |
| Supply voltage | 7.2–72 V (XT30) | Operating current | 12 V / 0.3 A |
| Data transmission port | 1 channel | Air data rate | 200 Kbps – 160 Mbps |
| Network port | 1 channel | Dimensions | 45.5 × 60 × 21.5 mm |
| SBUS output | 1 channel | Weight | 37 g |
| PWM interface | 3 channels | Operating temp. | −10 °C to 60 °C |
| RF power | 23 dBm @ CE/FCC | Channel bandwidth | 1.25 / 2.5 / 5 / 10 / 20 / 40 MHz |
Why Bharat Skytech
01
Make in India
Designed and assembled in India, reducing reliance on imported hardware.
02
Field reliability
Stable long-range link and auto frequency hopping, rated −10 °C to 55 °C.
03
Durable design
A rugged 683 g body with all-day endurance for daily commercial use.
04
Local support
Direct domestic team for guidance, servicing and spares — no overseas wait.
B12 Remote Controller – Make in India Drone Ground Control System
Every professional flight depends on one thing the spec sheets rarely talk about: a controller you can trust. Indian drone operators work in punishing conditions — open fields under harsh sun, dust, long distances from the takeoff point, and crowded radio environments near towns and highways. A consumer-grade or generic imported controller often shows its limits exactly when it matters: a screen you can’t read at noon, a link that drops at range, or support that lives an ocean away.
The B12 Drone Remote Controller from Bharat Skytech is built to remove those failure points. It is a complete, professional drone ground control system — engineered and assembled in India — that pairs a bright, readable display with a stable long-range link and locally backed support. For agriculture, survey, and industrial UAV teams, it turns ground control from a weak link into a dependable foundation.
B12 Remote Controller: Product Overview
The B12 is a handheld UAV remote controller with display, combining the transmitter, ground station computer, and live video monitor into a single rugged unit. At its core sits a Qualcomm 6nm processor running Android 13, paired with a 5.5-inch high-brightness 1920×1080 screen. Together with the included BR20 air-unit receiver, the system delivers control, telemetry, and HD video across distances of up to 20 km.
With 12 control channels, automatic frequency hopping, a 10 Ah battery, and a −10 °C to 55 °C operating range, the B12 is designed as a professional drone controller for daily commercial flying — not occasional hobby use. As a genuine Make in India drone controller, it also gives operators something imported hardware can’t: local supply, local servicing, and local accountability.
Key Features of the B12 Drone Ground Control System
5.5-Inch High-Brightness Display
A high-brightness 1920×1080 screen keeps your flight HUD, map, and live feed sharp in direct sunlight. As a drone remote controller with screen, the B12 ends the routine of shading the display by hand mid-mission — you keep full situational awareness from takeoff to landing.
Long-Range Command up to 20 km
Paired with the BR20 receiver, the B12 maintains control, telemetry, and high-definition video out to 20 km. For teams that need a long range drone controller India can support and service, this means covering large farms, long pipeline corridors, and wide survey blocks without losing positive control of the aircraft.
12 Channels with Automatic Frequency Hopping
Twelve channels give you headroom for flight, gimbal, payload, and auxiliary functions. Dynamic FM with automatic frequency hopping continuously seeks the cleanest part of the spectrum, holding a steady link in congested RF environments — a real advantage for operations near urban areas and other transmitters.
Qualcomm 6nm Processor on Android 13
A modern 6nm chipset with 4 GB RAM and 64 GB of storage runs ground-control and mapping apps smoothly and records mission data on-device. The open Android 13 platform lets your team install the flight, mapping, and live-stream software it already relies on, plus a SIM slot for connectivity in the field.
All-Day Battery Endurance
A built-in 10,000 mAh (10 Ah) battery delivers four to eight hours of continuous operation, covering full spraying shifts and long survey runs without a swap. Universal USB Type-C charging tops it up from the same cables and power banks your crew already carries.
Rugged, Field-Ready Build
At 683 g with a robust handheld body and a −10 °C to 55 °C operating range, the B12 is built to absorb the knocks of daily field work. The included BR20 receiver weighs just 37 g yet provides a 7.2–72 V wide-voltage input, network port, SBUS output, and three PWM channels — flexible enough to integrate with most professional airframes.
B12 Applications Across Indian UAV Operation
Agriculture Drone Operations
For spraying, seeding, and crop monitoring, endurance and a sunlight-readable display decide how much you cover per shift. That combination makes the B12 a strong fit — arguably the best drone controller for agriculture drones running long routes across large landholdings, where every minute of readable screen time counts.
Surveying & Mapping
Run programmed mapping missions with confidence. On-device storage plus an open Android platform keep your flight planning, capture, and data tools in one place, while the stable long-range link supports wide-area survey blocks as a dependable drone ground control system.
Industrial & Infrastructure UAVs
Inspect towers, solar farms, pipelines, and plants from a safe standoff distance. A 20 km link and recordable HD video give clear, documentable detail for industrial UAV teams that need reliable, repeatable inspections.
Security, Government & Enterprise
For surveillance and public-sector missions, the B12 maintains positive control beyond visual line of sight, with automatic frequency hopping holding the link steady in difficult RF conditions. Indian sourcing also simplifies procurement and long-term support for government and enterprise fleets.
Why Choose Bharat Skytech
Bharat Skytech designs and assembles the B12 in India, reducing your dependence on imported hardware and the delays that come with it. That means faster servicing, locally held spares, direct technical support in your time zone, and the ability to standardise one reliable controller across an entire fleet. For organisations aligned with self-reliance and local procurement, a Make in India drone controller is not just a value — it’s a practical operational advantage.
B12 vs Generic Imported Controllers
Many premium imported controllers are excellent radios, but for Indian professional operations they share recurring drawbacks: long repair turnaround, limited customisation, supply uncertainty, and support routed overseas. The B12 is built around the opposite priorities — a sunlight-grade display, a long-range link, an open Android platform, and, critically, a domestic team you can actually reach.
| Consideration | B12 Remote Controller | Typical imported controller |
|---|---|---|
| Origin & supply | Make in India, locally stocked | Imported, longer lead times |
| Control range | Up to 20 km | Often shorter, model-dependent |
| Display | 5.5″ high-brightness 1080p | Varies; not always daylight-grade |
| Platform | Open Android 13 | Often locked or version-limited |
| Support & spares | Direct, domestic | Overseas, slower turnaround |
Comparison is indicative and intended as general guidance; competing products vary by model.
Get the B12 Remote Controller
Standardise your fleet on a controller built for Indian conditions and backed by an Indian team.
Request a quote or talk to a Bharat Skytech today for pricing, bulk/fleet options, and integration support for your airframe.
Frequently Asked Questions
What is the B12 Remote Controller?
The B12 is a professional drone ground control system from Bharat Skytech — a handheld UAV remote controller with a 5.5-inch HD display, 12 channels, and up to 20 km range, designed and assembled in India for agriculture, survey, and industrial drone operations.
What is the range of the B12 drone controller?
Paired with the included BR20 receiver, the B12 delivers control, telemetry, and HD video transmission at distances of up to 20 km, making it a strong long range drone controller for large-area missions in India.
Is the B12 a Make in India drone controller?
Yes. The B12 is engineered and assembled in India by Bharat Sky Tech, giving operators local supply, local servicing, and direct domestic technical support.
Is the B12 suitable for agriculture spraying drones?
Yes. With 4–8 hours of battery endurance, a sunlight-readable display, and a stable long-range link, the B12 is well suited as an agriculture drone remote controller for long spraying and crop-monitoring routes.
Does the B12 remote controller have a screen?
Yes. It features a built-in 5.5-inch high-brightness 1920×1080 display running Android 13, so you get a live map, flight HUD, and HD video on the controller itself — no separate monitor required.
What is the price of the B12 Remote Controller in India?
What aircraft and protocols does the BR20 receiver support?
The BR20 receiver provides SBUS output, three PWM channels, a network port, and a data transmission port, with a 7.2–72 V input — making it compatible with a wide range of professional UAV airframes.
Original price was: ₹60,999.00.₹49,999.00Current price is: ₹49,999.00. (Exclusive of GST)
